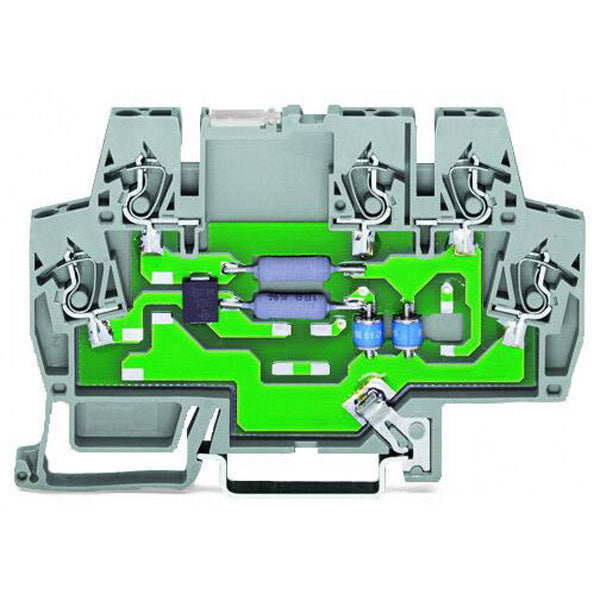

Wago - 792-804

Suppressor module - 2-stage - for 2 signal paths with common suppressor - for symmetric interfaces - WAGO (792 series) - for 0.08mm2...1.5mm2 / for #28AWG...#16AWG - with CAGE CLAMP spring connections - Maximum continuous voltage (Uc) 38.5Vac / 55Vdc - DIN-35 rail mounting (6mm width) - equivalent to 792804

Specifications

• Primary brand: WAGO
• Functions: Suppressor module
• Design: 2-stage|for 2 signal paths with common suppressor|for symmetric interfaces
• Rated current: 1.7A
• Rated operating voltage (Ue): 48V
• Maximum continuous operating voltage (Uc): 38.5Vac|55Vdc
• Connection type: CAGE CLAMP spring connections
• Cross-section: for 0.08mm2...1.5mm2 conductors|for #28AWG...#16AWG
• Mounting mode: DIN-35 rail
• Dimensions: H91mm x W6mm x D56mm
• Net Width (mm): 6mm
• Ambient air temperature for operation: -40°C...+80°C
• Ambient air temperature for storage: -40°C...+80°C
• GTIN code: 4017332780773
• Customs Tariff Number: 85363010000
• ETIM code: EC000943
• eClass code: 27-13-08-05
• Order code / Manufacturer SKU: 792-804
• Manufacturer product status: Commercialized
• Equivalent to: 792804
• EAN code: 4017332780773
• Compliant with standard(s): IEC 61643-21|General approvals|- EAC - GZO Almaty Standart - TP TC 004/2011 - certificate EAC CoC 03078|Declarations of conformity and manufacturer's declarations|- EU-Declaration of Conformity - WAGO GmbH & Co. KG|RoHS compliant
• Location of origin: Germany
• Level 1 category: Electrical components
• Level 2 category: Electrical circuits protection
• Level 3 category: Surge Protection Devices (SPD)
• Product title: Suppressor module - WAGO

Commercial data

• Country of origin: DE
• Customs tariff number: 85363010000
• ECCN: NO US CLASSIFICATION
• eCl@ss 10.0: 27-13-08-05
• eCl@ss 9.0: 27-13-08-05
• ETIM 8.0: EC000943
• ETIM 9.0: EC000943
• GTIN: 4017332780773
• Packaging type: Box
• Product Group: 21 (Special Products Electronic)
• PU (SPU): 1 pcs

Connection data

• Connection technology: CAGE CLAMP^®
• Connections (number): 5
• Fine-stranded conductor: 0.08 … 2.5 mm² / 28 … 14 AWG
• Solid conductor: 0.08 … 2.5 mm² / 28 … 14 AWG
• Strip length: 5 … 6 mm / 0.2 … 0.24 inches

Electrical data

• Impedance: 0.4Ω
• Limit frequency (line/line): 10MHz
• Maximum continuous voltage: 38.5 VAC / 55 VDC
• Nominal current: 1.7A
• Nominal discharge current (8/20 µs) (line): 5 kA
• Nominal discharge current (8/20 µs) (total): 10 kA
• Nominal operating voltage: 48 VDC
• Protection level (line/line) (cat. C2 at I_N): ≤ 100 V
• Protection level (line/line) (cat. C3 at I_N): ≤ 70 V
• Protection level (line/protected ground) (cat. C2 at I_N): ≤ 750 V
• Protection level (line/protected ground) (cat. C3 at I_N): ≤ 650 V

Environmental Product Compliance

• RoHS Compliance Status: Compliant,No Exemption

Environmental requirements

• Ambient temperature (operation): -40 … +80 °C
• Ambient temperature (storage): -40 … +80 °C

Material data

• Weight: 37g

Mechanical data

• Mounting type: DIN-35 rail|DIN-35 rail

Notes

• Note: The coordination characteristics of the surge arrester provide information about its discharge capacity and protection capability.

Physical data

• Depth from upper-edge of DIN-rail: 56 mm / 2.2 inches
• Height: 91 mm / 3.58 inches
• Width: 6 mm / 0.236 inches

Safety and protection

• Protection type: IP00; IP20 with end and intermediate plate

Standards and specifications

• Standards/specifications: IEC 61643-21|IEC 61643-21
