Wago - 789-913

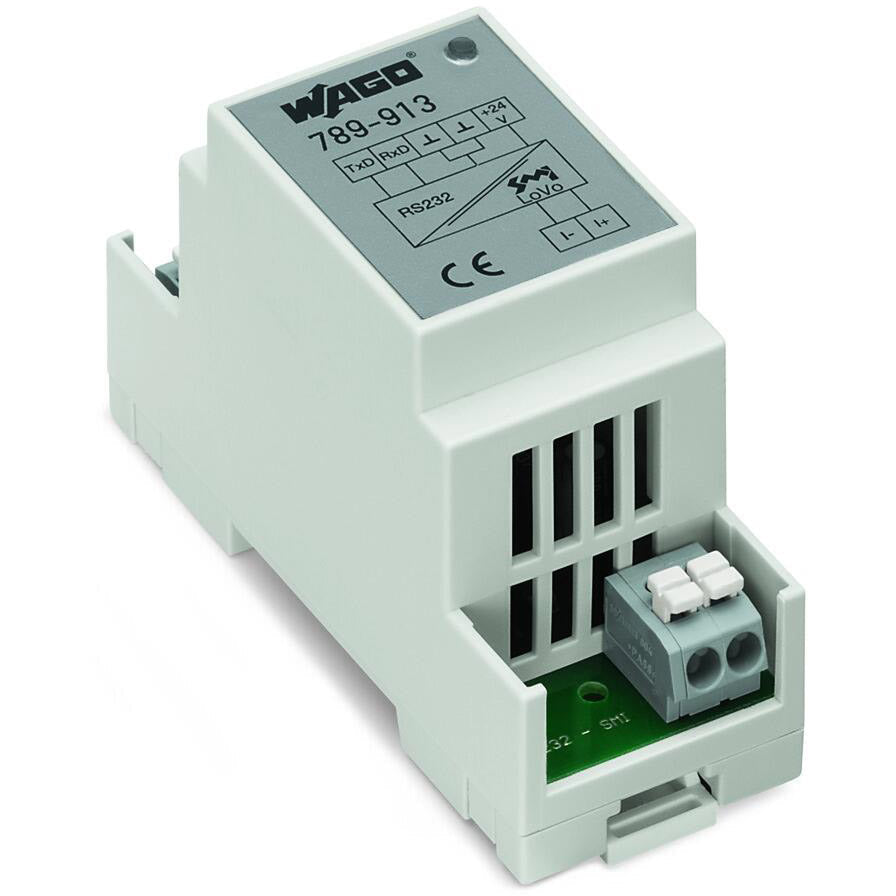

Interface module - in mounting carrier - SMI LoVo channel - WAGO (789 series) - with RS-232 communication capability - supply voltage 21.6-26.4Vdc (24Vdc nom.) - with CAGE CLAMP spring connections - DIN-35 rail mounting (35mm width) - IP20 - rated for 0°C...+50°C ambient - equivalent to 789913

Specifications

• Primary brand: WAGO
• Functions: Interface module
• Design: in mounting carrier|SMI LoVo channel
• Supply voltage (DC): 21.6-26.4Vdc (24Vdc nom.)
• Connection type: CAGE CLAMP spring connections
• Mounting mode: DIN-35 rail
• Dimensions: H90mm x W35mm x D55mm
• Net Width (mm): 35mm
• Ambient air temperature for operation: 0°C...+50°C
• Ambient air temperature for storage: -25°C...+85°C
• eClass code: 27-37-12-16
• Customs Tariff Number: 85389099990
• ETIM code: EC000225
• GTIN code: 4050821101819
• Order code / Manufacturer SKU: 789-913
• Manufacturer product status: Commercialized
• Equivalent to: 789913
• EAN code: 4050821101819
• Compliant with standard(s): EN 50090-2-2|General approvals|- EAC - GZO Almaty Standart - TP TC 020/2011 - certificate EAC CoC 03083|RoHS compliant
• Location of origin: Germany
• Level 1 category: Automation components
• Product title: Interface module - WAGO

Commercial data

• Country of origin: DE
• Customs tariff number: 85389099990
• ECCN: NO US CLASSIFICATION
• eCl@ss 10.0: 27-37-12-16
• eCl@ss 9.0: 27-37-12-16
• ETIM 8.0: EC000225
• ETIM 9.0: EC000225
• GTIN: 4050821101819
• Packaging type: box
• Product Group: 6 (INTERFACE ELECTRONIC)
• PU (SPU): 1 pcs

Connection data

• Cable length (max.): 350 m (SMI bus; ≤ 3 m for data and power supply cable, RS-232)
• Connection technology: CAGE CLAMP^®
• Fine-stranded conductor: 0.5 … 2.5 mm² / 20 … 12 AWG
• Solid conductor: 0.5 … 2.5 mm² / 20 … 12 AWG
• Strip length: 10 … 11 mm / 0.39 … 0.43 inches
• WAGO connector: WAGO 804 Series

Electrical data

• Current consumption at nominal supply voltage: ≤ 55 mA (inside)
• Interface: RS-232 (interface input)
• Nominal operating voltage: 24 VDC
• Number of drives per channel: 16
• Number of SMI LoVo channels: 1
• Operating voltage range: ±10 %
• Specialty functions: SMI LoVo
• Status indicator: Green LED

Environmental Product Compliance

• RoHS Compliance Status: Compliant,No Exemption

Environmental requirements

• Ambient temperature (operation): 0 … +50 °C
• Ambient temperature (storage): -25 … +85 °C

Material data

• Weight: 80g

Mechanical data

• Housing design: DIN-rail-mount enclosure
• Mounting position: any
• Mounting type: DIN-35 rail

Physical data

• Depth from upper-edge of DIN-rail: 55 mm / 2.165 inches
• Height: 90 mm / 3.543 inches
• Width: 35 mm / 1.378 inches

Safety and protection

• Protection type: IP20

Standards and specifications

• Standards/specifications: EN 50090-2-2
