Wago - 789-810

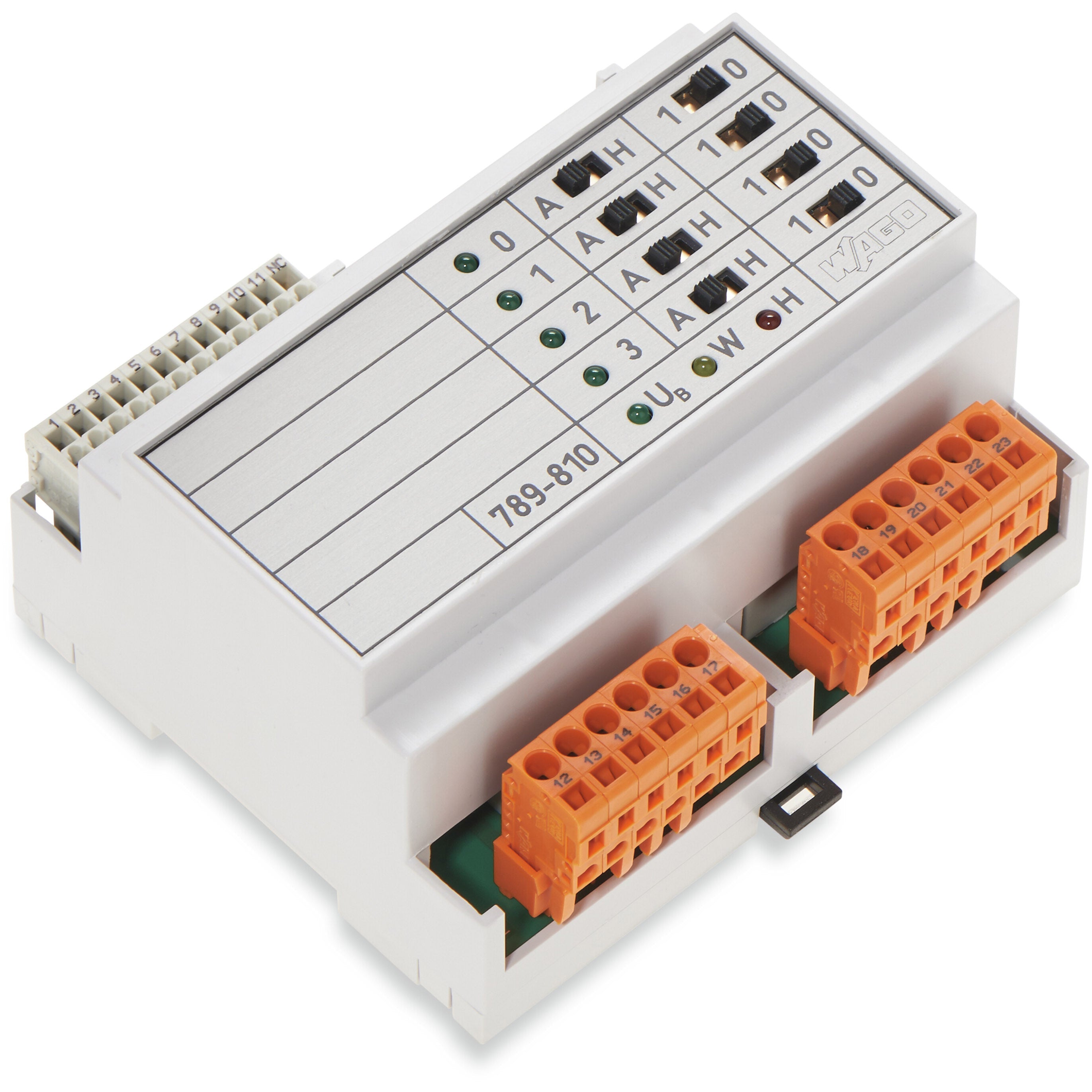

Manual operation module - WAGO (789 series) - supply voltage 19.2-28.8Vdc (24Vdc nom.) - with CAGE CLAMP spring connections - DIN-35 rail mounting (106mm width) - rated for 0°C...+50°C ambient - equivalent to 789810

Specifications

• Primary brand: WAGO
• Functions: Manual operation module
• Supply voltage (DC): 19.2-28.8Vdc (24Vdc nom.)
• Connection type: CAGE CLAMP spring connections
• Mounting mode: DIN-35 rail
• Digital inputs: 4 x digital inputs (24Vdc)
• Digital outputs: 4 x digital outputs (0-3Vdc / 0-10Vdc)
• Dimensions: H90mm x W106mm x D58mm
• Net Width (mm): 106mm
• Ambient air temperature for operation: 0°C...+50°C
• Ambient air temperature for storage: -25°C...+70°C
• GTIN code: 4050821108849
• Customs Tariff Number: 85389091890
• eClass code: 27-37-12-16
• ETIM code: EC000225
• Order code / Manufacturer SKU: 789-810
• Manufacturer product status: Commercialized
• Equivalent to: 789810
• EAN code: 4050821108849
• Compliant with standard(s): RoHS compliant with exemption (7(c)-I)
• Location of origin: Germany
• Level 1 category: Automation components
• Product title: Manual operation module - WAGO

Commercial data

• Country of origin: DE
• Customs tariff number: 85389091890
• ECCN: NO US CLASSIFICATION
• eCl@ss 10.0: 27-37-12-16
• eCl@ss 9.0: 27-37-12-16
• ETIM 8.0: EC000225
• ETIM 9.0: EC000225
• GTIN: 4050821108849
• Packaging type: box
• Product Group: 6 (INTERFACE ELECTRONIC)
• PU (SPU): 3 (1) pcs

Connection data

• Connection technology: CAGE CLAMP^®|CAGE CLAMP^®
• Connection type: Output
• Connection type 1: Input
• Fine-stranded conductor: 0.08 … 1.5 mm² / 28 … 14 AWG|0.08 … 2.5 mm² / 28 … 12 AWG
• Solid conductor: 0.08 … 1.5 mm² / 28 … 14 AWG|0.08 … 2.5 mm² / 28 … 12 AWG
• Strip length: 7 mm / 0.28 inches|8 … 9 mm / 0.31 … 0.35 inches
• WAGO connector: WAGO 734 Series
• WAGO connector 2: WAGO 231 Series

Electrical data

• Inputs: No. 1 / 10: 24 V; power supply|No. 2: GND|No. 3 / 4 / 5 / 6: DI-0 … 3; Input 0 … 3; 24 V / 20 mA (max.)|No.11: WD-IN; Watchdog input; 24 V / 20 mA (max.)
• Nominal operating voltage: 24 VDC
• Operating voltage range: ±20 %
• Outputs: No. 7: H-C; Manual operation; “closed”|No. 8: H-CM; Manual operation; “common”|No. 9: H-O; Manual operation; “open”|No. 12 / 15 / 18 / 21: GND|No. 13 / 16 / 19 / 22: AO-0 … 3; Output 0 … 3; 0 … 10 V / 20 mA (max.)|No. 14 / 17 / 20 / 23: GND

Environmental Product Compliance

• CAS-No.: 1303-86-2|1317-36-8
• REACH Candidate List Substance: Diboron trioxide|Lead monoxide
• RoHS Compliance Status: Compliant,With Exemption
• RoHS Exemption: 7(c)-I
• SCIP notification number (Austria): df219052-56bb-4183-87d8-e2b35e3b23cc
• SCIP notification number (Belgium): 21f77c9c-0eb9-4809-bcbb-960673659e64
• SCIP notification number (Bulgaria): 1dfddab9-8630-498d-8088-097fca55ad70
• SCIP notification number (Czech Republic): f2b72772-a011-461d-84ce-311cb7b5f23e
• SCIP notification number (Denmark): 65b78244-c6c5-40cb-9973-4b748a21b42f
• SCIP notification number (Finland): a4bab338-6841-478d-b105-ff91e016bce8
• SCIP notification number (France): efa5fb3a-30ff-4e51-afd1-d0dd62c22df7
• SCIP notification number (Germany): e4a15ca5-2783-48ed-95ee-ab4b972dd2f7
• SCIP notification number (Hungary): b626e93f-4b16-4ef6-940e-6380029e7469
• SCIP notification number (Italy): 866d9385-12e2-4d18-a4f7-a118965da531
• SCIP notification number (Netherlands): 3265440a-c734-4e9f-a537-9475b8495eb6
• SCIP notification number (Poland): 6815cb0b-f922-4310-96f7-425598800e4d
• SCIP notification number (Romania): 1d67fcff-98f8-430e-91a8-105f2de7ee48
• SCIP notification number (Sweden): a420c231-65ec-4bbf-b858-673291b3552e

Environmental requirements

• Ambient temperature (operation): 0 … +50 °C
• Ambient temperature (storage): -25 … +70 °C

Material data

• Fire load: 0.458MJ
• Weight: 251.6g

Mechanical data

• Housing design: DIN-rail-mount enclosure
• Mounting type: DIN-35 rail

Physical data

• Depth from upper-edge of DIN-rail: 58 mm / 2.283 inches
• Height: 90 mm / 3.543 inches
• Width: 106 mm / 4.173 inches

Safety and protection

• Dielectric strength, input/output (AC, 1 min): 4kV_rms
