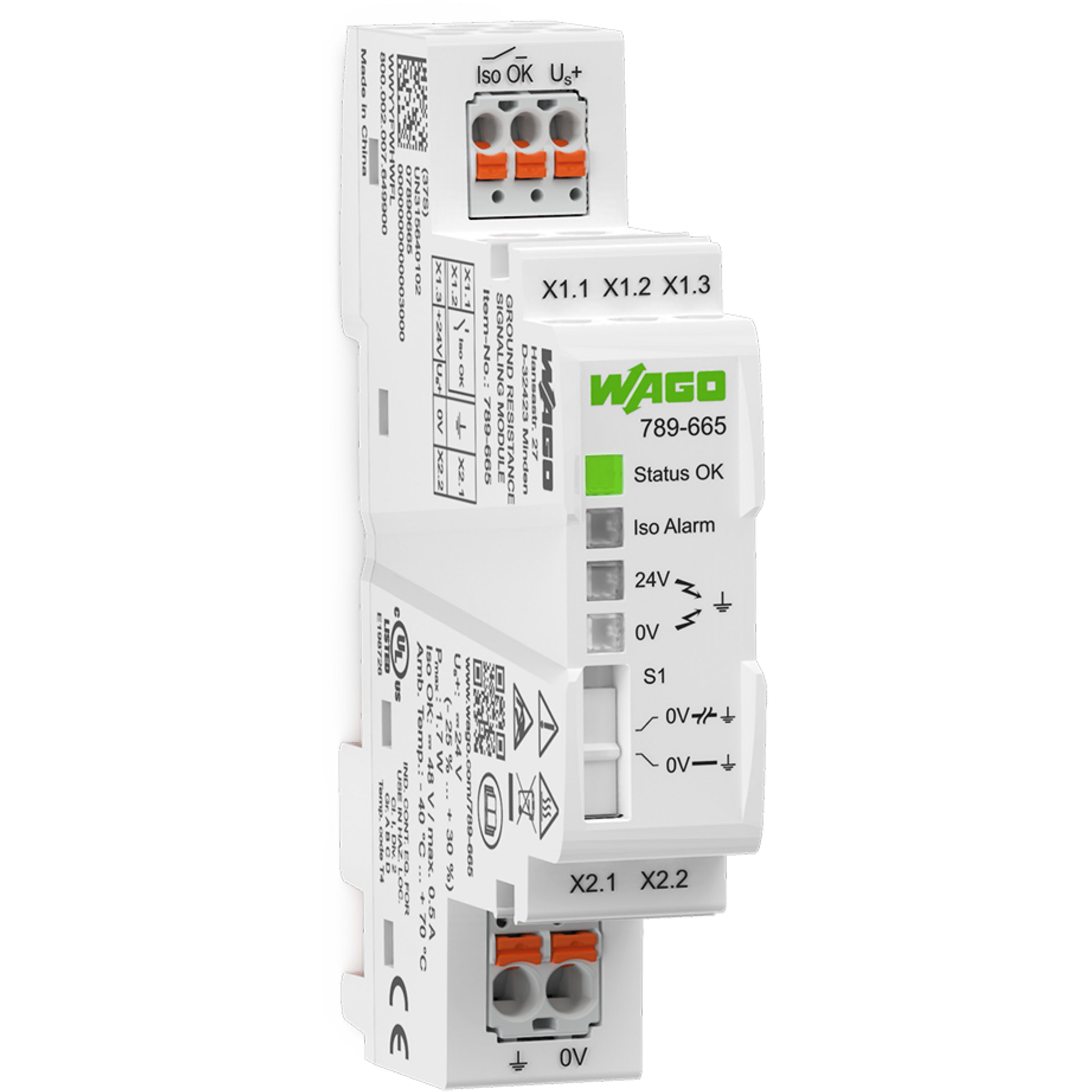

Wago - 789-665

WAGO component - equivalent to 789665

Specifications

• Primary brand: WAGO
• GTIN code: 4066966120820
• Order code / Manufacturer SKU: 789-665
• Manufacturer product status: Commercialized
• Equivalent to: 789665
• EAN code: 4066966120820
• Manufacturer description: Ground resistance signaling module; Ground fault alarm via digital output; Supply voltage 24Vdc; Module width 18mm
• Manufacturer product specifications: Power supply - Nominal supply voltage U_S -- 24 VDC (SELV)|Power supply - Supply voltage range (DC) -- 18...31.2 VDC|Power supply - Current consumption at nominal supply voltage -- ≤ 40mA|Power supply - Power loss P_l -- ≤ 1.7W|Power supply - Current at ground fault (24 VDC) max. -- 56mA|Signaling - Operation status indicator -- 1 x LED "Status OK" (green)|Signaling - Signaling -- 1 x LED "Iso Alarm" (red) / 1 x LED "Iso Alarm" 24V - Ground (yellow) / 1 x LED "Iso Alarm" 0V - Ground (yellow) / 1 x Signal output "Iso OK"|Iso OK contact - Switching voltage (max.) -- 48 VDC (SELV)|Iso OK contact - Continuous current (max.) -- 500mA (for general use)|Iso OK contact - Number of Iso OK contacts connected in series (max.) -- 25 (Limit value type 1); 32 (Limit value type 2 and 3) (per IEC 61131)|Iso OK contact - Function -- 1 make contact (NO); closed with applied power supply and insulation resistance > limit value|Circuit protection - Backup fusing (required) -- The fuse must be placed in the output circuit of the power supply. The fuse must be adapted to the power supply used and must trip safely in case of a short circuit. The module is designed for use with a 10A (max. ) fuse or with a 10 ADC (max.) circuit breaker (characteristic B or C).|Safety and protection - Pollution degree -- 2|Safety and protection - Overvoltage category -- II|Safety and protection - Protection type -- IP20|Safety and protection - Test voltage (supply/Iso OK contact) -- 1.5kVAC; 50...60Hz; 1 min|Safety and protection - MTBF -- > 600000 h (per MIL-HDBK-217F2)|Mode Ungrounded circuit - Response value for alarm at nominal voltage -- 4kΩ (at U_S = 24 V; for other U_S values see diagram for signaling threshold)|Mode Ungrounded circuit - Response time -- 1s|Mode Ungrounded circuit - Hysteresis (typ.) -- 1kΩ|Mode Grounded circuit - Response value for alarm at nominal voltage -- 4kΩ (at U_S = 24 V; for other U_S values see diagram for signaling threshold)|Mode Grounded circuit - Response time -- 10s|Mode Grounded circuit - Hysteresis (typ.) -- 1kΩ|Connection data - Connection type 1 -- X1.x|Connection data - Connection technology -- Push-in CAGE CLAMP|Connection data - WAGO connector -- picoMAX eCOM|Connection data - Solid conductor -- 0.25...1.5mm2 / 24...14 AWG / 0.2...2.5mm2 / 24...12 AWG|Connection data - Fine-stranded conductor -- 0.25...1.5mm2 / 24...14 AWG / 0.2...2.5mm2 / 24...14 AWG|Connection data - Fine-stranded conductor; with insulated ferrule -- 0.25...0.75mm2 / 0.25...1.5mm2|Connection data - Fine-stranded conductor; with uninsulated ferrule -- 0.25...1.5mm2 / 0.25...2.5mm2|Connection data - Strip length -- 8...9mm / 0.31...0.35" / 9...10mm / 0.35...0.39"|Connection data - Connection type -- X2.x|Connection data - WAGO connector 2 -- picoMAX eCOM|Physical data - Width -- 18mm / 0.71"|Physical data - Height -- 90mm / 3.54"|Physical data - Depth from upper-edge of DIN-rail -- 51mm / 2.01"|Mechanical data - Mounting type -- DIN-35 rail|Material data - Weight -- 47g|Environmental requirements - Ambient temperature (operation) -- -40...+70°C|Environmental requirements - Ambient temperature (storage) -- -40...+85°C|Environmental requirements - Temperature range of connection cable -- ≥ (T_ambient + 10 K)|Environmental requirements - Relative humidity -- 5...95% (non-condensing)|Environmental requirements - Operating altitude (max.) -- 3000m|Standards and specifications - Conformity marking -- CE|Standards and specifications - EMC immunity to interference -- EN 61000-6-2|Standards and specifications - EMC emission of interference -- EN 61000-6-3; EN 61000-6-4|Standards and specifications - Standards/specifications -- UL 61010-2-201|Commercial data - ETIM 9.0 -- EC003596|Commercial data - ETIM 8.0 -- EC003596|Commercial data - ECCN -- NO US CLASSIFICATION|Commercial data - PU (SPU) -- 1 pcs|Commercial data - Packaging type -- Box|Commercial data - Country of origin -- CN|Commercial data - GTIN -- 4066966120820|Commercial data - Customs tariff number -- 85365005000|Environmental Product Compliance - CAS-No. -- 12060-00-3 / 1303-86-2 / 1317-36-8 / 2451-62-9 / 540-97-6 / 541-02-6 / 556-67-2 / 7439-92-1|Environmental Product Compliance - REACH Candidate List Substance -- 1;3;5-Tris(oxiran-2-ylmethyl)-1;3;5-triazinane-2;4;6-trione (TGIC) / Decamethylcyclopentasiloxane [D5] / Diboron trioxide / Dodecamethylcyclohexasiloxane [D6] / Lead / Lead monoxide / Lead Titanium oxide (PbTiO3) / Octamethylcyclotetrasiloxane [D4]|Environmental Product Compliance - RoHS Compliance Status -- Compliant;With Exemption|Environmental Product Compliance - RoHS Exemption -- 6(c) / 7(a) / 7(c)-I / 7(c)-II|Environmental Product Compliance - SCIP notification number (Austria) -- 7e2beec6-e444-4533-91ed-ca9c06e08018|Environmental Product Compliance - SCIP notification number (Belgium) -- 3d57bc60-34df-4908-9ee3-46195d31d01a|Environmental Product Compliance - SCIP notification number (Bulgaria) -- 5e35ef1c-882c-48b4-8b73-1d7ec4268ba3|Environmental Product Compliance - SCIP notification number (Czech Republic) -- b6cda593-ddd9-42ff-b4e7-d8fcd1e40d5c|Environmental Product Compliance - SCIP notification number (Denmark) -- a3c41961-0b22-4291-9060-47097b5f95ce|Environmental Product Compliance - SCIP notification number (Finland) -- 91651202-849e-4dc4-bc7a-b390c932d8de|Environmental Product Compliance - SCIP notification number (France) -- d9de80e6-426d-467f-b505-f4cca3e47f38|Environmental Product Compliance - SCIP notification number (Germany) -- 70fe8401-9bb3-4bf6-9b1e-907872456ab1|Environmental Product Compliance - SCIP notification number (Hungary) -- 8e69327f-46d3-4d3e-937a-cc4734bd95c3|Environmental Product Compliance - SCIP notification number (Italy) -- d4d1cefc-62b0-4092-9838-e72a05cfb2df|Environmental Product Compliance - SCIP notification number (Netherlands) -- 2f63a4bb-7d52-4087-9cdb-85d03b2defa7|Environmental Product Compliance - SCIP notification number (Poland) -- 403f29a9-bab2-4cc7-a1fa-13daa7af1f17|Environmental Product Compliance - SCIP notification number (Romania) -- bdb7e5dd-9b1d-4ca5-b22f-3b058c47d4f7|Environmental Product Compliance - SCIP notification number (Sweden) -- 97170ea2-76b4-4ba8-9f9a-a9e56636c480
• Location of origin: China
• Level 1 category: Automation components

Circuit protection

• Backup fusing (required): The fuse must be placed in the output circuit of the power supply. The fuse must be adapted to the power supply used and must trip safely in case of a short circuit. The module is designed for use with a 10 A (max. ) fuse or with a 10 ADC (max.) circuit breaker (characteristic B or C).

Commercial data

• Country of origin: CN
• Customs tariff number: 85365005000
• ECCN: NO US CLASSIFICATION
• ETIM 8.0: EC003596
• ETIM 9.0: EC003596
• GTIN: 4066966120820
• Packaging type: Box
• PU (SPU): 1 pcs

Connection data

• Connection technology: Push-in CAGE CLAMP^®|Push-in CAGE CLAMP^®
• Connection type: X2.x
• Connection type 1: X1.x
• Fine-stranded conductor: 0.25 … 1.5 mm² / 24 … 14 AWG|0.2 … 2.5 mm² / 24 … 14 AWG
• Fine-stranded conductor; with insulated ferrule: 0.25 … 0.75 mm²|0.25 … 1.5 mm²
• Fine-stranded conductor; with uninsulated ferrule: 0.25 … 1.5 mm²|0.25 … 2.5 mm²
• Solid conductor: 0.25 … 1.5 mm² / 24 … 14 AWG|0.2 … 2.5 mm² / 24 … 12 AWG
• Strip length: 8 … 9 mm / 0.31 … 0.35 inches|9 … 10 mm / 0.35 … 0.39 inches
• WAGO connector: picoMAX^® eCOM
• WAGO connector 2: picoMAX^® eCOM

Environmental Product Compliance

• CAS-No.: 12060-00-3|1303-86-2|1317-36-8|2451-62-9|540-97-6|541-02-6|556-67-2|7439-92-1
• REACH Candidate List Substance: 1,3,5-Tris(oxiran-2-ylmethyl)-1,3,5-triazinane-2,4,6-trione (TGIC)|Decamethylcyclopentasiloxane [D5]|Diboron trioxide|Dodecamethylcyclohexasiloxane [D6]|Lead|Lead monoxide|Lead titanium oxide (PbTiO3)|Octamethylcyclotetrasiloxane [D4]
• RoHS Compliance Status: Compliant,With Exemption
• RoHS Exemption: 6(c)|7(a)|7(c)-I|7(c)-II
• SCIP notification number (Austria): 7e2beec6-e444-4533-91ed-ca9c06e08018
• SCIP notification number (Belgium): 3d57bc60-34df-4908-9ee3-46195d31d01a
• SCIP notification number (Bulgaria): 5e35ef1c-882c-48b4-8b73-1d7ec4268ba3
• SCIP notification number (Czech Republic): b6cda593-ddd9-42ff-b4e7-d8fcd1e40d5c
• SCIP notification number (Denmark): a3c41961-0b22-4291-9060-47097b5f95ce
• SCIP notification number (Finland): 91651202-849e-4dc4-bc7a-b390c932d8de
• SCIP notification number (France): d9de80e6-426d-467f-b505-f4cca3e47f38
• SCIP notification number (Germany): 70fe8401-9bb3-4bf6-9b1e-907872456ab1
• SCIP notification number (Hungary): 8e69327f-46d3-4d3e-937a-cc4734bd95c3
• SCIP notification number (Italy): d4d1cefc-62b0-4092-9838-e72a05cfb2df
• SCIP notification number (Netherlands): 2f63a4bb-7d52-4087-9cdb-85d03b2defa7
• SCIP notification number (Poland): 403f29a9-bab2-4cc7-a1fa-13daa7af1f17
• SCIP notification number (Romania): bdb7e5dd-9b1d-4ca5-b22f-3b058c47d4f7
• SCIP notification number (Sweden): 97170ea2-76b4-4ba8-9f9a-a9e56636c480

Environmental requirements

• Ambient temperature (operation): -40 … +70 °C
• Ambient temperature (storage): -40 … +85 °C
• Operating altitude (max.): 3000m
• Relative humidity: 5 … 95 % (non-condensing)
• Temperature range of connection cable: ≥ (T_ambient + 10 K)

Iso OK contact

• Continuous current (max.): 500 mA (for general use)
• Function: 1 make contact (NO); closed with applied power supply and insulation resistance > limit value
• Number of Iso OK contacts connected in series (max.): 25 (Limit value type: 1); 32 (Limit value type: 2 and 3) (per IEC 61131)
• Switching voltage (max.): 48 VDC (SELV)

Material data

• Weight: 47g

Mechanical data

• Mounting type: DIN-35 rail

Mode: Grounded circuit

• Hysteresis (typ.): 1kΩ
• Response time: 10s
• Response value for alarm at nominal voltage: 4 kΩ (at U_S = 24 V; for other U_S values see diagram for signaling threshold)

Mode: Ungrounded circuit

• Hysteresis (typ.): 1kΩ
• Response time: 1s
• Response value for alarm at nominal voltage: 4 kΩ (at U_S = 24 V; for other U_S values see diagram for signaling threshold)

Physical data

• Depth from upper-edge of DIN-rail: 51 mm / 2.01 inches
• Height: 90 mm / 3.54 inches
• Width: 18 mm / 0.71 inches

Power supply

• Current at ground fault (24 VDC) max.: 56mA
• Current consumption at nominal supply voltage: ≤ 40 mA
• Nominal supply voltage U_S: 24 VDC (SELV)
• Power loss P_l: ≤ 1.7 W
• Supply voltage range (DC): 18 … 31.2 VDC

Safety and protection

• MTBF: > 600,000 h (per MIL-HDBK-217F2)
• Overvoltage category: II
• Pollution degree: 2
• Protection type: IP20
• Test voltage (supply/Iso OK contact): 1.5 kVAC; 50 … 60 Hz; 1 min

Signaling

• Operation status indicator: 1 x LED “Status OK” (green)
• Signaling: 1 x LED “Iso Alarm” (red)|1 x LED “Iso Alarm” 24 V − Ground (yellow)|1 x LED “Iso Alarm” 0 V − Ground (yellow)|1 x Signal output “Iso OK”

Standards and specifications

• Conformity marking: CE
• EMC emission of interference: EN 61000-6-3; EN 61000-6-4
• EMC immunity to interference: EN 61000-6-2
• Standards/specifications: UL 61010-2-201
