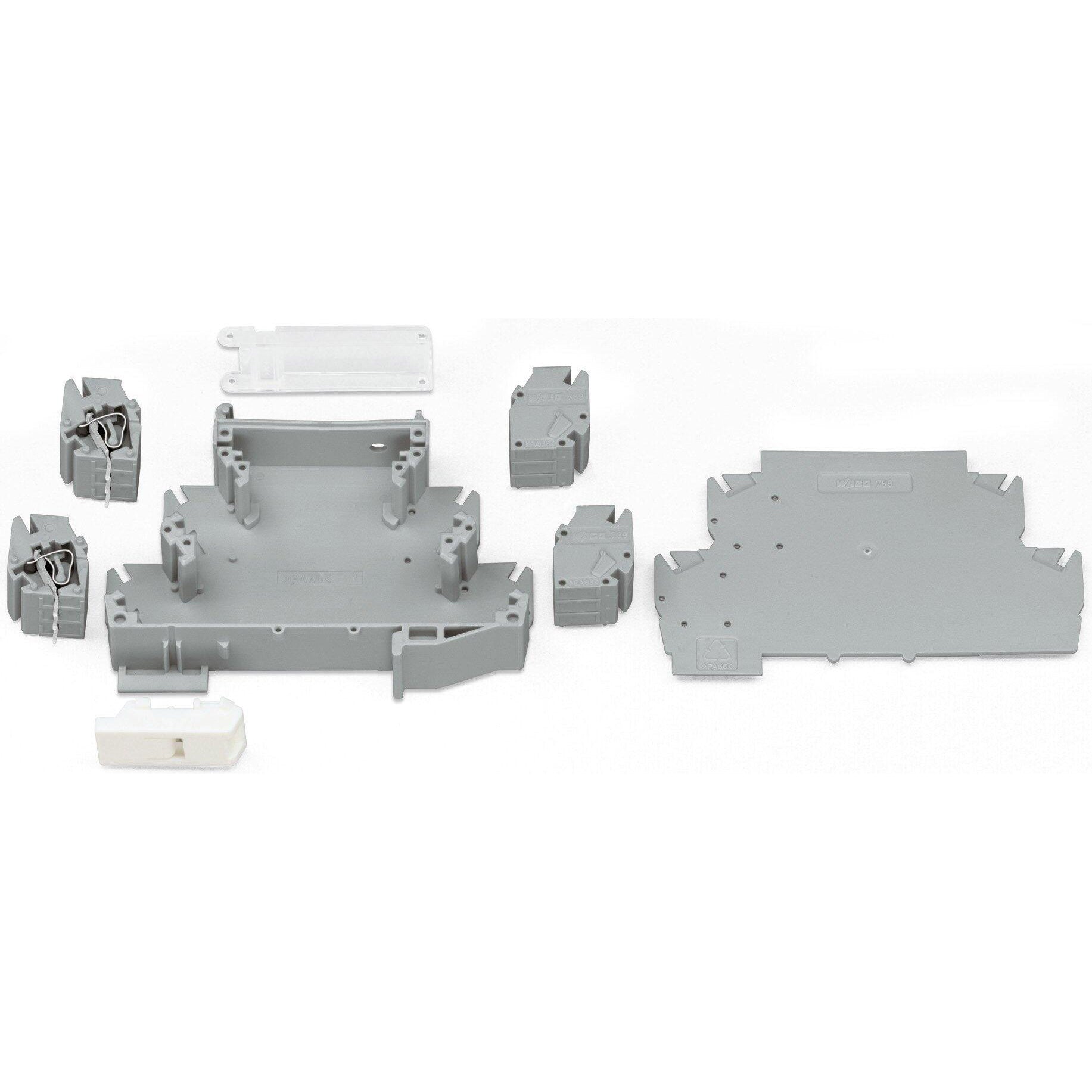

Wago - 789-129

Term. connector for custom DIN rail housing with 1-deck/level - pin spacing 5mm - WAGO (789 series) - 2-poles (2P) - Gray color - with CAGE CLAMP spring connections - equivalent to 789129

Specifications

• Primary brand: WAGO
• Functions: Term. connector for custom DIN rail housing
• Design: 1-deck/level|pin spacing 5mm
• Poles: 2-poles (2P)
• Temperature: Processing temperature -25°C...+70°C
• Color: Gray
• Connection type: CAGE CLAMP spring connections
• Material: Polyamide (PA) 66
• Customs Tariff Number: 85369010000
• eClass code: 27-18-27-02
• ETIM code: EC001031
• GTIN code: 4044918611732
• Order code / Manufacturer SKU: 789-129
• Manufacturer product status: Commercialized
• Equivalent to: 789129
• EAN code: 4044918611732
• Compliant with standard(s): RoHS compliant|V-0 flammability rating
• Location of origin: Germany
• Level 1 category: Cabling systems
• Level 2 category: Connectors & Inserts
• Product title: Term. connector for custom DIN rail housing - 1-deck/level - WAGO

Commercial data

• Country of origin: DE
• Customs tariff number: 85369010000
• ECCN: NO US CLASSIFICATION
• eCl@ss 10.0: 27-18-27-02
• eCl@ss 9.0: 27-18-27-02
• ETIM 8.0: EC001031
• ETIM 9.0: EC001031
• GTIN: 4044918611732
• Packaging type: Box
• PU (SPU): 100 (1) pcs

Connection data

• Connections (number): 2
• Pole number: 3

Environmental Product Compliance

• RoHS Compliance Status: Compliant,No Exemption

Environmental requirements

• Processing temperature: -25 … +70 °C

Material data

• Color: gray
• Fire load: 0.067MJ
• Flammability class per UL94: V0
• Insulation material (main housing): Polyamide (PA66)
• Weight: 3.5g

Mechanical data

• Housing design: DIN-rail-mount enclosure
• Suitable: for 789-120
