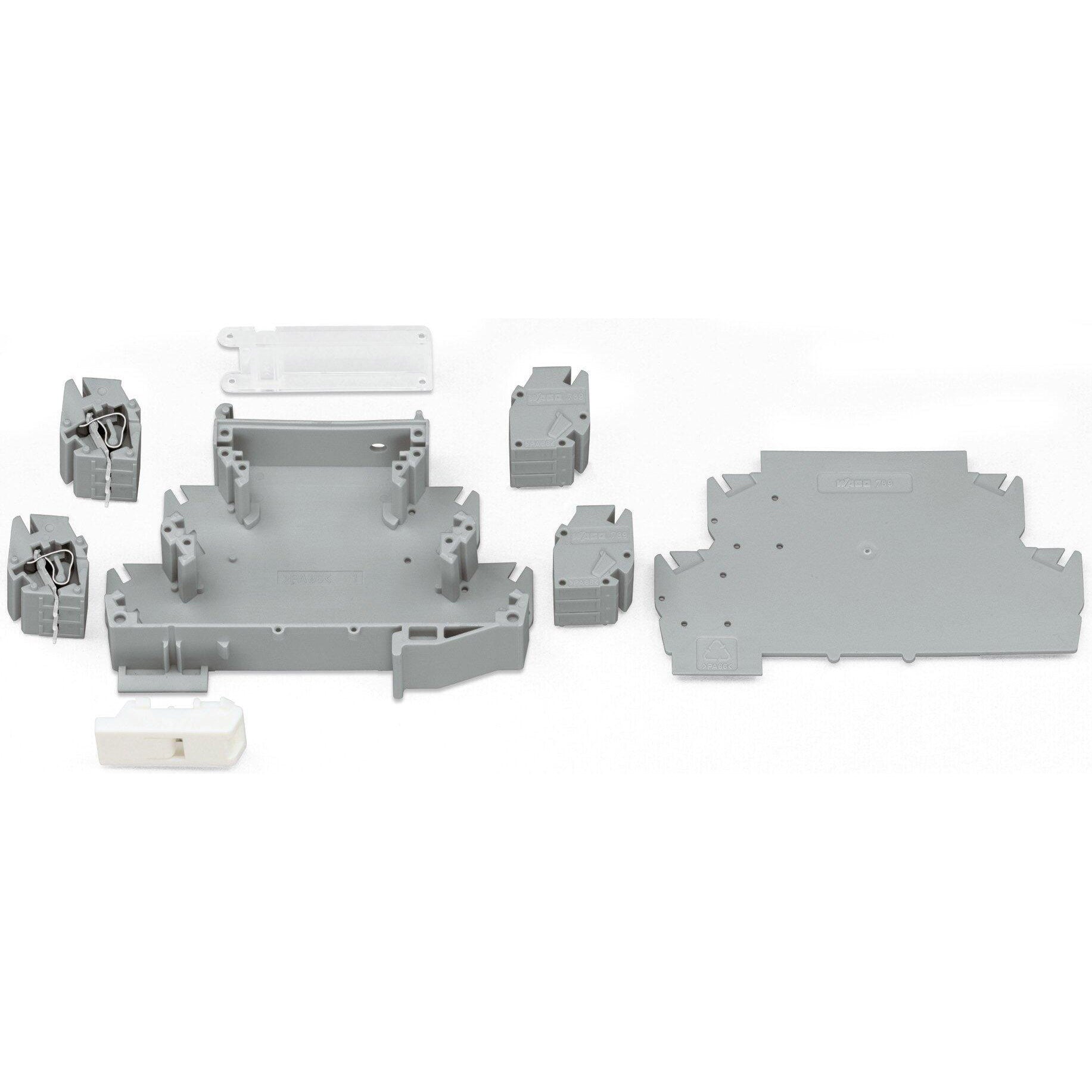

Wago - 789-120

Empty DIN rail customizable universal component housing with 3-decks/levels (triple-deck) - WAGO (789 series) - Gray - for 0.2mm2...2.5mm2 / for #24AWG...#14AWG - with CAGE CLAMP spring connections - DIN-35 rail mounting (17.5mm width) - IP20 - equivalent to 789120

Specifications

• Primary brand: WAGO
• Functions: Empty DIN rail customizable universal component housing
• Design: 3-decks/levels (triple-deck)
• Color: Gray
• Connection capacity: 4-wires (2 clamps + 2 clamps) (2+2)
• Rated operating voltage (Ue): (IEC) 250V
• Connection type: CAGE CLAMP spring connections
• Cross-section: for 0.2mm2...2.5mm2 fine stranded or solid conductors|for #24AWG...#14AWG fine stranded or solid conductors
• Mounting mode: DIN-35 rail
• Dimensions: H90mm x W17.5mm x D55mm
• Net Width (mm): 17.5mm
• Material: Polyamide (PA) 6.6
• Ambient air temperature for operation: -25°C...+70°C
• Ambient air temperature for storage: -40°C...+85°C
• ETIM code: EC001031
• eClass code: 27-18-27-02
• Customs Tariff Number: 85472000900
• GTIN code: 4044918112840
• Order code / Manufacturer SKU: 789-120
• Manufacturer product status: Commercialized
• Equivalent to: 789120
• EAN code: 4044918112840
• Compliant with standard(s): RoHS compliant|V-0 flammability rating
• Location of origin: Germany
• Degree of pollution: 3
• Level 1 category: Electrical components
• Level 2 category: Terminal blocks
• Product title: Empty DIN rail customizable universal component housing - 3-decks/levels (triple-deck) - WAGO

Commercial data

• Country of origin: DE
• Customs tariff number: 85472000900
• ECCN: NO US CLASSIFICATION
• eCl@ss 10.0: 27-18-27-02
• eCl@ss 9.0: 27-18-27-02
• ETIM 8.0: EC001031
• ETIM 9.0: EC001031
• GTIN: 4044918112840
• Packaging type: box
• Product Group: 6 (INTERFACE ELECTRONIC)
• PU (SPU): 25 (1) pcs

Connection data

• Connection technology: CAGE CLAMP^®
• Fine-stranded conductor: 0.2 … 2.5 mm² / 24 … 14 AWG
• Solid conductor: 0.2 … 2.5 mm² / 24 … 14 AWG
• Strip length: 9 … 10 mm / 0.35 … 0.39 inches

Electrical data

• Rated continuous current: 6A

Environmental Product Compliance

• RoHS Compliance Status: Compliant,No Exemption

Environmental requirements

• Ambient temperature (operation): -25 … +70 °C
• Ambient temperature (storage): -40 … +85 °C

Material data

• Color: gray
• Fire load: 0.393MJ
• Flammability class per UL94: V0
• Housing material: PA 6.6
• Weight: 13.1g

Mechanical data

• Housing design: DIN-rail-mount enclosure
• Mounting position: any
• Mounting type: DIN-35 rail

Physical data

• Depth from upper-edge of DIN-rail: 55 mm / 2.165 inches
• Height: 90 mm / 3.543 inches
• Width: 17.5 mm / 0.689 inches

Safety and protection

• Pollution degree: 3
• Protection type: IP20
• Rated impulse withstand voltage: 4kV
• Rated voltage: 250V
