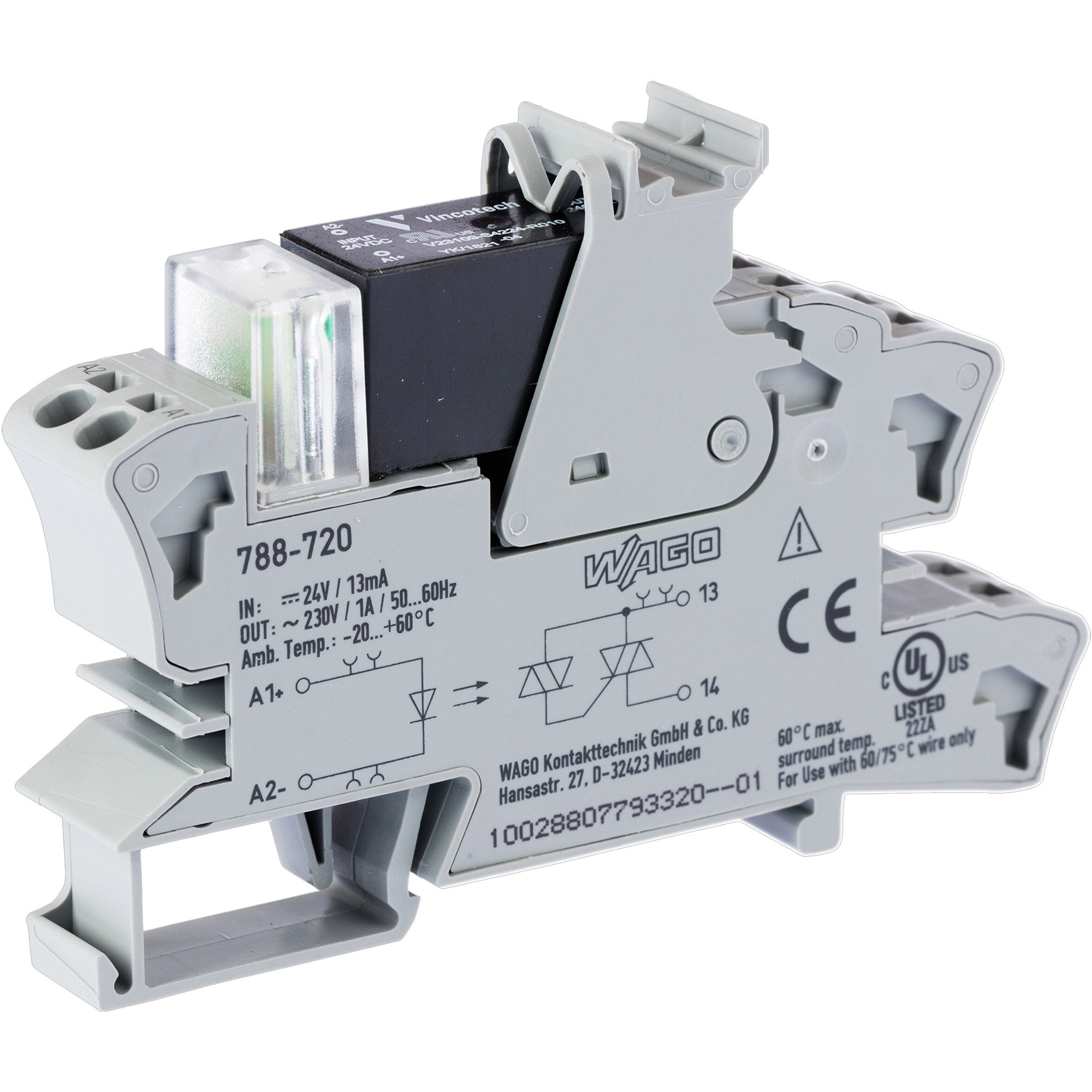

Plug-in input solid-state / static relay (SSR) with pre-assembled socket base + red LED - 2-wire connection - zero-cross switching - WAGO (788 series) - single-pole / single-phase / 1-pole (1P) - control voltage 18-30Vdc (24Vdc nom.) - Rated voltage 24Vac-240Vac (230Vac nom.) output - Rated current 1A (continuous) - with Push-in CAGE CLAMP connections - DIN-35 rail mounting (15mm width) - IP20 - equivalent to 788720

Specifications

• Primary brand: WAGO
• Functions: Plug-in input solid-state / static relay (SSR)
• Design: pre-assembled socket base|red LED|2-wire connection|zero-cross switching
• Poles: single-pole / single-phase / 1-pole (1P)
• Frequency: 50Hz / 60Hz main frequency
• Temperature: Processing temperature -25°C...+50°C
• Rated current: 1A (continuous)
• Rated voltage (AC): 24Vac-240Vac (230Vac nom.) output
• Connection type: Push-in CAGE CLAMP connections
• Control Voltage (DC): 18-30Vdc (24Vdc nom.)
• Mounting mode: DIN-35 rail
• Response time: (switching ON) 10ms / 0.010s|(switching OFF) 10ms / 0.010s
• Dimensions: H86mm x W15mm x D54mm|15mm width
• Ambient air temperature for operation: -20°C...+60°C
• Ambient air temperature for storage: -40°C...+70°C
• eClass code: 27-26-15-03
• ETIM code: EC001504
• GTIN code: 4045454743888
• Customs Tariff Number: 85365005000
• Order code / Manufacturer SKU: 788-720
• Manufacturer product status: Commercialized
• Equivalent to: 788720
• EAN code: 4045454743888
• Compliant with standard(s): EN 61000-6-2|EN 61000-6-3|EN 61010-2-201|EN 61373|UL 508 (max. 40°C / 2.5A)|General approvals|- EAC - GZO Almaty Standart - TP TC 004/2011 - certificate EAC CoC 03084|- UL - Underwriters Laboratories Inc. (ORDINARY LOCATIONS) - UL 508 - certificate E175199 Vol.1 Sec.6|Declarations of conformity and manufacturer's declarations|- EU-Declaration of Conformity - WAGO GmbH & Co. KG|RoHS compliant
• Location of origin: Germany
• Degree of pollution: 2
• Level 1 category: Automation components
• Level 2 category: Control components
• Level 3 category: Control relays
• Product title: Plug-in input solid-state / static relay (SSR) - WAGO

Commercial data

• Country of origin: DE
• Customs tariff number: 85365005000
• ECCN: NO US CLASSIFICATION
• eCl@ss 10.0: 27-26-15-03
• eCl@ss 9.0: 27-26-15-03
• ETIM 8.0: EC001504
• ETIM 9.0: EC001504
• GTIN: 4045454743888
• Packaging type: Box
• Product Group: 6 (INTERFACE ELECTRONIC)
• PU (SPU): 20 (1) pcs

Connection data

• Connection technology: Push-in CAGE CLAMP^®
• Fine-stranded conductor: 0.34 … 2.5 mm² / 22 … 14 AWG
• Solid conductor: 0.34 … 2.5 mm² / 22 … 14 AWG
• Strip length: 9 … 10 mm / 0.35 … 0.39 inches

Environmental Product Compliance

• RoHS Compliance Status: Compliant,No Exemption

Environmental requirements

• Ambient temperature (operation at U_N): -20 … +60 °C
• Ambient temperature (storage): -40 … +70 °C
• Ambient temperature UL (operation at U_N): -40 … +60 °C
• Processing temperature: -25 … +50 °C
• Temperature range of connection cable: ≥ (T_ambient + 20 K)

Material data

• Color: gray
• Fire load: 0.678MJ
• Note (material data):
  Information on material specifications can be found here

• Weight: 41.3g

Mechanical data

• Mounting type: DIN-35 rail

Notes

• Note: A separator plate (e.g., 209-191) must be used for voltages greater than 250 V between adjacent relay modules and for compliance with the reinforced insulation requirements.

Physical data

• Depth from upper-edge of DIN-rail: 54 mm / 2.126 inches
• Height: 86 mm / 3.386 inches
• Width: 15 mm / 0.591 inches

Safety and protection

• Dielectric strength (control/load circuit) (AC, 1 min): 3.75 kVrms
• Pollution degree: 2
• Protection type: IP20

Standards and specifications

• Standards/specifications: EN 61000-6-2|EN 61000-6-3|EN 61373|EN 61010-2-201|UL 508 (max. 40 °C / 2.5 A)

Technical data

• Control circuit - Input voltage range (high level): 18 … 30 VDC
• Control circuit - Input voltage range (low level): 0 … 4 VDC
• Control circuit - Nominal input current at U_N: 7 mA
• Control circuit - Nominal input voltage U_N: 24 VDC
• Load circuit - Circuit type: 2-wire connection|Zero-voltage switching
• Load circuit - Limiting continuous current: 1 A
• Load circuit - Nominal output voltage: 230 VAC
• Load circuit - Output voltage range: 24 … 240 VAC
• Load circuit - Switching frequency: 50 Hz / 60 Hz
• Load circuit - Turn-off time: ≤ 10 ms
• Load circuit - Turn-on time: ≤ 10 ms
• Load circuit - Voltage drop: ≤ 1.1 VAC
• Signaling - Status indicator: Red LED
