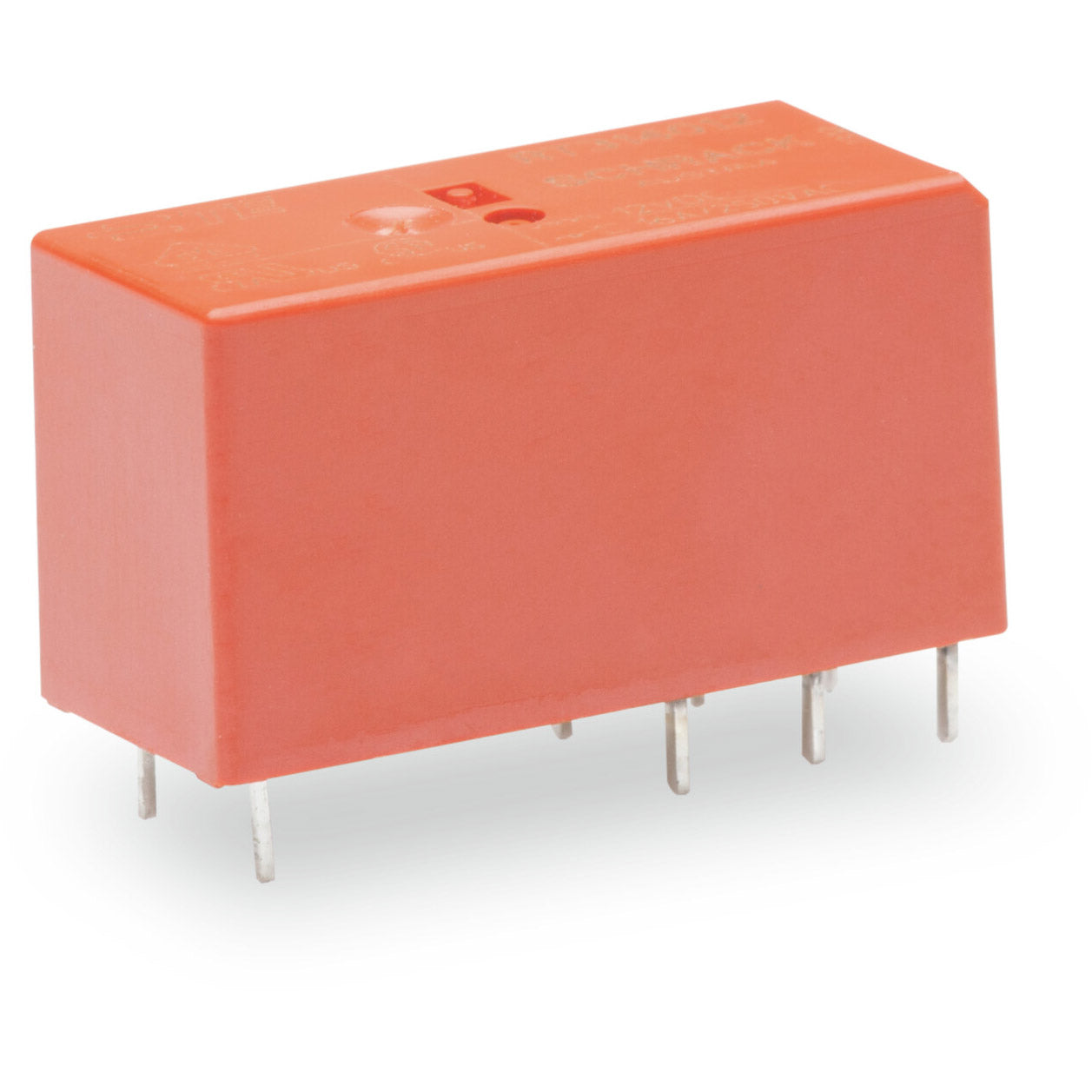

Replacement plug-in basic relay - WAGO (788 series) - 2-poles (2P) - control voltage 24Vac - 2C/O / DPDT (Double Pole Double Throw) contact - Electromechanical design - Rated current 8A (continuous) / 3A (250Vac; AC-15) / 2A (24Vdc; DC-13) - with Push-in connections - Plug-in mounting - IP40 - material Silver-Nickel (AgNi 90/10) contacts - equivalent to 788172

Specifications

  • Primary brand: WAGO
  • Functions: Replacement plug-in basic relay
  • Design: Electromechanical design|12V / 10mA recommended minimum switching load
  • Poles: 2-poles (2P)
  • Rated current: 8A (continuous)|3A (250Vac; AC-15)|2A (24Vdc; DC-13)|15A (4s) AC inrush maximum current
  • Rated voltage (AC): 250Vac max. (switching voltage)
  • Connection type: Push-in connections
  • Control Voltage (AC): 24Vac
  • Mounting mode: Plug-in
  • Response time: (OFF=>ON / contacts closing) 8ms / 0.008s|(ON=>OFF / contacts opening) 6ms / 0.006s
  • Contacts type: 2C/O / DPDT (Double Pole Double Throw) contact
  • Dimensions: H15.7mm x W12.7mm x D29mm
  • Material: Silver-Nickel (AgNi 90/10) contacts
  • Ambient air temperature for operation: -40°C...+85°C
  • Ambient air temperature for storage: -40°C...+85°C
  • Electrical durability (with load): 10 000operations
  • Mechanical durability (at no load): 30 000 000operations
  • eClass code: 27-37-16-01
  • ETIM code: EC001437
  • Customs Tariff Number: 85364900990
  • GTIN code: 4045454620967
  • Order code / Manufacturer SKU: 788-172
  • Manufacturer product status: Commercialized
  • Equivalent to: 788172
  • EAN code: 4045454620967
  • Compliant with standard(s): EN 61810-1|RoHS compliant
  • Location of origin: Germany
  • Level 1 category: Automation components
  • Level 2 category: Control components
  • Level 3 category: Control relays
  • Product title: Replacement plug-in basic relay - WAGO

Commercial data

  • Country of origin: DE
  • Customs tariff number: 85364900990
  • ECCN: NO US CLASSIFICATION
  • eCl@ss 10.0: 27-37-16-01
  • eCl@ss 9.0: 27-37-16-01
  • ETIM 8.0: EC001437
  • ETIM 9.0: EC001437
  • GTIN: 4045454620967
  • Packaging type: box
  • Product Group: 6 (INTERFACE ELECTRONIC)
  • PU (SPU): 20 pcs

Environmental Product Compliance

  • CAS-No.: 80-05-7
  • REACH Candidate List Substance: 4,4'-isopropylidenediphenol
  • RoHS Compliance Status: Compliant,No Exemption
  • SCIP notification number (Austria): 975c0cf2-079a-4342-a3ef-1b2eb272dde3
  • SCIP notification number (Belgium): b14e9bc3-5a41-4e52-9bf4-a33b132ec211
  • SCIP notification number (Bulgaria): f26073b9-f63f-40b5-bbf0-e33fc688710a
  • SCIP notification number (Czech Republic): d6b95ba2-c642-4bee-96a5-a275c8e65233
  • SCIP notification number (Denmark): 111c3d8f-4bc4-46fc-b475-d76f3e53411f
  • SCIP notification number (Finland): c398ebae-45eb-4cd1-977c-26da016f68d4
  • SCIP notification number (France): c09c137f-2abc-4a3e-a09d-f9486a924bf9
  • SCIP notification number (Germany): d538de56-99db-4a81-9552-b215a6d572db
  • SCIP notification number (Hungary): 7a5b4d6f-f22d-4f44-91f7-4c6fd3c06467
  • SCIP notification number (Italy): fd35d81f-60fc-42f0-81b0-5018d515ce74
  • SCIP notification number (Netherlands): c23e8fa3-836d-4548-8ad0-6934edffa6aa
  • SCIP notification number (Poland): 6e0fdd45-3df3-4763-ac14-f7d0a2ae805c
  • SCIP notification number (Romania): bb5e7dec-aaf1-4d5a-a261-d69895f92c88
  • SCIP notification number (Sweden): 5bf49490-1ea1-438d-841c-23dd8cc95b97

Environmental requirements

  • Ambient temperature (operation at UN): -40 … +70 °C
  • Ambient temperature (storage): -40 … +85 °C

Material data

Mechanical data

  • Mounting type: Pluggable module

Physical data

  • Depth: 29 mm / 1.142 inches
  • Height from the surface: 15.7 mm / 0.618 inches
  • Width: 12.7 mm / 0.5 inches

Safety and protection

  • Dielectric strength (control/load circuit) (AC, 1 min): 5 kVrms
  • Dielectric strength (load/load circuit) (AC, 1 min): 2.5 kVrms
  • Dielectric strength (open contact) (AC, 1 min): 1 kVrms
  • Protection type: IP40

Standards and specifications

  • Standards/specifications: EN 61810-1

Technical data

  • Control circuit - Nominal input current at UN: 7 mA
  • Control circuit - Nominal input voltage UN: 24 VAC
  • Load circuit - Bounce time (typ.): 10ms
  • Load circuit - Contact material (relay): AgNi 90/10
  • Load circuit - Drop-out time (typ.): 6ms
  • Load circuit - Electrical life (NO; resistive load; 23 °C): 10 x 10³ switching operations
  • Load circuit - Inrush current (resistive) max.: (AC) 15 A / 4 s
  • Load circuit - Limiting continuous current: 8 A
  • Load circuit - Mechanical life: 30 x 10⁶ switching operations
  • Load circuit - Number of changeover/switchover contacts: 2
  • Load circuit - Pull-in time (typ.): 8ms
  • Load circuit - Recommended minimum load: 12 V / 10 mA
  • Load circuit - Switching capacity: AC-15: 3 A / 250 VAC; DC-13: 2 A / 24 VDC
  • Load circuit - Switching frequency with/without load (max.): 6 min-1 / 1200 min-1
  • Load circuit - Switching power (resistive) max.: AC 2000 VA; DC (see load limit curve)
  • Load circuit - Switching Voltage, Max.: 250 VAC
