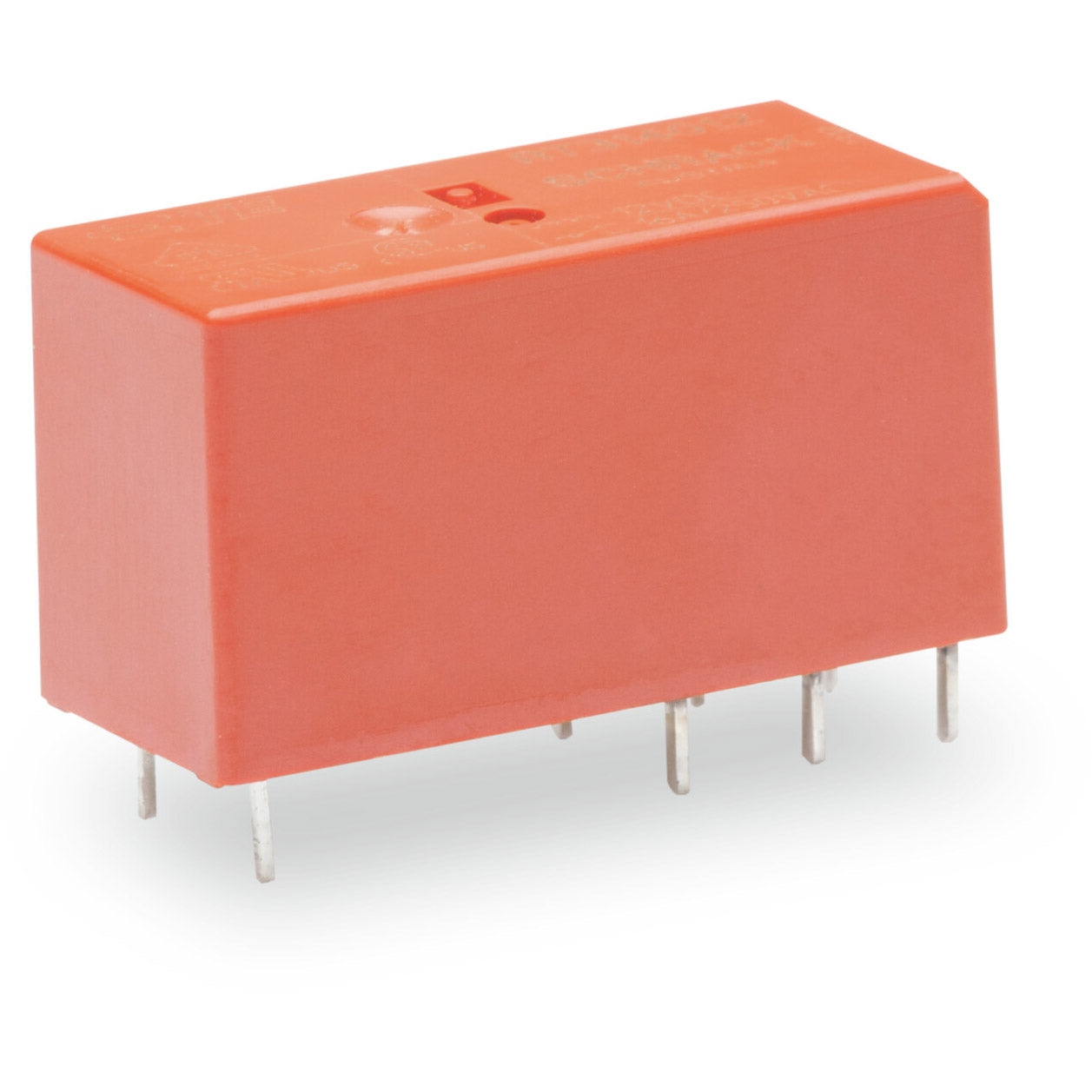

Replacement plug-in basic relay - WAGO (788 series) - single-pole / 1-pole (1P) - control voltage 24Vdc - 1C/O / SPDT (Single Pole Double Throw) contact - Electromechanical design - Rated current 16A (continuous) / 6A (250Vac; AC-15) / 2A (24Vdc; DC-13) - with Push-in connections - Plug-in mounting - IP40 - material Silver-Nickel (AgNi 90/10) contacts - equivalent to 788154

Specifications

  • Primary brand: WAGO
  • Functions: Replacement plug-in basic relay
  • Design: Electromechanical design|12V / 10mA recommended minimum switching load
  • Poles: single-pole / 1-pole (1P)
  • Rated current: 16A (continuous)|6A (250Vac; AC-15)|2A (24Vdc; DC-13)|30A (4s) AC inrush maximum current
  • Rated voltage (AC): 250Vac max. (switching voltage)
  • Connection type: Push-in connections
  • Control Voltage (DC): 24Vdc
  • Mounting mode: Plug-in
  • Response time: (OFF=>ON / contacts closing) 8ms / 0.008s|(ON=>OFF / contacts opening) 6ms / 0.006s
  • Contacts type: 1C/O / SPDT (Single Pole Double Throw) contact
  • Dimensions: H15.7mm x W12.7mm x D29mm
  • Material: Silver-Nickel (AgNi 90/10) contacts
  • Ambient air temperature for operation: -40°C...+85°C
  • Ambient air temperature for storage: -40°C...+85°C
  • Electrical durability (with load): 30 000operations
  • Mechanical durability (at no load): 30 000 000operations
  • eClass code: 27-37-16-01
  • ETIM code: EC001437
  • Customs Tariff Number: 85364900990
  • GTIN code: 4045454396633
  • Order code / Manufacturer SKU: 788-154
  • Manufacturer product status: Commercialized
  • Equivalent to: 788154
  • EAN code: 4045454396633
  • Compliant with standard(s): EN 61810-1|RoHS compliant
  • Location of origin: Austria
  • Level 1 category: Automation components
  • Level 2 category: Control components
  • Level 3 category: Control relays
  • Product title: Replacement plug-in basic relay - WAGO

Commercial data

  • Country of origin: AT
  • Customs tariff number: 85364900990
  • ECCN: NO US CLASSIFICATION
  • eCl@ss 10.0: 27-37-16-01
  • eCl@ss 9.0: 27-37-16-01
  • ETIM 8.0: EC001437
  • ETIM 9.0: EC001437
  • GTIN: 4045454396633
  • Packaging type: box
  • Product Group: 6 (INTERFACE ELECTRONIC)
  • PU (SPU): 20 (1) pcs

Environmental Product Compliance

  • CAS-No.: 7439-92-1
  • REACH Candidate List Substance: Lead
  • RoHS Compliance Status: Compliant,No Exemption
  • SCIP notification number (Austria): 7a571d4c-192a-4ca2-85de-304cdbac31bb
  • SCIP notification number (Belgium): 52d423f3-8808-4329-b1e2-ba8286d96e6b
  • SCIP notification number (Bulgaria): 06718a1c-6c47-4311-b2ca-9b0af63a96c3
  • SCIP notification number (Czech Republic): 4d22e33f-96f1-40e2-bef3-5de13c7c564c
  • SCIP notification number (Denmark): 2a1d33f4-0c9d-4a74-a927-88c4df768ed9
  • SCIP notification number (Finland): 4834f906-499b-4c29-86df-8c1a554f4332
  • SCIP notification number (France): a9093bca-47c8-4466-a73b-621a75b9d715
  • SCIP notification number (Germany): ba63bd51-c15d-4b6a-9e23-bb91602c47c2
  • SCIP notification number (Hungary): 18d4e688-25da-4afb-a639-f2a5d7986032
  • SCIP notification number (Italy): 4bbceb96-2015-4ae8-bc12-7e44172e2534
  • SCIP notification number (Netherlands): 9e1b60f4-54c2-469d-9d0e-830fd42a7369
  • SCIP notification number (Poland): 410db261-de04-41ba-954e-3e1d8d1cdaa9
  • SCIP notification number (Romania): ef3ffcf5-e50a-4f4a-9d19-f8866f8e785c
  • SCIP notification number (Sweden): 22900c6d-2722-4dad-85e3-fa1dc511c316

Environmental requirements

  • Ambient temperature (operation at UN): -40 … +85 °C
  • Ambient temperature (storage): -40 … +85 °C

Material data

Mechanical data

  • Mounting type: Pluggable module

Physical data

  • Depth: 29 mm / 1.142 inches
  • Height from the surface: 15.7 mm / 0.618 inches
  • Width: 12.7 mm / 0.5 inches

Safety and protection

  • Dielectric strength (control/load circuit) (AC, 1 min): 5 kVrms
  • Dielectric strength (open contact) (AC, 1 min): 1 kVrms
  • Protection type: IP40

Standards and specifications

  • Standards/specifications: EN 61810-1

Technical data

  • Control circuit - Nominal input current at UN: 17 mA
  • Control circuit - Nominal input voltage UN: 24 VDC
  • Load circuit - Bounce time (typ.): 6ms
  • Load circuit - Contact material (relay): AgNi 90/10
  • Load circuit - Drop-out time (typ.): 6ms
  • Load circuit - Electrical life (NO; resistive load; 23 °C): 30 x 10³ switching operations
  • Load circuit - Inrush current (resistive) max.: (AC) 30 A / 4 s
  • Load circuit - Limiting continuous current: 16 A
  • Load circuit - Mechanical life: 30 x 10⁶ switching operations
  • Load circuit - Number of changeover/switchover contacts: 1
  • Load circuit - Pull-in time (typ.): 8ms
  • Load circuit - Recommended minimum load: 12 V / 10 mA
  • Load circuit - Switching capacity: AC-15: 6 A / 250 VAC; DC-13: 2 A / 24 VDC
  • Load circuit - Switching frequency with/without load (max.): 6 min-1 / 1200 min-1
  • Load circuit - Switching power (resistive) max.: AC 4000 VA; DC (see load limit curve)
  • Load circuit - Switching Voltage, Max.: 250 VAC
