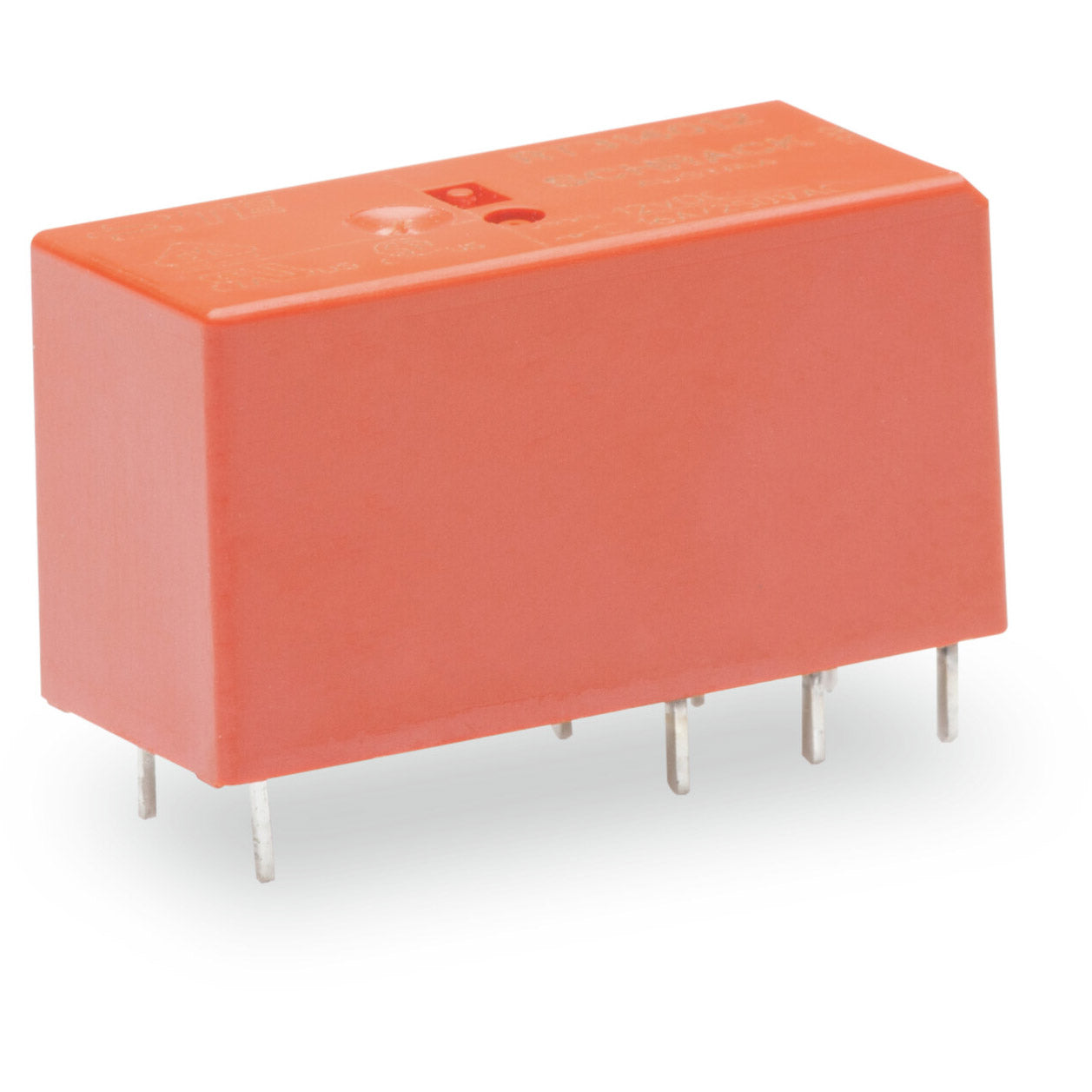

Wago - 788-150

Replacement plug-in basic relay - WAGO (788 series) - single-pole / 1-pole (1P) - control voltage 12Vdc - 1C/O / SPDT (Single Pole Double Throw) contact - Electromechanical design - Rated current 16A (continuous) / 6A (250Vac; AC-15) / 2A (24Vdc; DC-13) - with Push-in connections - Plug-in mounting - IP40 - material Silver-Nickel (AgNi 90/10) contacts - equivalent to 788150

Specifications

• Primary brand: WAGO
• Functions: Replacement plug-in basic relay
• Design: Electromechanical design|12V / 10mA recommended minimum switching load
• Poles: single-pole / 1-pole (1P)
• Rated current: 16A (continuous)|6A (250Vac; AC-15)|2A (24Vdc; DC-13)|30A (4s) AC inrush maximum current
• Rated voltage (AC): 250Vac max. (switching voltage)
• Connection type: Push-in connections
• Control Voltage (DC): 12Vdc
• Mounting mode: Plug-in
• Response time: (OFF=>ON / contacts closing) 8ms / 0.008s|(ON=>OFF / contacts opening) 6ms / 0.006s
• Contacts type: 1C/O / SPDT (Single Pole Double Throw) contact
• Dimensions: H15.7mm x W12.7mm x D29mm
• Material: Silver-Nickel (AgNi 90/10) contacts
• Ambient air temperature for operation: -40°C...+85°C
• Ambient air temperature for storage: -40°C...+85°C
• Electrical durability (with load): 30 000operations
• Mechanical durability (at no load): 30 000 000operations
• GTIN code: 4045454303778
• Customs Tariff Number: 85364900990
• ETIM code: EC001437
• eClass code: 27-37-16-01
• Order code / Manufacturer SKU: 788-150
• Manufacturer product status: Commercialized
• Equivalent to: 788150
• EAN code: 4045454303778
• Compliant with standard(s): EN 61810-1|RoHS compliant
• Location of origin: Austria
• Level 1 category: Automation components
• Level 2 category: Control components
• Level 3 category: Control relays
• Product title: Replacement plug-in basic relay - WAGO

Commercial data

• Country of origin: AT
• Customs tariff number: 85364900990
• ECCN: NO US CLASSIFICATION
• eCl@ss 10.0: 27-37-16-01
• eCl@ss 9.0: 27-37-16-01
• ETIM 8.0: EC001437
• ETIM 9.0: EC001437
• GTIN: 4045454303778
• Packaging type: box
• Product Group: 6 (INTERFACE ELECTRONIC)
• PU (SPU): 20 (1) pcs

Environmental Product Compliance

• CAS-No.: 7439-92-1
• REACH Candidate List Substance: Lead
• RoHS Compliance Status: Compliant,No Exemption
• SCIP notification number (Austria): 18bfe4fa-b008-427c-b15b-005361886a99
• SCIP notification number (Belgium): e91f83d8-da3f-43db-b336-4a6e9367ef01
• SCIP notification number (Bulgaria): 3231c056-0dc6-471a-8612-5dd068f93069
• SCIP notification number (Czech Republic): b5e76aee-b4d0-4726-bfa3-fb98efd07dce
• SCIP notification number (Denmark): 84d9da31-eeb7-4ee0-947d-c9b6c5cef632
• SCIP notification number (Finland): 99b62071-bf0e-4bd4-a895-cbb87e6741d2
• SCIP notification number (France): 0b11b22d-17ce-4d3d-a984-27cec09bfb7d
• SCIP notification number (Germany): ee20dc5f-eab2-4a3c-9d1c-b9b215dd3cd3
• SCIP notification number (Hungary): 49c9b9dd-4870-4b2d-8966-3e9040bf0a09
• SCIP notification number (Italy): 473eb418-9a30-4e35-aea3-e973e47ed06d
• SCIP notification number (Netherlands): b0eb66fa-4b0f-43ad-a498-0cfb02586618
• SCIP notification number (Poland): 2bb86ee7-0ec5-4806-9cd1-9c73f3def593
• SCIP notification number (Romania): 9f151eff-ea38-4caa-aedf-ec6f2f1189ca
• SCIP notification number (Sweden): bb4a7814-72d8-4cd1-81c6-ee8a2faefd45

Environmental requirements

• Ambient temperature (operation at U_N): -40 … +85 °C
• Ambient temperature (storage): -40 … +85 °C

Material data

• Note (material data):
  Information on material specifications can be found here

• Weight: 13.1g

Mechanical data

• Mounting type: Pluggable module

Physical data

• Depth: 29 mm / 1.142 inches
• Height from the surface: 15.7 mm / 0.618 inches
• Width: 12.7 mm / 0.5 inches

Safety and protection

• Dielectric strength (control/load circuit) (AC, 1 min): 5 kVrms
• Dielectric strength (open contact) (AC, 1 min): 1 kVrms
• Protection type: IP40

Standards and specifications

• Standards/specifications: EN 61810-1

Technical data

• Control circuit - Nominal input current at U_N: 34 mA
• Control circuit - Nominal input voltage U_N: 12 VDC
• Load circuit - Bounce time (typ.): 6ms
• Load circuit - Contact material (relay): AgNi 90/10
• Load circuit - Drop-out time (typ.): 6ms
• Load circuit - Electrical life (NO; resistive load; 23 °C): 30 x 10³ switching operations
• Load circuit - Inrush current (resistive) max.: (AC) 30 A / 4 s
• Load circuit - Limiting continuous current: 16 A
• Load circuit - Mechanical life: 30 x 10⁶ switching operations
• Load circuit - Number of changeover/switchover contacts: 1
• Load circuit - Pull-in time (typ.): 8ms
• Load circuit - Recommended minimum load: 12 V / 10 mA
• Load circuit - Switching capacity: AC-15: 6 A / 250 VAC; DC-13: 2 A / 24 VDC
• Load circuit - Switching frequency with/without load (max.): 6 min^-1 / 1200 min^-1
• Load circuit - Switching power (resistive) max.: AC 4000 VA; DC (see load limit curve)
• Load circuit - Switching Voltage, Max.: 250 VAC
