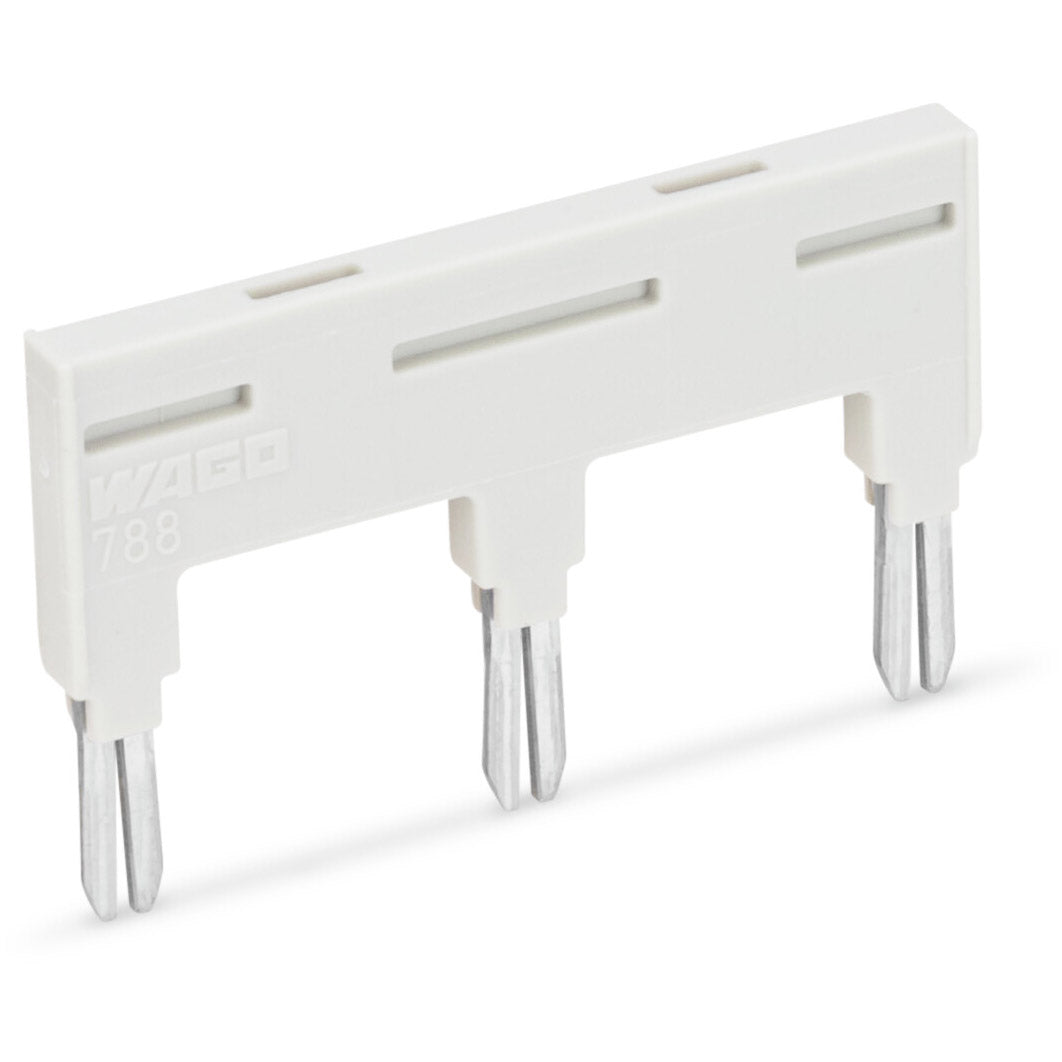

Wago - 788-114

Insulated push-in type comb-style jumper bar - 3-way - WAGO (788 series) - 3-poles (3P) - Rated current 18A - Light Gray color - equivalent to 788114

Specifications

• Primary brand: WAGO
• Functions: Insulated push-in type comb-style jumper bar
• Design: 3-way
• Poles: 3-poles (3P)
• Rated current: 18A
• Color: Light Gray
• Dimensions: H21.5mm x W34.2mm x D3.1mm
• ETIM code: EC002586
• eClass code: 27-14-11-40
• Customs Tariff Number: 85366990990
• GTIN code: 4045454469351
• Order code / Manufacturer SKU: 788-114
• Manufacturer product status: Commercialized
• Equivalent to: 788114
• EAN code: 4045454469351
• Compliant with standard(s): RoHS compliant
• Location of origin: Germany
• Level 1 category: Electrical components
• Product title: Insulated push-in type comb-style jumper bar - WAGO

Commercial data

• Country of origin: DE
• Customs tariff number: 85366990990
• ECCN: NO US CLASSIFICATION
• eCl@ss 10.0: 27-14-11-40
• eCl@ss 9.0: 27-14-11-40
• ETIM 8.0: EC002586
• ETIM 9.0: EC002586
• GTIN: 4045454469351
• Packaging type: box
• Product Group: 6 (INTERFACE ELECTRONIC)
• PU (SPU): 100 (25) pcs

Electrical data

• Rated current: 18A

Environmental Product Compliance

• RoHS Compliance Status: Compliant,No Exemption

Material data

• Color: light gray
• Fire load: 0.02MJ
• Weight: 2.2g

Physical data

• Depth: 3.1 mm / 0.122 inches
• Height: 21.5 mm / 0.846 inches
• Width: 34.2 mm / 1.346 inches
