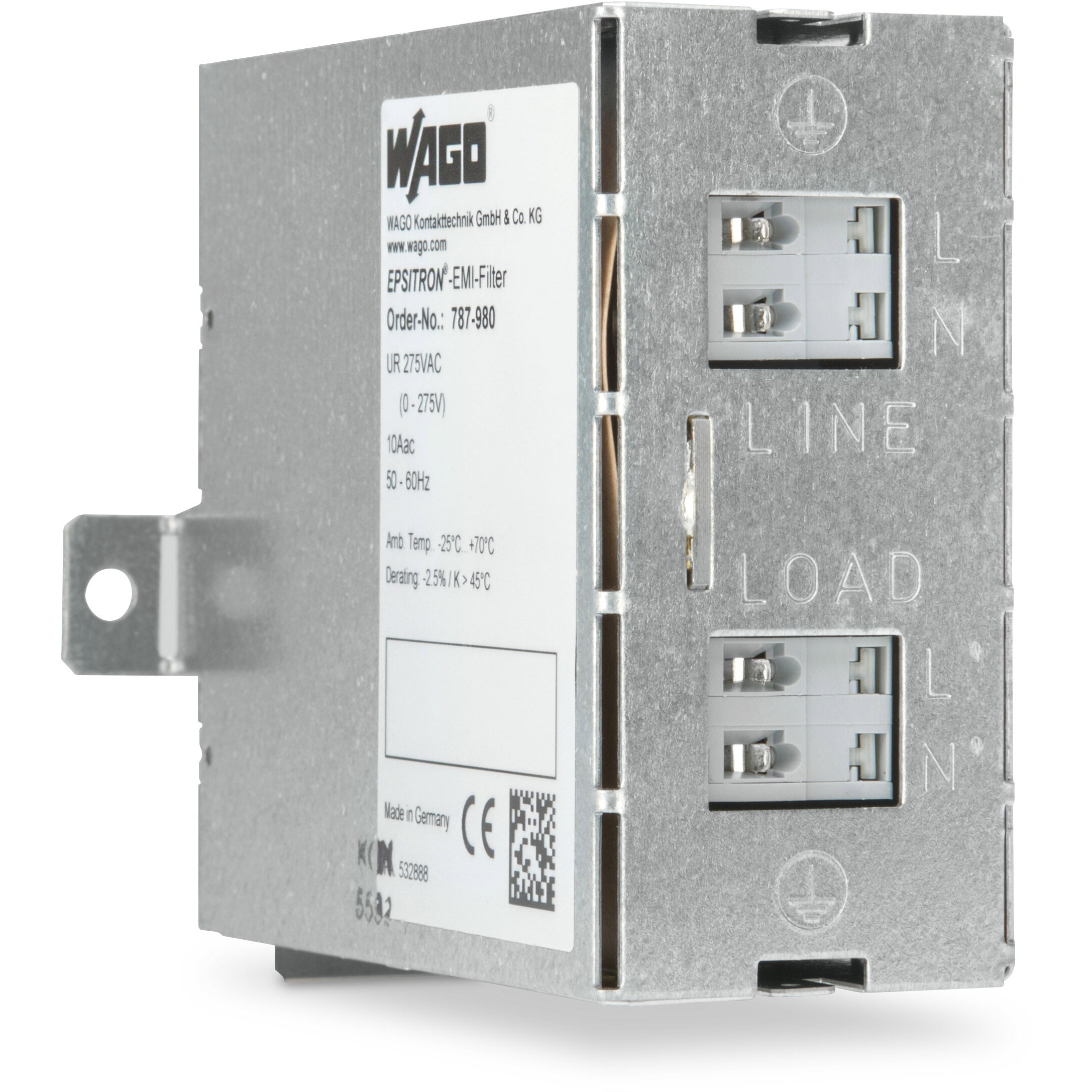

Wago - 787-980

Radio interference suppression filter - WAGO (787 series) - with CAGE CLAMP spring connections - DIN-35 rail mounting (50mm width) - IP20 - equivalent to 787980

Specifications

• Primary brand: WAGO
• Network frequency: 50-60Hz
• Functions: Radio interference suppression filter|Parallel operation possible
• Type of network: Single-phase AC (1AC)
• Connection type: CAGE CLAMP spring connections
• Mounting mode: DIN-35 rail
• Dimensions: H85mm x W50mm x D100mm
• Net Width (mm): 50mm
• Ambient air temperature for operation: -25°C...+70°C
• Customs Tariff Number: 85045000900
• GTIN code: 4055143364515
• eClass code: 27-42-02-90
• ETIM code: EC002564
• Order code / Manufacturer SKU: 787-980
• Manufacturer product status: Commercialized
• Equivalent to: 787980
• EAN code: 4055143364515
• Compliant with standard(s): Safety and protection|- Isolation voltage (connectors - housing) -- 2.7kVDC|CE|DIN EN 60939-2|DNV|General approvals|- EAC - GZO Almaty Standart - TP TC 020/2011 - certificate EAC CoC 03081|RoHS compliant
• Location of origin: Germany
• Degree of pollution: 2
• Level 1 category: Electrical components
• Level 2 category: Electrical circuits protection
• Level 3 category: Surge Protection Devices (SPD)
• Product title: Radio interference suppression filter - WAGO

Commercial data

• Country of origin: DE
• Customs tariff number: 85045000900
• ECCN: NO US CLASSIFICATION
• eCl@ss 10.0: 27-42-02-90
• eCl@ss 9.0: 27-42-02-90
• ETIM 8.0: EC002564
• ETIM 9.0: EC002564
• GTIN: 4055143364515
• Packaging type: box
• PU (SPU): 1 (1) pcs

Connection data

• Connection technology: CAGE CLAMP^®|Flat connector (6.3 x 0.8 mm)
• Connection type: PE
• Connection type 1: L1, N
• Fine-stranded conductor: 0.08 … 2.5 mm² / 28 … 12 AWG
• Solid conductor: 0.08 … 2.5 mm² / 28 … 12 AWG
• Strip length: 5 … 6 mm / 0.2 … 0.24 inches
• WAGO connector: WAGO 741 Series

Environmental Product Compliance

• RoHS Compliance Status: Compliant,No Exemption

Environmental requirements

• Ambient temperature (operation): -25 … +70 °C (Device starts at -40 °C (type-tested))
• Climatic category: 25/085/21 (per EN 60068-1)
• Derating: -2.5 %/K (> 45 °C)

Material data

• Weight: 340g

Mechanical data

• Mounting type: DIN-35 rail

Physical data

• Depth from upper-edge of DIN-rail: 100 mm / 3.937 inches
• Height: 85 mm / 3.346 inches
• Width: 50 mm / 1.969 inches

Safety and protection

• Isolation voltage (connectors – housing): 2.7 kVDC
• Parallel operation: Yes
• Pollution degree: 2
• Protection class: I
• Protection type: IP20; per EN 60529
• Series operation: No

Standards and specifications

• Conformity marking: CE
• Standards/specifications: DIN EN 60939-2|DNV

Technical data

• Efficiency/power losses - Power loss P_l: ≤ 4 W
• Input - Input current I_i: ≤ 10 A
• Input - Input voltage range: 1 x 0 … 250 VAC
• Input - Nominal input voltage U_{i nom}: 1 x 250 VAC|1 x AC 250 V
• Input - Nominal mains frequency range: 50 … 60 Hz
• Input - Phases: 1
