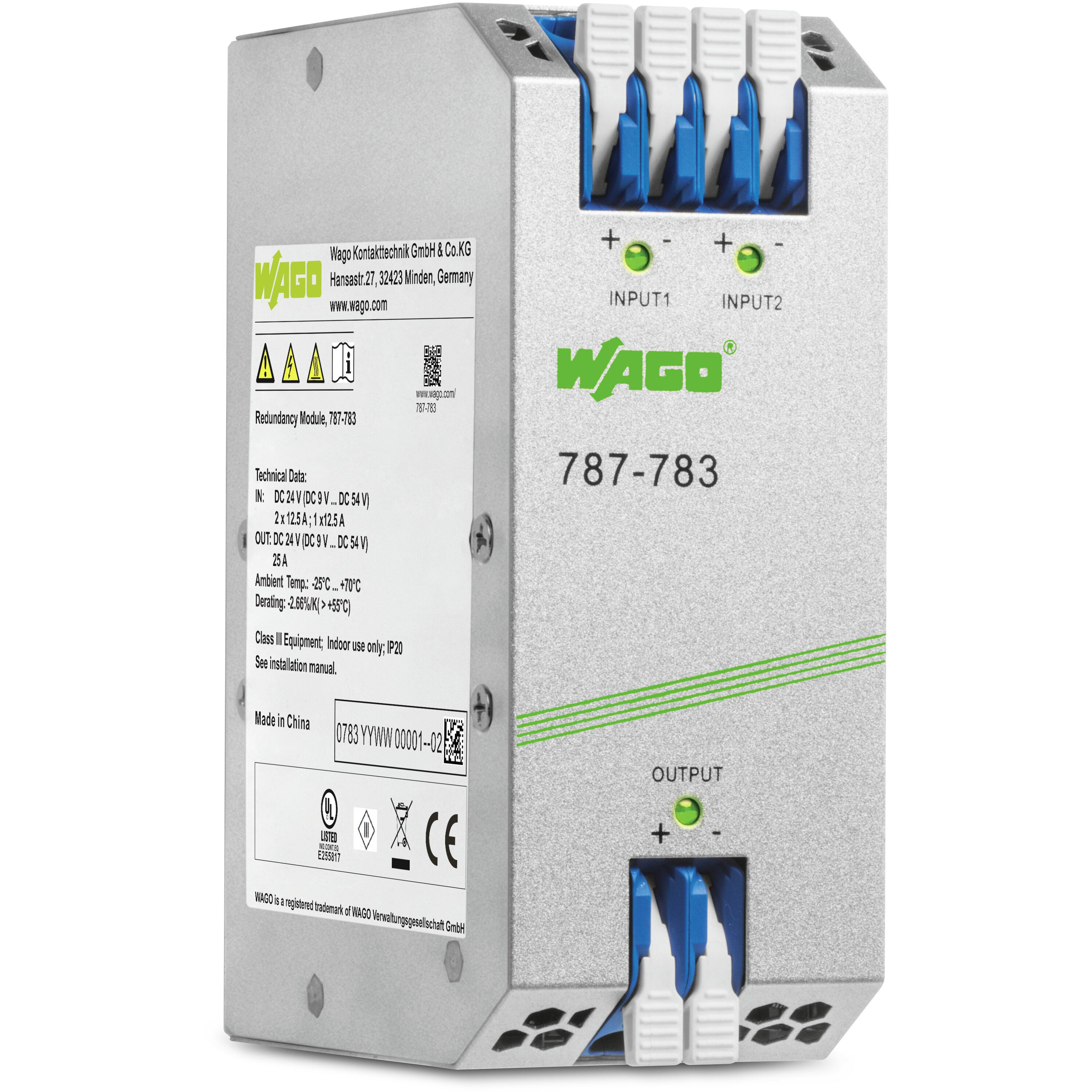

Wago - 787-783

Redundancy module - WAGO (787 series) - 9-54Vdc (12Vdc / 24Vdc / 48Vdc) / 25A (parallel operation) output - Input voltage 9-54Vdc x 2 - with Push-in CAGE CLAMP spring connections - DIN-35 rail mounting (50mm width) - IP20 - equivalent to 787783

Specifications

• Primary brand: WAGO
• Functions: Redundancy module|Parallel operation possible
• Supply voltage (DC): 9-54Vdc x 2
• Display: LED status indication (IN1 -- green; IN2 -- green; OUT -- green)
• Rated current: 25A (parallel operation)|15.025A (70°C; -2.66% output derating for every 1K temperature rise above 55°C)|12.5A (redundancy operation)
• Output voltage (DC): 9-54Vdc (12Vdc / 24Vdc / 48Vdc)
• Connection type: Push-in CAGE CLAMP spring connections
• Efficiency: 0.96
• Mounting mode: DIN-35 rail
• Dimensions: H130mm x W50mm x D92mm
• Net Width (mm): 50mm
• Ambient air temperature for operation: -25°C...+70°C
• Ambient air temperature for storage: -40°C...+85°C
• Humidity: ≤95% relative humidity (RH; non-condensing)
• ETIM code: EC002540
• eClass code: 27-04-07-01
• GTIN code: 4055143036290
• Customs Tariff Number: 85044095900
• Order code / Manufacturer SKU: 787-783
• Manufacturer product status: Commercialized
• Equivalent to: 787783
• EAN code: 4055143036290
• Compliant with standard(s): Safety and protection|- Isolation voltage (connectors - housing) -- 0.5kVDC|CE|UL 508|General approvals|- UL - Underwriters Laboratories Inc. - UL 508 - certificate E255817|Declarations of conformity and manufacturer's declarations|- EU-Declaration of Conformity - WAGO GmbH & Co. KG|- UK-Declaration of Conformity - WAGO GmbH & Co. KG|RoHS compliant
• Location of origin: China
• Degree of pollution: 2
• MTBF (Mean Time Between Failures): 10 000 000h
• Level 1 category: Automation components
• Level 2 category: Power supply units
• Level 3 category: Redundancy units for power supply circuits
• Product title: Redundancy module - WAGO

Commercial data

• Country of origin: CN
• Customs tariff number: 85044095900
• ECCN: NO US CLASSIFICATION
• eCl@ss 10.0: 27-04-07-01
• eCl@ss 9.0: 27-04-07-01
• ETIM 8.0: EC002540
• ETIM 9.0: EC002540
• GTIN: 4055143036290
• Packaging type: Box
• PU (SPU): 1 pcs

Connection data

• Connection technology: Push-in CAGE CLAMP^®
• Connection type 1: Input/output
• Fine-stranded conductor: 0.5 … 6 mm² / 20 … 10 AWG
• Solid conductor: 0.5 … 6 mm² / 20 … 10 AWG
• Strip length: 11 … 12 mm / 0.43 … 0.47 inches
• WAGO connector: WAGO 2706 Series

Environmental Product Compliance

• RoHS Compliance Status: Compliant,No Exemption
• RoHS Exemption: 7(a)|7(c)-I|7(c)-II
• SCIP notification number (Bulgaria): ee8b3ea5-15c1-45d9-8bcc-d73670c4c6fe
• SCIP notification number (Czech Republic): 30618d2b-98b4-4bd3-9376-269bf618f4a8

Environmental requirements

• Ambient temperature (operation): -25 … +70 °C
• Ambient temperature (storage): -40 … +85 °C
• Climatic category: 3K3 (per EN 60721; except for low air pressure)
• Derating: -2.66 %/K (55 °C < T_u ≤ 70 °C)
• Relative humidity: ≤ 95 % (no condensation permissible)
• Resistance to shock and vibration: Shock: 15g (per EN 60068-2-27)

Material data

• Weight: 31.1g

Mechanical data

• Mounting type: DIN-35 rail

Physical data

• Depth from upper-edge of DIN-rail: 92 mm / 3.662 inches
• Height: 130 mm / 5.118 inches
• Width: 50 mm / 1.969 inches

Safety and protection

• Isolation voltage (connectors – housing): 0.5 kVDC
• MTBF: > 10 million h (per IEC 61709)
• Open-circuit-proof: Yes
• Overvoltage protection; secondary: No
• Parallel operation: Yes
• Pollution degree: 2
• Protection class: III
• Protection type: IP20; per EN 60529
• Resistance to reverse feed: ≤ 60 VDC
• Series operation: No
• Short-circuit-protected: No

Standards and specifications

• Conformity marking: CE
• Standards/specifications: UL 508

Technical data

• Efficiency/power losses - Efficiency (typ.): 96 %
• Efficiency/power losses - Power loss P_l: ≤ 19 W (nominal load)
• Input - Input current I_i: ≤ 12.5 A (per path); ≤ 25 A (in total)
• Input - Input voltage range: 2 x 9 … 54 VDC
• Input - Nominal input voltage U_{i nom}: 2 x 24 VDC|2 x DC 24 V
• Input - Nominal mains frequency range: 0 Hz
• Output - Nominal output current I_{o nom}: 12.5 A (redundancy operation); 25 A (Parallel operation)
• Output - Nominal output power: 600W
• Output - Nominal output voltage U_{o nom}: 24 VDC
• Output - Output voltage range: 9 … 54 VDC (U_e − voltage drop)
• Output - Voltage drop: ≤ 0.8 V (Input/output)
• Signaling and communication - Operation status indicator: 2 x Green LED (U_i > 7.5 VDC)|1 x Green LED (U_o > 7.5 VDC)
• Signaling and communication - Signaling: 1 x IN1 LED (green)|1 x IN2 LED (green)|1 x OUT LED (green)
