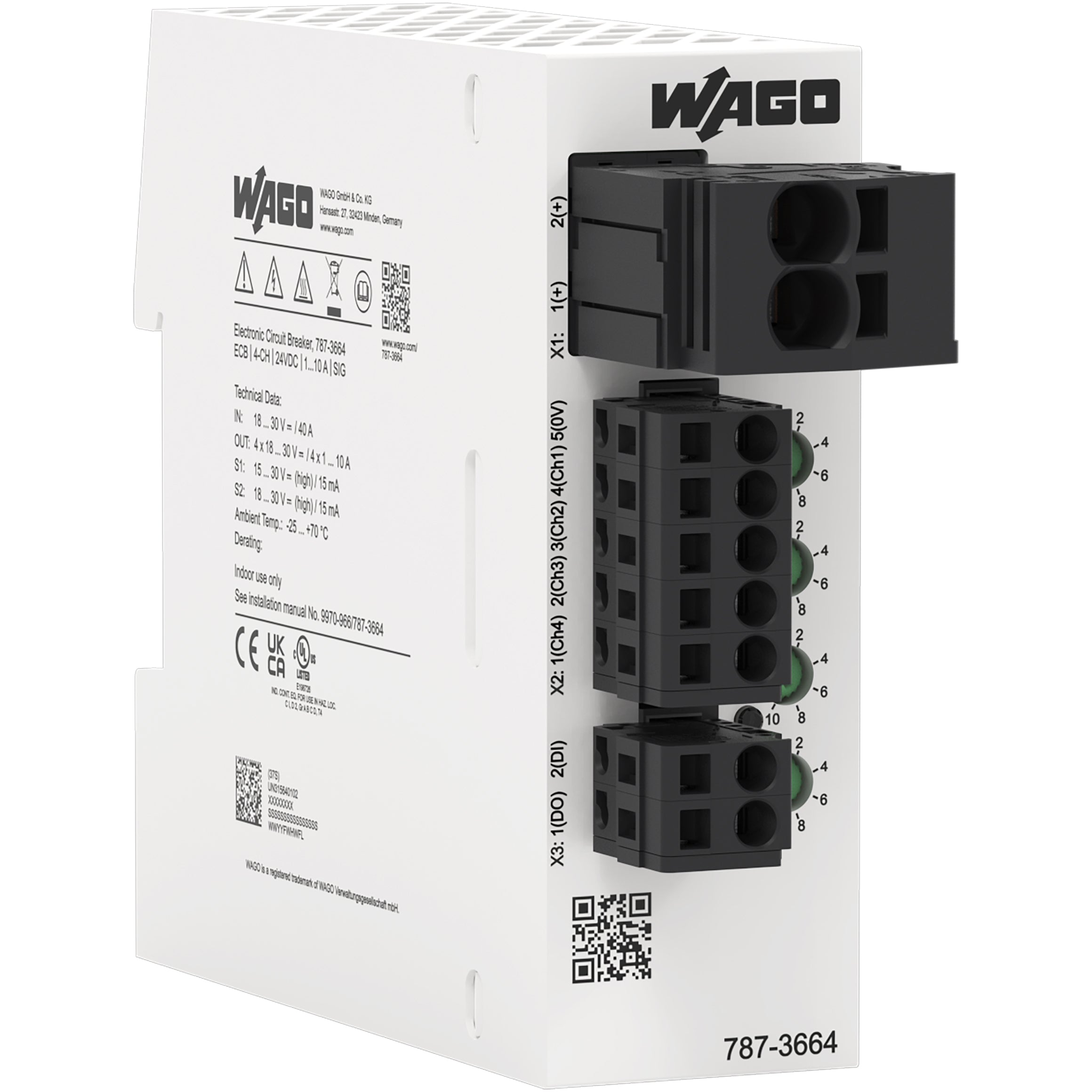

Wago - 787-3664

WAGO component - equivalent to 7873664

Specifications

• Primary brand: WAGO
• Order code / Manufacturer SKU: 787-3664
• Manufacturer product status: Commercialized
• Equivalent to: 7873664
• EAN code: 4066966493764
• Manufacturer description: Electronic circuit breaker; 4-channel; 24Vdc input voltage; adjustable 1...10A; Signal contact
• Location of origin: India
• Manufacturer product specifications: Technical data - Input - Nominal input voltage U_{i nom} -- 24 VDC|Technical data - Input - Input voltage range -- 18...30 VDC|Technical data - Output - Total number of channels (module) -- 4|Technical data - Output - Nominal output voltage U_{o nom} -- 4 x 24 VDC|Technical data - Output - Output voltage range -- 18...30 VDC (U_e - voltage drop)|Technical data - Output - Voltage drop -- ≤ 250mV (Input (+))|Technical data - Output - Nominal output current I_{o nom} -- 4 x 1 / 2 / 4 / 6 / 8 / 10A (adjustable for each channel via selector switch)|Technical data - Output - Default setting -- DC 1 A; switched off|Technical data - Output - Trip time -- 16 ms...100 s (load-dependent)|Technical data - Output - Switch-on capacity -- > 50000 μF per channel|Technical data - Output - Switch-on behavior -- Time-delayed channel switching (load-dependent; min. 50ms / max. 10 s)|Technical data - Output - Active current limitation -- No|Technical data - Output - Current limitation -- No|Technical data - Signaling and communication - Signaling -- 4 x LED (green/red/orange) / 1 x Remote control input (S1) / 1 x active signal output (S2)|Technical data - Signaling and communication - Operation status indicator -- Green LED (channel OK) / Red LED (tripped channel)|Technical data - Signaling and communication - Remote input -- Reactivation of all tripped channels via 15...30 VDC pulse for min. 500ms|Technical data - Efficiency/power losses - Power loss P_l -- ≤ 0.84 W; ≤ 10W (4 x 10 A)|Technical data - Efficiency/power losses - Efficiency (typ.) -- 98%|Technical data - Circuit protection - Internal fuse -- T 12A per channel|Safety and protection - Isolation voltage (connectors - housing) -- 0.5kVDC|Safety and protection - Protection class -- III|Safety and protection - Protection type -- IP20; per EN 60529|Safety and protection - Reverse voltage protection -- No|Safety and protection - Resistance to reverse feed -- ≤ 35 VDC|Safety and protection - Pollution degree -- 2|Safety and protection - Transient suppression (primary) -- Suppressor diode (33 V)|Safety and protection - Parallel operation of single channels -- Permissible|Safety and protection - Series operation -- No|Connection data - Connection type 1 -- Input (+)|Connection data - Connection technology -- Push-in CAGE CLAMP / CAGE CLAMP|Connection data - WAGO connector -- WAGO 831 Series|Connection data - Solid conductor -- 0.5...10mm2 / 20...8 AWG / 0.08...2.5mm2 / 28...12 AWG|Connection data - Fine-stranded conductor -- 0.5...10mm2 / 20...8 AWG / 0.08...2.5mm2 / 28...12 AWG|Connection data - Strip length -- 13...15mm / 0.51...0.59" / 8...9mm / 0.31...0.35"|Connection data - Connection type -- Input (-); output; signaling|Connection data - WAGO connector 2 -- WAGO 231 Series|Physical data - Width -- 32mm / 1.26"|Physical data - Height -- 95mm / 3.74"|Physical data - Depth from upper-edge of DIN-rail -- 117.5mm / 4.626"|Mechanical data - Mounting type -- DIN-35 rail|Material data - Fire load -- 2.444MJ|Material data - Weight -- 152.2g|Environmental requirements - Ambient temperature (operation) -- -25...+70°C|Environmental requirements - Ambient temperature (storage) -- -25...+85°C|Environmental requirements - Relative humidity -- 5...96% (no condensation permissible)|Environmental requirements - Derating -- ≥ 50°C (see instruction manual)|Standards and specifications - Conformity marking -- CE|Standards and specifications - Standards/specifications -- EN 61000-6-2 / EN 61000-6-3 / UL 61010-2-201 / UL 2367|Commercial data - ETIM 9.0 -- EC001440|Commercial data - ETIM 8.0 -- EC001440|Commercial data - ECCN -- NO US CLASSIFICATION|Commercial data - PU (SPU) -- 1 pcs|Commercial data - Packaging type -- Box|Commercial data - Country of origin -- IN|Commercial data - Customs tariff number -- 85363010000|Environmental Product Compliance - CAS-No. -- 11120-22-2 / 1303-86-2 / 1317-36-8 / 7439-92-1|Environmental Product Compliance - REACH Candidate List Substance -- Diboron trioxide / Lead / Lead monoxide / Lead silicate|Environmental Product Compliance - RoHS Compliance Status -- Compliant;With Exemption|Environmental Product Compliance - RoHS Exemption -- 6(c) / 7(a) / 7(c)-I / 7(c)-II|Environmental Product Compliance - SCIP notification number (Austria) -- 770d0258-4fab-4b14-9c3b-8c07d2a2de62|Environmental Product Compliance - SCIP notification number (Belgium) -- 808de5c5-bfd4-463b-a91a-1d79bdd2a549|Environmental Product Compliance - SCIP notification number (Bulgaria) -- fd5ee284-c087-4d01-b003-b36bc59328d9|Environmental Product Compliance - SCIP notification number (Czech Republic) -- 086b0409-eaf9-4fa5-9cfc-8fa3f2633649|Environmental Product Compliance - SCIP notification number (Denmark) -- ccd5ad61-d492-409c-838b-006109b18149|Environmental Product Compliance - SCIP notification number (Finland) -- 03978a26-1fb5-4c30-ba89-22c9c9249c5a|Environmental Product Compliance - SCIP notification number (France) -- 89cbabec-d00c-4dfc-9803-bb5c106334f0|Environmental Product Compliance - SCIP notification number (Germany) -- 06760d83-7273-42a9-9ce9-07ddd1817cc1|Environmental Product Compliance - SCIP notification number (Hungary) -- 01a51be0-50c4-48ef-8dd7-25d668e6ac5f|Environmental Product Compliance - SCIP notification number (Italy) -- a0f3a029-f535-4074-b652-0920bdb89b42|Environmental Product Compliance - SCIP notification number (Netherlands) -- 7f04007f-93e7-47a7-8896-cb44a0762e97|Environmental Product Compliance - SCIP notification number (Poland) -- d9c6557a-34e9-431c-8ea4-73801fdf7ed0|Environmental Product Compliance - SCIP notification number (Romania) -- 376f4cf4-ede3-498d-9624-ae3494364574|Environmental Product Compliance - SCIP notification number (Sweden) -- 68a94c82-e3c9-4324-87cb-112be317bd67
• Level 1 category: Electrical components

Commercial data

• Country of origin: IN
• Customs tariff number: 85363010000
• ECCN: NO US CLASSIFICATION
• ETIM 8.0: EC001440
• ETIM 9.0: EC001440
• Packaging type: Box
• PU (SPU): 1 pcs

Connection data

• Connection technology: Push-in CAGE CLAMP^®|CAGE CLAMP^®
• Connection type: Input (–); output; signaling
• Connection type 1: Input (+)
• Fine-stranded conductor: 0.5 … 10 mm² / 20 … 8 AWG|0.08 … 2.5 mm² / 28 … 12 AWG
• Solid conductor: 0.5 … 10 mm² / 20 … 8 AWG|0.08 … 2.5 mm² / 28 … 12 AWG
• Strip length: 13 … 15 mm / 0.51 … 0.59 inches|8 … 9 mm / 0.31 … 0.35 inches
• WAGO connector: WAGO 831 Series
• WAGO connector 2: WAGO 231 Series

Environmental Product Compliance

• CAS-No.: 11120-22-2|1303-86-2|1317-36-8|7439-92-1
• REACH Candidate List Substance: Diboron trioxide|Lead|Lead monoxide|Lead silicate
• RoHS Compliance Status: Compliant,With Exemption
• RoHS Exemption: 6(c)|7(a)|7(c)-I|7(c)-II
• SCIP notification number (Austria): 770d0258-4fab-4b14-9c3b-8c07d2a2de62
• SCIP notification number (Belgium): 808de5c5-bfd4-463b-a91a-1d79bdd2a549
• SCIP notification number (Bulgaria): fd5ee284-c087-4d01-b003-b36bc59328d9
• SCIP notification number (Czech Republic): 086b0409-eaf9-4fa5-9cfc-8fa3f2633649
• SCIP notification number (Denmark): ccd5ad61-d492-409c-838b-006109b18149
• SCIP notification number (Finland): 03978a26-1fb5-4c30-ba89-22c9c9249c5a
• SCIP notification number (France): 89cbabec-d00c-4dfc-9803-bb5c106334f0
• SCIP notification number (Germany): 06760d83-7273-42a9-9ce9-07ddd1817cc1
• SCIP notification number (Hungary): 01a51be0-50c4-48ef-8dd7-25d668e6ac5f
• SCIP notification number (Italy): a0f3a029-f535-4074-b652-0920bdb89b42
• SCIP notification number (Netherlands): 7f04007f-93e7-47a7-8896-cb44a0762e97
• SCIP notification number (Poland): d9c6557a-34e9-431c-8ea4-73801fdf7ed0
• SCIP notification number (Romania): 376f4cf4-ede3-498d-9624-ae3494364574
• SCIP notification number (Sweden): 68a94c82-e3c9-4324-87cb-112be317bd67

Environmental requirements

• Ambient temperature (operation): -25 … +70 °C
• Ambient temperature (storage): -25 … +85 °C
• Derating: ≥ 50 °C (see instruction manual)
• Relative humidity: 5 … 96 % (no condensation permissible)

Material data

• Fire load: 2.444MJ
• Weight: 152.2g

Mechanical data

• Mounting type: DIN-35 rail

Physical data

• Depth from upper-edge of DIN-rail: 117.5 mm / 4.626 inches
• Height: 95 mm / 3.74 inches
• Width: 32 mm / 1.26 inches

Safety and protection

• Isolation voltage (connectors – housing): 0.5 kVDC
• Parallel operation of single channels: Permissible
• Pollution degree: 2
• Protection class: III
• Protection type: IP20; per EN 60529
• Resistance to reverse feed: ≤ 35 VDC
• Reverse voltage protection: No
• Series operation: No
• Transient suppression (primary): Suppressor diode (33 V)

Standards and specifications

• Conformity marking: CE
• Standards/specifications: EN 61000-6-2|EN 61000-6-3|UL 61010-2-201|UL 2367

Technical data

• Circuit protection - Internal fuse: T 12 A per channel
• Efficiency/power losses - Efficiency (typ.): 98 %
• Efficiency/power losses - Power loss P_l: ≤ 0.84 W; ≤ 10 W (4 x 10 A)
• Input - Input voltage range: 18 … 30 VDC
• Input - Nominal input voltage U_{i nom}: 24 VDC
• Output - Active current limitation: No
• Output - Current limitation: No
• Output - Default setting: DC 1 A; switched off
• Output - Nominal output current I_{o nom}: 4 x 1 / 2 / 4 / 6 / 8 / 10 A (adjustable for each channel via selector switch)
• Output - Nominal output voltage U_{o nom}: 4 x 24 VDC
• Output - Output voltage range: 18 … 30 VDC (U_e − voltage drop)
• Output - Switch-on behavior: Time-delayed channel switching (load-dependent, min. 50 ms / max. 10 s)
• Output - Switch-on capacity: > 50000 µF per channel
• Output - Total number of channels (module): 4
• Output - Trip time: 16 ms … 100 s (load-dependent)
• Output - Voltage drop: ≤ 250 mV (Input (+))
• Signaling and communication - Operation status indicator: Green LED (channel OK)|Red LED (tripped channel)
• Signaling and communication - Remote input: Reactivation of all tripped channels via 15 … 30 VDC pulse for min. 500 ms
• Signaling and communication - Signaling: 4 x LED (green/red/orange)|1 x Remote control input (S1)|1 x active signal output (S2)
