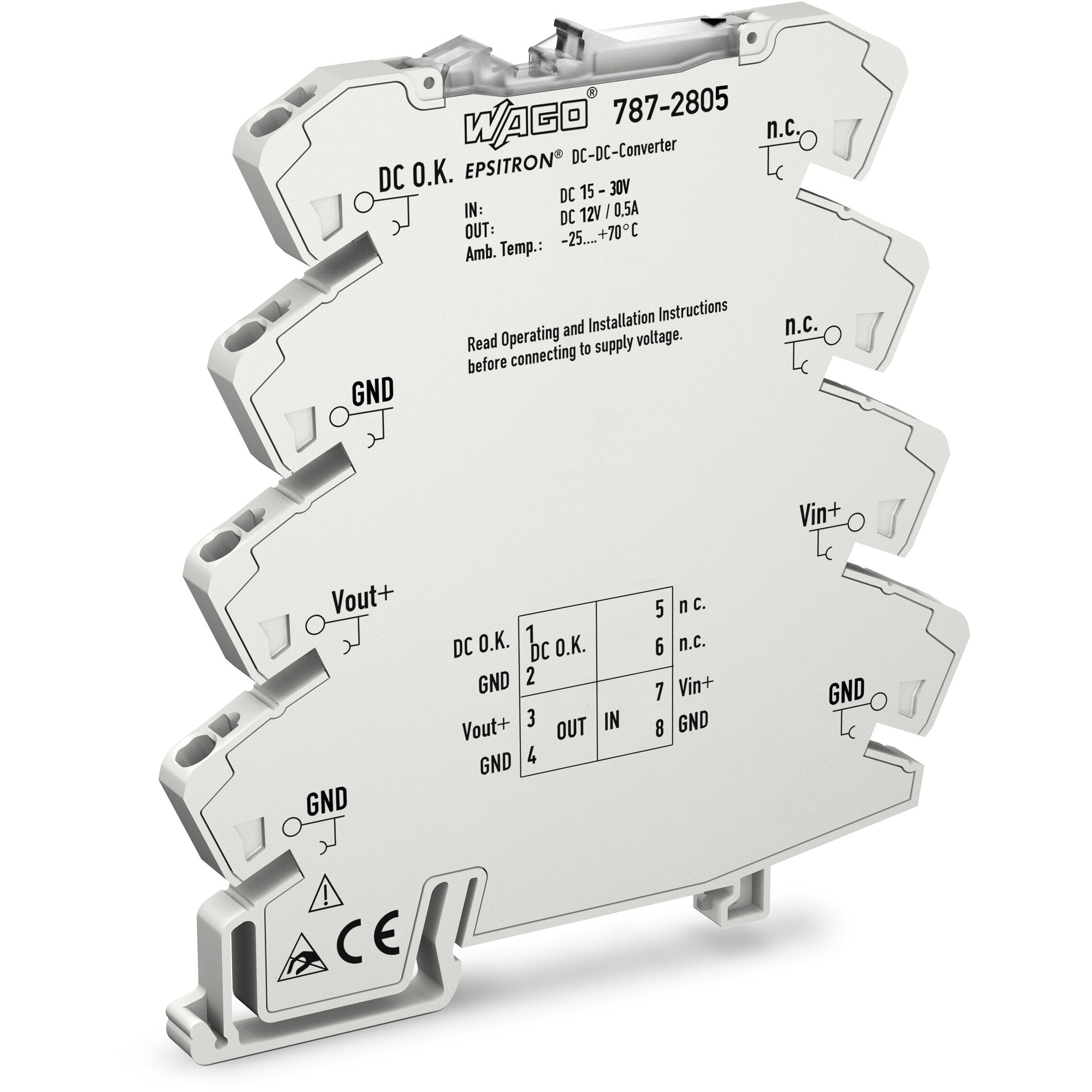

DC-to-DC power supply unit (PSU) / converter module with DC-OK rly. contact output - WAGO (787 series) - 12Vdc / 0.5A / 6W output - Input voltage 15-30Vdc (24Vdc nom.) (DC) - with Push-in CAGE CLAMP spring connections - DIN-35 rail mounting (6mm width) - IP20 - rated for -25°C...+70°C ambient - equivalent to 7872805

Specifications

• Primary brand: WAGO
• Functions: DC-to-DC power supply unit (PSU) / converter module
• Design: DC-OK rly. contact output
• Supply voltage (DC): 15-30Vdc (24Vdc nom.)
• Display: LED status indication (DC OK -- green; Short-circuit -- red)
• Type of network: DC
• Rated current: 0.5A
• Rated power: 6W
• Output voltage (DC): 12Vdc|11.76-12.24Vdc
• Connection type: Push-in CAGE CLAMP spring connections
• Protection functions: Short-circuit protection|Open circuit protection
• Efficiency: 0.9
• Mounting mode: DIN-35 rail
• Measurement accuracy: ≤ 2% (output error)
• Dimensions: H94mm x W6mm x D97.8mm
• Net Width (mm): 6mm
• Ambient air temperature for operation: -25°C...+70°C
• Ambient air temperature for storage: -40°C...+85°C
• Humidity: ≤95% relative humidity (RH; non-condensing)
• Current consumption: 0.5A|0.5A inrush
• GTIN code: 4055143407045
• Customs Tariff Number: 85044083900
• ETIM code: EC002540
• eClass code: 27-04-07-01
• Order code / Manufacturer SKU: 787-2805
• Manufacturer product status: Commercialized
• Equivalent to: 7872805
• EAN code: 4055143407045
• Compliant with standard(s): CE|EN 60950-1|EN 61000-6-2|EN 61000-6-3|UL 61010-2-201|General approvals|- EAC - GZO Almaty Standart - TP TC 020/2011 - certificate EAC CoC 03081|- UL - Underwriters Laboratories Inc. (ORDINARY LOCATIONS) - UL 61010-2-201 - certificate E175199 Vol3 Sec1|Declarations of conformity and manufacturer's declarations|- EU-Declaration of Conformity - WAGO GmbH & Co. KG|RoHS compliant with exemption (6(c) / 7(a) / 7(c)-I / 7(c)-II)
• Location of origin: Germany
• Degree of pollution: 2
• Ripple: 20mVpp (output voltage)
• MTBF (Mean Time Between Failures): 1 800 000h
• Level 1 category: Automation components
• Level 2 category: Power supply units
• Product title: DC-to-DC power supply unit (PSU) / converter module - WAGO

Commercial data

• Country of origin: DE
• Customs tariff number: 85044083900
• ECCN: NO US CLASSIFICATION
• eCl@ss 10.0: 27-04-07-01
• eCl@ss 9.0: 27-04-07-01
• ETIM 8.0: EC002540
• ETIM 9.0: EC002540
• GTIN: 4055143407045
• Packaging type: bag
• PU (SPU): 1 pcs

Connection data

• Connection technology: Push-in CAGE CLAMP^®
• Fine-stranded conductor: 0.34 … 2.5 mm² / 22 … 14 AWG
• Number of jumper slots: 8
• Solid conductor: 0.08 … 2.5 mm² / 28 … 14 AWG
• Strip length: 9 … 10 mm / 0.35 … 0.39 inches
• WAGO connector: WAGO 857 Series

Environmental Product Compliance

• CAS-No.: 1303-86-2|1317-36-8|7439-92-1
• REACH Candidate List Substance: Diboron trioxide|Lead|Lead monoxide
• RoHS Compliance Status: Compliant,With Exemption
• RoHS Exemption: 6(c)|7(a)|7(c)-I|7(c)-II
• SCIP notification number (Austria): 4f2a43e4-a730-4da6-863a-5a38b11c0458
• SCIP notification number (Belgium): f9285629-a82b-482e-9934-56caaa89bd90
• SCIP notification number (Bulgaria): aa1c2089-ca90-475b-b065-b290f8c47c73
• SCIP notification number (Czech Republic): e4407a61-44ef-46f6-8b71-5957fb1b0e35
• SCIP notification number (Denmark): 62e3f530-0083-4301-a58f-c18079aaac67
• SCIP notification number (Finland): b5859d05-b7e1-4a35-a43a-cf33af17f955
• SCIP notification number (France): 9a8251e6-a882-4123-987f-3af679ef6e75
• SCIP notification number (Germany): 6edaf339-2ec1-4a85-bfcf-c4ac37d4e41b
• SCIP notification number (Hungary): 50511142-efbe-4d96-bb7d-4eb00b7c1b98
• SCIP notification number (Italy): 7c3519fd-876f-4af4-a334-e0f41b17ffce
• SCIP notification number (Netherlands): f84285ba-e8f4-418f-8037-d27c744e1818
• SCIP notification number (Poland): 91abfe2e-594d-4cbf-9277-a9a191349087
• SCIP notification number (Romania): a5085aab-1513-44f7-a544-88b3170333b2
• SCIP notification number (Sweden): 7ecaaaff-70ab-45de-8e2c-ff4a34524af3

Environmental requirements

• Ambient temperature (operation): -25 … +70 °C
• Ambient temperature (storage): -40 … +85 °C
• Climatic category: 3K3 (per EN 60721; except for low air pressure)
• Derating: No derating
• Relative humidity: ≤ 95 % (no condensation permissible)

Material data

• Fire load: 0.363MJ
• Weight: 48.6g

Mechanical data

• Mounting type: DIN-35 rail

Physical data

• Depth from upper-edge of DIN-rail: 97.8 mm / 3.85 inches
• Height: 94 mm / 3.701 inches
• Width: 6 mm / 0.236 inches

Safety and protection

• MTBF: > 1,800,000 h
• Open-circuit-proof: Yes
• Parallel operation: No
• Pollution degree: 2
• Protection class: III
• Protection type: IP20; per EN 60529
• Resistance to reverse feed: ≤ 16 VDC
• Reverse voltage protection: yes
• Series operation: No
• Short-circuit-protected: Yes

Standards and specifications

• Conformity marking: CE
• Standards/specifications: EN 61000-6-2|EN 61000-6-3|EN 60950-1|UL 61010-2-201

Technical data

• Circuit protection - Internal fuse: No
• Efficiency/power losses - Efficiency (typ.): 90 % (at nominal input voltage and nominal output)
• Efficiency/power losses - Power loss P_l: ≤ 0.21 W; ≤ 0.7 W (nominal load)
• Input - Input current I_i: ≤ 0.5 A
• Input - Input voltage range: 15 … 30 VDC
• Input - Inrush current: ≤ 0.5 A (at nominal input voltage)
• Input - Nominal input voltage U_{i nom}: 24 VDC
• Input - Nominal mains frequency range: 0 Hz
• Output - Deviation: ≤ 2 %
• Output - Nominal output current I_{o nom}: 0.5 A
• Output - Nominal output power: 6W
• Output - Nominal output voltage U_{o nom}: 12 VDC
• Output - Output voltage range: ±2 %
• Output - Residual ripple: ≤ 20 mV (peak-to-peak)
• Signaling and communication - Operation status indicator: Green LED (U_o)|Red LED (short circuit)
• Signaling and communication - Signaling: 1 x LED DC OK (green)|1 x Short circuit LED (red)|1 x Active signal output (U_i, max. 4 mA)
