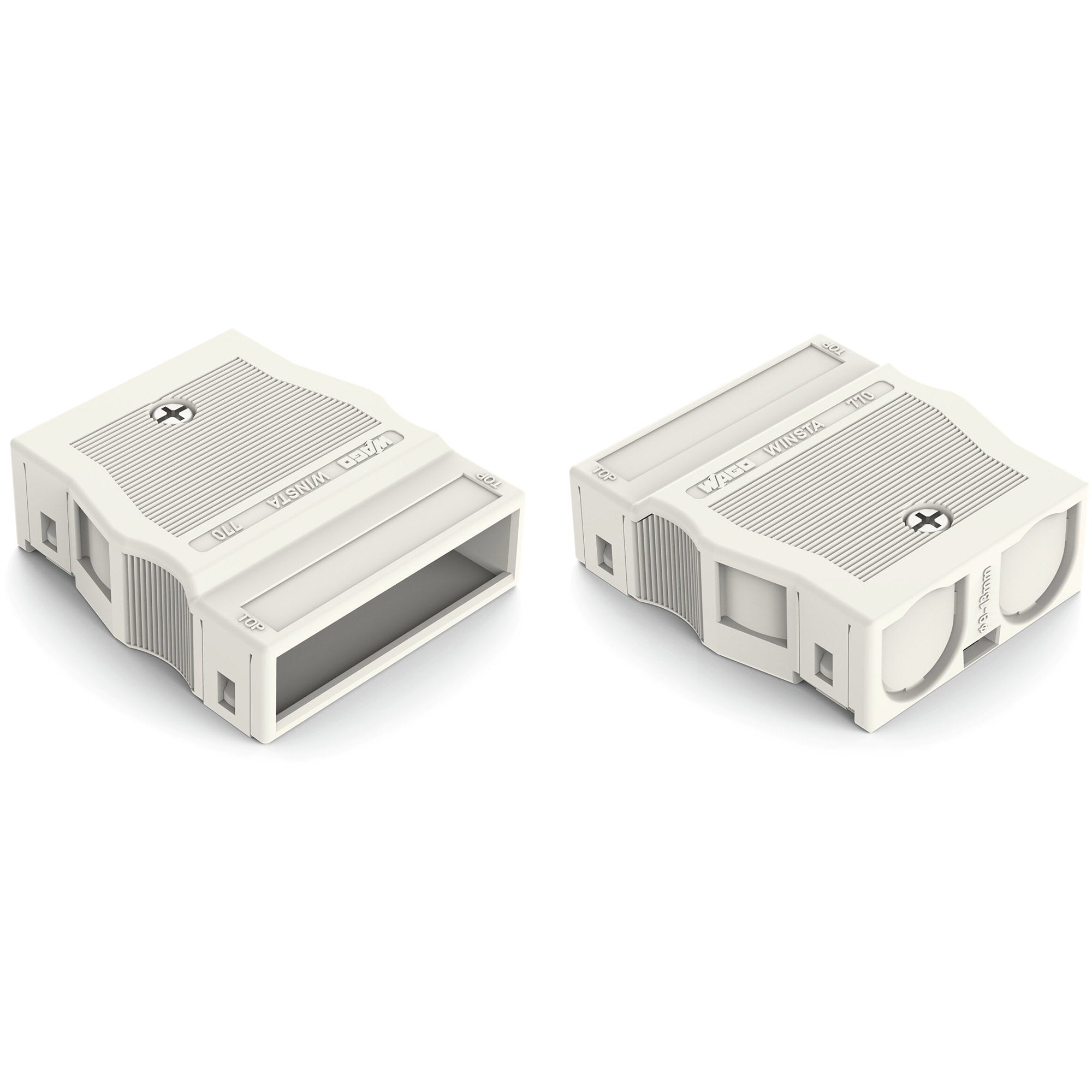

Wago - 770-514

Strain relief housing - WAGO (770 series) - 4-poles (4P) - White color - compatible with for 2 x 9mm...13mm diam. cables - equivalent to 770514

Specifications

• Primary brand: WAGO
• Functions: Strain relief housing
• Poles: 4-poles (4P)
• Temperature: Processing temperature -5°C...+40°C|Continuous operating temperature -35°C...+85°C
• Color: White
• Dimensions: H17mm x W44.6mm x D50mm
• Material: Polyamide (PA) 66
• Technical compatibility with: for 2 x 9mm...13mm diam. cables
• ETIM code: EC002863
• eClass code: 27-44-06-92
• Customs Tariff Number: 39269097900
• GTIN code: 4017332755306
• Order code / Manufacturer SKU: 770-514
• Manufacturer product status: Commercialized
• Equivalent to: 770514
• Compliant with standard(s): General approvals|- cURus - Underwriters Laboratories Inc. - UL 1977 - certificate E45171|- cURus - Underwriters Laboratories Inc. - UL 1059 - certificate E 45172|Approvals for marine applications|- DNV GL - Det Norske Veritas Germanischer Lloyd - certificate TAE00001Z6|- LR - Lloyds Register - IEC 61984 - certificate LR22429487TA|RoHS compliant|V-0 flammability rating
• Location of origin: Germany
• Level 1 category: Automation components
• Product title: Strain relief housing - WAGO

Commercial data

• Country of origin: DE
• Customs tariff number: 39269097900
• ECCN: NO US CLASSIFICATION
• eCl@ss 10.0: 27-44-06-92
• eCl@ss 9.0: 27-44-06-92
• ETIM 8.0: EC002863
• ETIM 9.0: EC002863
• GTIN: 4017332755306
• Packaging type: box
• Product Group: 20 (Winsta)
• PU (SPU): 25 pcs

Connection data

• Connection 1 - Connectable sheathed cable diameter: 9 … 13 mm
• Connection 1 - Pole number: 4
• Connection 1 - Strip length (outer insulation): 55mm

Environmental Product Compliance

• RoHS Compliance Status: Compliant,No Exemption

Environmental requirements

• Continuous operating temperature: -35 … +85 °C
• Note on continuous operating temperature: Insulating parts for temperatures ≤ 105 °C
• Processing temperature: -5 … +40 °C

Material data

• Color: white
• Fire load: 0.326MJ
• Flammability class per UL94: V0
• Insulation material (main housing): Polyamide (PA66)
• Note (material data):
  Information on material specifications can be found here

• Weight: 12.2g

Mechanical data

• Tightening torque of the screw: 0.5 Nm

Physical data

• Depth: 50 mm / 1.969 inches
• Height: 17 mm / 0.669 inches
• Pin spacing: 10 mm / 0.394 inches
• Width: 44.6 mm / 1.756 inches
