Wago - 769-672/003-000

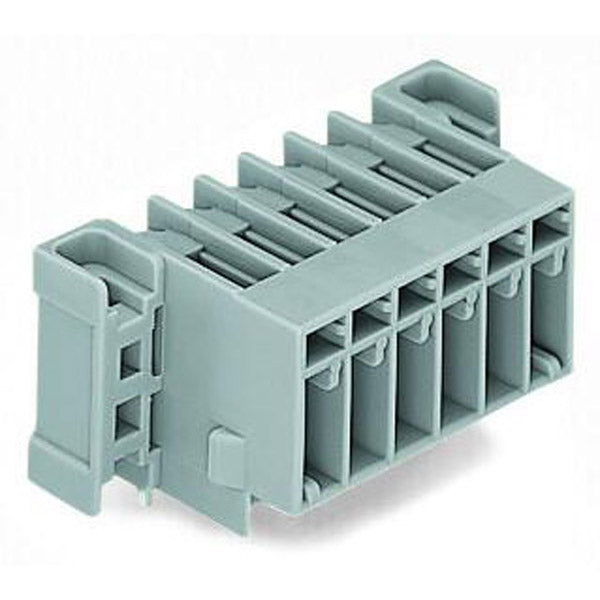

PCB angled THT male header - 1mm x 1mm solder pin - 5mm pin spacing with mounting flanges - pin spacing 5mm - WAGO (769 X-COM series) - 12-poles (12P) - Gray color - Rated current 32A - with Spring-cage (push-in) connections - Angled shape - equivalent to 769672003000

Specifications

• Primary brand: WAGO
• Functions: PCB angled THT male header - 1mm x 1mm solder pin - 5mm pin spacing
• Design: mounting flanges|pin spacing 5mm
• Poles: 12-poles (12P)
• Temperature: Processing temperature -35°C...+85°C|Continuous operating temperature -60°C...+105°C
• Rated current: (IEC) 32A
• Color: Gray
• Shape: Angled shape
• Rated operating voltage (Ue): (IEC) 250V
• Rated impulse voltage (Uimp): (IEC) 4kV
• Connection type: Spring-cage (push-in) connections
• Dimensions: H18.3mm x W74.7mm x D22.2mm
• Material: Polyamide (PA) 66
• eClass code: 27-44-04-02
• ETIM code: EC002637
• Customs Tariff Number: 85366930000
• GTIN code: 4044918397261
• Order code / Manufacturer SKU: 769-672/003-000
• Manufacturer product status: Commercialized
• Equivalent to: 769672003000
• EAN code: 4044918397261
• Compliant with standard(s): General approvals|- CCA - DEKRA Certification B.V. - EN 60947 - certificate NTR NL-7626|- CCA - DEKRA Certification B.V. - EN 61984 - certificate 2190419.02|- CCA - DEKRA Certification B.V. - IEC 61984 - certificate NL-47799/A1|- CSA - CSA Group - C22.2 - certificate 1101144|- KEMA/KEUR - DEKRA Certification B.V. - EN 60947 - certificate 2190419.01|- UL - Underwriters Laboratories Inc. - UL 1977 - certificate E 45171|- UR - Underwriters Laboratories Inc. - UL 1059 - certificate E45172|Declarations of conformity and manufacturer's declarations|- EU-Declaration of Conformity - WAGO GmbH & Co. KG|- UK-Declaration of Conformity - WAGO GmbH & Co. KG|Approvals for marine applications|- DNV GL - Det Norske Veritas Germanischer Lloyd - certificate TAE00001V2|RoHS compliant|material group I|V-0 flammability rating
• Location of origin: Poland
• Level 1 category: Cabling systems
• Level 2 category: Connectors & Inserts
• Product title: PCB angled THT male header - 1mm x 1mm solder pin - 5mm pin spacing - mounting flanges - WAGO (X-COM series)

Commercial data

• Country of origin: PL
• Customs tariff number: 85366930000
• ECCN: NO US CLASSIFICATION
• eCl@ss 10.0: 27-44-04-02
• eCl@ss 9.0: 27-44-04-02
• ETIM 8.0: EC002637
• ETIM 9.0: EC002637
• GTIN: 4044918397261
• Packaging type: box
• Product Group: 18 (X-COM-System)
• PU (SPU): 25 pcs

Connection data

• Connection 1 - Pole number: 12
• Number of levels: 1
• Preceding contacts: No
• Total number of potentials: 12

Electrical data

• Ratings per IEC/EN - Legend (ratings): (III / 3) ≙ Overvoltage category III / Pollution degree 3
• Ratings per IEC/EN - Nominal voltage (III/3): 250V
• Ratings per IEC/EN - Rated current: 32A
• Ratings per IEC/EN - Rated impulse withstand voltage (III / 3): 4kV
• Ratings per IEC/EN - Rated impulse withstand voltage (III/2): 4kV
• Ratings per IEC/EN - Rated voltage (III/2): 500V

Environmental Product Compliance

• RoHS Compliance Status: Compliant,No Exemption

Environmental requirements

• Continuous operating temperature: -60 … +105 °C
• Processing temperature: -35 … +85 °C

Material data

• Color: gray
• Fire load: 0.379MJ
• Flammability class per UL94: V0
• Insulation material (main housing): Polyamide (PA66)
• Material group: I
• Note (material data):
  Information on material specifications can be found here

• Weight: 13.5g

Mechanical data

• Anti-rotation protection: Yes
• Mounting type: Mounting flange
• Variable coding: Yes

PCB contact

• PCB contact: THT

Physical data

• Depth: 22.2 mm / 0.874 inches
• Height from the surface: 18.3 mm / 0.72 inches
• Pin spacing: 5 mm / 0.197 inches
• Width: 74.7 mm / 2.941 inches

Plug-in connection

• Connector (connection type): for PCB
• Contact type (pluggable connector): Male connector/plug
• Mating direction to the PCB: 0°
• Mismating protection: No
• Plugging without loss of pin spacing: No
