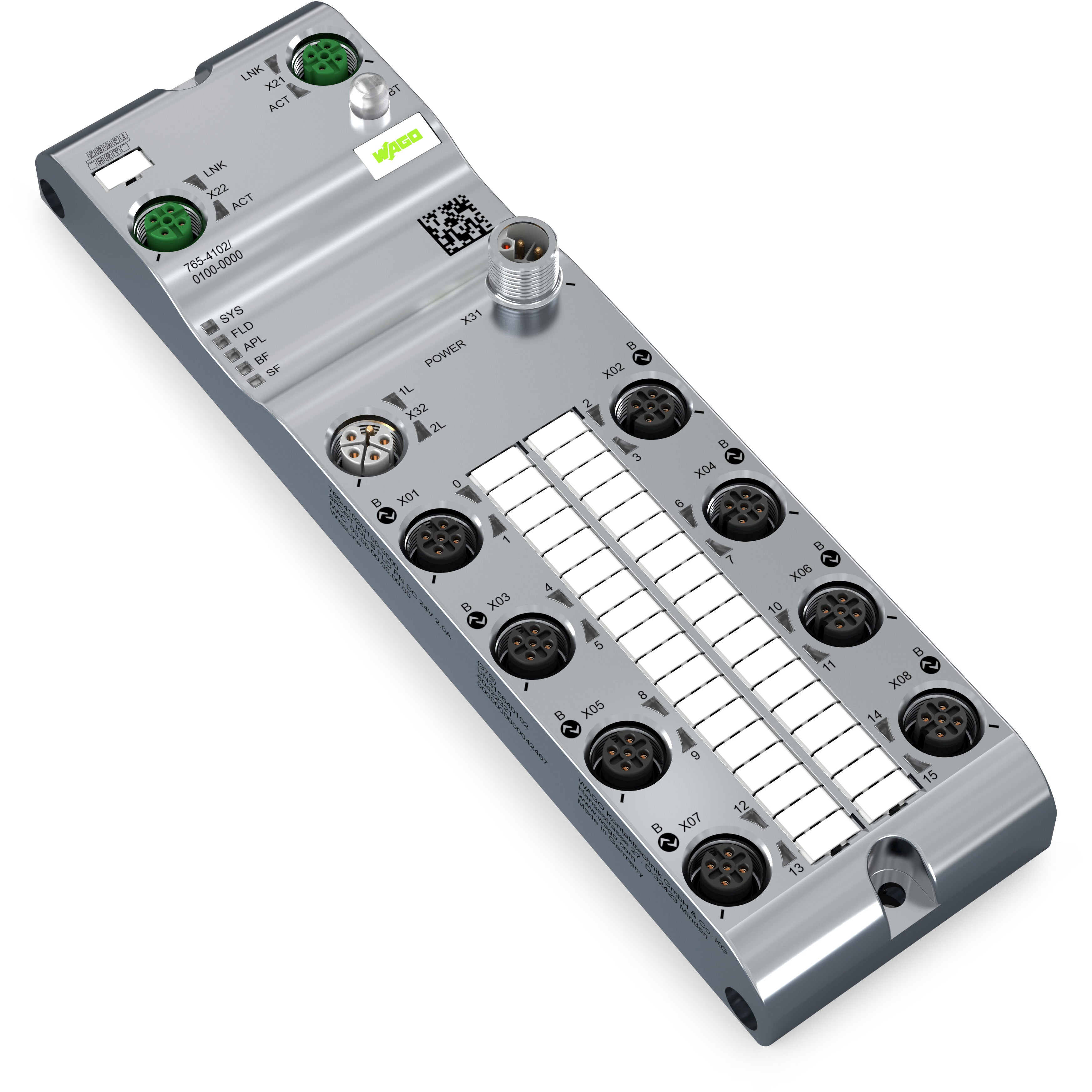

Wago - 765-4102/100-000

IO-Link Master (remote I/O (RIO) controller unit) - Class B - WAGO (765 series) - 8PORT IOL-B FLD PN DC 24V 2A - 16I/O [8DI (8 x digital inputs (24Vdc transistor; type-3 high-side switching; 0.2-20ms filter)) + 8DO (8 x digital outputs (24Vdc))] - with PROFINET IO + IO-Link communication capability - supply voltage 18-31.2Vdc (24Vdc nom.) - with 2 x 4-pin D-coded M12 connectors (fieldbus) + 8 x 5-pin A-coded M12 connectors (I.O. ports) - 2-hole screw mounting mounting - IP67 - rated for -25°C...+70°C ambient - equivalent to 7654102100000

Specifications

• Primary brand: WAGO
• Functions: IO-Link Master (remote I/O (RIO) controller unit)|LLDP|MRP|SNMP
• Design: Class B
• Supply voltage (DC): 18-31.2Vdc (24Vdc nom.)
• Connection type: 2 x 4-pin D-coded M12 connectors (fieldbus)|8 x 5-pin A-coded M12 connectors (I.O. ports)|2 x 5-pin L-coded M12 connectors (supply)
• Mounting mode: 2-hole screw mounting
• Digital inputs: 8 x digital inputs (24Vdc transistor; type-3 high-side switching; 0.2-20ms filter)
• Digital outputs: 8 x digital outputs (24Vdc)
• Dimensions: H30mm x W60mm x D210mm
• Material: Polyamide (PA) / Polybutylene Terephthalate (PBT) housing
• Ambient air temperature for operation: -25°C...+70°C
• Ambient air temperature for storage: -40°C...+80°C
• Humidity: 95% relative humidity (RH; non-condensing)
• Mechanical resistance: Vibration resistance according to EN 60068-2-6 -- 5g|Shock resistance according to EN 60068-2-27 --50g (11ms / half-sine / short-term)|Shock resistance according to EN 60068-2-27 --30g (6ms / half-sine / long-term)
• Current consumption: 16000mA
• Customs Tariff Number: 85371098990
• ETIM code: EC001601
• GTIN code: 4055143949798
• Order code / Manufacturer SKU: 765-4102/100-000
• Manufacturer product status: Commercialized
• Equivalent to: 7654102100000
• EAN code: 4055143949798
• Compliant with standard(s): CE|EMC immunity to interference|- EN 61000-6-2|EMC emission of interference|- EN 61000-6-4|General approvals|- EAC - GZO Almaty Standart - TP TC 020/2011 - certificate EAC CoC 03083|- KC - National Radio Research Agency - Article 58-2 / Clause 3 - certificate KC R-R-W43-FB765|- UL - Underwriters Laboratories Inc. (ORDINARY LOCATIONS) - certificate E175199|Declarations of conformity and manufacturer's declarations|- EU-Declaration of Conformity - WAGO GmbH & Co. KG|RoHS compliant with exemption (6(c) / 7(a) / 7(c)-I)
• Location of origin: Germany
• Degree of pollution: 3
• Level 1 category: Automation components
• Level 2 category: Programmable Logic Controllers & components
• Level 3 category: I-O Units
• Product title: IO-Link Master (remote I/O (RIO) controller unit) - WAGO

Commercial data

• Country of origin: DE
• Customs tariff number: 85371098990
• ECCN: NO US CLASSIFICATION
• ETIM 8.0: EC001601
• ETIM 9.0: EC001601
• GTIN: 4055143949798
• Packaging type: box
• PU (SPU): 1 pcs

Environmental Product Compliance

• CAS-No.: 7439-92-1
• REACH Candidate List Substance: Lead
• RoHS Compliance Status: Compliant,With Exemption
• RoHS Exemption: 6(c)|7(a)|7(c)-I
• SCIP notification number (Austria): 6d1ad9c1-f95d-4c14-8249-159e28231916
• SCIP notification number (Belgium): 5388b1d3-f9db-4c51-b872-077bae18af07
• SCIP notification number (Bulgaria): fca0a80a-38f1-4a64-9ef2-10822ae109fa
• SCIP notification number (Czech Republic): 6bee4663-25bd-40e2-8b1c-9fe19ae56536
• SCIP notification number (Denmark): e38dc57d-6ab8-4cfb-a008-376fe963f05d
• SCIP notification number (Finland): a055f1db-fe5d-4c80-a685-dcbf2ff4b043
• SCIP notification number (France): 07c4e187-d4cc-4538-921b-27e445e47d66
• SCIP notification number (Germany): d0385843-01ac-4b79-b70b-10a201bea192
• SCIP notification number (Hungary): 8a954bcc-af15-4622-9259-db1ff4812ce8
• SCIP notification number (Italy): 6855686e-55a2-47c5-a76b-df412b67c4b6
• SCIP notification number (Netherlands): 7283711d-0d9c-49f4-b90d-57207f3c2a2d
• SCIP notification number (Poland): 59ed2081-7e91-4b91-a03f-43941b9fd638
• SCIP notification number (Romania): fe084e57-3f78-40c9-9f2a-2002df7edd86
• SCIP notification number (Sweden): 80da011c-4c17-4690-a3c1-06fa6eb066e5

Environmental requirements

• Ambient temperature (operation): -25 … +70 °C
• Ambient temperature (storage): -40 … +80 °C
• EMC emission of interference: per EN 61000-6-4
• EMC immunity to interference: per EN 61000-6-2
• Operating altitude: 0 … 2000 m / 0 … 6562 ft
• Overvoltage category: II (EN 60664-1)
• Pollution degree: 3 (EN 60664-1)
• Protection class: III per EN 61140, IEC 61140, VDE 0140-1
• Protection type: IP67
• Relative humidity (without condensation): 95%
• Shock resistance: Short-term: 50g/11 ms/half-sine per IEC 60068-2-27; Long-term: 30g/6 ms/half-sine per IEC 60068-2-29
• Vibration resistance: 5g per IEC 60068-2-6

Mechanical data

• Conformity marking: CE
• Weight: 610g

Physical data

• Depth: 210 mm / 8.268 inches
• Height: 30 mm / 1.181 inches
• Width: 60 mm / 2.362 inches

Technical data

• Device functions - Device functions: Bluetooth®|OPC UA server
• Device functions - Diagnostics: Undervoltage; Overcurrent; Overload; Overtemperature
• Device functions - Parameter: Input filter|Output current|Temperature
• Device functions - Visualization: Android/iOS app|Web server
• Fieldbus - Autonegotiation; autocrossover: yes
• Fieldbus - Communications: PROFINET|PROFINET IO device; 2-port switch, LLDP, MRP, SNMP
• Fieldbus - Connection technology: communication/fieldbus: 2 x D-coded M12; 4-pole
• Fieldbus - Interface standard: 10BASE-T/100BASE-TX; potential-free
• Fieldbus - PROFINET IO features: PROFINET IO device; 2-port switch, LLDP, MRP, SNMP
• IO-Link master - Cycle time: 400 μs (min.)
• IO-Link master - IO-Link master classification: Class B; V1.1 specification
• IO-Link master - Operating mode: IO-Link master, DI or DO (adjustable for pin 4 per port); Supply voltage 2L (fixed for pin 2 per port)
• IO-Link master - Port-Modus: IO-Link: autoconfig, manual, tool-based|DI|DO
• IO-Link ports - Connection technology: inputs/outputs: 8 x A-coded M12; 5-pole
• IO-Link ports - Input characteristic: High-side switching|Type 3, per IEC 61131-2
• IO-Link ports - Input filter: 0.2 … 20 ms
• IO-Link ports - Number of digital inputs: 8
• IO-Link ports - Number of digital outputs: 8
• IO-Link ports - Output current (per channel): 2 A (typ.) for DO
• IO-Link ports - Signal type (voltage): 24 VDC
• IO-Link ports - Supply current per port: 1L (Pin 1): 1 A for IO-Link; 4 A (max.) for DIO; 2L (Pin 2): 4 A (max.)
• Supply (module) - Connection technology: supply: 2 x L-coded M12; 5-pole
• Supply (module) - Current consumption (max.): 16000mA
• Supply (module) - Current consumption (note): per supply line; overload- and short-circuit-protected
• Supply (module) - Reverse voltage protection: Yes
• Supply (module) - Supply voltage: 24 VDC (18 … 31.2 V); 1L/2L
