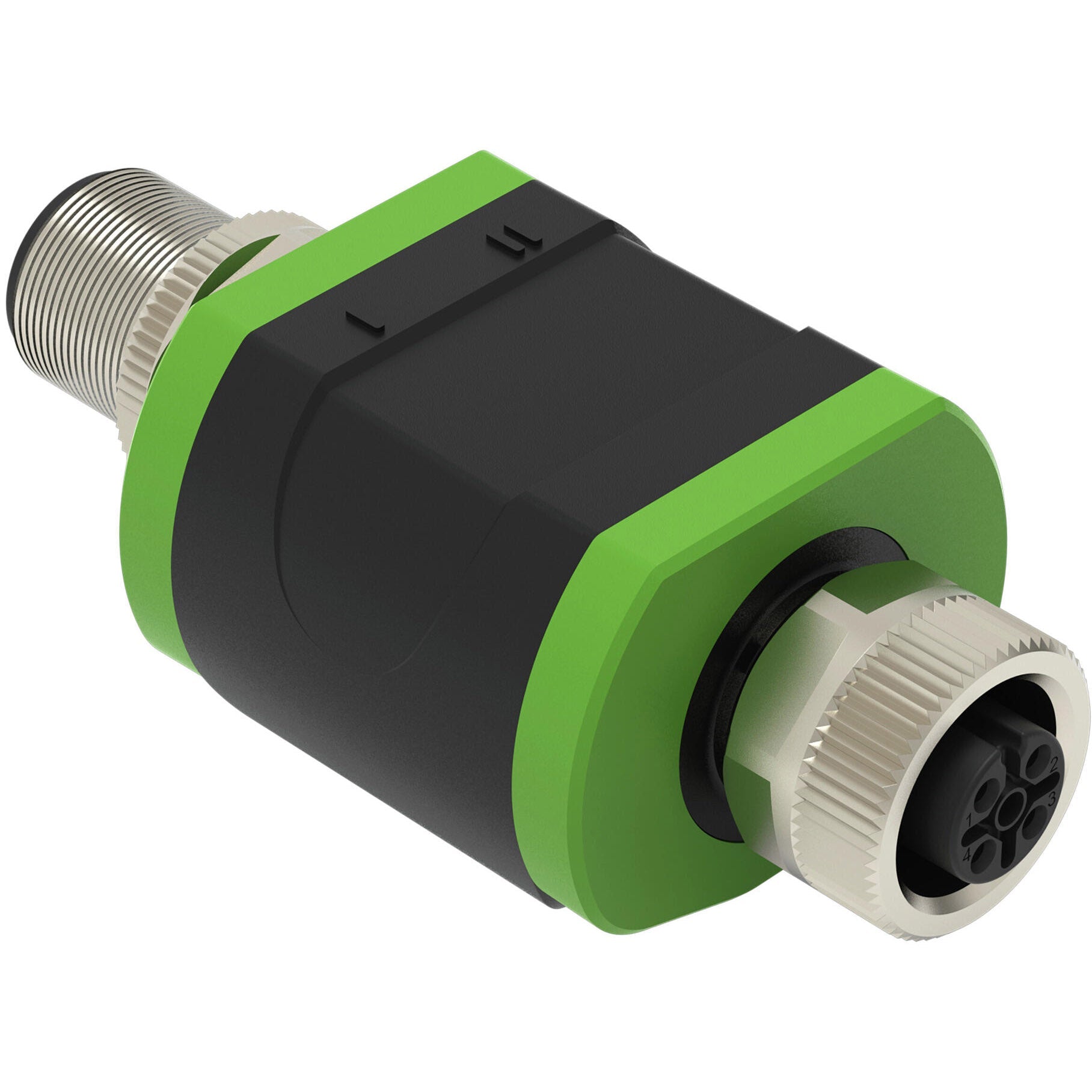

Wago - 765-2704/200-000

IO-Link converter - Class A/B - WAGO (765 series) - with 2 x analog outputs (0-10Vdc; 3kΩ) - with IO-Link communication capability - supply voltage 18-30Vdc (24Vdc nom.) - with 5-pin A-coded M12 female connector (output) + 4-pin A-coded M12 male connector (IO-Link) - IP67 - rated for -25°C...+70°C ambient - equivalent to 7652704200000

Specifications

• Primary brand: WAGO
• Functions: IO-Link converter
• Design: Class A/B
• Supply voltage (DC): 18-30Vdc (24Vdc nom.)
• Connection type: 5-pin A-coded M12 female connector (output)|4-pin A-coded M12 male connector (IO-Link)
• Analog outputs: 2 x analog outputs (0-10Vdc; 3kΩ)
• Measurement accuracy: 0.25% of output range end value
• Dimensions: H63mm x W30mm x D24mm
• Ambient air temperature for operation: -25°C...+70°C
• Ambient air temperature for storage: -25°C...+70°C
• Current consumption: 300mA
• ETIM code: EC001596
• Customs Tariff Number: 85176200000
• Order code / Manufacturer SKU: 765-2704/200-000
• Manufacturer product status: Commercialized
• Equivalent to: 7652704200000
• EAN code: 4066966322132
• Compliant with standard(s): CE|UKCA|General approvals|- EAC - GZO Almaty Standart - TP TC 020/2011 - certificate EAC CoC 03083|- UL - Underwriters Laboratories Inc. (ORDINARY LOCATIONS) - UL 61010-2-201 - certificate E175199|Declarations of conformity and manufacturer's declarations|- EU-Declaration of Conformity - WAGO GmbH & Co. KG|- UK-Declaration of Conformity - WAGO GmbH & Co. KG|RoHS compliant
• Location of origin: Germany
• Degree of pollution: 2
• Level 1 category: Automation components
• Level 2 category: Communication infrastructure
• Level 3 category: Gateways
• Product title: IO-Link converter - WAGO

Approvals/Tests

• Conformity marking: CE; UKCA
• MTTF: 373years

Commercial data

• Country of origin: DE
• Customs tariff number: 85176200000
• ECCN: NO US CLASSIFICATION
• ETIM 8.0: EC001596
• ETIM 9.0: EC001596
• Packaging type: Box
• PU (SPU): 1 pcs

Connection data

• Connection technology: inputs/outputs: 1 x M12-A socket; 5-pole (outputs, double assignment); 1 x M12-A plug; 4-pole (IO-Link)

Environmental Product Compliance

• RoHS Compliance Status: Compliant,No Exemption

Environmental requirements

• Ambient temperature (operation): -25 … +70 °C
• Ambient temperature (storage): -25 … +70 °C
• Operating altitude: 0 … 4000 m
• Pollution degree: 2
• Protection type: IP67

Mechanical data

• Housing material: PA
• Weight: 91g

Notes

• Note: Length of connection cables: 20 m

Physical data

• Depth: 24 mm
• Height: 63 mm
• Width: 30 mm

Technical data

• General information - Accuracy (+25 °C): 0.25 % of output range end value
• General information - Current consumption (max.): 300mA
• General information - Indicators: Analog output: 2 x yellow LED; Power: 1 x green LED
• General information - Operating mode: IO-Link
• General information - Supply voltage: 24 VDC (18 … 30 V)
• IO-Link - Communications: IO-Link Class A/B
• IO-Link - Cycle time: 3.6 ms (min.)
• IO-Link - IO-Link version: 1.1
• IO-Link - Parameterizable functions: Application-specific identifier; system identifier; location identifier
• IO-Link - Process data: 2 x 16-bit OUT (analog)
• IO-Link - Transmission modes: COM2 (38.4 kBaud)
• Output - Load impedance (voltage output): ≤ 3 kΩ
• Output - Number of analog outputs: 2
• Output - Signal type (voltage): 0 … 10 VDC
• Parameterizable functions: Application-specific identifier; plant identifier; location identifier
• Signal type: Voltage
