Wago - 765-1703/200-000

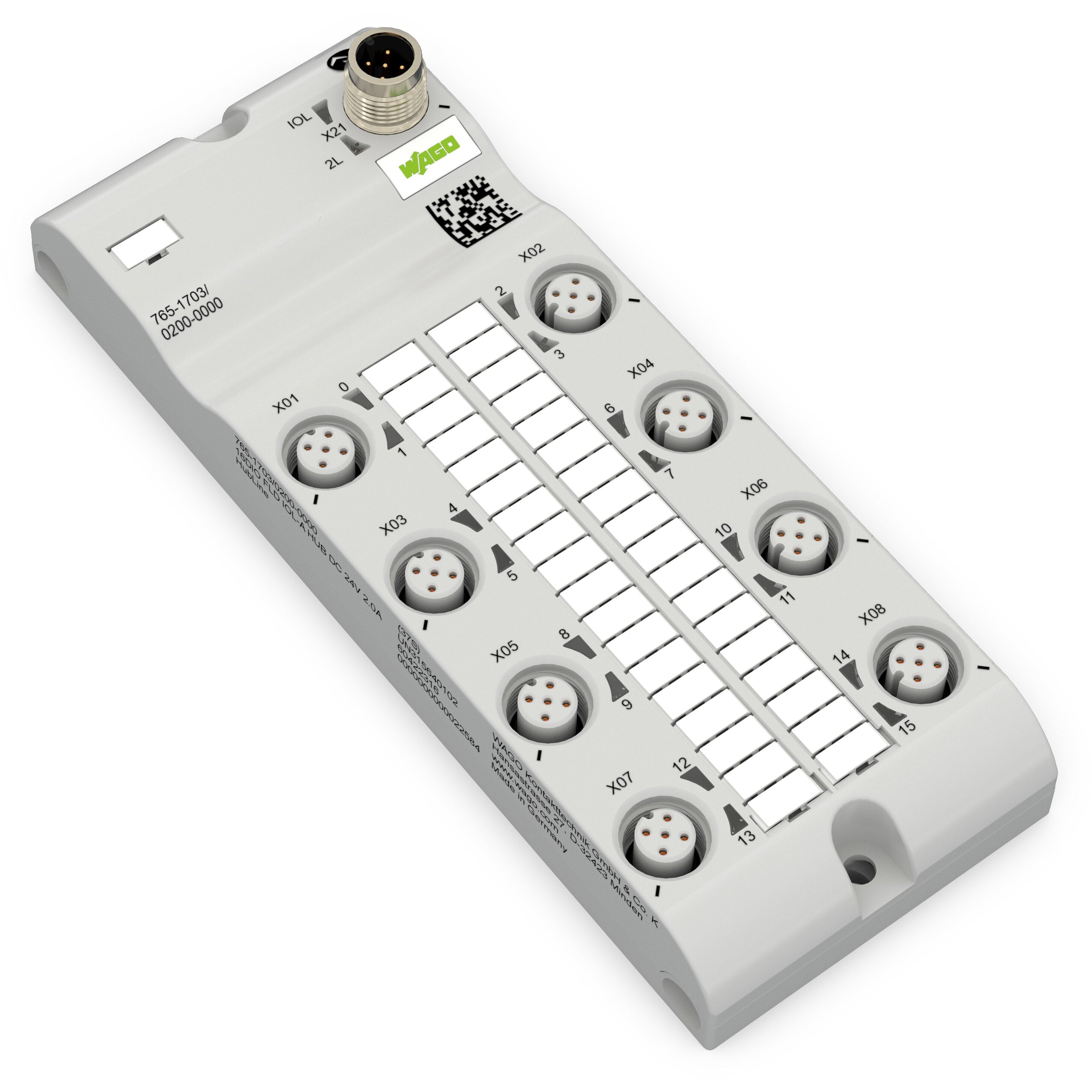

IO-Link hub - Class A - WAGO (765 series) - 16DIO FLD IOL-A HUB DC 24V 2A - 32I/O [16DI (16 x digital inputs (24Vdc transistor; type-3 high-side switching; 0.2-20ms filter)) + 16DO (16 x digital outputs (24Vdc))] - with IO-Link communication capability - with 5-pin A-coded M12 connector (fieldbus) + 8 x 5-pin A-coded M12 connectors (I.O. ports) - 2-hole screw mounting mounting - IP67 - rated for -25°C...+70°C ambient - equivalent to 7651703200000

Specifications

• Primary brand: WAGO
• Functions: IO-Link hub
• Design: Class A
• Connection type: 5-pin A-coded M12 connector (fieldbus)|8 x 5-pin A-coded M12 connectors (I.O. ports)|5-pin A-coded M12 connector (suppl.)
• Mounting mode: 2-hole screw mounting
• Digital inputs: 16 x digital inputs (24Vdc transistor; type-3 high-side switching; 0.2-20ms filter)
• Digital outputs: 16 x digital outputs (24Vdc)
• Dimensions: H30mm x W60mm x D158.5mm
• Material: Polyamide (PA) / Polybutylene Terephthalate (PBT) housing
• Ambient air temperature for operation: -25°C...+70°C
• Ambient air temperature for storage: -40°C...+80°C
• Mechanical resistance: Vibration resistance according to EN 60068-2-6 -- 5g|Shock resistance according to EN 60068-2-27 --50g (11ms / half-sine / short-term)|Shock resistance according to EN 60068-2-27 --30g (6ms / half-sine / long-term)
• Current consumption: 4000mA
• ETIM code: EC001599
• Customs Tariff Number: 85371098990
• GTIN code: 4055143949989
• Order code / Manufacturer SKU: 765-1703/200-000
• Manufacturer product status: Commercialized
• Equivalent to: 7651703200000
• EAN code: 4055143949989
• Compliant with standard(s): CE|EMC immunity to interference|- EN 61000-6-2|EMC emission of interference|- EN 61000-6-4|General approvals|- EAC - GZO Almaty Standart - TP TC 020/2011 - certificate EAC CoC 03083|- KC - National Radio Research Agency - Article 58-2 / Clause 3 - certificate KC R-R-W43-IOLH765|- UL - Underwriters Laboratories Inc. (ORDINARY LOCATIONS) - certificate E175199|Declarations of conformity and manufacturer's declarations|- EU-Declaration of Conformity - WAGO GmbH & Co. KG|RoHS compliant with exemption (6(c) / 7(a) / 7(c)-I)
• Location of origin: Germany
• Degree of pollution: 3
• Level 1 category: Automation components
• Level 2 category: Programmable Logic Controllers & components
• Level 3 category: I-O Units
• Product title: IO-Link hub - WAGO

Commercial data

• Country of origin: DE
• Customs tariff number: 85371098990
• ECCN: NO US CLASSIFICATION
• ETIM 8.0: EC001599
• ETIM 9.0: EC001599
• GTIN: 4055143949989
• Packaging type: Box
• PU (SPU): 1 pcs

Environmental Product Compliance

• CAS-No.: 7439-92-1
• REACH Candidate List Substance: Lead
• RoHS Compliance Status: Compliant,With Exemption
• RoHS Exemption: 6(c)|7(a)|7(c)-I
• SCIP notification number (Austria): 751f4ea3-f9d4-4d9d-a8f9-ae249b078e8b
• SCIP notification number (Belgium): 980ab4ca-1025-4821-8584-8b06c37f34ae
• SCIP notification number (Bulgaria): a9d935ad-3d8f-4636-aff6-734ffd8c2e29
• SCIP notification number (Czech Republic): c61f9664-e21b-495b-a263-9ef0da3625cb
• SCIP notification number (Denmark): f70a939b-697f-417a-b6b1-e2b66410dc23
• SCIP notification number (Finland): 758e8f4e-0304-4ebc-ab7b-10a079bc6743
• SCIP notification number (France): 1475125a-a785-4483-8cf2-998df0b924fc
• SCIP notification number (Germany): 39315bbd-8fc2-4304-88b3-d1ad24ae4721
• SCIP notification number (Hungary): d15acdb9-88b8-4a77-aa3c-60fb00f1ebae
• SCIP notification number (Italy): 10810b13-b776-4000-9904-3ef3a72ad3b3
• SCIP notification number (Netherlands): d3f47be1-8eea-4db6-bf9d-b1419f081622
• SCIP notification number (Poland): 11943c7f-4240-4b6b-83f8-1fec45661b58
• SCIP notification number (Romania): 82142c4f-4997-4a78-93b9-5140e0772bd1
• SCIP notification number (Sweden): 5698e619-1290-411e-b140-cf57d61846ae

Environmental requirements

• Ambient temperature (operation): -25 … +70 °C
• Ambient temperature (storage): -40 … +80 °C
• EMC emission of interference: per EN 61000-6-4
• EMC immunity to interference: per EN 61000-6-2
• Operating altitude: 0 … 2000 m / 0 … 6562 ft
• Overvoltage category: II (EN 60664-1)
• Pollution degree: 3 (EN 60664-1)
• Protection class: III per EN 61140, IEC 61140, VDE 0140-1
• Protection type: IP67
• Shock resistance: Short-term: 50g/11 ms/half-sine per IEC 60068-2-27; Long-term: 30g/6 ms/half-sine per IEC 60068-2-29
• Vibration resistance: 5g per IEC 60068-2-6

Mechanical data

• Conformity marking: CE
• Weight: 170g

Physical data

• Depth: 158.5 mm / 6.24 inches
• Height: 30 mm / 1.181 inches
• Width: 60 mm / 2.362 inches

Technical data

• Device functions - Diagnostics: Undervoltage; overcurrent; overload; overtemperature
• Device functions - Parameter: Input filter|Output current|Temperature
• Digital inputs/outputs - Connection technology: inputs/outputs: 8 x A-coded M12; 5-pole
• Digital inputs/outputs - Input characteristic: high-side switching|Type 3, per IEC 61131-2
• Digital inputs/outputs - Input filter: 0.2 … 20 ms
• Digital inputs/outputs - Number of digital inputs: 16
• Digital inputs/outputs - Number of digital outputs: 16
• Digital inputs/outputs - Output current (per channel): 2 A
• Digital inputs/outputs - Signal type (voltage): 24 VDC
• IO-Link - Communications: IO-Link slave (class A)
• IO-Link - Connection technology: communication/fieldbus: 1 x A-coded M12; 5-pole
• Power supply - Connection technology: supply: 1 x A-coded M12; 5-pole; via IO-Link port (1L)
• Power supply - Current consumption (max.): 4000mA
• Power supply - Current consumption (note): 1L: 0.2 A + load current
• Power supply - Reverse voltage protection: Yes
• Power supply - Supply voltage: 24 VDC (18 … 31.2 V); 1L
