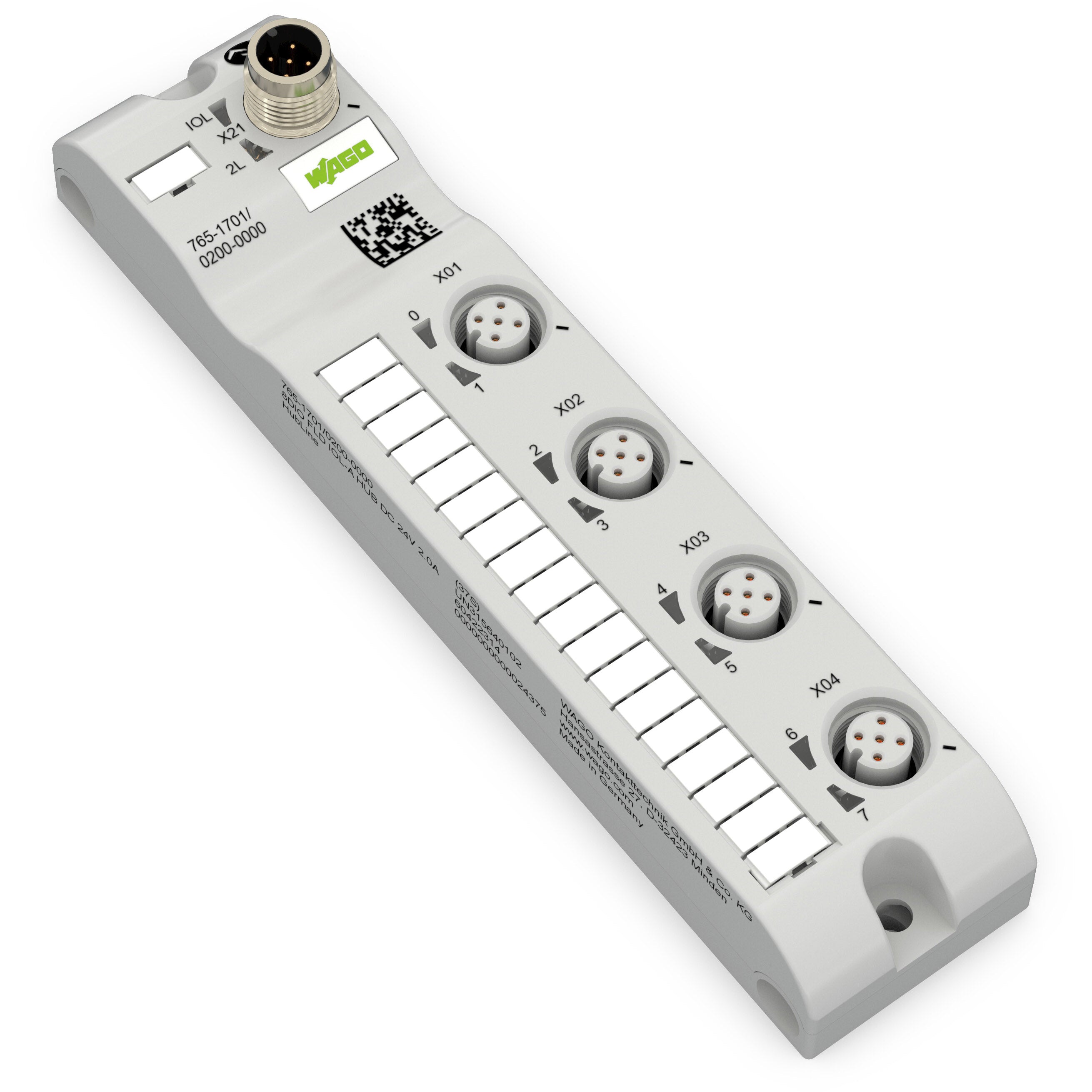

IO-Link hub - Class A - WAGO (765 series) - 8DIO FLD IOL-A HUB DC 24V 2A - 16I/O [8DI (8 x digital inputs (24Vdc transistor; type-3 high-side switching; 0.2-20ms filter)) + 8DO (8 x digital outputs (24Vdc))] - with IO-Link communication capability - with 5-pin A-coded M12 connector (fieldbus) + 4 x 5-pin A-coded M12 connectors (I.O. ports) - 2-hole screw mounting mounting - IP67 - rated for -25°C...+70°C ambient - equivalent to 7651701200000

Specifications

• Primary brand: WAGO
• Functions: IO-Link hub
• Design: Class A
• Connection type: 5-pin A-coded M12 connector (fieldbus)|4 x 5-pin A-coded M12 connectors (I.O. ports)|5-pin A-coded M12 connector (suppl.)
• Mounting mode: 2-hole screw mounting
• Digital inputs: 8 x digital inputs (24Vdc transistor; type-3 high-side switching; 0.2-20ms filter)
• Digital outputs: 8 x digital outputs (24Vdc)
• Dimensions: H30mm x W35mm x D158.5mm
• Material: Polyamide (PA) / Polybutylene Terephthalate (PBT) housing
• Ambient air temperature for operation: -25°C...+70°C
• Ambient air temperature for storage: -40°C...+80°C
• Mechanical resistance: Vibration resistance according to EN 60068-2-6 -- 5g|Shock resistance according to EN 60068-2-27 --50g (11ms / half-sine / short-term)|Shock resistance according to EN 60068-2-27 --30g (6ms / half-sine / long-term)
• Current consumption: 4000mA
• Customs Tariff Number: 85371098990
• ETIM code: EC001599
• GTIN code: 4055143950022
• Order code / Manufacturer SKU: 765-1701/200-000
• Manufacturer product status: Commercialized
• Equivalent to: 7651701200000
• EAN code: 4055143950022
• Compliant with standard(s): CE|EMC immunity to interference|- EN 61000-6-2|EMC emission of interference|- EN 61000-6-4|General approvals|- EAC - GZO Almaty Standart - TP TC 020/2011 - certificate EAC CoC 03083|- KC - National Radio Research Agency - Article 58-2 / Clause 3 - certificate KC R-R-W43-IOLH765|- UL - Underwriters Laboratories Inc. (ORDINARY LOCATIONS) - certificate E175199|Declarations of conformity and manufacturer's declarations|- EU-Declaration of Conformity - WAGO GmbH & Co. KG|RoHS compliant with exemption (6(c) / 7(a) / 7(c)-I)
• Location of origin: Germany
• Degree of pollution: 3
• Level 1 category: Automation components
• Level 2 category: Programmable Logic Controllers & components
• Level 3 category: I-O Units
• Product title: IO-Link hub - WAGO

Commercial data

• Country of origin: DE
• Customs tariff number: 85371098990
• ECCN: NO US CLASSIFICATION
• ETIM 8.0: EC001599
• ETIM 9.0: EC001599
• GTIN: 4055143950022
• Packaging type: Box
• PU (SPU): 1 pcs

Environmental Product Compliance

• CAS-No.: 7439-92-1
• REACH Candidate List Substance: Lead
• RoHS Compliance Status: Compliant,With Exemption
• RoHS Exemption: 6(c)|7(a)|7(c)-I
• SCIP notification number (Austria): ba79137a-a12a-4206-a1de-8d9695b4c5b0
• SCIP notification number (Belgium): b393b15a-dad4-46ce-89aa-759787880816
• SCIP notification number (Bulgaria): d6df19df-cb75-4088-8017-8b17dbccea0a
• SCIP notification number (Czech Republic): f319d3df-97f8-4ff1-a6e5-ba26770115d3
• SCIP notification number (Denmark): f5cd2a65-5934-4ed5-bb52-521dd67b45fc
• SCIP notification number (Finland): d21d46fc-5ecf-4f5d-b183-bf445c652b09
• SCIP notification number (France): d172c063-1277-4263-8abe-e029b8b4a782
• SCIP notification number (Germany): be346f4f-5112-4e6c-9842-89506213fc76
• SCIP notification number (Hungary): cfe1e7a5-ffa2-4aec-83b0-1abf33c618e8
• SCIP notification number (Italy): e5d6f8d1-cc58-473f-bbf7-3e41e758fdd3
• SCIP notification number (Netherlands): 08749293-24d1-4c4f-96bf-62f0e3675f9e
• SCIP notification number (Poland): 7407a97c-3900-4b9b-a6fb-a1980d72e9e7
• SCIP notification number (Romania): cd4855ed-858d-4780-8feb-e09bd6afdb68
• SCIP notification number (Sweden): 3b58288d-22d7-4fbf-82e5-9941d96d59e9

Environmental requirements

• Ambient temperature (operation): -25 … +70 °C
• Ambient temperature (storage): -40 … +80 °C
• EMC emission of interference: per EN 61000-6-4
• EMC immunity to interference: per EN 61000-6-2
• Operating altitude: 0 … 2000 m / 0 … 6562 ft
• Overvoltage category: II (EN 60664-1)
• Pollution degree: 3 (EN 60664-1)
• Protection class: III per EN 61140, IEC 61140, VDE 0140-1
• Protection type: IP67
• Shock resistance: Short-term: 50g/11 ms/half-sine per IEC 60068-2-27; Long-term: 30g/6 ms/half-sine per IEC 60068-2-29
• Vibration resistance: 5g per IEC 60068-2-6

Mechanical data

• Conformity marking: CE
• Weight: 110g

Physical data

• Depth: 158.5 mm / 6.24 inches
• Height: 30 mm / 1.181 inches
• Width: 35 mm / 1.378 inches

Technical data

• Device functions - Diagnostics: Undervoltage; overcurrent; overload; overtemperature
• Device functions - Parameter: Input filter|Output current|Temperature
• Digital inputs/outputs - Connection technology: inputs/outputs: 4 x A-coded M12; 5-pole
• Digital inputs/outputs - Input characteristic: high-side switching|Type 3, per IEC 61131-2
• Digital inputs/outputs - Input filter: 0.2 … 20 ms
• Digital inputs/outputs - Number of digital inputs: 8
• Digital inputs/outputs - Number of digital outputs: 8
• Digital inputs/outputs - Output current (per channel): 2 A
• Digital inputs/outputs - Signal type (voltage): 24 VDC
• IO-Link - Communications: IO-Link slave (class A)
• IO-Link - Connection technology: communication/fieldbus: 1 x A-coded M12; 5-pole
• Power supply - Connection technology: supply: 1 x A-coded M12; 5-pole; via IO-Link port (1L)
• Power supply - Current consumption (max.): 4000mA
• Power supply - Current consumption (note): 1L: 0.2 A + load current
• Power supply - Reverse voltage protection: Yes
• Power supply - Supply voltage: 24 VDC (18 … 31.2 V); 1L
