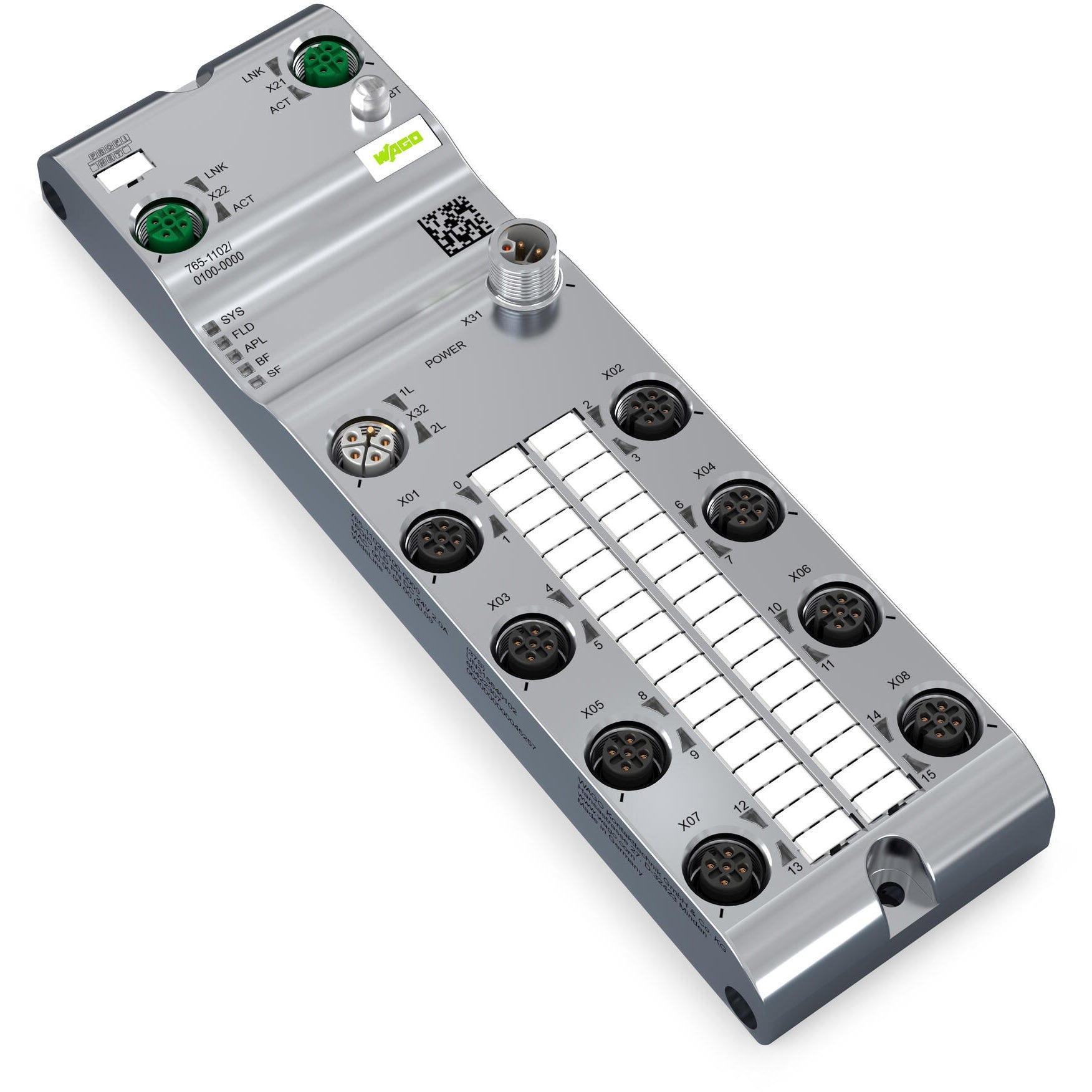

Wago - 765-1102/100-000

Fieldbus module (remote I/O (RIO) controller unit) - WAGO (765 series) - 16DIO FLD PN DC 24V - 32I/O [16DI (16 x digital inputs (24Vdc transistor; type-3 high-side switching; 0.2-20ms filter)) + 16DO (16 x digital outputs (24Vdc))] - with PROFINET IO communication capability - supply voltage 18-31.2Vdc (24Vdc nom.) - with 2 x 4-pin D-coded M12 connectors (fieldbus) + 8 x 5-pin A-coded M12 connectors (I.O. ports) - 2-hole screw mounting mounting - IP67 - rated for -25°C...+70°C ambient - equivalent to 7651102100000

Specifications

• Primary brand: WAGO
• Functions: Fieldbus module (remote I/O (RIO) controller unit)|LLDP|MRP|SNMP
• Supply voltage (DC): 18-31.2Vdc (24Vdc nom.)
• Connection type: 2 x 4-pin D-coded M12 connectors (fieldbus)|8 x 5-pin A-coded M12 connectors (I.O. ports)|2 x 5-pin L-coded M12 connectors (supply)
• Mounting mode: 2-hole screw mounting
• Digital inputs: 16 x digital inputs (24Vdc transistor; type-3 high-side switching; 0.2-20ms filter)
• Digital outputs: 16 x digital outputs (24Vdc)
• Dimensions: H30mm x W60mm x D210mm
• Material: Polyamide (PA) / Polybutylene Terephthalate (PBT) housing
• Ambient air temperature for operation: -25°C...+70°C
• Ambient air temperature for storage: -40°C...+80°C
• Humidity: 95% relative humidity (RH; non-condensing)
• Mechanical resistance: Vibration resistance according to EN 60068-2-6 -- 5g|Shock resistance according to EN 60068-2-27 --50g (11ms / half-sine / short-term)|Shock resistance according to EN 60068-2-27 --30g (6ms / half-sine / long-term)
• Current consumption: 16000mA
• GTIN code: 4055143949965
• ETIM code: EC001599
• Customs Tariff Number: 85371098990
• Order code / Manufacturer SKU: 765-1102/100-000
• Manufacturer product status: Commercialized
• Equivalent to: 7651102100000
• EAN code: 4055143949965
• Compliant with standard(s): CE|EMC immunity to interference|- EN 61000-6-2|EMC emission of interference|- EN 61000-6-4|General approvals|- EAC - GZO Almaty Standart - TP TC 020/2011 - certificate EAC CoC 03083|- KC - National Radio Research Agency - Article 58-2 / Clause 3 - certificate KC R-R-W43-FB765|- UL - Underwriters Laboratories Inc. (ORDINARY LOCATIONS) - certificate E175199|Declarations of conformity and manufacturer's declarations|- EU-Declaration of Conformity - WAGO GmbH & Co. KG|RoHS compliant with exemption (6(c) / 7(a) / 7(c)-I)
• Location of origin: Germany
• Degree of pollution: 3
• Level 1 category: Automation components
• Level 2 category: Programmable Logic Controllers & components
• Level 3 category: I-O Units
• Product title: Fieldbus module (remote I/O (RIO) controller unit) - WAGO

Commercial data

• Country of origin: DE
• Customs tariff number: 85371098990
• ECCN: NO US CLASSIFICATION
• ETIM 8.0: EC001599
• ETIM 9.0: EC001599
• GTIN: 4055143949965
• Packaging type: box
• PU (SPU): 1 pcs

Environmental Product Compliance

• CAS-No.: 7439-92-1
• REACH Candidate List Substance: Lead
• RoHS Compliance Status: Compliant,With Exemption
• RoHS Exemption: 6(c)|7(a)|7(c)-I
• SCIP notification number (Austria): 316e63bf-d533-4834-8825-c31b9f3fc712
• SCIP notification number (Belgium): 6d277029-5347-4551-94f2-fa10a9dd2342
• SCIP notification number (Bulgaria): 0f7b3fee-4e75-466f-b6fa-eb1c8fe11e07
• SCIP notification number (Czech Republic): 2ea176d9-e06c-449f-996a-349c8c2b4731
• SCIP notification number (Denmark): 56087481-8142-4d00-95fb-c8df62e986a7
• SCIP notification number (Finland): 3367c9a8-17ae-4dd2-9ad3-241f92599e77
• SCIP notification number (France): 86c16806-356b-487d-bd5f-e3760e6a5116
• SCIP notification number (Germany): 1858bb32-546d-42d4-94eb-199f5258105c
• SCIP notification number (Hungary): 1a3fe7b0-a232-43d7-926a-05a158eac769
• SCIP notification number (Italy): 44e49bf2-baff-4d87-8a23-5eaef40aa15f
• SCIP notification number (Netherlands): b52634b5-7d36-45f8-875d-8b198b46841d
• SCIP notification number (Poland): afbcb304-812f-4a5f-8078-7fa17279616e
• SCIP notification number (Romania): 8adee8be-e5a8-41be-9b50-d303701ff954
• SCIP notification number (Sweden): 9466b03d-8320-4ed2-a9d8-448726aa55f3

Environmental requirements

• Ambient temperature (operation): -25 … +70 °C
• Ambient temperature (storage): -40 … +80 °C
• EMC emission of interference: per EN 61000-6-4
• EMC immunity to interference: per EN 61000-6-2
• Operating altitude: 0 … 2000 m / 0 … 6562 ft
• Overvoltage category: II (EN 60664-1)
• Pollution degree: 3 (EN 60664-1)
• Protection class: III per EN 61140, IEC 61140, VDE 0140-1
• Protection type: IP67
• Relative humidity (without condensation): 95%
• Shock resistance: Short-term: 50g/11 ms/half-sine per IEC 60068-2-27; Long-term: 30g/6 ms/half-sine per IEC 60068-2-29
• Vibration resistance: 5g per IEC 60068-2-6

Mechanical data

• Conformity marking: CE
• Weight: 610g

Physical data

• Depth: 210 mm / 8.268 inches
• Height: 30 mm / 1.181 inches
• Width: 60 mm / 2.362 inches

Technical data

• Device functions - Device functions: Bluetooth®|OPC UA server
• Device functions - Diagnostics: Undervoltage; Overcurrent; Overload; Overtemperature
• Device functions - Parameter: Input filter|Output current|Temperature
• Device functions - Visualization: Android/iOS app|Web server
• Digital inputs/outputs - Connection technology: inputs/outputs: 8 x A-coded M12; 5-pole
• Digital inputs/outputs - Input characteristic: High-side switching|Type 3, per IEC 61131-2
• Digital inputs/outputs - Input filter: 0.2 … 20 ms
• Digital inputs/outputs - Number of digital inputs: 16
• Digital inputs/outputs - Number of digital outputs: 16
• Digital inputs/outputs - Output current (per channel): 2 A (typ.) for DO
• Digital inputs/outputs - Signal type (voltage): 24 VDC
• Digital inputs/outputs - Supply current per port: 1L/2L: 4 A (max.)
• Fieldbus - Autonegotiation; autocrossover: yes
• Fieldbus - Communications: PROFINET|PROFINET IO device; 2-port switch, LLDP, MRP, SNMP
• Fieldbus - Connection technology: communication/fieldbus: 2 x D-coded M12; 4-pole
• Fieldbus - Interface standard: 10BASE-T/100BASE-TX; potential-free
• Fieldbus - PROFINET IO features: PROFINET IO device; 2-port switch, LLDP, MRP, SNMP
• Supply (module) - Connection technology: supply: 2 x L-coded M12; 5-pole
• Supply (module) - Current consumption (max.): 16000mA
• Supply (module) - Current consumption (note): per supply line; overload- and short-circuit-protected
• Supply (module) - Reverse voltage protection: Yes
• Supply (module) - Supply voltage: 24 VDC (18 … 31.2 V); 1L/2L
