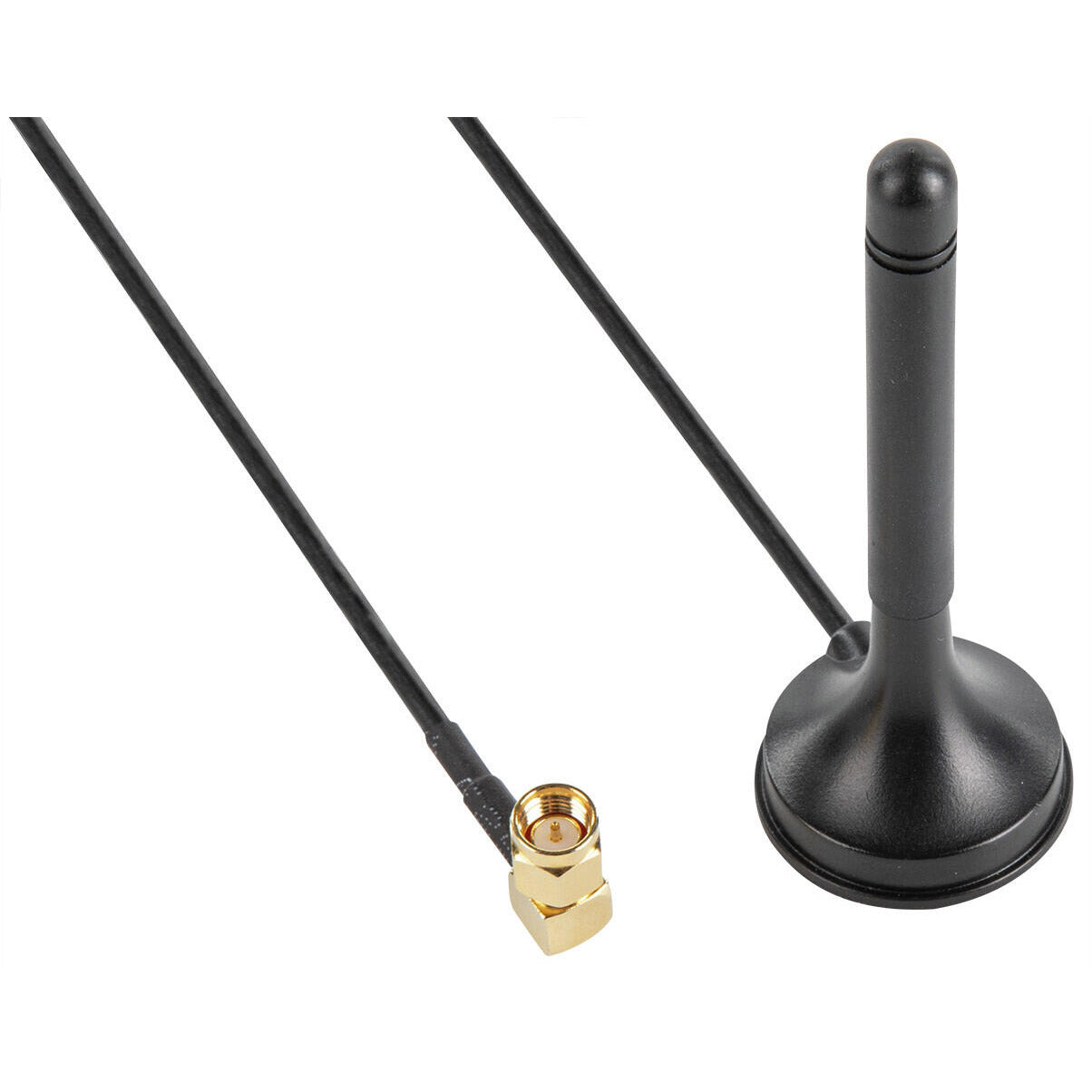

Wago - 758-975

Magnetic foot antenna - GSM / UMTS / LTE + Bluetooth + WLAN - WAGO (758 series) - 698-960MHz / 1400-1518MHz / 1710-6000MHz transmission - with 2.5m pigtail terminated with SMA angled plug - replaces obsolete component(s) 758-965 - equivalent to 758975

Specifications

• Primary brand: WAGO
• Functions: Magnetic foot antenna
• Design: GSM / UMTS / LTE + Bluetooth + WLAN
• Frequency: 698-960MHz / 1400-1518MHz / 1710-6000MHz transmission
• Connection type: 2.5m pigtail terminated with SMA angled plug
• Ambient air temperature for operation: -40°C...+85°C
• GTIN code: 4055143996945
• Customs Tariff Number: 85177100000
• ETIM code: EC001698
• Order code / Manufacturer SKU: 758-975
• Manufacturer product status: Commercialized
• Equivalent to: 758975
• Replaces: 758-965
• EAN code: 4055143996945
• Compliant with standard(s): RoHS compliant
• Location of origin: Taiwan
• Level 1 category: Automation components
• Level 2 category: Communication infrastructure
• Product title: Magnetic foot antenna - WAGO

Commercial data

• Country of origin: TW
• Customs tariff number: 85177100000
• ECCN: NO US CLASSIFICATION
• ETIM 8.0: EC001698
• ETIM 9.0: EC001698
• GTIN: 4055143996945
• Packaging type: bag
• PU (SPU): 1 pcs

Environmental Product Compliance

• RoHS Compliance Status: Compliant,No Exemption

Environmental requirements

• Ambient temperature (operation): -40 … +85 °C

Material data

• Weight: 44g

Mechanical data

• Cable type: RG-174
• Connector: SMA-Winkelstecker
• Length of connection cable: 2.5m
• Mounting type: Magnetic stand

Technical data

• Frequency band: B1 … B23; B25 … B30; B32 … B42; B48; B66; B74 … 76; B78; Frequency range: 698 … 960 MHz; 1400 … 1518 MHz; 1710 … 2700 MHz
• Gain: 3 dBi
• Radio technology: GSM|UMTS|LTE|Bluetooth^®|WLAN
