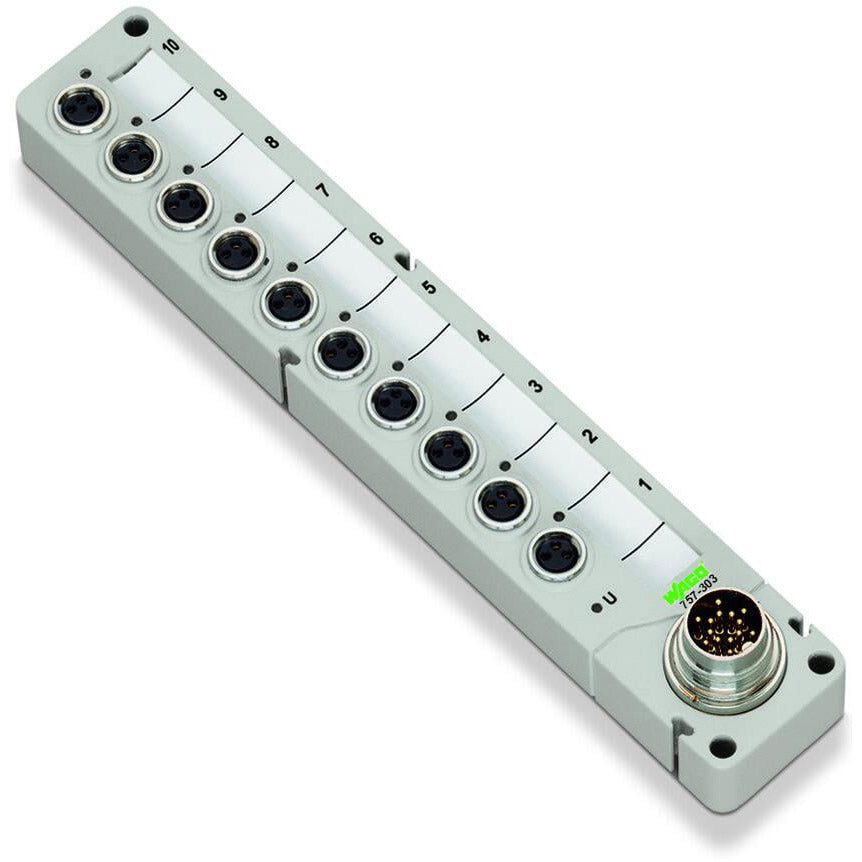

Passive field connection box for sensr. / act. devices with LED indicator - WAGO (757 series) - 3-poles (3P) - M8 S/A-Box; 10port; 3pole; M16 - 10-ports connection capability - supply voltage 10-30Vdc (12Vdc / 24Vdc nom.) - RAL 7035 Gray color - with 14-pin M16 connector + 10 x 3-pin M8 connectors - Screw mounting - IP67 / NEMA 6 / NEMA 6P - rated for -25°C...+80°C ambient - material Polyamide (PA) 66 (UL 94 V0) / Halogen-free materials - equivalent to 757303

Specifications

• Primary brand: WAGO
• Functions: Passive field connection box for sensr. / act. devices
• Design: LED indicator
• Poles: 3-poles (3P)
• Supply voltage (DC): 10-30Vdc (12Vdc / 24Vdc nom.)
• Display: LED yellow -- Signal status (1 x per contact)|LED (U) green -- Sensor/actuator box status
• Color: RAL 7035 Gray
• Connection capacity: 10-ports
• Connection type: 14-pin M16 connector|10 x 3-pin M8 connectors
• Mounting mode: Screw
• Dimensions: H26mm x W30mm x D175mm
• Material: Polyamide (PA) 66 (UL 94 V0)|Halogen-free materials
• Ambient air temperature for operation: -25°C...+80°C
• eClass code: 27-44-01-11
• GTIN code: 4044918978705
• ETIM code: EC003558
• Customs Tariff Number: 85366990990
• Order code / Manufacturer SKU: 757-303
• Manufacturer product status: Commercialized
• Equivalent to: 757303
• EAN code: 4044918978705
• Compliant with standard(s): General approvals|- UL - UL International Germany GmbH (ORDINARY LOCATIONS) - UL 508 - certificate E175199 Sec.5|RoHS compliant
• Location of origin: Germany
• Degree of pollution: 3
• Application type: on machines|field installation
• Level 1 category: Enclosure systems
• Level 2 category: Junction boxes
• Product title: Passive field connection box for sensr. / act. devices - WAGO

Commercial data

• Country of origin: DE
• Customs tariff number: 85366990990
• ECCN: NO US CLASSIFICATION
• eCl@ss 10.0: 27-44-01-11
• eCl@ss 9.0: 27-44-01-08
• ETIM 8.0: EC003558
• ETIM 9.0: EC003558
• GTIN: 4044918978705
• Packaging type: box
• Product Group: 23 (I/O passive and accessories)
• PU (SPU): 1 pcs

Connection data

• Connection technology: inputs/outputs: 10 x M8 socket; 3-pole
• Connection technology: trunk cable: 1 x M16 plug; 14-pole

Environmental Product Compliance

• RoHS Compliance Status: Compliant,No Exemption

Environmental requirements

• Ambient temperature (operation): -25 … +80 °C
• Note on protection type: per EN 60529 (NEMA 6 & 6P) in fully locked position with its plugs or protective caps
• Pollution degree: 3 per VDE 0110
• Protection type: IP67
• Shock resistance: per IEC 60068-2-27
• Vibration resistance: per IEC 60068-2-6

Material data

• Encapsulation: Fully encapsulated with conformal coating (UL 94 V0)
• Housing material: PA 66 (UL 94 V0); RAL 7035; silicon and halogen free
• Material properties of the connections: Contact: CuSn, nickel base-coat plating and 0.8 μm gold-plated; Threaded bush: die-cast Zn, nickel-plated; Seal: Viton; 50 mating cycles

Mechanical data

• Mounting type: Screw mounting
• Weight: 160g

Physical data

• Depth: 175 mm / 6.89 inches
• Height: 26 mm / 1.024 inches
• Width: 30 mm / 1.181 inches

Technical data

• Contact resistance (max.): 0.01Ω
• Current carrying capacity (signal connections): 2A
• Current carrying capacity (supply connections): 6A
• Functionally separated potential groups: Kontakt/Kontakt
• Indicators: LED yellow: Signal status (1 x per contact); LED (U) green: Sensor/actuator box status
• Insulation resistance: >10⁹ Ω
• Rated value of electrical isolation: 500V
• Signal characteristics: PNP
• Supply voltage: 10 … 30 VDC; Rated voltage: 32 V ~ rms
