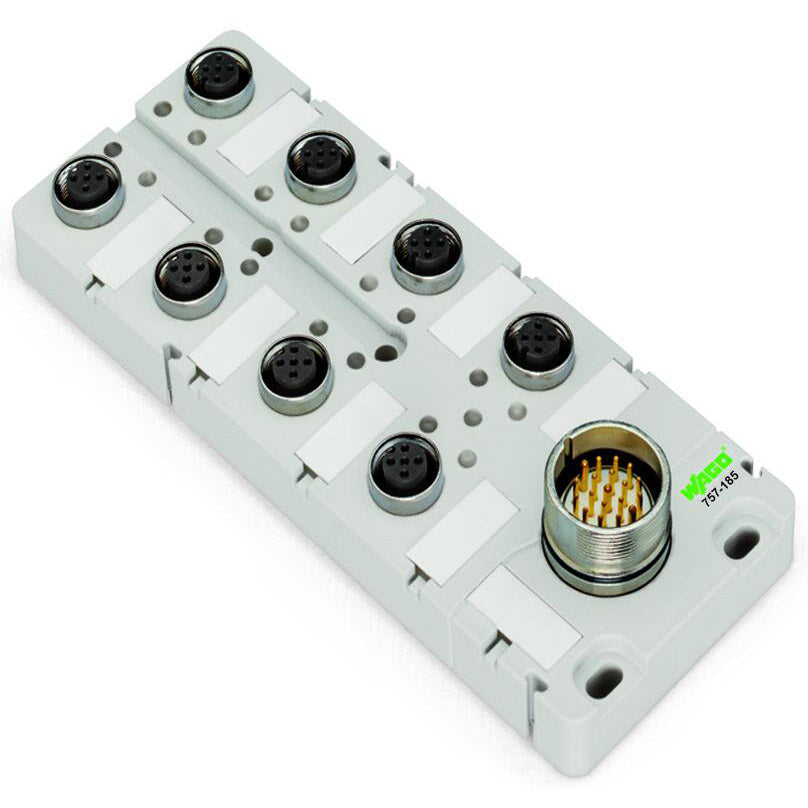

Passive field connection box for sensr. / act. devices with LED indicator - WAGO (757 series) - 4-poles (4P) - M12 S/A-Box; 6port; 4pole; M23 - 6-ports connection capability - supply voltage 10-30Vdc (12Vdc / 24Vdc nom.) - RAL 7035 Gray color - with 12-pin M23 connector + 6 x 4-pin M12 connectors - Screw mounting - IP67 / NEMA 6 / NEMA 6P - rated for -25°C...+80°C ambient - material Polyamide (PA) 66 (UL 94 V0) / Halogen-free materials - equivalent to 757164

Specifications

• Primary brand: WAGO
• Functions: Passive field connection box for sensr. / act. devices
• Design: LED indicator
• Poles: 4-poles (4P)
• Supply voltage (DC): 10-30Vdc (12Vdc / 24Vdc nom.)
• Display: LED (A) yellow -- Signal status (1 x per contact)|LED (U) green -- Sensor/actuator box status
• Color: RAL 7035 Gray
• Connection capacity: 6-ports
• Connection type: 12-pin M23 connector|6 x 4-pin M12 connectors
• Mounting mode: Screw
• Dimensions: H34mm x W60mm x D123mm
• Material: Polyamide (PA) 66 (UL 94 V0)|Halogen-free materials
• Ambient air temperature for operation: -25°C...+80°C
• GTIN code: 4050821054290
• Customs Tariff Number: 85366990990
• eClass code: 27-44-01-11
• ETIM code: EC003558
• Order code / Manufacturer SKU: 757-164
• Manufacturer product status: Commercialized
• Equivalent to: 757164
• EAN code: 4050821054290
• Compliant with standard(s): General approvals|- UL - UL International Germany GmbH (ORDINARY LOCATIONS) - UL 508 - certificate E175199 Sec.5|RoHS compliant with exemption (6(c))
• Location of origin: Germany
• Degree of pollution: 3
• Application type: on machines|field installation
• Level 1 category: Enclosure systems
• Level 2 category: Junction boxes
• Product title: Passive field connection box for sensr. / act. devices - WAGO

Commercial data

• Country of origin: DE
• Customs tariff number: 85366990990
• ECCN: NO US CLASSIFICATION
• eCl@ss 10.0: 27-44-01-11
• eCl@ss 9.0: 27-44-01-08
• ETIM 8.0: EC003558
• ETIM 9.0: EC003558
• GTIN: 4050821054290
• Packaging type: box
• PU (SPU): 1 pcs

Connection data

• Connection technology: inputs/outputs: 6 x M12 socket; 4-pole; incl. ground
• Connection technology: trunk cable: 1 x M23 plug; 12-pole

Environmental Product Compliance

• CAS-No.: 7439-92-1
• REACH Candidate List Substance: Lead
• RoHS Compliance Status: Compliant,With Exemption
• RoHS Exemption: 6(c)
• SCIP notification number (Austria): 0eba7b55-0c35-4b32-9335-d0114961970e
• SCIP notification number (Belgium): 1b37e433-1351-4f0c-8bbf-27350d26dd3e
• SCIP notification number (Bulgaria): 8421cbb3-be38-47b8-9582-e1c2a06a90d6
• SCIP notification number (Czech Republic): 7bd637ce-8944-428e-a4f8-ec23460634ee
• SCIP notification number (Denmark): e5b2ec1e-be55-4926-912c-9321a337b772
• SCIP notification number (Finland): be43c6dc-e867-4103-b7f0-3597cba464e5
• SCIP notification number (France): ef08c6cf-518c-42f3-b60b-e3babb3e4e35
• SCIP notification number (Germany): 825a7886-9dd4-4dc6-911c-e943a2110070
• SCIP notification number (Hungary): b3d2cd58-562b-4943-b2c1-5ab7be0c631b
• SCIP notification number (Italy): 851bd862-c1a1-4232-bfd3-ad2dc036f93d
• SCIP notification number (Netherlands): 1a2573cc-b74f-4538-8dad-ea1d93b48a2a
• SCIP notification number (Poland): 0a171249-3c04-40d0-8ff7-8124285f7d1a
• SCIP notification number (Romania): d8d6cfab-adc8-4a4e-b4c8-3a2eb8e34609
• SCIP notification number (Sweden): 2e3b824f-88f3-4da6-a312-b94249da3c7e

Environmental requirements

• Ambient temperature (operation): -25 … +80 °C
• Note on protection type: per EN 60529 (NEMA 6 & 6P) in fully locked position with its plugs or protective caps
• Pollution degree: 3 per VDE 0110
• Protection type: IP67
• Shock resistance: per IEC 60068-2-27
• Vibration resistance: per IEC 60068-2-6

Material data

• Encapsulation: Fully encapsulated with conformal coating (UL 94 V0)
• Housing material: PA 66 (UL 94 V0); RAL 7035; silicon and halogen free
• Material properties of the connections: Contact: CuSn, nickel base-coat plating and 0.8 μm gold-plated; Threaded bush: die-cast Zn, nickel-plated; Seal: Viton; 50 mating cycles

Mechanical data

• Mounting type: Screw mounting
• Weight: 195g

Physical data

• Depth: 123 mm / 4.843 inches
• Height: 34 mm / 1.339 inches
• Width: 60 mm / 2.362 inches

Technical data

• Contact resistance (max.): 0.01Ω
• Current carrying capacity (signal connections): 2A
• Current carrying capacity (supply connections): 9A
• Functionally separated potential groups: Kontakt/Kontakt
• Indicators: LED (A) yellow: Signal status (1 x per contact); LED (U) green: Sensor/actuator box status
• Insulation resistance: >10⁹ Ω
• Rated value of electrical isolation: 500V
• Signal characteristics: PNP
• Supply voltage: 10 … 30 VDC; Rated voltage: 32 V ~ rms
