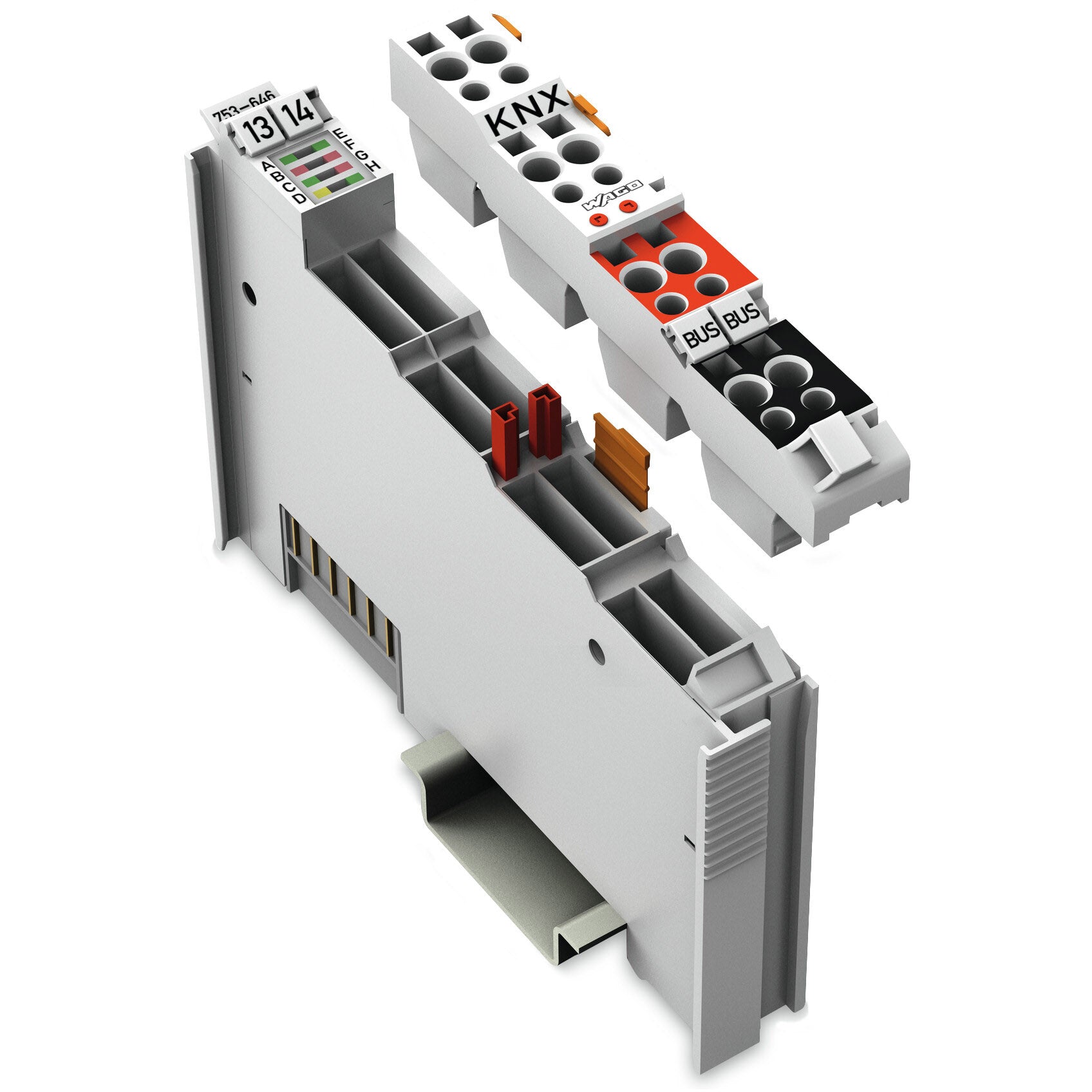

Wago - 753-646

KNX / EIB / TP1 communications interface slice module with plug-in connector - WAGO (753 series) - KNX/EIB/TP1 Interface - 253 x communication object / 254 x group addresses / 254 x associations connection capability - 9.6kbit/s - with KNX communication capability - supply voltage 5Vdc (supplied by system) - with 8 x CAGE CLAMP spring connections - DIN-35 rail mounting (12mm width) - IP20 - rated for 0°C...+55°C ambient - equivalent to 753646

Specifications

• Primary brand: WAGO
• Functions: KNX / EIB / TP1 communications interface slice module
• Design: plug-in connector
• Supply voltage (DC): 5Vdc (supplied by system)
• Display: LED (A/C/E/H) green -- router mode / data transfer / local bus / device mode / KNX bus voltage|LED (B/F/G) red -- KNX programming mode / buffer overflow / internal error|LED (D) yellow -- KNX data transfer
• Connection capacity: 253 x communication object / 254 x group addresses / 254 x associations
• Connection type: 8 x CAGE CLAMP spring connections
• Mounting mode: DIN-35 rail
• Speed: 9.6kbit/s
• Dimensions: H100mm x W12mm x D69mm
• Net Width (mm): 12mm
• Material: Polycarbonate (PC) / Polyamide (PA) 6.6 housing
• Ambient air temperature for operation: 0°C...+55°C
• Ambient air temperature for storage: -40°C...+85°C
• Humidity: 95% relative humidity (RH; non-condensing)
• Mechanical resistance: Vibration resistance according to EN 60068-2-6 -- 4g|Shock resistance according to EN 60068-2-27 --15g
• Current consumption: 25mA (5Vdc; system supply)
• Customs Tariff Number: 85389099990
• ETIM code: EC001601
• GTIN code: 4045454778033
• eClass code: 27-24-26-05
• Order code / Manufacturer SKU: 753-646
• Manufacturer product status: Commercialized
• Equivalent to: 753646
• EAN code: 4045454778033
• Compliant with standard(s): CE|EMC immunity to interference|- EN 61000-6-2|- marine applications|EMC emission of interference|- EN 61000-6-3|- marine applications|General approvals|- EAC - GZO Almaty Standart - TP TC 020/2011 - certificate EAC CoC 03083|- KC - National Radio Research Agency - Article 58-2 / Clause 3 - certificate MSIP-REM-W43-MSM750|- UL - Underwriters Laboratories Inc. (ORDINARY LOCATIONS) - UL 508 - certificate E175199|Declarations of conformity and manufacturer's declarations|- EU-Declaration of Conformity - WAGO GmbH & Co. KG|- UK-Declaration of Conformity - WAGO GmbH & Co. KG|Approvals for marine applications|- ABS - American Bureau of Shipping - certificate 22-2219060|- BSH - Bundesamt fuer Seeschifffahrt und Hydrographie - certificate 1104|- BV - Bureau Veritas S.A. - certificate 30389/C0 BV|- DNV - DNV GL SE - DNV-CG-0339 / Aug.2021 - certificate TAA0000194|- LR - Lloyds Register EMEA - certificate LR22180952TA|- PRS - Polski Rejestr Statkow - certificate TE/1101/880590/23|- RINA - RINA Germany GmbH - certificate ELE343521XG001|RoHS compliant with exemption (6(c) / 7(a) / 7(c)-I / 7(c)-II)
• Location of origin: Germany
• Degree of pollution: 2
• Level 1 category: Automation components
• Level 2 category: Programmable Logic Controllers & components
• Level 3 category: Communication units
• Product title: KNX / EIB / TP1 communications interface slice module - WAGO

Commercial data

• Country of origin: DE
• Customs tariff number: 85389099990
• ECCN: NO US CLASSIFICATION
• eCl@ss 10.0: 27-24-26-05
• eCl@ss 9.0: 27-24-26-05
• ETIM 8.0: EC001601
• ETIM 9.0: EC001601
• GTIN: 4045454778033
• Packaging type: box
• Product Group: 15 (I/O System)
• PU (SPU): 1 pcs

Connection data

• Connectable conductor materials: Copper
• Connection point (other) designation: Programming button; Bridge 2/6
• Connection technology: inputs/outputs: 8 x CAGE CLAMP^®
• Connection type 1: Inputs/Outputs
• Fine-stranded conductor: 0.08 … 2.5 mm² / 28 … 14 AWG
• Solid conductor: 0.08 … 2.5 mm² / 28 … 14 AWG
• Strip length: 9 … 10 mm / 0.35 … 0.39 inches

Environmental Product Compliance

• CAS-No.: 1303-86-2|1317-36-8|7439-92-1
• REACH Candidate List Substance: Diboron trioxide|Lead|Lead monoxide
• RoHS Compliance Status: Compliant,With Exemption
• RoHS Exemption: 6(c)|7(a)|7(c)-I|7(c)-II
• SCIP notification number (Austria): c4a73850-53c4-4d53-8fe0-f75ac132bdbf
• SCIP notification number (Belgium): 5275670d-2bae-4c07-9d73-57cef6482cac
• SCIP notification number (Bulgaria): 94a656e9-db64-4976-9e8b-110852da7f08
• SCIP notification number (Czech Republic): e0c806f4-4fff-428d-b625-3e4545fd06bf
• SCIP notification number (Denmark): 486acf93-c004-4553-99b7-0067b7741d41
• SCIP notification number (Finland): bd569f0c-cfc2-46e3-85c8-4d65e22ad594
• SCIP notification number (France): aa90f140-7c3a-413e-9eba-c0faaf9cbcea
• SCIP notification number (Germany): 1143e9db-6937-490a-a5a0-8dff86fbbe66
• SCIP notification number (Hungary): c4edfbc6-7c5d-4db0-9515-f5f7ebe382e7
• SCIP notification number (Italy): 97801e87-e097-4c88-b142-b43d0a13ddff
• SCIP notification number (Netherlands): c4a4ffaa-c5b8-4074-bc50-c805f00ed673
• SCIP notification number (Poland): 663ff08d-6c29-44cc-bf3a-6a1a55d773c7
• SCIP notification number (Romania): d7daaa34-ef2a-49e9-b37b-811ffb0142e8
• SCIP notification number (Sweden): 5f5a5cde-0874-4869-883b-e7e523237bbe

Environmental requirements

• Ambient temperature (operation): 0 … +55 °C
• Ambient temperature (storage): -40 … +85 °C
• EMC emission of interference: per EN 61000-6-3, marine applications
• EMC immunity to interference: per EN 61000-6-2, marine applications
• Exposure to pollutants: Per IEC 60068-2-42 and IEC 60068-2-43
• Mounting position: Horizontal left, horizontal right, horizontal top, horizontal bottom, vertical top and vertical bottom
• Operating altitude: 0 … 2000 m / 0 … 6562 ft
• Permissible H₂S contaminant concentration at a relative humidity 75 %: 10ppm
• Permissible SO₂ contaminant concentration at a relative humidity 75 %: 25ppm
• Pollution degree: 2 per IEC 61131-2
• Protection type: IP20
• Relative humidity (without condensation): 95%
• Shock resistance: 15g per IEC 60068-2-27
• Vibration resistance: 4g per IEC 60068-2-6

Material data

• Color: light gray
• Conformity marking: CE
• Fire load: 1.043MJ
• Housing material: Polycarbonate; polyamide 6.6
• Weight: 55.9g

Mechanical data

• Mounting type: DIN-35 rail
• Pluggable connector: Pluggable

Physical data

• Depth: 69 mm / 2.717 inches
• Depth from upper-edge of DIN-rail: 61.8 mm / 2.433 inches
• Height: 100 mm / 3.937 inches
• Width: 12 mm / 0.472 inches

Technical data

• Advanced diagnostics: via FbKNX_Master_646 function block (device mode)
• Commissioning: WAGO-I/O-PRO V2.3
• Current consumption (5 V system supply): 25mA
• Current consumption, typ.: 5 mA (KNX)
• Data width: 24 bytes
• Device specification: KNX/TP1 bus specification: 1.0
• Device-specific: Number of group addresses: 254; Number of communication objects: 253; Number of associations: 254
• Indicators: LED (A, C, E, H) green: router mode, data transfer, local bus, device mode, KNX bus voltage; LED (B, F, G) red: KNX programming mode, buffer overflow, internal error; LED (D) yellow: KNX data transfer
• Isolation: 2.5 kV (rms)
• Supply voltage: KNX: via KNX power supply unit
• Supply voltage (system): 5 VDC; via data contacts
• Transmission rate: 9.6 kBd ( (KNX))
