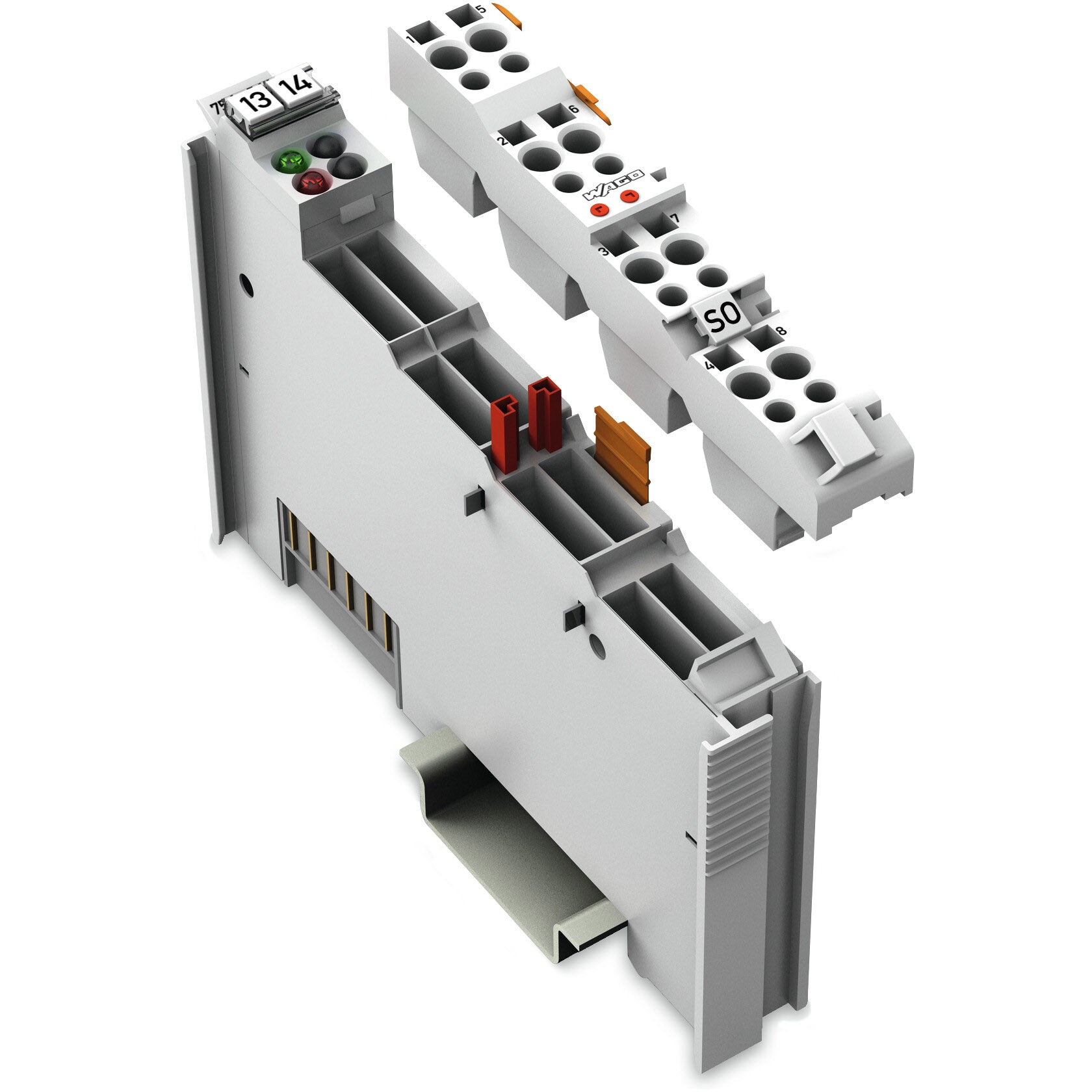

Wago - 753-635

Pluggable digital impulse interface unit - WAGO (753 series) - Digital impulse interface - 1I/O [1DI (1 x digital input (I / not-I / S / not-S differential (RS-422) encod. input; 1μm / 2ms update time))] - supply voltage 5Vdc (supplied by system) - with spring CAGE CLAMP connections - DIN-35 rail mounting (12mm width) - IP20 - rated for 0°C...+55°C ambient - equivalent to 753635

Specifications

• Primary brand: WAGO
• Functions: Pluggable digital impulse interface unit
• Supply voltage (DC): 5Vdc (supplied by system)|20.4-28.8Vdc adjustable suppl. to field sensing devices
• Display: LED (A) green -- Function|LED (B) red -- Error
• Connection type: spring CAGE CLAMP connections
• Mounting mode: DIN-35 rail
• Digital inputs: 1 x digital input (I / not-I / S / not-S differential (RS-422) encod. input; 1μm / 2ms update time)
• Dimensions: H100mm x W12mm x D69.8mm
• Net Width (mm): 12mm
• Material: Polycarbonate (PC) / Polyamide (PA) 6.6 housing
• Ambient air temperature for operation: 0°C...+55°C
• Ambient air temperature for storage: -40°C...+85°C
• Humidity: 95% relative humidity (RH; non-condensing)
• Mechanical resistance: Shock resistance according to EN 60068-2-27 --15g
• Current consumption: 45mA (5Vdc; system supply)
• Customs Tariff Number: 85389099990
• ETIM code: EC001601
• GTIN code: 4045454540975
• eClass code: 27-24-26-05
• Order code / Manufacturer SKU: 753-635
• Manufacturer product status: Commercialized
• Equivalent to: 753635
• EAN code: 4045454540975
• Compliant with standard(s): CE|EMC immunity to interference|- EN 61000-6-2|EMC emission of interference|- EN 61000-6-4|General approvals|- EAC - GZO Almaty Standart - TP TC 020/2011 - certificate EAC CoC 03083|- KC - National Radio Research Agency - Article 58-2 / Clause 3 - certificate MSIP-REM-W43-DAM750|Declarations of conformity and manufacturer's declarations|- EU-Declaration of Conformity - WAGO GmbH & Co. KG|Approvals for hazardous areas|- ATEX - TUV Nord Cert GmbH - EN 60079-0 - certificate TUV14ATEX148929X (II 3 G Ex ec IIC T4 Gc)|- CCCEx - CQST/CNEx - CNCA-C23-01 - certificate 2020312310000213 (Ex ec IIC T4 Gc)|- IECEx - TUV Nord Cert GmbH - IEC 60079-0 - certificate IECEx TUN 14.0035 X (Ex ec IIC T4 Gc)|- INMETRO - TUV Rheinland do Brasil Ltda. - IEC 60079-0 - certificate TUV 12.1297 X|- UKEx - WAGO GmbH & Co. KG - EN 60079-0 - certificate UKCA_WAGO22UKEX003X_ec|- UL - Underwriters Laboratories Inc. (HAZARDOUS LOCATIONS) - UL 121201 - certificate E198726|RoHS compliant with exemption (6(c) / 7(a) / 7(c)-I / 7(c)-II)
• Location of origin: Germany
• Degree of pollution: 2
• Level 1 category: Automation components
• Level 2 category: Programmable Logic Controllers & components
• Level 3 category: I-O Units
• Product title: Pluggable digital impulse interface unit - WAGO

Commercial data

• Country of origin: DE
• Customs tariff number: 85389099990
• ECCN: NO US CLASSIFICATION
• eCl@ss 10.0: 27-24-26-05
• eCl@ss 9.0: 27-24-26-05
• ETIM 8.0: EC001601
• ETIM 9.0: EC001601
• GTIN: 4045454540975
• Packaging type: box
• Product Group: 15 (I/O System)
• PU (SPU): 1 pcs

Connection data

• Connectable conductor materials: Copper
• Connection requirement (permissible cable length): 500m
• Connection requirement (permissible cable type): RS-422
• Connection technology: inputs/outputs: 8 x CAGE CLAMP^®
• Connection type 1: Inputs/Outputs
• Fine-stranded conductor: 0.08 … 2.5 mm² / 28 … 14 AWG
• Solid conductor: 0.08 … 2.5 mm² / 28 … 14 AWG
• Strip length: 9 … 10 mm / 0.35 … 0.39 inches

Environmental Product Compliance

• RoHS Compliance Status: Compliant,With Exemption
• RoHS Exemption: 6(c)|7(a)|7(c)-I|7(c)-II

Environmental requirements

• Ambient temperature (operation): 0 … +55 °C
• Ambient temperature (storage): -40 … +85 °C
• EMC emission of interference: per EN 61000-6-4
• EMC immunity to interference: per EN 61000-6-2
• Exposure to pollutants: Per IEC 60068-2-42 and IEC 60068-2-43
• Mounting position: Horizontal left, horizontal right, horizontal top, horizontal bottom, vertical top and vertical bottom
• Operating altitude: 0 … 2000 m / 0 … 6562 ft
• Permissible H₂S contaminant concentration at a relative humidity 75 %: 10ppm
• Permissible SO₂ contaminant concentration at a relative humidity 75 %: 25ppm
• Pollution degree: 2 per IEC 61131-2
• Protection type: IP20
• Relative humidity (without condensation): 95%
• Shock resistance: 15g per IEC 60068-2-27
• Vibration resistance: per IEC 60068-2-6

Material data

• Color: light gray
• Conformity marking: CE
• Fire load: 1.189MJ
• Housing material: Polycarbonate; polyamide 6.6
• Weight: 42g

Mechanical data

• Mounting type: DIN-35 rail
• Pluggable connector: Pluggable

Notes

• Note:

  Pluggable connectors and coding fingers (753 Series) are not included.

Physical data

• Depth: 69.8 mm / 2.748 inches
• Depth from upper-edge of DIN-rail: 62.6 mm / 2.465 inches
• Height: 100 mm / 3.937 inches
• Width: 12 mm / 0.472 inches

Technical data

• Current consumption (5 V system supply): 45mA
• Data width: 1 x 24-bit data 1 x 8-bit control/status
• Encoder connection: Start/stop; Initialization; Uv; Ground; Shield connection via encoder housing
• Hysteresis (precision): Depends on position sensor
• Indicators: LED (A) green: function; LED (B) red: Error
• Isolation: 500 V system/field
• Number of incoming power jumper contacts: 2
• Number of inputs: 1
• Number of outgoing power jumper contacts: 2
• Position sensor length: 4m
• Resolution: 1 µm
• Signal type: Differential signal (RS-422)
• Supply voltage (field): 24 VDC (-15 … +20 %); via power jumper contacts (power supply via blade contact; transmission (field side supply voltage only) via spring contact)
• Supply voltage (system): 5 VDC; via data contacts
• Update time (update rate): 2ms
