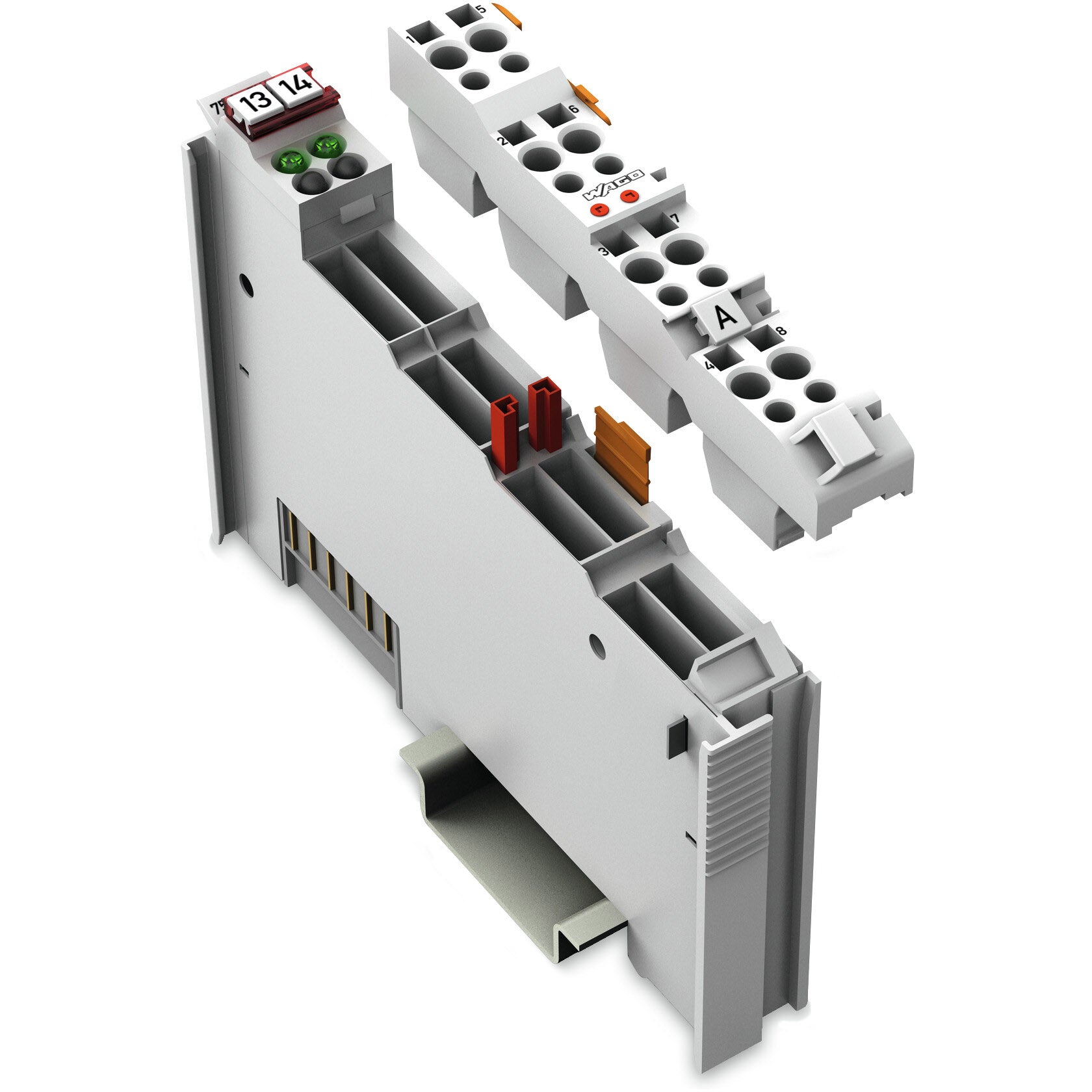

Wago - 753-513

Pluggable AC digital rly. output slice unit module - WAGO (753 series) - 2RO; 250Vac; 2A; Pot.-free; Rly. 2NO - 2I/O [2DO (2 x digital outputs (NO rly. contacts (potential-free); 250Vac / 30Vdc / 2A; 1-wire))] - supply voltage 5Vdc (supplied by system) - with spring CAGE CLAMP connections - DIN-35 rail mounting (12mm width) - IP20 - rated for 0°C...+55°C ambient - equivalent to 753513

Specifications

• Primary brand: WAGO
• Functions: Pluggable AC digital rly. output slice unit module
• Supply voltage (DC): 5Vdc (supplied by system)
• Frequency: 0.5Hz switching frequency
• Display: LED (A/C) green -- Status relay 1 / relay 2
• Connection type: spring CAGE CLAMP connections
• Mounting mode: DIN-35 rail
• Digital outputs: 2 x digital outputs (NO rly. contacts (potential-free); 250Vac / 30Vdc / 2A; 1-wire)
• Dimensions: H100mm x W12mm x D69.8mm
• Net Width (mm): 12mm
• Material: Polycarbonate (PC) / Polyamide (PA) 6.6 housing
• Ambient air temperature for operation: 0°C...+55°C
• Ambient air temperature for storage: -40°C...+85°C
• Humidity: 95% relative humidity (RH; non-condensing)
• Mechanical resistance: Vibration resistance according to EN 60068-2-6 -- 4g|Shock resistance according to EN 60068-2-27 --15g
• Current consumption: 100mA (5Vdc; system supply)
• Customs Tariff Number: 85371098990
• eClass code: 27-24-26-04
• ETIM code: EC001599
• Order code / Manufacturer SKU: 753-513
• Manufacturer product status: Commercialized
• Equivalent to: 753513
• EAN code: 4050821404354
• Compliant with standard(s): CE|EMC immunity to interference|- EN 61000-6-2|- marine applications|EMC emission of interference|- EN 61000-6-4|- marine applications|General approvals|- EAC - GZO Almaty Standart - TP TC 020/2011 - certificate EAC CoC 03083|- EAC - GZO Almaty Standart - TP TC 004/2011 - certificate EAC CoC 03084|- KC - National Radio Research Agency - Article 58-2 / Clause 3 - certificate MSIP-REM-W43-DOM750|- UL - Underwriters Laboratories Inc. (ORDINARY LOCATIONS) - UL 508 - certificate E175199|Approvals for marine applications|- ABS - American Bureau of Shipping - certificate 22-2219060|- BSH - Bundesamt fuer Seeschifffahrt und Hydrographie - certificate 1104|- BV - Bureau Veritas S.A. - certificate 13453/E0 BV|- DNV - DNV GL SE - DNV-CG-0339 / Aug.2021 - certificate TAA0000194|- KR - Korean Register of Shipping - certificate KR HMB05880-AC001|- LR - Lloyds Register EMEA - certificate LR22180952TA|- PRS - Polski Rejestr Statkow - certificate TE/1101/880590/23|- RINA - RINA Germany GmbH - certificate ELE343521XG001|Approvals for hazardous areas|- ATEX - TUV Nord Cert GmbH - EN 60079-0 - certificate TUV14ATEX148929X (II 3 G Ex ec IIC T4 Gc)|- CCC - CNEX - CNCA-C23-01 - certificate 2020312310000213 (Ex ec nC IIC T4 Gc)|- IECEx - TUV Nord Cert GmbH - IEC 60079-0 - certificate IECEx TUN 14.0035 X (Ex ec IIC T4 Gc)|- INMETRO - TUV Rheinland do Brasil Ltda. - IEC 60079-0 - certificate TUV 12.1297 X|- UKEx - WAGO GmbH & Co. KG - EN 60079-0 - certificate UKCA_WAGO22UKEX003X_ec nC|- UL - Underwriters Laboratories Inc. (HAZARDOUS LOCATIONS) - UL 121201 - certificate E198726|RoHS compliant
• Location of origin: Germany
• Degree of pollution: 2
• Level 1 category: Automation components
• Level 2 category: Programmable Logic Controllers & components
• Level 3 category: I-O Units
• Product title: Pluggable AC digital rly. output slice unit module - WAGO

Commercial data

• Country of origin: DE
• Customs tariff number: 85371098990
• ECCN: NO US CLASSIFICATION
• eCl@ss 10.0: 27-24-26-04
• eCl@ss 9.0: 27-24-26-04
• ETIM 8.0: EC001599
• ETIM 9.0: EC001599
• Packaging type: Box
• Product Group: 15 (I/O System)
• PU (SPU): 1 pcs

Connection data

• Connectable conductor materials: Copper
• Connection technology: inputs/outputs: 8 x CAGE CLAMP^®
• Connection type 1: Inputs/outputs
• Fine-stranded conductor: 0.08 … 2.5 mm² / 28 … 14 AWG
• Solid conductor: 0.08 … 2.5 mm² / 28 … 14 AWG
• Strip length: 9 … 10 mm / 0.35 … 0.39 inches

Environmental Product Compliance

• RoHS Compliance Status: Compliant,No Exemption

Environmental requirements

• Ambient temperature (operation): 0 … +55 °C
• Ambient temperature (storage): -40 … +85 °C
• EMC emission of interference: per EN 61000-6-4, marine applications
• EMC immunity to interference: per EN 61000-6-2, marine applications
• Exposure to pollutants: per IEC 60068-2-42 and IEC 60068-2-43
• Mounting position: Horizontal left, horizontal right, horizontal top, horizontal bottom, vertical top and vertical bottom
• Operating altitude: 0 … 2000 m / 0 … 6562 ft
• Permissible H₂S contaminant concentration at a relative humidity 75 %: 10ppm
• Permissible SO₂ contaminant concentration at a relative humidity 75 %: 25ppm
• Pollution degree: 2 per IEC 61131-2
• Protection type: IP20
• Relative humidity (without condensation): 95%
• Shock resistance: 15g per IEC 60068-2-27
• Vibration resistance: 4g per IEC 60068-2-6

Material data

• Color: light gray
• Conformity marking: CE
• Fire load: 1.242MJ
• Housing material: Polycarbonate; polyamide 6.6
• Weight: 44g

Mechanical data

• Mounting type: DIN-35 rail
• Pluggable connector: pluggable

Notes

• Note:

  Pluggable connectors and coding fingers (753 Series) are not included.

Physical data

• Depth: 69.8 mm / 2.748 inches
• Depth from upper-edge of DIN-rail: 62.6 mm / 2.465 inches
• Height: 100 mm / 3.937 inches
• Width: 12 mm / 0.472 inches

Technical data

• Actuator connection: 2 x (1-wire)
• Bounce time (typ.): 1.2ms
• Current carrying capacity (power jumper contacts): 10A
• Current consumption (5 V system supply): 100mA
• Drop-out time (max.): 10ms
• Electrical switching operations (min.) (at max. resistive load): 300 x 10³ switching operations
• Indicators: LED (A, C) green: Status relay 1, relay 2
• Isolation: 1500 V (system/field)
• Mechanical switching operations (min.) (at max. resistive load): 20 x 10⁶ switching operations
• Number of digital outputs: 2
• Number of incoming power jumper contacts: 1
• Number of outgoing power jumper contacts: 1
• Output characteristic: potential-free
• Output circuit design: 2 make contacts|Relay
• Output data width (internal) max.: 2bits
• Pull-in time (max.): 10ms
• Signal type: Digital
• Supply voltage (field): Transmission of ground potential via power jumper contact
• Supply voltage (system): 5 VDC; via data contacts
• Switching current (max.): 2A
• Switching current (min.): 10mA
• Switching frequency (max.): 0.5 Hz; Nominal load
• Switching power: 500 VA / 60 W; cos ϕ max. = 0.4; L/R max. = 7 ms
• Switching voltage (max.): 250 VAC, 30 VDC
• Switching voltage (min.): 5V
• Total number of channels (module): 2
