Wago - 753-469

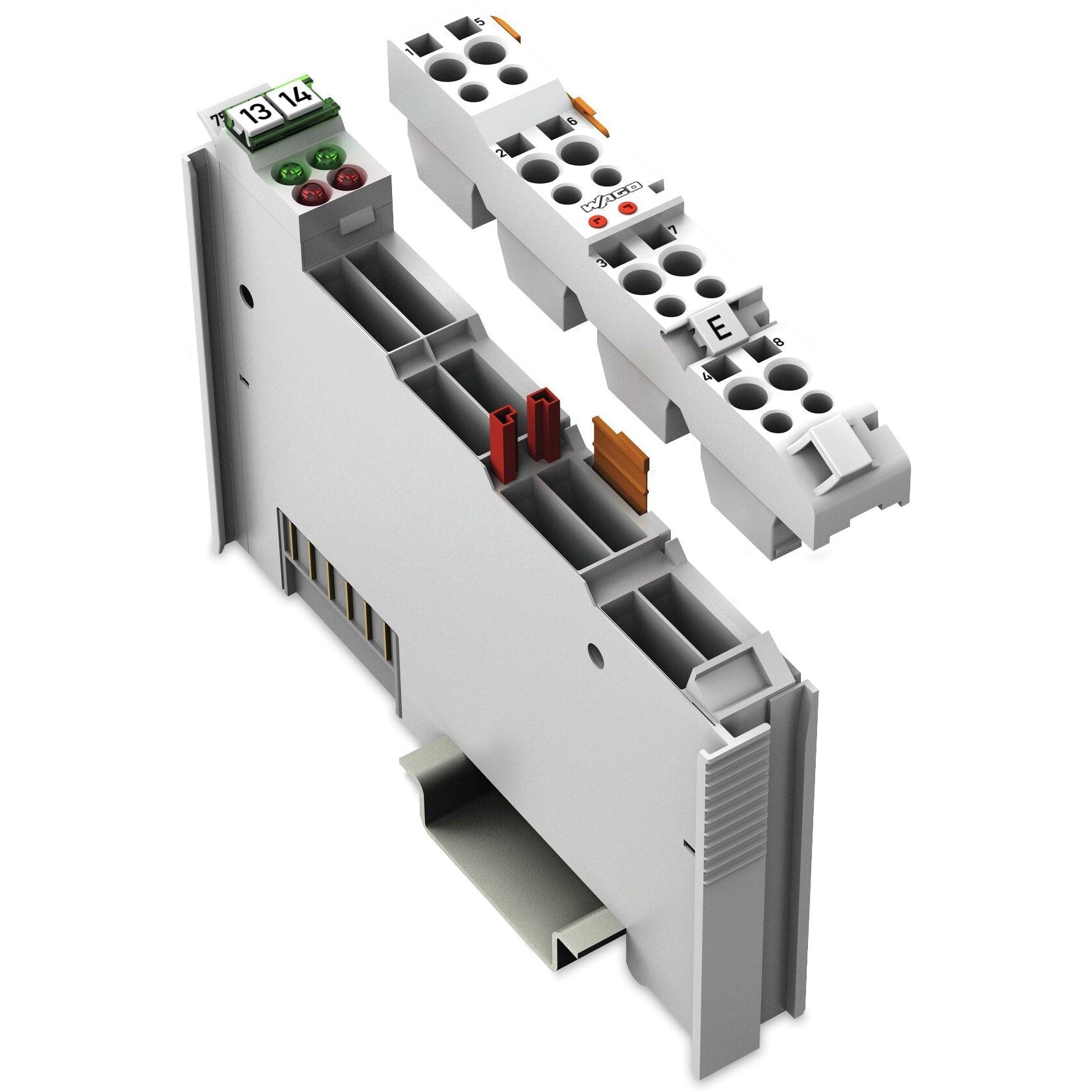

Pluggable analog input slice unit module with diagnostics - WAGO (753 series) - 2AI; TC K; Diagn - 2I/O [2AI (2 x analog inputs (Thermocouple type K / 0.1°C resolution / 320ms conversion; 2-wire))] - supply voltage 5Vdc (supplied by system) - with spring CAGE CLAMP connections - DIN-35 rail mounting (12mm width) - IP20 - rated for 0°C...+55°C ambient - equivalent to 753469

Specifications

• Primary brand: WAGO
• Functions: Pluggable analog input slice unit module
• Design: diagnostics
• Supply voltage (DC): 5Vdc (supplied by system)
• Display: LED (A/C) green -- Function AI 1 / AI 2|LED (B/D) red -- Error AI 1 / AI 2
• Connection type: spring CAGE CLAMP connections
• Mounting mode: DIN-35 rail
• Analog inputs: 2 x analog inputs (Thermocouple type K / 0.1°C resolution / 320ms conversion; 2-wire)
• Measurement accuracy: +-6K (voltage input; +-2K / cold junction compensation; +-4K)|+-0.2K/K
• Dimensions: H100mm x W12mm x D69.8mm
• Net Width (mm): 12mm
• Material: Polycarbonate (PC) / Polyamide (PA) 6.6 housing
• Ambient air temperature for operation: 0°C...+55°C
• Ambient air temperature for storage: -40°C...+85°C
• Humidity: 95% relative humidity (RH; non-condensing)
• Mechanical resistance: Vibration resistance according to EN 60068-2-6 -- 4g|Shock resistance according to EN 60068-2-27 --15g
• Current consumption: 65mA (5Vdc; system supply)
• ETIM code: EC001596
• GTIN code: 4045454394493
• eClass code: 27-24-26-01
• Customs Tariff Number: 85389099990
• Order code / Manufacturer SKU: 753-469
• Manufacturer product status: Commercialized
• Equivalent to: 753469
• EAN code: 4045454394493
• Compliant with standard(s): CE|EMC immunity to interference|- EN 61000-6-2|- marine applications|EMC emission of interference|- EN 61000-6-4|- marine applications|General approvals|- EAC - GZO Almaty Standart - TP TC 020/2011 - certificate EAC CoC 03083|- KC - National Radio Research Agency - Article 58-2 / Clause 3 - certificate MSIP-REM-W43-AIM750|- UL - Underwriters Laboratories Inc. (ORDINARY LOCATIONS) - UL 508 - certificate E175199|Declarations of conformity and manufacturer's declarations|- EU-Declaration of Conformity - WAGO GmbH & Co. KG|- UK-Declaration of Conformity - WAGO GmbH & Co. KG|Approvals for marine applications|- ABS - American Bureau of Shipping - certificate 22-2219060|- BSH - Bundesamt fuer Seeschifffahrt und Hydrographie - certificate 1104|- BV - Bureau Veritas S.A. - certificate 13453/E0 BV|- DNV - DNV GL SE - DNV-CG-0339 / Aug.2021 - certificate TAA0000194|- KR - Korean Register of Shipping - certificate KR HMB05880-AC001|- LR - Lloyds Register EMEA - certificate LR22180952TA|- PRS - Polski Rejestr Statkow - certificate TE/1101/880590/23|- RINA - RINA Germany GmbH - certificate ELE343521XG001|Approvals for hazardous areas|- ATEX - TUV Nord Cert GmbH - EN 60079-0 - certificate TUV14ATEX148929X (II 3 G Ex ec IIC T4 Gc)|- CCCEx - CQST/CNEx - CNCA-C23-01 - certificate 2020312310000213 (Ex ec IIC T4 Gc)|- IECEx - TUV Nord Cert GmbH - IEC 60079-0 - certificate IECEx TUN 14.0035 X (Ex ec IIC T4 Gc)|- INMETRO - TUV Rheinland do Brasil Ltda. - IEC 60079-0 - certificate TUV 12.1297 X|- UKEx - WAGO GmbH & Co. KG - EN 60079-0 - certificate UKCA_WAGO22UKEX003X_ec|- UL - Underwriters Laboratories Inc. (HAZARDOUS LOCATIONS) - UL 121201 - certificate E198726|RoHS compliant with exemption (6(c) / 7(a) / 7(c)-I / 7(c)-II)
• Location of origin: Germany
• Degree of pollution: 2
• Level 1 category: Automation components
• Level 2 category: Programmable Logic Controllers & components
• Level 3 category: I-O Units
• Product title: Pluggable analog input slice unit module - diagnostics - WAGO

Commercial data

• Country of origin: DE
• Customs tariff number: 85389099990
• ECCN: NO US CLASSIFICATION
• eCl@ss 10.0: 27-24-26-01
• eCl@ss 9.0: 27-24-26-01
• ETIM 8.0: EC001596
• ETIM 9.0: EC001596
• GTIN: 4045454394493
• Packaging type: box
• Product Group: 15 (I/O System)
• PU (SPU): 1 pcs

Connection data

• Connectable conductor materials: Copper
• Connection technology: inputs/outputs: 8 x CAGE CLAMP^®
• Connection type 1: Inputs/Outputs
• Fine-stranded conductor: 0.08 … 2.5 mm² / 28 … 14 AWG
• Solid conductor: 0.08 … 2.5 mm² / 28 … 14 AWG
• Strip length: 9 … 10 mm / 0.35 … 0.39 inches

Environmental Product Compliance

• CAS-No.: 1303-86-2|1317-36-8|25550-51-0|7439-92-1
• REACH Candidate List Substance: 4-Methyl-1,2-cyclohexanedicarboxylic anhydride|Diboron trioxide|Lead|Lead monoxide
• RoHS Compliance Status: Compliant,With Exemption
• RoHS Exemption: 6(c)|7(a)|7(c)-I|7(c)-II
• SCIP notification number (Austria): 47f0972f-5ddb-43fd-88af-3c06eef123f2
• SCIP notification number (Belgium): 3b8470ad-3c70-4f8b-adb3-22379a5504e4
• SCIP notification number (Bulgaria): 76e4824e-cb23-4f2f-adf0-3d0c7b83a4f7
• SCIP notification number (Czech Republic): b69f7d30-86fe-445c-ae77-d65dcf8416f7
• SCIP notification number (Denmark): 1bd9dfa0-42fe-4f08-b716-3f0b4f3b3201
• SCIP notification number (Finland): 4f8760e6-a141-460d-9525-6878106a3195
• SCIP notification number (France): 258d3c82-b64f-4e16-b73e-7e1db18422b5
• SCIP notification number (Germany): 273e1d5c-d668-4155-b4d0-a9d320c43155
• SCIP notification number (Hungary): ab384b18-8330-4dac-8e12-24a67fe4b62a
• SCIP notification number (Italy): afc9d2e8-bff3-494b-ba5f-deb355657079
• SCIP notification number (Netherlands): 8fd69244-4f89-4351-9b5c-bf643cad89c8
• SCIP notification number (Poland): 0be8a598-003f-41a2-a20f-5b4c284bb5dc
• SCIP notification number (Romania): 48a25004-5aba-4a6f-8adb-4022119c3135
• SCIP notification number (Sweden): 8c33ca30-1720-4dbc-bde7-d2742ffaf370

Environmental requirements

• Ambient temperature (operation): 0 … +55 °C
• Ambient temperature (storage): -40 … +85 °C
• EMC emission of interference: per EN 61000-6-4, marine applications
• EMC immunity to interference: per EN 61000-6-2, marine applications
• Exposure to pollutants: Per IEC 60068-2-42 and IEC 60068-2-43
• Mounting position: Horizontal left, horizontal right, horizontal top, horizontal bottom, vertical top and vertical bottom
• Operating altitude: 0 … 2000 m / 0 … 6562 ft
• Permissible H₂S contaminant concentration at a relative humidity 75 %: 10ppm
• Permissible SO₂ contaminant concentration at a relative humidity 75 %: 25ppm
• Pollution degree: 2 per IEC 61131-2
• Protection type: IP20
• Relative humidity (without condensation): 95%
• Shock resistance: 15g per IEC 60068-2-27
• Vibration resistance: 4g per IEC 60068-2-6

Material data

• Color: light gray
• Conformity marking: CE
• Fire load: 0.882MJ
• Housing material: Polycarbonate; polyamide 6.6
• Weight: 56g

Mechanical data

• Mounting type: DIN-35 rail
• Pluggable connector: Pluggable

Notes

• Note:

  Pluggable connectors and coding fingers (753 Series) are not included.

Physical data

• Depth: 69.8 mm / 2.748 inches
• Depth from upper-edge of DIN-rail: 62.6 mm / 2.465 inches
• Height: 100 mm / 3.937 inches
• Width: 12 mm / 0.472 inches

Technical data

• Cold junction compensation: at each pair of terminal blocks
• Conversion time (typ.): 320ms
• Current consumption (5 V system supply): 65mA
• Data width: 2 x 16-bit data; 2 x 8-bit control/status (optional)
• Indicators: LED (A, C) green: Function AI 1, AI 2; LED (B, D) red: Error AI 1, AI 2
• Internal resistance: 1000kΩ
• Isolation: 500 V system/field
• Measurement error (25 °C): < ±6 K (voltage input < ±2 K; cold junction compensation < ±4 K)
• Number of analog inputs: 2
• Resolution (over entire range): 0.1 °C
• Sensor connection: 2 x (2-wire)
• Sensor types: Thermocouple K
• Signal type: Thermocouple
• Supply voltage (system): 5 VDC; via data contacts
• Temperature coefficient: < ±0.2 K/K
• Temperature range: −100 … +1370 °C
• Total number of channels (module): 2
