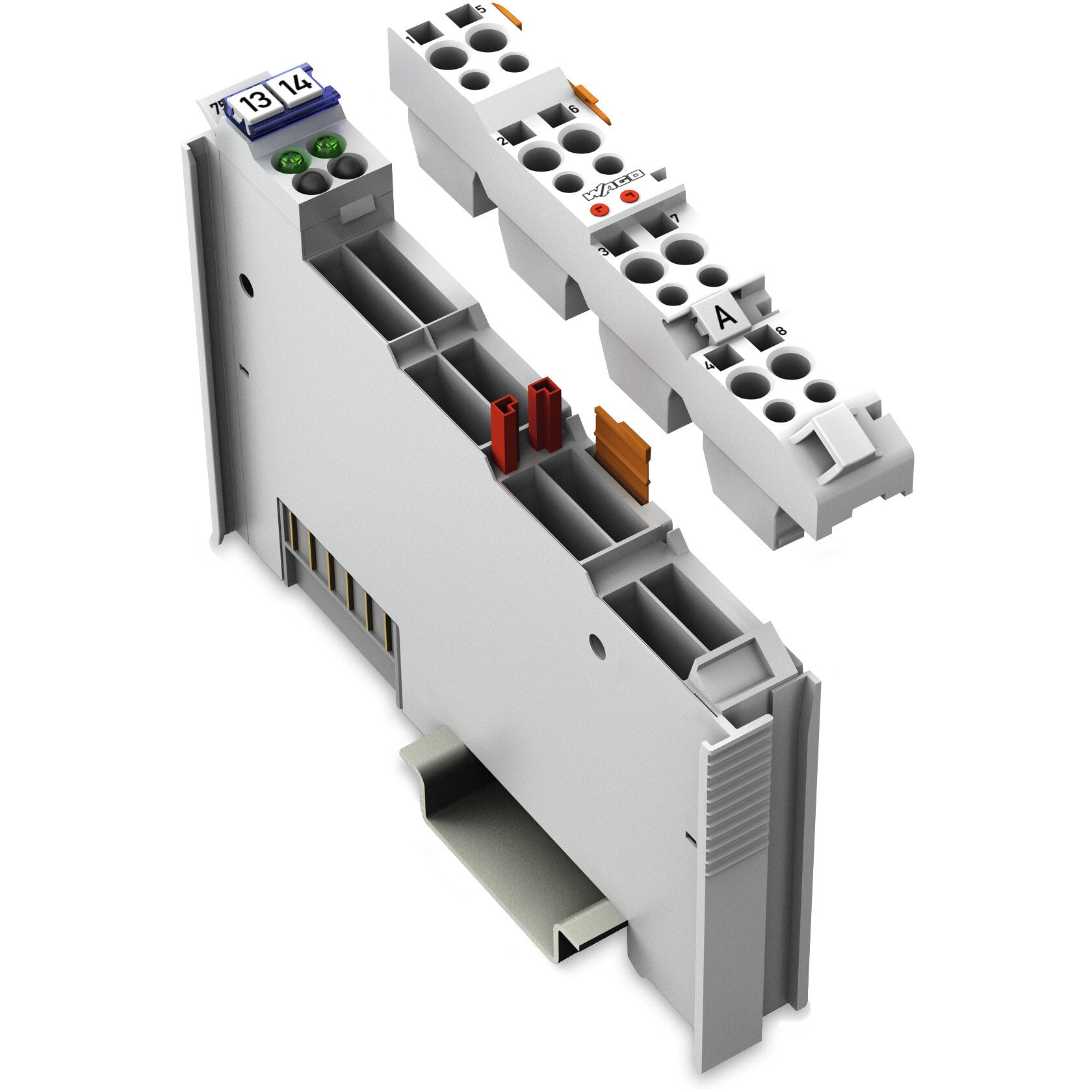

Wago - 753-550

Pluggable analog output slice unit module - WAGO (753 series) - 2AO; 0-10Vdc - 2I/O [2AO (2 x analog outputs (0-10Vdc / 12-bits / 2ms conversion time; 2-wire))] - supply voltage 5Vdc (supplied by system) - with spring CAGE CLAMP connections - DIN-35 rail mounting (12mm width) - IP20 - rated for 0°C...+55°C ambient - equivalent to 753550

Specifications

• Primary brand: WAGO
• Functions: Pluggable analog output slice unit module
• Supply voltage (DC): 5Vdc (supplied by system)
• Display: LED (A/C) green -- Function AO 1 / AO 2
• Connection type: spring CAGE CLAMP connections
• Mounting mode: DIN-35 rail
• Analog outputs: 2 x analog outputs (0-10Vdc / 12-bits / 2ms conversion time; 2-wire)
• Measurement accuracy: +-0.1% (measuring error)|+-0.01% (temperature error)
• Dimensions: H100mm x W12mm x D69.8mm
• Net Width (mm): 12mm
• Material: Polycarbonate (PC) / Polyamide (PA) 6.6 housing
• Ambient air temperature for operation: 0°C...+55°C
• Ambient air temperature for storage: -40°C...+85°C
• Humidity: 95% relative humidity (RH; non-condensing)
• Mechanical resistance: Vibration resistance according to EN 60068-2-6 -- 4g|Shock resistance according to EN 60068-2-27 --15g
• Current consumption: 65mA (5Vdc; system supply)
• ETIM code: EC001596
• GTIN code: 4045454394578
• Customs Tariff Number: 85389099990
• eClass code: 27-24-26-01
• Order code / Manufacturer SKU: 753-550
• Manufacturer product status: Commercialized
• Equivalent to: 753550
• EAN code: 4045454394578
• Compliant with standard(s): CE|EMC immunity to interference|- EN 61000-6-2|- marine applications|EMC emission of interference|- EN 61000-6-4|- marine applications|General approvals|- EAC - GZO Almaty Standart - TP TC 020/2011 - certificate EAC CoC 03083|- KC - National Radio Research Agency - Article 58-2 / Clause 3 - certificate MSIP-REM-W43-AOM750|- UL - Underwriters Laboratories Inc. (ORDINARY LOCATIONS) - UL 508 - certificate E175199|Declarations of conformity and manufacturer's declarations|- EU-Declaration of Conformity - WAGO GmbH & Co. KG|- UK-Declaration of Conformity - WAGO GmbH & Co. KG|Approvals for marine applications|- ABS - American Bureau of Shipping - certificate 22-2219060|- BSH - Bundesamt fuer Seeschifffahrt und Hydrographie - certificate 1104|- BV - Bureau Veritas S.A. - certificate 13453/E0 BV|- DNV - DNV GL SE - DNV-CG-0339 / Aug.2021 - certificate TAA0000194|- KR - Korean Register of Shipping - certificate KR HMB05880-AC001|- LR - Lloyds Register EMEA - certificate LR22180952TA|- PRS - Polski Rejestr Statkow - certificate TE/1101/880590/23|- RINA - RINA Germany GmbH - certificate ELE343521XG001|Approvals for hazardous areas|- ATEX - TUV Nord Cert GmbH - EN 60079-0 - certificate TUV14ATEX148929X (II 3 G Ex ec IIC T4 Gc)|- CCCEx - CQST/CNEx - CNCA-C23-01 - certificate 2020312310000213 (Ex ec IIC T4 Gc)|- IECEx - TUV Nord Cert GmbH - IEC 60079-0 - certificate IECEx TUN 14.0035 X (Ex ec IIC T4 Gc)|- INMETRO - TUV Rheinland do Brasil Ltda. - IEC 60079-0 - certificate TUV 12.1297 X|- UKEx - WAGO GmbH & Co. KG - EN 60079-0 - certificate UKCA_WAGO22UKEX003X_ec|- UL - Underwriters Laboratories Inc. (HAZARDOUS LOCATIONS) - UL 121201 - certificate E198726|RoHS compliant with exemption (6(c) / 7(a) / 7(c)-I / 7(c)-II)
• Location of origin: Germany
• Degree of pollution: 2
• Level 1 category: Automation components
• Level 2 category: Programmable Logic Controllers & components
• Level 3 category: I-O Units
• Product title: Pluggable analog output slice unit module - WAGO

Commercial data

• Country of origin: DE
• Customs tariff number: 85389099990
• ECCN: NO US CLASSIFICATION
• eCl@ss 10.0: 27-24-26-01
• eCl@ss 9.0: 27-24-26-01
• ETIM 8.0: EC001596
• ETIM 9.0: EC001596
• GTIN: 4045454394578
• Packaging type: box
• Product Group: 15 (I/O System)
• PU (SPU): 1 pcs

Connection data

• Connectable conductor materials: Copper
• Connection technology: inputs/outputs: 6 x CAGE CLAMP^®
• Connection type 1: Inputs/Outputs
• Fine-stranded conductor: 0.08 … 2.5 mm² / 28 … 14 AWG
• Solid conductor: 0.08 … 2.5 mm² / 28 … 14 AWG
• Strip length: 9 … 10 mm / 0.35 … 0.39 inches

Environmental Product Compliance

• CAS-No.: 1303-86-2|1317-36-8|25550-51-0|7439-92-1
• REACH Candidate List Substance: 4-Methyl-1,2-cyclohexanedicarboxylic anhydride|Diboron trioxide|Lead|Lead monoxide
• RoHS Compliance Status: Compliant,With Exemption
• RoHS Exemption: 6(c)|7(a)|7(c)-I|7(c)-II
• SCIP notification number (Austria): 3d216412-ec3b-40a7-9c38-175244ad39b3
• SCIP notification number (Belgium): a043ea83-e345-46a5-a789-7c2b7e3d7936
• SCIP notification number (Bulgaria): f25f050e-0199-41c8-b1e9-dde8052997ba
• SCIP notification number (Czech Republic): e30e94e7-37af-4bc5-b900-35bc0cf2c209
• SCIP notification number (Denmark): a4522421-0cda-44f7-b4ac-6c1ec2b2af14
• SCIP notification number (Finland): 8acf8dec-23ec-414b-aa75-b6f9b8d03ca9
• SCIP notification number (France): d4502d26-b8a2-410c-8284-f58b6135daee
• SCIP notification number (Germany): a6f4bad6-fd00-4edc-bd91-81b9dbbd1bd1
• SCIP notification number (Hungary): cf685030-900c-45ab-ae86-8ba83afe8a6d
• SCIP notification number (Italy): ce0ce3d9-79c5-4c23-8732-5c147a209674
• SCIP notification number (Netherlands): 6bdcaf3f-3d5a-4984-b373-dc48da7f7fdb
• SCIP notification number (Poland): 8791bbc5-3584-48d2-ab0a-5c631ff94614
• SCIP notification number (Romania): ff160216-1152-4016-9762-46a98719cab3
• SCIP notification number (Sweden): 6c8c419d-2f3e-4833-93dd-1cc5c23e4b66

Environmental requirements

• Ambient temperature (operation): 0 … +55 °C
• Ambient temperature (storage): -40 … +85 °C
• EMC emission of interference: per EN 61000-6-4, marine applications
• EMC immunity to interference: per EN 61000-6-2, marine applications
• Exposure to pollutants: Per IEC 60068-2-42 and IEC 60068-2-43
• Mounting position: Horizontal left, horizontal right, horizontal top, horizontal bottom, vertical top and vertical bottom
• Operating altitude: 0 … 2000 m / 0 … 6562 ft
• Permissible H₂S contaminant concentration at a relative humidity 75 %: 10ppm
• Permissible SO₂ contaminant concentration at a relative humidity 75 %: 25ppm
• Pollution degree: 2 per IEC 61131-2
• Protection type: IP20
• Relative humidity (without condensation): 95%
• Shock resistance: 15g per IEC 60068-2-27
• Vibration resistance: 4g per IEC 60068-2-6

Material data

• Color: light gray
• Conformity marking: CE
• Fire load: 0.882MJ
• Housing material: Polycarbonate; polyamide 6.6
• Weight: 41g

Mechanical data

• Mounting type: DIN-35 rail
• Pluggable connector: Pluggable

Notes

• Note:

  Pluggable connectors and coding fingers (753 Series) are not included.

Physical data

• Depth: 69.8 mm / 2.748 inches
• Depth from upper-edge of DIN-rail: 62.6 mm / 2.465 inches
• Height: 100 mm / 3.937 inches
• Width: 12 mm / 0.472 inches

Technical data

• Actuator connection: 2 x (2-wire)
• Conversion time (typ.): 2ms
• Current consumption (5 V system supply): 65mA
• Data width: 2 x 16-bit data; 2 x 8-bit control/status (optional)
• Indicators: LED (A, C) green: Function AO 1, AO 2
• Isolation: 500 V system/field
• Linearity: ±10 mV
• Load impedance (voltage output): ≥ 5 kΩ
• Measurement error (reference temperature): 25°C
• Measurement error, deviation (max.) from the upper-range value: 0.1%
• Number of analog outputs: 2
• Output error, deviation (max.) of the upper-range value: 0.1%
• Recovery time (typ.): 0.3ms
• Resolution [bit]: 12bits
• Signal type: Voltage
• Signal type (voltage): 0 … 10 VDC
• Supply voltage (system): 5 VDC; via data contacts
• Temperature error (max.) of the output range value: 0.01%/K
• Temperature error (max.) of the upper-range value: 0.01%/K
• Total number of channels (module): 2
