Wago - 753-408

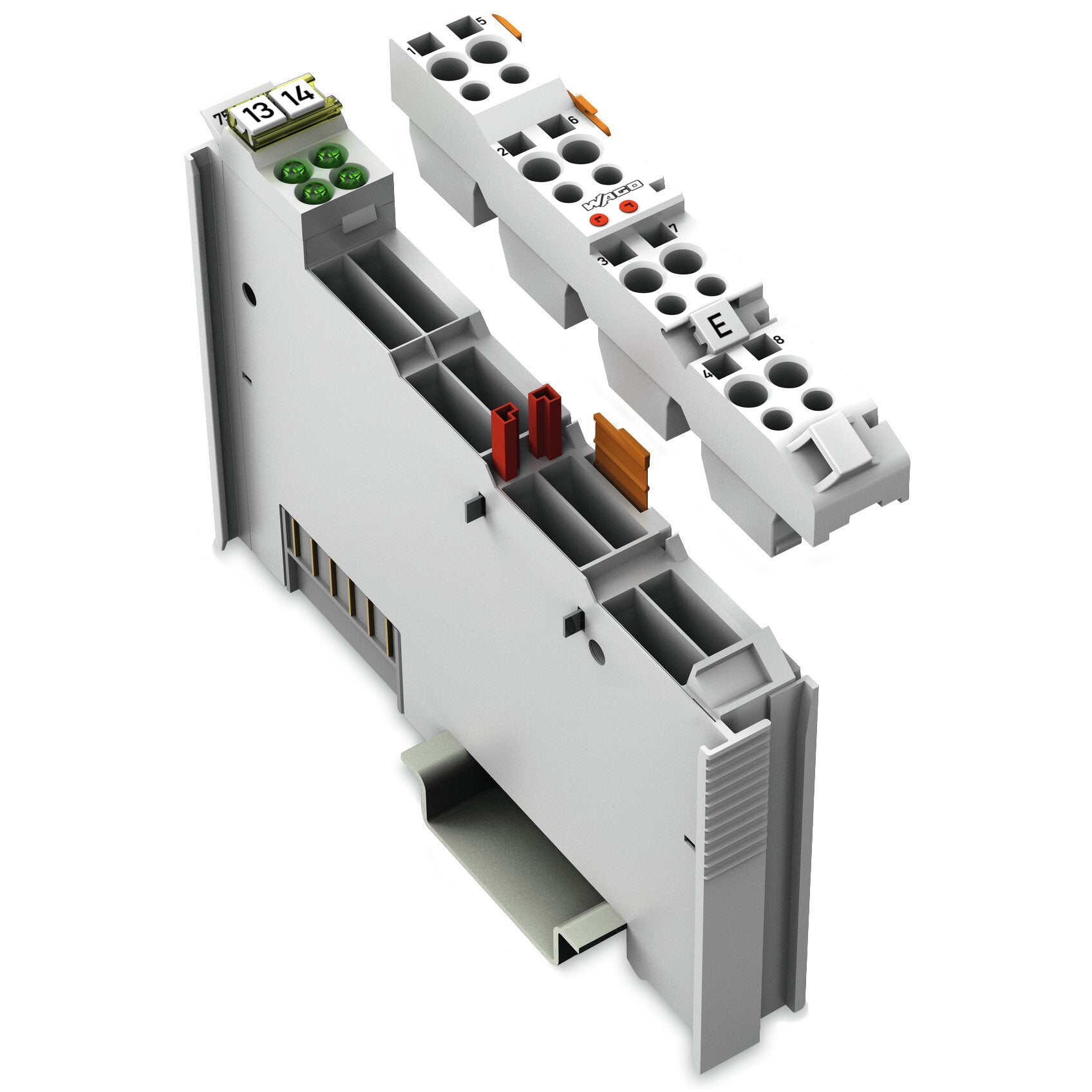

Pluggable DC digital input slice unit module - WAGO (753 series) - 4DI; 24Vdc; 3ms; LSS - 4I/O [4DI (4 x digital inputs (24Vdc transistor; low-side switching; 2-wire / 3-wire; 3ms filter))] - supply voltage 5Vdc (supplied by system) - with spring CAGE CLAMP connections - DIN-35 rail mounting (12mm width) - IP20 - rated for 0°C...+55°C ambient - equivalent to 753408

Specifications

• Primary brand: WAGO
• Functions: Pluggable DC digital input slice unit module
• Supply voltage (DC): 5Vdc (supplied by system)|20.4-28.8Vdc adjustable suppl. to field sensing devices
• Display: LED (A-D) green -- Status DI 1...DI 4
• Connection type: spring CAGE CLAMP connections
• Mounting mode: DIN-35 rail
• Digital inputs: 4 x digital inputs (24Vdc transistor; low-side switching; 2-wire / 3-wire; 3ms filter)|Digital inputs voltage ranges 19-24Vdc (OFF) / -3...+10Vdc (ON)
• Dimensions: H100mm x W12mm x D69.8mm
• Net Width (mm): 12mm
• Material: Polycarbonate (PC) / Polyamide (PA) 6.6 housing
• Ambient air temperature for operation: 0°C...+55°C
• Ambient air temperature for storage: -40°C...+85°C
• Humidity: 95% relative humidity (RH; non-condensing)
• Mechanical resistance: Vibration resistance according to EN 60068-2-6 -- 4g|Shock resistance according to EN 60068-2-27 --15g
• Current consumption: 5mA (5Vdc; system supply)
• ETIM code: EC001599
• eClass code: 27-24-26-04
• Customs Tariff Number: 85389099990
• Order code / Manufacturer SKU: 753-408
• Manufacturer product status: Commercialized
• Equivalent to: 753408
• EAN code: 4045454551995
• Compliant with standard(s): CE|EMC immunity to interference|- EN 61000-6-2|- marine applications|EMC emission of interference|- EN 61000-6-4|- marine applications|General approvals|- EAC - GZO Almaty Standart - TP TC 020/2011 - certificate EAC CoC 03083|- KC - National Radio Research Agency - Article 58-2 / Clause 3 - certificate MSIP-REM-W43-DIM750|- UL - Underwriters Laboratories Inc. (ORDINARY LOCATIONS) - UL 508 - certificate E175199|Declarations of conformity and manufacturer's declarations|- EU-Declaration of Conformity - WAGO GmbH & Co. KG|- UK-Declaration of Conformity - WAGO GmbH & Co. KG|Approvals for marine applications|- BSH - Bundesamt fuer Seeschifffahrt und Hydrographie - certificate 1104|- BV - Bureau Veritas S.A. - certificate 30389/C0 BV|- LR - Lloyds Register EMEA - certificate LR22180952TA|- RINA - RINA Germany GmbH - certificate ELE343521XG001|Approvals for hazardous areas|- ATEX - TUV Nord Cert GmbH - EN 60079-0 - certificate TUV14ATEX148929X (II 3 G Ex ec IIC T4 Gc)|- CCCEx - CQST/CNEx - CNCA-C23-01 - certificate 2020312310000213 (Ex ec IIC T4 Gc)|- IECEx - TUV Nord Cert GmbH - IEC 60079-0 - certificate IECEx TUN 14.0035 X (Ex ec IIC T4 Gc)|- INMETRO - TUV Rheinland do Brasil Ltda. - IEC 60079-0 - certificate TUV 12.1297 X|- UKEx - WAGO GmbH & Co. KG - EN 60079-0 - certificate UKCA_WAGO22UKEX003X_ec|- UL - Underwriters Laboratories Inc. (HAZARDOUS LOCATIONS) - UL 121201 - certificate E198726|RoHS compliant with exemption (6(c) / 7(a) / 7(c)-I / 7(c)-II)
• Location of origin: Germany
• Degree of pollution: 2
• Level 1 category: Automation components
• Level 2 category: Programmable Logic Controllers & components
• Level 3 category: I-O Units
• Product title: Pluggable DC digital input slice unit module - WAGO

Commercial data

• Country of origin: DE
• Customs tariff number: 85389099990
• ECCN: NO US CLASSIFICATION
• eCl@ss 10.0: 27-24-26-04
• eCl@ss 9.0: 27-24-26-04
• ETIM 8.0: EC001599
• ETIM 9.0: EC001599
• Packaging type: Box
• Product Group: 15 (I/O System)
• PU (SPU): 1 pcs

Connection data

• Connectable conductor materials: Copper
• Connection technology: inputs/outputs: 8 x CAGE CLAMP^® (inputs)
• Connection type 1: Input
• Fine-stranded conductor: 0.08 … 2.5 mm² / 28 … 14 AWG
• Solid conductor: 0.08 … 2.5 mm² / 28 … 14 AWG
• Strip length: 9 … 10 mm / 0.35 … 0.39 inches

Environmental Product Compliance

• CAS-No.: 1303-86-2|1317-36-8|25550-51-0|7439-92-1
• REACH Candidate List Substance: 4-Methyl-1,2-cyclohexanedicarboxylic anhydride|Diboron trioxide|Lead|Lead monoxide
• RoHS Compliance Status: Compliant,With Exemption
• RoHS Exemption: 6(c)|7(a)|7(c)-I|7(c)-II
• SCIP notification number (Austria): 65495a05-a649-4515-b80e-2c19fb69965c
• SCIP notification number (Belgium): 395f363e-c4c1-4872-9fde-bdf5d039283a
• SCIP notification number (Bulgaria): 25e6dd7e-bb41-4d90-82d8-c2871ecb38c8
• SCIP notification number (Czech Republic): d2e437d5-cb84-49cd-b822-079678b886be
• SCIP notification number (Denmark): f2304a6d-4c7e-4c26-a769-6144bb22556e
• SCIP notification number (Finland): 09d23fbc-0316-4f8f-a059-bb20cdf72772
• SCIP notification number (France): e2887e4b-6cd4-4ddb-a48c-97c1403f60a9
• SCIP notification number (Germany): 0cb2df86-d613-4384-bc73-f272fa154911
• SCIP notification number (Hungary): 5d5fcc8c-e881-40a4-b5c0-b98842bd4f95
• SCIP notification number (Italy): 13c93b8b-8d01-4490-8293-77b135d82540
• SCIP notification number (Netherlands): d30a97ba-13d2-45b4-994f-8fa0aa0fdec3
• SCIP notification number (Poland): b4c5f9b9-7fa4-4a25-b6ff-b108192574aa
• SCIP notification number (Romania): 4c78bc8c-506a-4c7f-a4be-ab9b18524e2e
• SCIP notification number (Sweden): cca9f8d9-6bea-416d-a6fd-ed530911bb8d

Environmental requirements

• Ambient temperature (operation): 0 … +55 °C
• Ambient temperature (storage): -40 … +85 °C
• EMC emission of interference: per EN 61000-6-4, marine applications
• EMC immunity to interference: per EN 61000-6-2, marine applications
• Exposure to pollutants: per IEC 60068-2-42 and IEC 60068-2-43
• Mounting position: Horizontal left, horizontal right, horizontal top, horizontal bottom, vertical top and vertical bottom
• Operating altitude: 0 … 2000 m / 0 … 6562 ft
• Permissible H₂S contaminant concentration at a relative humidity 75 %: 10ppm
• Permissible SO₂ contaminant concentration at a relative humidity 75 %: 25ppm
• Pollution degree: 2 per IEC 61131-2
• Protection type: IP20
• Relative humidity (without condensation): 95%
• Shock resistance: 15g per IEC 60068-2-27
• Vibration resistance: 4g per IEC 60068-2-6

Material data

• Color: light gray
• Conformity marking: CE
• Fire load: 1.467MJ
• Housing material: Polycarbonate; polyamide 6.6
• Weight: 40.5g

Mechanical data

• Mounting type: DIN-35 rail
• Pluggable connector: pluggable

Notes

• Note:

  Pluggable connectors and coding fingers (753 Series) are not included.

Physical data

• Depth: 69.8 mm / 2.748 inches
• Depth from upper-edge of DIN-rail: 62.6 mm / 2.465 inches
• Height: 100 mm / 3.937 inches
• Width: 12 mm / 0.472 inches

Technical data

• Current carrying capacity (power jumper contacts): 10A
• Current consumption (5 V system supply): 5mA
• Indicators: LED (A-D) green: Status DI 1 … DI 4
• Input characteristic: low-side switching
• Input current per channel for signal (0) typ.: 7mA
• Input data width (internal) max.: 4bits
• Input filter (digital): 3ms
• Isolation: 500 V system/field
• Number of digital inputs: 4
• Number of incoming power jumper contacts: 2
• Number of outgoing power jumper contacts: 2
• Sensor connection: 2 x (2-wire, 3-wire); A suitable field side connection module (e.g., 750-614) must also be used to connect other sensors.
• Sensor supply: 24 VDC
• Signal type: Digital
• Signal type (voltage): 24 VDC
• Supply voltage (field): 24 VDC (-15 … +20 %); via power jumper contacts (power supply via blade contact; transmission (field side supply voltage only) via spring contact)
• Supply voltage (system): 5 VDC; via data contacts
• Total number of channels (module): 4
• Voltage range for signal (0): (U_V - 5 V) … U_V DC
• Voltage range for signal (1): −3 VDC … (U_V - 15 V)
