Wago - 753-540
  • Wago - 753-540
  • Wago - 753-540
Wago - 753-540

Wago - 753-540

$238.10
$238.10

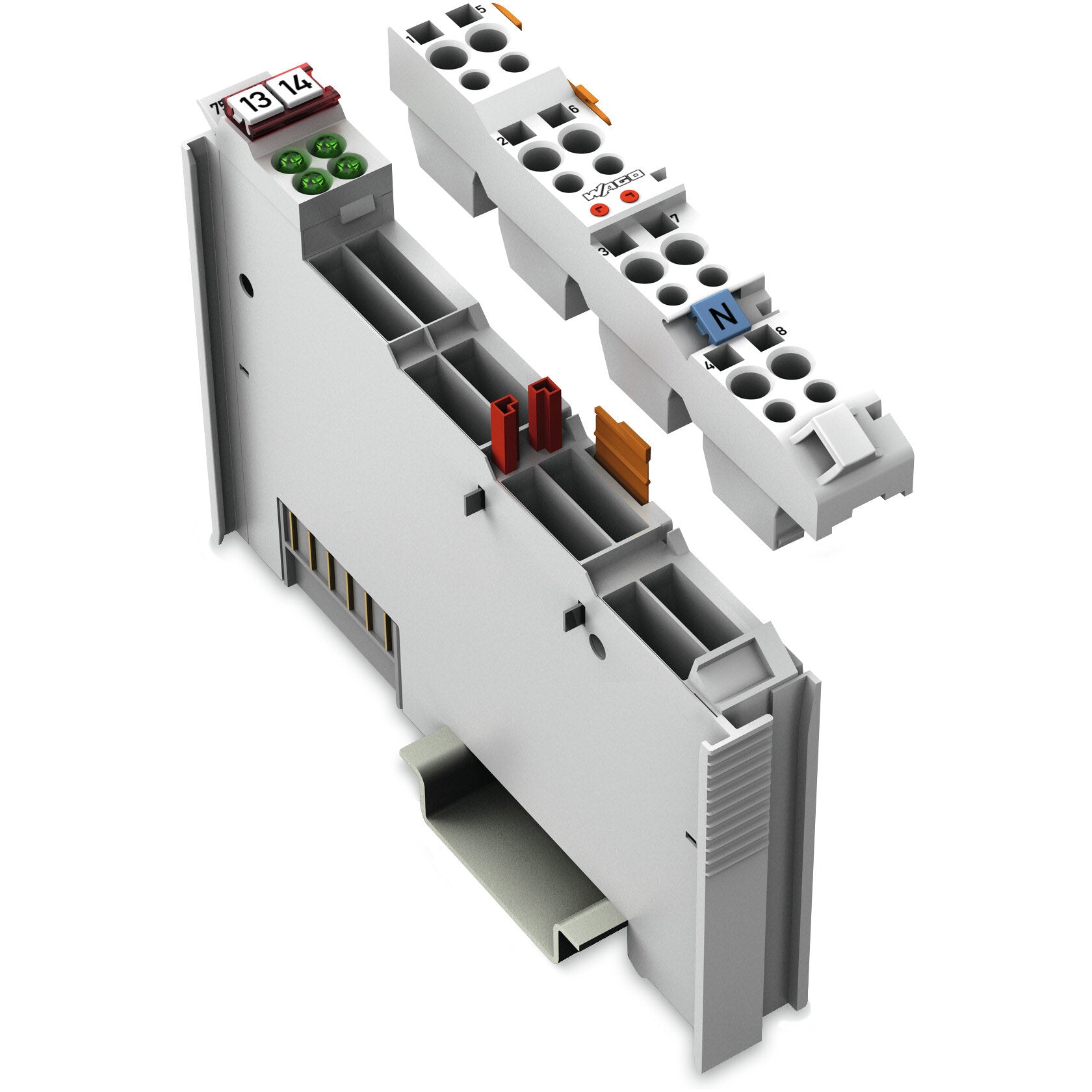

Pluggable AC digital output slice unit module - WAGO (753 series) - 4DO; 230Vac; 0.25A; S.S.R. - 4I/O [4DO (4 x digital outputs (5-250Vac / 250mA; high-side switching; 2-wire))] - supply voltage 5Vdc (supplied by system) - with spring CAGE CLAMP connections - DIN-35 rail mounting (12mm width) - IP20 - rated for 0°C...+55°C ambient - equivalent to 753540

Specifications

  • Primary brand: WAGO
  • Functions: Pluggable AC digital output slice unit module
  • Supply voltage (AC): 230Vac fixed suppl. to field sensing devices
  • Supply voltage (DC): 5Vdc (supplied by system)
  • Display: LED (A-D) green -- Status DO 1...DO 4
  • Connection type: spring CAGE CLAMP connections
  • Protection functions: short-circuit protection|overvoltage protection
  • Mounting mode: DIN-35 rail
  • Digital outputs: 4 x digital outputs (5-250Vac / 250mA; high-side switching; 2-wire)
  • Dimensions: H100mm x W12mm x D69.8mm
  • Net Width (mm): 12mm
  • Material: Polycarbonate (PC) / Polyamide (PA) 6.6 housing
  • Ambient air temperature for operation: 0°C...+55°C
  • Ambient air temperature for storage: -40°C...+85°C
  • Humidity: 95% relative humidity (RH; non-condensing)
  • Mechanical resistance: Shock resistance according to EN 60068-2-27 --15g
  • Current consumption: 18mA (5Vdc; system supply)
  • ETIM code: EC001599
  • Customs Tariff Number: 85371098990
  • eClass code: 27-24-26-04
  • Order code / Manufacturer SKU: 753-540
  • Manufacturer product status: Commercialized
  • Equivalent to: 753540
  • EAN code: 4045454670153
  • Compliant with standard(s): CE|EMC immunity to interference|- EN 61000-6-2|EMC emission of interference|- EN 61000-6-4|General approvals|- EAC - GZO Almaty Standart - TP TC 020/2011 - certificate EAC CoC 03083|- EAC - GZO Almaty Standart - TP TC 004/2011 - certificate EAC CoC 03084|- KC - National Radio Research Agency - Article 58-2 / Clause 3 - certificate MSIP-REM-W43-DOM750|- UL - Underwriters Laboratories Inc. (ORDINARY LOCATIONS) - UL 508 - certificate E175199|Approvals for hazardous areas|- ATEX - TUV Nord Cert GmbH - EN 60079-0 - certificate TUV14ATEX148929X (II 3 G Ex ec IIC T4 Gc)|- CCCEx - CQST/CNEx - CNCA-C23-01 - certificate 2020312310000213 (Ex ec IIC T4 Gc)|- IECEx - TUV Nord Cert GmbH - IEC 60079-0 - certificate IECEx TUN 14.0035 X (Ex ec IIC T4 Gc)|- INMETRO - TUV Rheinland do Brasil Ltda. - IEC 60079-0 - certificate TUV 12.1297 X|- UKEx - WAGO GmbH & Co. KG - EN 60079-0 - certificate UKCA_WAGO22UKEX003X_ec|- UL - Underwriters Laboratories Inc. (HAZARDOUS LOCATIONS) - UL 121201 - certificate E198726|RoHS compliant with exemption (6(c) / 7(a) / 7(c)-I / 7(c)-II)
  • Location of origin: Germany
  • Degree of pollution: 2
  • Level 1 category: Automation components
  • Level 2 category: Programmable Logic Controllers & components
  • Level 3 category: I-O Units
  • Product title: Pluggable AC digital output slice unit module - WAGO

Commercial data

  • Country of origin: DE
  • Customs tariff number: 85371098990
  • ECCN: NO US CLASSIFICATION
  • eCl@ss 10.0: 27-24-26-04
  • eCl@ss 9.0: 27-24-26-04
  • ETIM 8.0: EC001599
  • ETIM 9.0: EC001599
  • Packaging type: Box
  • Product Group: 15 (I/O System)
  • PU (SPU): 1 pcs

Connection data

  • Connectable conductor materials: Copper
  • Connection technology: inputs/outputs: 8 x CAGE CLAMP® (outputs)
  • Connection type 1: Output
  • Fine-stranded conductor: 0.08 … 2.5 mm² / 28 … 14 AWG
  • Solid conductor: 0.08 … 2.5 mm² / 28 … 14 AWG
  • Strip length: 9 … 10 mm / 0.35 … 0.39 inches

Environmental Product Compliance

  • CAS-No.: 1303-86-2|1317-36-8|7439-92-1
  • REACH Candidate List Substance: Diboron trioxide|Lead|Lead monoxide
  • RoHS Compliance Status: Compliant,With Exemption
  • RoHS Exemption: 6(c)|7(a)|7(c)-I|7(c)-II
  • SCIP notification number (Austria): 9c4d956d-dd95-4511-9de9-d02d31b8beb1
  • SCIP notification number (Belgium): 83078a96-630a-4175-a394-fb7822b003be
  • SCIP notification number (Bulgaria): 2eef6ca0-c285-4869-ba3f-eab03e117b40
  • SCIP notification number (Czech Republic): ec4fcba6-5847-48da-b0ba-057c6addf434
  • SCIP notification number (Denmark): 29d82d92-fe3c-4b4f-b124-8cffd6421d71
  • SCIP notification number (Finland): 502d868b-67c8-4f8e-9872-cb521e663447
  • SCIP notification number (France): f3a03125-4294-4559-aac8-c9678c87dbf9
  • SCIP notification number (Germany): 0836dc52-7130-44c0-a104-464335365f54
  • SCIP notification number (Hungary): e325d3e2-f170-4a2f-8d21-ad2d8d5e2e5b
  • SCIP notification number (Italy): 60d2c8ef-08f8-4e88-8a6e-95df45b10a74
  • SCIP notification number (Netherlands): 6c18dc69-9cf1-4fd1-91da-06f93a66a119
  • SCIP notification number (Poland): f6c2f8f1-5c6a-4db7-b0db-80a8105857af
  • SCIP notification number (Romania): ef605e0d-d71d-4aed-9701-38cce88f5354
  • SCIP notification number (Sweden): be7a4de5-c5e9-4980-a8f8-fca6bc429964

Environmental requirements

  • Ambient temperature (operation): 0 … +55 °C
  • Ambient temperature (storage): -40 … +85 °C
  • EMC emission of interference: per EN 61000-6-4
  • EMC immunity to interference: per EN 61000-6-2
  • Exposure to pollutants: per IEC 60068-2-42 and IEC 60068-2-43
  • Mounting position: Horizontal left, horizontal right, horizontal top, horizontal bottom, vertical top and vertical bottom
  • Operating altitude: 0 … 2000 m / 0 … 6562 ft
  • Permissible H2S contaminant concentration at a relative humidity 75 %: 10ppm
  • Permissible SO2 contaminant concentration at a relative humidity 75 %: 25ppm
  • Relative humidity (without condensation): 95%
  • Shock resistance: 15g per IEC 60068-2-27
  • Vibration resistance: per IEC 60068-2-6

Material data

  • Color: light gray
  • Conformity marking: CE
  • Fire load: 0.881MJ
  • Housing material: Polycarbonate; polyamide 6.6
  • Weight: 41.4g

Mechanical data

  • Mounting type: DIN-35 rail
  • Pluggable connector: pluggable

Notes

  • Note:

    Pluggable connectors and coding fingers (753 Series) are not included.

Physical data

  • Depth: 69.8 mm / 2.748 inches
  • Depth from upper-edge of DIN-rail: 62.6 mm / 2.465 inches
  • Height: 100 mm / 3.937 inches
  • Width: 12 mm / 0.472 inches

Safety and protection

  • Pollution degree: 2 per IEC 61131-2
  • Protection type: IP20

Technical data

  • Actuator connection: 4 x (2-wire)
  • Current carrying capacity (power jumper contacts): 10A
  • Current consumption (5 V system supply): 18mA
  • Drop-out time (max.): 10ms
  • Indicators: LED (A-D) green: Status DO 1 … DO 4
  • Load type: Resistive, inductive
  • Number of digital outputs: 4
  • Number of incoming power jumper contacts: 2
  • Number of outgoing power jumper contacts: 2
  • ON voltage difference L-DO (max.): 1.2V
  • Output characteristic: high-side switching
  • Output current: short-circuit-protected
  • Output current per channel: 0.25A
  • Output data width (internal) max.: 4bits
  • Protection against incorrect wiring: Overvoltage protection (275 V) via varistor
  • Pull-in time (max.): 10ms
  • Short-circuit current: max. 10 A (16 ms)
  • Signal type: Digital
  • Signal type (voltage): 5 … 250 VAC
  • Supply voltage (field): 230 VAC; via power jumper contacts (power supply via blade contact; transmission (field side supply voltage only) via spring contact)
  • Supply voltage (system): 5 VDC; via data contacts
  • Total number of channels (module): 4
