Wago - 753-440

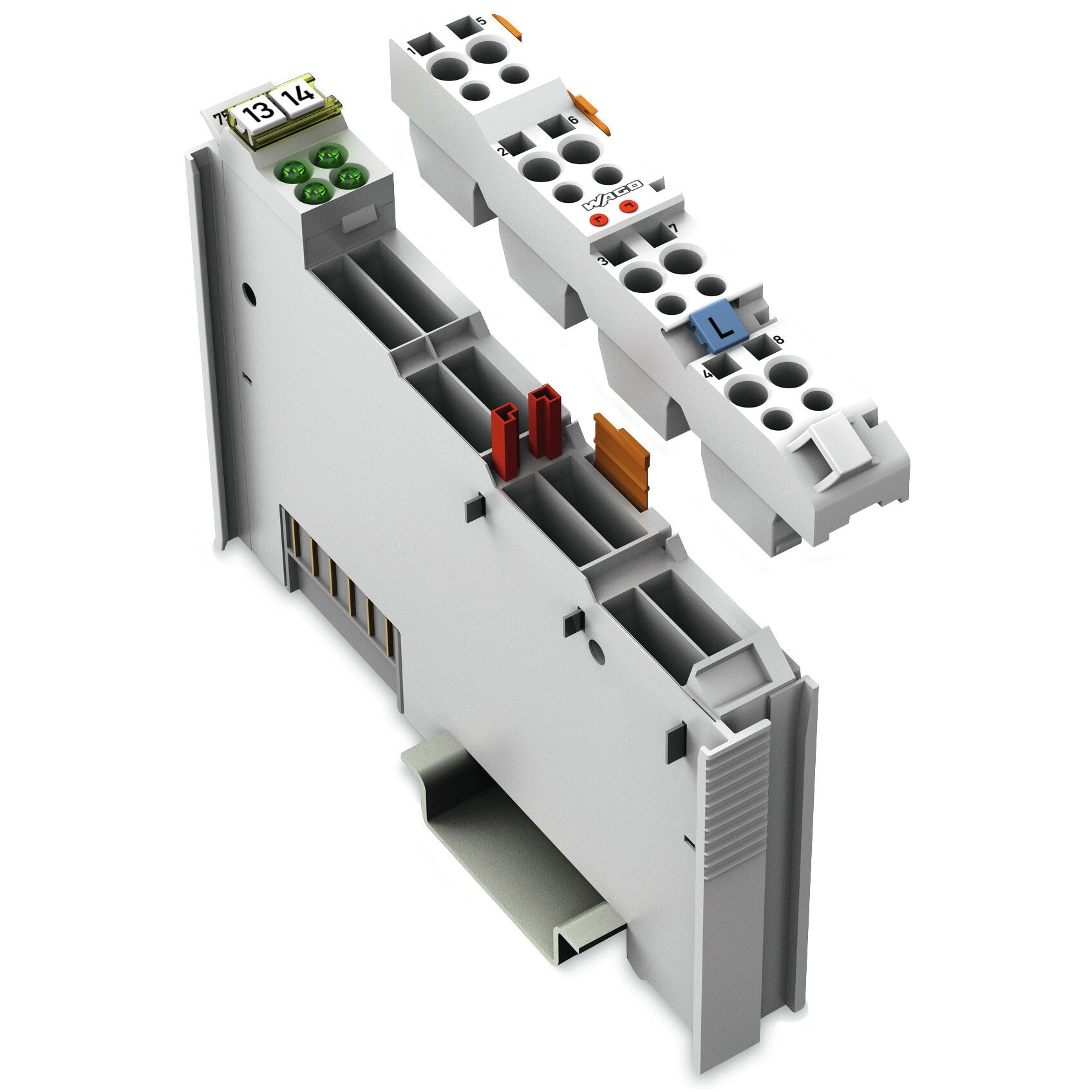

Pluggable AC digital input slice unit module - WAGO (753 series) - 4DI; 120/230Vac - 4I/O [4DI (4 x digital inputs (120/230Vac; high-side switching; 2-wire; 10ms filter))] - supply voltage 5Vdc (supplied by system) - with spring CAGE CLAMP connections - DIN-35 rail mounting (12mm width) - IP20 - rated for 0°C...+55°C ambient - equivalent to 753440

Specifications

• Primary brand: WAGO
• Functions: Pluggable AC digital input slice unit module
• Supply voltage (AC): 230Vac fixed suppl. to field sensing devices
• Supply voltage (DC): 5Vdc (supplied by system)
• Display: LED (A-D) green -- Status DI 1...DI 4
• Connection type: spring CAGE CLAMP connections
• Protection functions: overvoltage protection
• Mounting mode: DIN-35 rail
• Digital inputs: 4 x digital inputs (120/230Vac; high-side switching; 2-wire; 10ms filter)|Digital input voltage ranges 0-40Vac (OFF) / 79-230Vac (ON)
• Dimensions: H100mm x W12mm x D69.8mm
• Net Width (mm): 12mm
• Material: Polycarbonate (PC) / Polyamide (PA) 6.6 housing
• Ambient air temperature for operation: 0°C...+55°C
• Ambient air temperature for storage: -40°C...+85°C
• Humidity: 95% relative humidity (RH; non-condensing)
• Mechanical resistance: Shock resistance according to EN 60068-2-27 --15g
• Current consumption: 15mA (5Vdc; system supply)
• Customs Tariff Number: 85389099990
• eClass code: 27-24-26-04
• ETIM code: EC001599
• Order code / Manufacturer SKU: 753-440
• Manufacturer product status: Commercialized
• Equivalent to: 753440
• EAN code: 4045454394455
• Compliant with standard(s): CE|EMC immunity to interference|- EN 61000-6-2|EMC emission of interference|- EN 61000-6-4|General approvals|- EAC - GZO Almaty Standart - TP TC 020/2011 - certificate EAC CoC 03083|- EAC - GZO Almaty Standart - TP TC 004/2011 - certificate EAC CoC 03084|- KC - National Radio Research Agency - Article 58-2 / Clause 3 - certificate MSIP-REM-W43-DIM750|- UL - Underwriters Laboratories Inc. (ORDINARY LOCATIONS) - UL 508 - certificate E175199|Approvals for hazardous areas|- ATEX - TUV Nord Cert GmbH - EN 60079-0 - certificate TUV14ATEX148929X (II 3 G Ex ec IIC T4 Gc)|- CCCEx - CQST/CNEx - CNCA-C23-01 - certificate 2020312310000213 (Ex ec IIC T4 Gc)|- IECEx - TUV Nord Cert GmbH - IEC 60079-0 - certificate IECEx TUN 14.0035 X (Ex ec IIC T4 Gc)|- INMETRO - TUV Rheinland do Brasil Ltda. - IEC 60079-0 - certificate TUV 12.1297 X|- UKEx - WAGO GmbH & Co. KG - EN 60079-0 - certificate UKCA_WAGO22UKEX003X_ec|- UL - Underwriters Laboratories Inc. (HAZARDOUS LOCATIONS) - UL 121201 - certificate E198726|RoHS compliant
• Location of origin: Germany
• Degree of pollution: 2
• Level 1 category: Automation components
• Level 2 category: Programmable Logic Controllers & components
• Level 3 category: I-O Units
• Product title: Pluggable AC digital input slice unit module - WAGO

Commercial data

• Country of origin: DE
• Customs tariff number: 85389099990
• ECCN: NO US CLASSIFICATION
• eCl@ss 10.0: 27-24-26-04
• eCl@ss 9.0: 27-24-26-04
• ETIM 8.0: EC001599
• ETIM 9.0: EC001599
• Packaging type: Box
• Product Group: 15 (I/O System)
• PU (SPU): 1 pcs

Connection data

• Connectable conductor materials: Copper
• Connection technology: inputs/outputs: 8 x CAGE CLAMP^® (inputs)
• Connection type 1: Input
• Fine-stranded conductor: 0.08 … 2.5 mm² / 28 … 14 AWG
• Solid conductor: 0.08 … 2.5 mm² / 28 … 14 AWG
• Strip length: 9 … 10 mm / 0.35 … 0.39 inches

Environmental Product Compliance

• RoHS Compliance Status: Compliant,No Exemption

Environmental requirements

• Ambient temperature (operation): 0 … +55 °C
• Ambient temperature (storage): -40 … +85 °C
• EMC emission of interference: per EN 61000-6-4
• EMC immunity to interference: per EN 61000-6-2
• Exposure to pollutants: per IEC 60068-2-42 and IEC 60068-2-43
• Mounting position: Horizontal left, horizontal right, horizontal top, horizontal bottom, vertical top and vertical bottom
• Operating altitude: 0 … 2000 m / 0 … 6562 ft
• Permissible H₂S contaminant concentration at a relative humidity 75 %: 10ppm
• Permissible SO₂ contaminant concentration at a relative humidity 75 %: 25ppm
• Relative humidity (without condensation): 95%
• Shock resistance: 15g per IEC 60068-2-27
• Vibration resistance: per IEC 60068-2-6

Material data

• Color: light gray
• Conformity marking: CE
• Fire load: 1.514MJ
• Housing material: Polycarbonate; polyamide 6.6
• Weight: 42.5g

Mechanical data

• Mounting type: DIN-35 rail
• Pluggable connector: pluggable

Notes

• Note:

  Pluggable connectors and coding fingers (753 Series) are not included.

Physical data

• Depth: 69.8 mm / 2.748 inches
• Depth from upper-edge of DIN-rail: 62.6 mm / 2.465 inches
• Height: 100 mm / 3.937 inches
• Width: 12 mm / 0.472 inches

Safety and protection

• Pollution degree: 2 per IEC 61131-2
• Protection type: IP20

Technical data

• Current carrying capacity (power jumper contacts): 10A
• Current consumption (5 V system supply): 15mA
• Indicators: LED (A-D) green: Status DI 1 … DI 4
• Input characteristic: high-side switching
• Input data width (internal) max.: 4bits
• Input filter (digital): 10ms
• Number of digital inputs: 4
• Number of incoming power jumper contacts: 2
• Number of outgoing power jumper contacts: 2
• Protection against incorrect wiring: Overvoltage protection (275 V) via varistor
• Sensor connection: 4 x (2-wire)
• Sensor supply: 230 VAC
• Signal frequency (max.): 65Hz
• Signal frequency (min.): 45Hz
• Signal type: Digital
• Signal type (voltage): 120 VAC
• Supply voltage (field): 230 VAC; via power jumper contacts (power supply via blade contact; transmission (field side supply voltage only) via spring contact)
• Supply voltage (system): 5 VDC; via data contacts
• Total number of channels (module): 4
• Voltage range for signal (0): 0 … 40 VAC
• Voltage range for signal (1): 79 … 230 VAC (−15 … +10 %)
