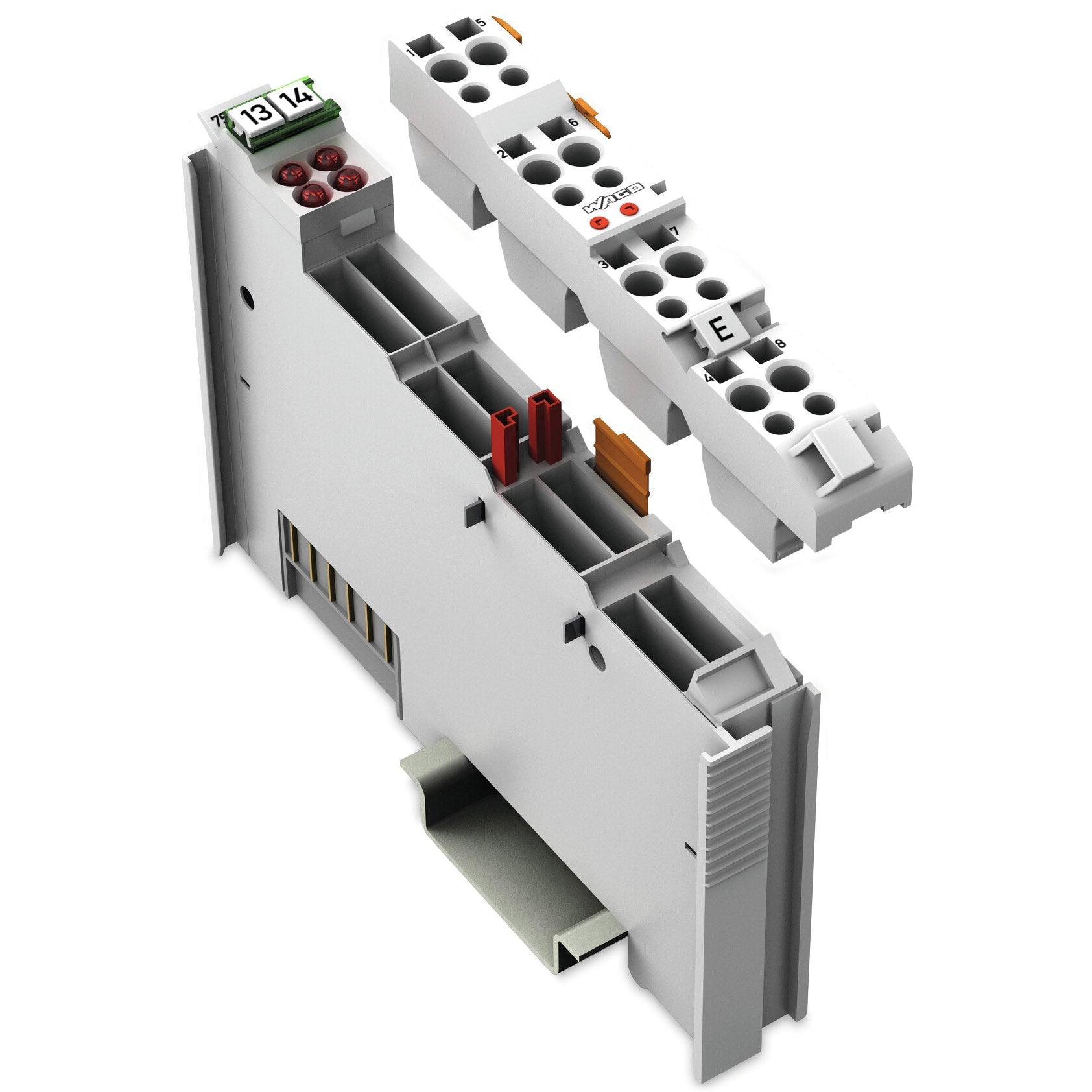

Pluggable analog input slice unit module - WAGO (753 series) - 4AI; 0-10Vdc; SE - 4I/O [4AI (4 x analog inputs (0-10Vdc; Single-ended; 12-bits / 10ms conversion; 2-wire))] - supply voltage 5Vdc (supplied by system) - with spring CAGE CLAMP connections - DIN-35 rail mounting (12mm width) - IP20 - rated for 0°C...+55°C ambient - equivalent to 753459

Specifications

• Primary brand: WAGO
• Functions: Pluggable analog input slice unit module
• Supply voltage (DC): 5Vdc (supplied by system)|18-31.2Vdc adjustable suppl. to field sensing devices
• Display: LED (A-D) red -- Error AI 1...AI 4
• Connection type: spring CAGE CLAMP connections
• Mounting mode: DIN-35 rail
• Analog inputs: 4 x analog inputs (0-10Vdc; Single-ended; 12-bits / 10ms conversion; 2-wire)
• Measurement accuracy: +-0.1% (measuring error)|+-0.01% (temperature error)
• Dimensions: H100mm x W12mm x D69.8mm
• Net Width (mm): 12mm
• Material: Polycarbonate (PC) / Polyamide (PA) 6.6 housing
• Ambient air temperature for operation: 0°C...+55°C
• Ambient air temperature for storage: -40°C...+85°C
• Humidity: 95% relative humidity (RH; non-condensing)
• Mechanical resistance: Vibration resistance according to EN 60068-2-6 -- 4g|Shock resistance according to EN 60068-2-27 --15g
• Current consumption: 65mA (5Vdc; system supply)
• eClass code: 27-24-26-01
• ETIM code: EC001596
• Customs Tariff Number: 85389099990
• GTIN code: 4045454655471
• Order code / Manufacturer SKU: 753-459
• Manufacturer product status: Commercialized
• Equivalent to: 753459
• EAN code: 4045454655471
• Compliant with standard(s): CE|EMC immunity to interference|- EN 61000-6-2|- marine applications|EMC emission of interference|- EN 61000-6-4|- marine applications|General approvals|- EAC - GZO Almaty Standart - TP TC 020/2011 - certificate EAC CoC 03083|- KC - National Radio Research Agency - Article 58-2 / Clause 3 - certificate MSIP-REM-W43-AIM750|- UL - Underwriters Laboratories Inc. (ORDINARY LOCATIONS) - UL 508 - certificate E175199|Declarations of conformity and manufacturer's declarations|- UK-Declaration of Conformity - WAGO GmbH & Co. KG|Approvals for marine applications|- ABS - American Bureau of Shipping - certificate 22-2219060|- BSH - Bundesamt fuer Seeschifffahrt und Hydrographie - certificate 1104|- BV - Bureau Veritas S.A. - certificate 13453/E0 BV|- DNV - DNV GL SE - DNV-CG-0339 / Aug.2021 - certificate TAA0000194|- KR - Korean Register of Shipping - certificate KR HMB05880-AC001|- LR - Lloyds Register EMEA - certificate LR22180952TA|- PRS - Polski Rejestr Statkow - certificate TE/1101/880590/23|- RINA - RINA Germany GmbH - certificate ELE343521XG001|Approvals for hazardous areas|- ATEX - TUV Nord Cert GmbH - EN 60079-0 - certificate TUV14ATEX148929X (II 3 G Ex ec IIC T4 Gc)|- CCCEx - CQST/CNEx - CNCA-C23-01 - certificate 2020312310000213 (Ex ec IIC T4 Gc)|- IECEx - TUV Nord Cert GmbH - IEC 60079-0 - certificate IECEx TUN 14.0035 X (Ex ec IIC T4 Gc)|- INMETRO - TUV Rheinland do Brasil Ltda. - IEC 60079-0 - certificate TUV 12.1297 X|- UKEx - WAGO GmbH & Co. KG - EN 60079-0 - certificate UKCA_WAGO22UKEX003X_ec|- UL - Underwriters Laboratories Inc. (HAZARDOUS LOCATIONS) - UL 121201 - certificate E198726|RoHS compliant with exemption (6(c) / 7(a) / 7(c)-I / 7(c)-II)
• Location of origin: Germany
• Degree of pollution: 2
• Level 1 category: Automation components
• Level 2 category: Programmable Logic Controllers & components
• Level 3 category: I-O Units
• Product title: Pluggable analog input slice unit module - WAGO

Commercial data

• Country of origin: DE
• Customs tariff number: 85389099990
• ECCN: NO US CLASSIFICATION
• eCl@ss 10.0: 27-24-26-01
• eCl@ss 9.0: 27-24-26-01
• ETIM 8.0: EC001596
• ETIM 9.0: EC001596
• GTIN: 4045454655471
• Packaging type: box
• Product Group: 15 (I/O System)
• PU (SPU): 1 pcs

Connection data

• Connectable conductor materials: Copper
• Connection technology: inputs/outputs: 8 x CAGE CLAMP^®
• Connection type 1: Inputs/Outputs
• Fine-stranded conductor: 0.08 … 2.5 mm² / 28 … 14 AWG
• Solid conductor: 0.08 … 2.5 mm² / 28 … 14 AWG
• Strip length: 9 … 10 mm / 0.35 … 0.39 inches

Environmental Product Compliance

• CAS-No.: 1303-86-2|1317-36-8|7439-92-1
• REACH Candidate List Substance: Diboron trioxide|Lead|Lead monoxide
• RoHS Compliance Status: Compliant,With Exemption
• RoHS Exemption: 6(c)|7(a)|7(c)-I|7(c)-II
• SCIP notification number (Austria): 934c03fa-039d-4c04-bb19-ea6ba05d99ab
• SCIP notification number (Belgium): 5ad8c585-890e-4ce6-ab53-6907210ccd5b
• SCIP notification number (Bulgaria): 15091f53-5e8c-473f-a3bb-1245c3818438
• SCIP notification number (Czech Republic): dfe6b8b8-9901-4275-80ed-ba19f4df2c28
• SCIP notification number (Denmark): 439ce4ab-b4e6-4aa1-89b5-432e83ad07f7
• SCIP notification number (Finland): 70b742ae-b0a7-4904-a106-c6e69d731646
• SCIP notification number (France): 01b95052-9cc0-4e8b-9dd7-6db6dbf99c00
• SCIP notification number (Germany): f8e54b24-c151-4a73-81c2-4d16cb3a2305
• SCIP notification number (Hungary): 51650b69-d694-41c4-b0c6-9cf52bda7d5c
• SCIP notification number (Italy): 77c29268-8c07-4fcc-9ea3-746bdc35556b
• SCIP notification number (Netherlands): da005523-9fdb-440c-af7a-6db18098e6e6
• SCIP notification number (Poland): 062061da-506f-4224-84b5-f3d0fb6b7e71
• SCIP notification number (Romania): 4236f546-14b9-413b-b482-efb3c3e8bc67
• SCIP notification number (Sweden): e0da255a-c4c1-48ca-aa6a-eca576cf4210

Environmental requirements

• Ambient temperature (operation): 0 … +55 °C
• Ambient temperature (storage): -40 … +85 °C
• EMC emission of interference: per EN 61000-6-4, marine applications
• EMC immunity to interference: per EN 61000-6-2, marine applications
• Exposure to pollutants: Per IEC 60068-2-42 and IEC 60068-2-43
• Mounting position: Horizontal left, horizontal right, horizontal top, horizontal bottom, vertical top and vertical bottom
• Operating altitude: 0 … 2000 m / 0 … 6562 ft
• Permissible H₂S contaminant concentration at a relative humidity 75 %: 10ppm
• Permissible SO₂ contaminant concentration at a relative humidity 75 %: 25ppm
• Pollution degree: 2 per IEC 61131-2
• Protection type: IP20
• Relative humidity (without condensation): 95%
• Shock resistance: 15g per IEC 60068-2-27
• Vibration resistance: 4g per IEC 60068-2-6

Material data

• Color: light gray
• Conformity marking: CE
• Fire load: 1.424MJ
• Housing material: Polycarbonate; polyamide 6.6
• Weight: 41.5g

Mechanical data

• Mounting type: DIN-35 rail
• Pluggable connector: Pluggable

Notes

• Note:

  Pluggable connectors and coding fingers (753 Series) are not included.

Physical data

• Depth: 69.8 mm / 2.748 inches
• Depth from upper-edge of DIN-rail: 62.6 mm / 2.465 inches
• Height: 100 mm / 3.937 inches
• Width: 12 mm / 0.472 inches

Technical data

• Conversion time (typ.): 10ms
• Current consumption (5 V system supply): 65mA
• Data width: 4 x 16-bit data; 4 x 8-bit control/status (optional)
• Indicators: LED (A-D) red: Error AI 1 … AI 4
• Input voltage (max.): ±40 V
• Internal resistance: 100kΩ
• Isolation: 500 V system/field
• Measurement error (reference temperature): 25°C
• Measurement error, deviation (max.) from the upper-range value: 0.1%
• Number of analog inputs: 4
• Number of incoming power jumper contacts: 2
• Number of outgoing power jumper contacts: 2
• Resolution [bit]: 12bits
• Sensor connection: 4 x (2-wire)
• Signal characteristics: Single-ended
• Signal type: Voltage
• Signal type (voltage): 0 … 10 VDC
• Supply voltage (field): 24 VDC (-25 … +30 %); via power jumper contacts (power supply via blade contact; transmission (field side supply voltage only) via spring contact)
• Supply voltage (system): 5 VDC; via data contacts
• Temperature error (max.) of the upper-range value: 0.01%/K
• Total number of channels (module): 4
