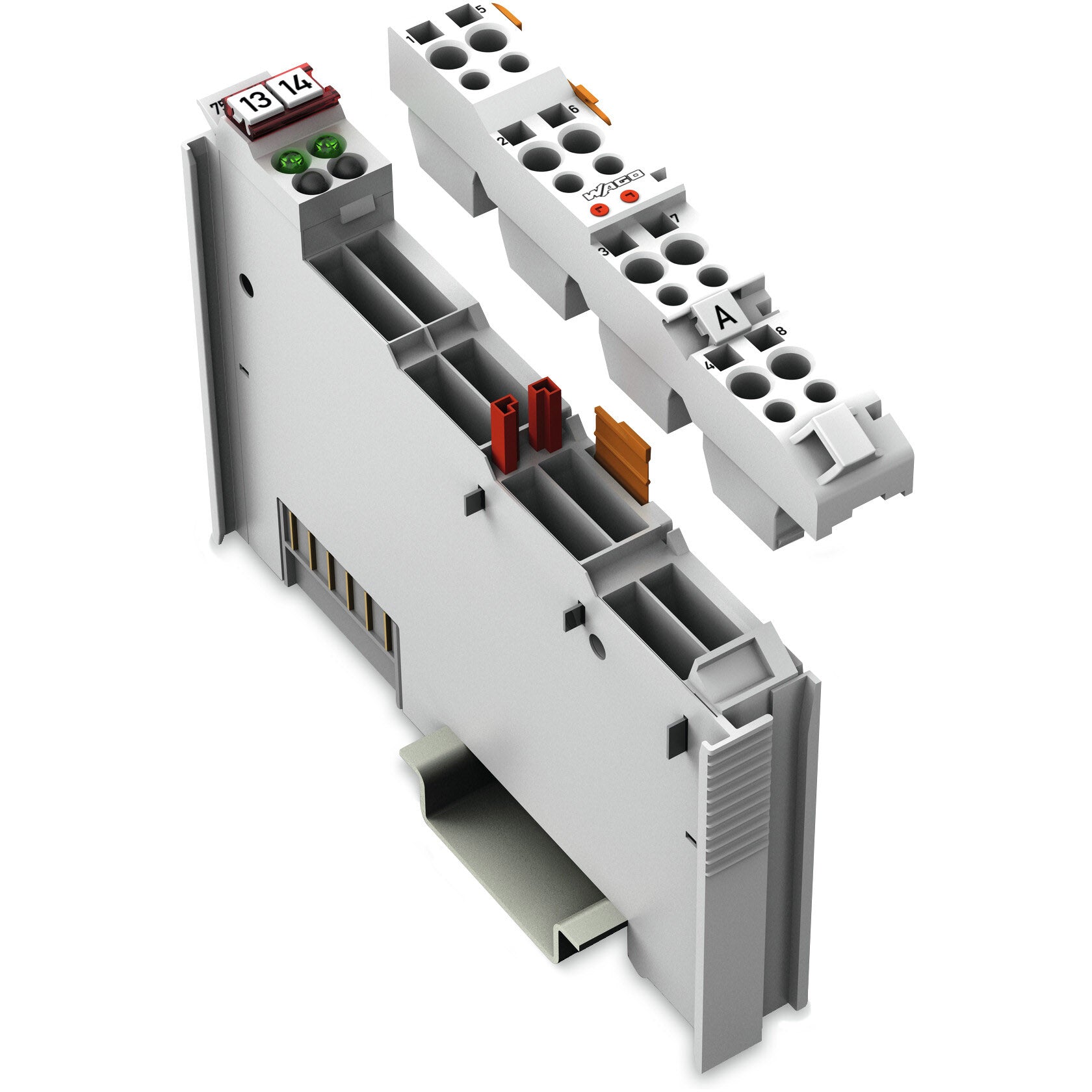

Wago - 753-509

Pluggable AC/DC digital output slice unit module - WAGO (753 series) - 2DO; 230Vac; 0.3A; S.S.R. - 2I/O [2DO (2 x digital outputs (solid-state load rly.; 0...230Vac/Vdc / 0.3A; 2-wire / 3-wire))] - supply voltage 5Vdc (supplied by system) - with spring CAGE CLAMP connections - DIN-35 rail mounting (12mm width) - IP20 - rated for 0°C...+55°C ambient - equivalent to 753509

Specifications

• Primary brand: WAGO
• Functions: Pluggable AC/DC digital output slice unit module
• Supply voltage (AC): 250Vac fixed suppl. to field sensing devices
• Supply voltage (DC): 5Vdc (supplied by system)|250Vdc fixed suppl. to field sensing devices
• Frequency: 5Hz switching frequency
• Display: LED (A/C) green -- Status DO 1 / DO 2
• Connection type: spring CAGE CLAMP connections
• Protection functions: overvoltage protection
• Mounting mode: DIN-35 rail
• Digital outputs: 2 x digital outputs (solid-state load rly.; 0...230Vac/Vdc / 0.3A; 2-wire / 3-wire)
• Dimensions: H100mm x W12mm x D69.8mm
• Net Width (mm): 12mm
• Material: Polycarbonate (PC) / Polyamide (PA) 6.6 housing
• Ambient air temperature for operation: 0°C...+55°C
• Ambient air temperature for storage: -40°C...+85°C
• Humidity: 95% relative humidity (RH; non-condensing)
• Mechanical resistance: Vibration resistance according to EN 60068-2-6 -- 4g|Shock resistance according to EN 60068-2-27 --15g
• Current consumption: 10mA (5Vdc; system supply)
• ETIM code: EC001599
• Customs Tariff Number: 85371098990
• eClass code: 27-24-26-04
• Order code / Manufacturer SKU: 753-509
• Manufacturer product status: Commercialized
• Equivalent to: 753509
• EAN code: 4045454394554
• Compliant with standard(s): CE|EMC immunity to interference|- EN 61000-6-2|- marine applications|EMC emission of interference|- EN 61000-6-4|- marine applications|General approvals|- EAC - GZO Almaty Standart - TP TC 020/2011 - certificate EAC CoC 03083|- EAC - GZO Almaty Standart - TP TC 004/2011 - certificate EAC CoC 03084|- KC - National Radio Research Agency - Article 58-2 / Clause 3 - certificate MSIP-REM-W43-DOM750|Declarations of conformity and manufacturer's declarations|- EU-Declaration of Conformity - WAGO GmbH & Co. KG|Approvals for marine applications|- ABS - American Bureau of Shipping - certificate 22-2219060|- BSH - Bundesamt fuer Seeschifffahrt und Hydrographie - certificate 1104|- BV - Bureau Veritas S.A. - certificate 13453/E0 BV|- DNV - DNV GL SE - DNV-CG-0339 / Aug.2021 - certificate TAA0000194|- KR - Korean Register of Shipping - certificate KR HMB05880-AC001|- LR - Lloyds Register EMEA - certificate LR22180952TA|- PRS - Polski Rejestr Statkow - certificate TE/1101/880590/23|- RINA - RINA Germany GmbH - certificate ELE343521XG001|Approvals for hazardous areas|- ATEX - TUV Nord Cert GmbH - EN 60079-0 - certificate TUV14ATEX148929X (II 3 G Ex ec IIC T4 Gc)|- CCCEx - CQST/CNEx - CNCA-C23-01 - certificate 2020312310000213 (Ex ec IIC T4 Gc)|- IECEx - TUV Nord Cert GmbH - IEC 60079-0 - certificate IECEx TUN 14.0035 X (Ex ec IIC T4 Gc)|- INMETRO - TUV Rheinland do Brasil Ltda. - IEC 60079-0 - certificate TUV 12.1297 X|- UKEx - WAGO GmbH & Co. KG - EN 60079-0 - certificate UKCA_WAGO22UKEX003X_ec|- UL - Underwriters Laboratories Inc. (HAZARDOUS LOCATIONS) - UL 121201 - certificate E198726|RoHS compliant with exemption (6(c) / 7(a) / 7(c)-I / 7(c)-II)
• Location of origin: Germany
• Degree of pollution: 2
• Level 1 category: Automation components
• Level 2 category: Programmable Logic Controllers & components
• Level 3 category: I-O Units
• Product title: Pluggable AC/DC digital output slice unit module - WAGO

Commercial data

• Country of origin: DE
• Customs tariff number: 85371098990
• ECCN: NO US CLASSIFICATION
• eCl@ss 10.0: 27-24-26-04
• eCl@ss 9.0: 27-24-26-04
• ETIM 8.0: EC001599
• ETIM 9.0: EC001599
• Packaging type: Box
• Product Group: 15 (I/O System)
• PU (SPU): 1 pcs

Connection data

• Connectable conductor materials: Copper
• Connection technology: inputs/outputs: 8 x CAGE CLAMP^® (outputs)
• Connection type 1: Output
• Fine-stranded conductor: 0.08 … 2.5 mm² / 28 … 14 AWG
• Solid conductor: 0.08 … 2.5 mm² / 28 … 14 AWG
• Strip length: 9 … 10 mm / 0.35 … 0.39 inches

Environmental Product Compliance

• CAS-No.: 1303-86-2|1317-36-8|25550-51-0|541-02-6|556-67-2|7439-92-1
• REACH Candidate List Substance: 4-Methyl-1,2-cyclohexanedicarboxylic anhydride|Decamethylcyclopentasiloxane [D5]|Diboron trioxide|Lead|Lead monoxide|Octamethylcyclotetrasiloxane [D4]
• RoHS Compliance Status: Compliant,With Exemption
• RoHS Exemption: 6(c)|7(a)|7(c)-I|7(c)-II
• SCIP notification number (Austria): 31ef26df-cfa7-407e-aeef-ac2cf334e874
• SCIP notification number (Belgium): 68e20cda-aa06-4fb8-b8a4-50bb4c2f99fb
• SCIP notification number (Bulgaria): ea0e69f1-573d-4a66-afac-bfbed66ed9d8
• SCIP notification number (Czech Republic): 32ed7520-5bbc-4817-92c7-8b9782bf9ea3
• SCIP notification number (Denmark): c1698dfd-116e-49e4-a044-b73321f0d0e7
• SCIP notification number (Finland): abab769b-e2eb-4211-8fd5-d91b1994baed
• SCIP notification number (France): c963ecc5-d540-4e67-91bb-3fefa4b0089e
• SCIP notification number (Germany): ad0320b0-b5f6-48a0-a20b-5d240f0e3f4f
• SCIP notification number (Hungary): 17ca8f31-f0f3-4b63-a743-567a2a3d3499
• SCIP notification number (Italy): dbae9180-3f06-4345-b118-efba86eaa4ed
• SCIP notification number (Netherlands): fd09b026-32ad-4380-b588-1391389266e8
• SCIP notification number (Poland): 73e20f73-2d13-4324-95d8-cfef2676b3c4
• SCIP notification number (Romania): 756c4ef7-177f-49a6-8885-fa16734b87a2
• SCIP notification number (Sweden): 1a543600-4160-461d-8cb8-1c2e0ac39fe8

Environmental requirements

• Ambient temperature (operation): 0 … +55 °C
• Ambient temperature (storage): -40 … +85 °C
• EMC emission of interference: per EN 61000-6-4, marine applications
• EMC immunity to interference: per EN 61000-6-2, marine applications
• Exposure to pollutants: per IEC 60068-2-42 and IEC 60068-2-43
• Mounting position: Horizontal left, horizontal right, horizontal top, horizontal bottom, vertical top and vertical bottom
• Operating altitude: 0 … 2000 m / 0 … 6562 ft
• Permissible H₂S contaminant concentration at a relative humidity 75 %: 10ppm
• Permissible SO₂ contaminant concentration at a relative humidity 75 %: 25ppm
• Pollution degree: 2 per IEC 61131-2
• Protection type: IP20
• Relative humidity (without condensation): 95%
• Shock resistance: 15g per IEC 60068-2-27
• Vibration resistance: 4g per IEC 60068-2-6

Material data

• Color: light gray
• Conformity marking: CE
• Fire load: 1.194MJ
• Housing material: Polycarbonate; polyamide 6.6
• Weight: 46.9g

Mechanical data

• Mounting type: DIN-35 rail
• Pluggable connector: pluggable

Notes

• Note:

  Pluggable connectors and coding fingers (753 Series) are not included.

Physical data

• Depth: 69.8 mm / 2.748 inches
• Depth from upper-edge of DIN-rail: 62.6 mm / 2.465 inches
• Height: 100 mm / 3.937 inches
• Width: 12 mm / 0.472 inches

Technical data

• Actuator connection: 2 x (2-wire, 3-wire)
• Contact resistance (max.): 0.03Ω
• Contact resistance (typ.): 2.1Ω
• Current carrying capacity (power jumper contacts): 10A
• Current consumption (5 V system supply): 10mA
• Drop-out time (max.): 3ms
• Drop-out time (typ.): 0.1ms
• Indicators: LED (A, C) green: Status DO 1, DO 2
• Isolation: 1500 V (system/field)
• Load type: Resistive, inductive
• Making capacity (current/time): 0.5 A (20 s)
• Making capacity (current/time) (2): 1.5 A (0.1 s)
• Number of digital outputs: 2
• Number of incoming power jumper contacts: 3
• Number of outgoing power jumper contacts: 3
• Output characteristic: non-floating
• Output circuit design: Solid-state load relays|Solid-state load relays
• Output current per channel: 0.3A
• Output data width (internal) max.: 2bits
• Protection against incorrect wiring: Overvoltage protection (275 V) via varistor|Overvoltage protection (275 V) via varistor
• Pull-in time (max.): 10ms
• Pull-in time (typ.): 4ms
• Signal type: Digital
• Signal type (voltage): 0 … 250 VAC/DC
• Supply voltage (field): 250 VAC/DC; via power jumper contacts (power supply via blade contact; transmission (field side supply voltage only) via spring contact)
• Supply voltage (system): 5 VDC; via data contacts
• Switching frequency (max.): 5 Hz; 24 V; 0.3 A; DF = 50 %
• Switching frequency (max.) (2): 0.5 Hz; 230 V; 0.3 A; DF = 50 %
• Total number of channels (module): 2
