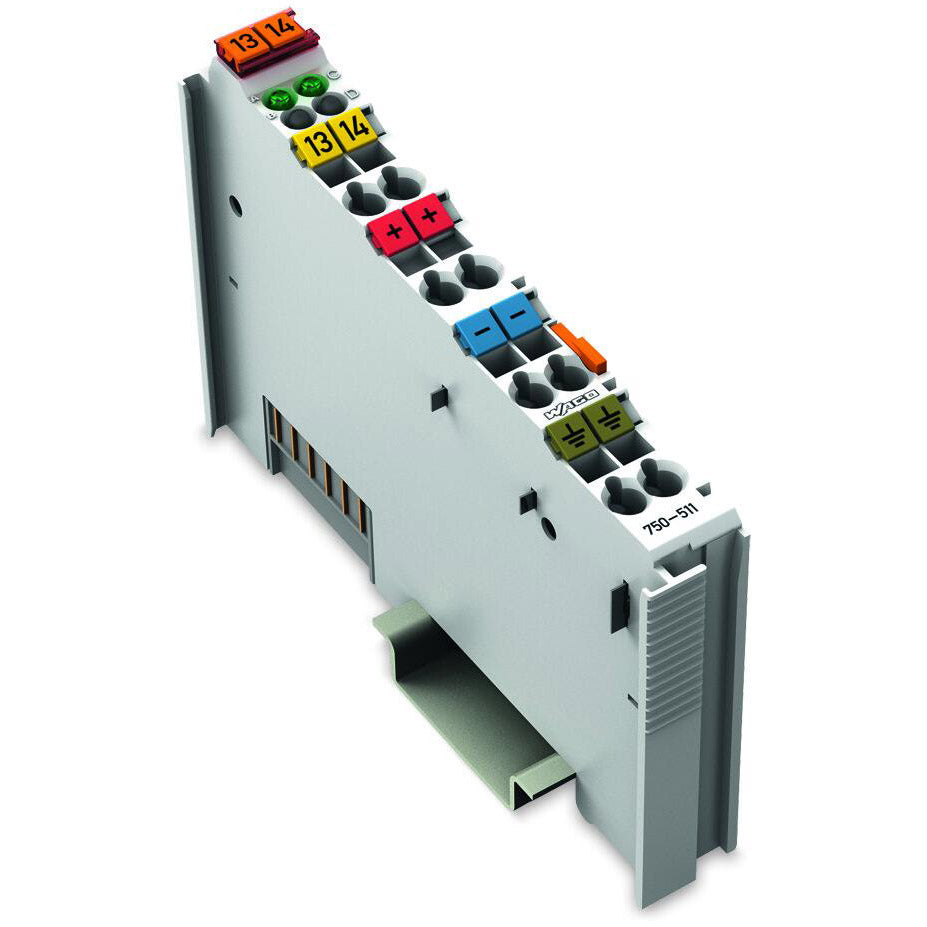

Wago - 753-511

Pluggable pulse output slice unit module - WAGO (753 series) - 2PWM; 24Vdc; 0.1A; 250Hz - 2I/O [2DO (2 x digital outputs (PWM; 0.1A; 250Hz / 10-bits duty factor control resolution))] - supply voltage 5Vdc (supplied by system) - with spring CAGE CLAMP connections - DIN-35 rail mounting (12mm width) - IP20 - rated for 0°C...+55°C ambient - equivalent to 753511

Specifications

• Primary brand: WAGO
• Functions: Pluggable pulse output slice unit module
• Supply voltage (DC): 5Vdc (supplied by system)|20.4-28.8Vdc adjustable suppl. to field sensing devices
• Display: LED (A/C) green -- Function DO 1 / DO 2
• Connection type: spring CAGE CLAMP connections
• Protection functions: short-circuit protection
• Mounting mode: DIN-35 rail
• Digital outputs: 2 x digital outputs (PWM; 0.1A; 250Hz / 10-bits duty factor control resolution)
• Dimensions: H100mm x W12mm x D69.8mm
• Net Width (mm): 12mm
• Material: Polycarbonate (PC) / Polyamide (PA) 6.6 housing
• Ambient air temperature for operation: 0°C...+55°C
• Ambient air temperature for storage: -40°C...+85°C
• Humidity: 95% relative humidity (RH; non-condensing)
• Mechanical resistance: Shock resistance according to EN 60068-2-27 --15g
• Current consumption: 70mA (5Vdc; system supply)|15mA (field supply; no external load)
• Customs Tariff Number: 85371098990
• eClass code: 27-24-26-04
• GTIN code: 4044918817394
• ETIM code: EC001601
• Order code / Manufacturer SKU: 753-511
• Manufacturer product status: Commercialized
• Equivalent to: 753511
• EAN code: 4044918817394
• Compliant with standard(s): CE|EMC immunity to interference|- EN 61000-6-2|EMC emission of interference|- EN 61000-6-4|General approvals|- EAC - GZO Almaty Standart - TP TC 020/2011 - certificate EAC CoC 03083|- UL - Underwriters Laboratories Inc. (ORDINARY LOCATIONS) - UL 508 - certificate E175199|Declarations of conformity and manufacturer's declarations|- EU-Declaration of Conformity - WAGO GmbH & Co. KG|Approvals for hazardous areas|- ATEX - TUV Nord Cert GmbH - EN 60079-0 - certificate TUV14ATEX148929X (II 3 G Ex ec IIC T4 Gc)|- CCCEx - CQST/CNEx - CNCA-C23-01 - certificate 2020312310000213 (Ex ec IIC T4 Gc)|- IECEx - TUV Nord Cert GmbH - IEC 60079-0 - certificate IECEx TUN 14.0035 X (Ex ec IIC T4 Gc)|- INMETRO - TUV Rheinland do Brasil Ltda. - IEC 60079-0 - certificate TUV 12.1297 X|- UKEx - WAGO GmbH & Co. KG - EN 60079-0 - certificate UKCA_WAGO22UKEX003X_ec|- UL - Underwriters Laboratories Inc. (HAZARDOUS LOCATIONS) - UL 121201 - certificate E198726|RoHS compliant
• Location of origin: Germany
• Degree of pollution: 2
• Level 1 category: Automation components
• Level 2 category: Programmable Logic Controllers & components
• Level 3 category: I-O Units
• Product title: Pluggable pulse output slice unit module - WAGO

Commercial data

• Country of origin: DE
• Customs tariff number: 85371098990
• ECCN: NO US CLASSIFICATION
• eCl@ss 10.0: 27-24-26-04
• eCl@ss 9.0: 27-24-26-04
• ETIM 8.0: EC001601
• ETIM 9.0: EC001601
• GTIN: 4044918817394
• Packaging type: box
• Product Group: 15 (I/O System)
• PU (SPU): 1 pcs

Connection data

• Connectable conductor materials: Copper
• Connection technology: inputs/outputs: 8 x CAGE CLAMP^®
• Connection type 1: Inputs/Outputs
• Fine-stranded conductor: 0.08 … 2.5 mm² / 28 … 14 AWG
• Solid conductor: 0.08 … 2.5 mm² / 28 … 14 AWG
• Strip length: 9 … 10 mm / 0.35 … 0.39 inches

Environmental Product Compliance

• CAS-No.: 7439-92-1
• REACH Candidate List Substance: Lead
• RoHS Compliance Status: Compliant,No Exemption
• SCIP notification number (Austria): 32900ee5-9b62-4745-b84c-53ad20f4f85d
• SCIP notification number (Belgium): 60ac8389-4869-490c-9530-df5691935e40
• SCIP notification number (Bulgaria): 4365130e-7f46-4414-b82c-c6c0c1470e31
• SCIP notification number (Czech Republic): e67cfa50-4e1a-4b05-b3d0-c2cf7af03851
• SCIP notification number (Denmark): 05f1c8e2-c840-468c-9c6e-29c72c11d86e
• SCIP notification number (Finland): 3b417332-2883-48b0-849d-d061c5da3454
• SCIP notification number (France): 238b5551-9323-454a-951c-f8fb3e1112c5
• SCIP notification number (Germany): 24c73094-2b0a-42f2-82a1-566192217906
• SCIP notification number (Hungary): 356035f3-7f1d-4a9a-96ca-966455863671
• SCIP notification number (Italy): 99a78f40-614b-412a-aea0-74e5fcee8da7
• SCIP notification number (Netherlands): 09eaa260-eeda-449c-9770-f34bd6556527
• SCIP notification number (Poland): 4842cd3b-e277-4614-9c9d-ce1906eb3d5f
• SCIP notification number (Romania): 84055b9d-1b3a-48f0-9eb9-b77ecc87329f
• SCIP notification number (Sweden): 71e46d88-05b2-4a22-a254-f44ae68cb12e

Environmental requirements

• Ambient temperature (operation): 0 … +55 °C
• Ambient temperature (storage): -40 … +85 °C
• EMC emission of interference: per EN 61000-6-4
• EMC immunity to interference: per EN 61000-6-2
• Exposure to pollutants: Per IEC 60068-2-42 and IEC 60068-2-43
• Mounting position: Horizontal left, horizontal right, horizontal top, horizontal bottom, vertical top and vertical bottom
• Operating altitude: 0 … 2000 m / 0 … 6562 ft
• Permissible H₂S contaminant concentration at a relative humidity 75 %: 10ppm
• Permissible SO₂ contaminant concentration at a relative humidity 75 %: 25ppm
• Pollution degree: 2 per IEC 61131-2
• Protection type: IP20
• Relative humidity (without condensation): 95%
• Shock resistance: 15g per IEC 60068-2-27
• Vibration resistance: per IEC 60068-2-6

Material data

• Conformity marking: CE
• Housing material: Polycarbonate; polyamide 6.6
• Weight: 44.3g

Mechanical data

• Mounting type: DIN-35 rail
• Pluggable connector: Pluggable

Notes

• Note:

  Pluggable connectors and coding fingers (753 Series) are not included.

Physical data

• Depth: 69.8 mm / 2.748 inches
• Depth from upper-edge of DIN-rail: 62.6 mm / 2.465 inches
• Height: 100 mm / 3.937 inches
• Width: 12 mm / 0.472 inches

Technical data

• Current consumption (5 V system supply): 70mA
• Current consumption, field supply (module with no external load): 15mA
• Data width: 2 x 16-bit data; 2 x 8-bit control/status
• Duty cycle: 0 … 100 %
• Indicators: LED (A, C) green: Function DO 1, DO 2
• Isolation: 500 V system/field
• Load type: resistive, inductive
• Number of digital outputs: 2
• Number of incoming power jumper contacts: 3
• Number of outgoing power jumper contacts: 3
• Output current: short-circuit-protected
• Output current per channel: 0.1A
• Pulse frequency: 250 Hz
• Resolution [bit]: 10bits
• Supply voltage (field): 24 VDC (-15 … +20 %); via power jumper contacts (power supply via blade contact; transmission (field side supply voltage only) via spring contact)
• Supply voltage (system): 5 VDC; via data contacts
