Wago - 753-466

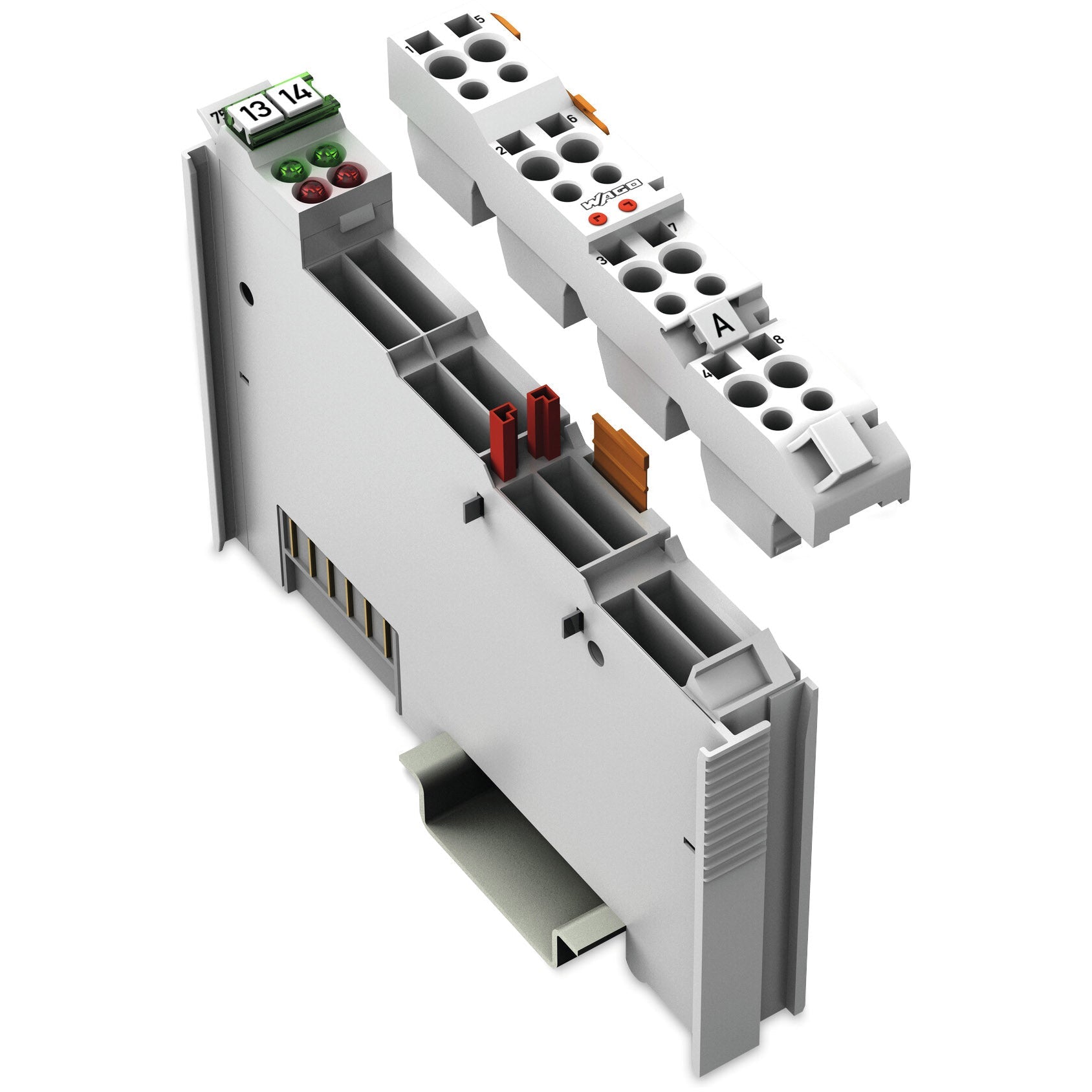

Pluggable analog input slice unit module - WAGO (753 series) - 2AI; 4-20mA; SE - 2I/O [2AI (2 x analog inputs (4-20mA; Single-ended; 12-bits / 2ms conversion; 2-wire / 3-wire))] - supply voltage 5Vdc (supplied by system) - with spring CAGE CLAMP connections - DIN-35 rail mounting (12mm width) - IP20 - rated for 0°C...+55°C ambient - equivalent to 753466

Specifications

• Primary brand: WAGO
• Functions: Pluggable analog input slice unit module
• Supply voltage (DC): 5Vdc (supplied by system)|18-31.2Vdc adjustable suppl. to field sensing devices
• Display: LED (A/C) green -- Function AI 1 / AI 2|LED (B/D) red -- Error AI 1 / AI 2
• Connection type: spring CAGE CLAMP connections
• Mounting mode: DIN-35 rail
• Analog inputs: 2 x analog inputs (4-20mA; Single-ended; 12-bits / 2ms conversion; 2-wire / 3-wire)
• Measurement accuracy: +-0.2% (measuring error)|+-0.01% (temperature error)
• Dimensions: H100mm x W12mm x D69.8mm
• Net Width (mm): 12mm
• Material: Polycarbonate (PC) / Polyamide (PA) 6.6 housing
• Ambient air temperature for operation: 0°C...+55°C
• Ambient air temperature for storage: -40°C...+85°C
• Humidity: 95% relative humidity (RH; non-condensing)
• Mechanical resistance: Shock resistance according to EN 60068-2-27 --15g
• Current consumption: 75mA (5Vdc; system supply)
• eClass code: 27-24-26-01
• GTIN code: 4045454394479
• ETIM code: EC001596
• Customs Tariff Number: 85389099990
• Order code / Manufacturer SKU: 753-466
• Manufacturer product status: Commercialized
• Equivalent to: 753466
• EAN code: 4045454394479
• Compliant with standard(s): CE|EMC immunity to interference|- EN 61000-6-2|EMC emission of interference|- EN 61000-6-4|General approvals|- EAC - GZO Almaty Standart - TP TC 020/2011 - certificate EAC CoC 03083|- KC - National Radio Research Agency - Article 58-2 / Clause 3 - certificate MSIP-REM-W43-AIM750|- UL - Underwriters Laboratories Inc. (ORDINARY LOCATIONS) - UL 508 - certificate E175199|Declarations of conformity and manufacturer's declarations|- EU-Declaration of Conformity - WAGO GmbH & Co. KG|- UK-Declaration of Conformity - WAGO GmbH & Co. KG|Approvals for hazardous areas|- ATEX - TUV Nord Cert GmbH - EN 60079-0 - certificate TUV14ATEX148929X (II 3 G Ex ec IIC T4 Gc)|- CCCEx - CQST/CNEx - CNCA-C23-01 - certificate 2020312310000213 (Ex ec IIC T4 Gc)|- IECEx - TUV Nord Cert GmbH - IEC 60079-0 - certificate IECEx TUN 14.0035 X (Ex ec IIC T4 Gc)|- INMETRO - TUV Rheinland do Brasil Ltda. - IEC 60079-0 - certificate TUV 12.1297 X|- UKEx - WAGO GmbH & Co. KG - EN 60079-0 - certificate UKCA_WAGO22UKEX003X_ec|- UL - Underwriters Laboratories Inc. (HAZARDOUS LOCATIONS) - UL 121201 - certificate E198726|RoHS compliant with exemption (6(c) / 7(a) / 7(c)-I / 7(c)-II)
• Location of origin: Germany
• Degree of pollution: 2
• Level 1 category: Automation components
• Level 2 category: Programmable Logic Controllers & components
• Level 3 category: I-O Units
• Product title: Pluggable analog input slice unit module - WAGO

Commercial data

• Country of origin: DE
• Customs tariff number: 85389099990
• ECCN: NO US CLASSIFICATION
• eCl@ss 10.0: 27-24-26-01
• eCl@ss 9.0: 27-24-26-01
• ETIM 8.0: EC001596
• ETIM 9.0: EC001596
• GTIN: 4045454394479
• Packaging type: box
• Product Group: 15 (I/O System)
• PU (SPU): 1 pcs

Connection data

• Connectable conductor materials: Copper
• Connection technology: inputs/outputs: 8 x CAGE CLAMP^®
• Connection type 1: Inputs/Outputs
• Fine-stranded conductor: 0.08 … 2.5 mm² / 28 … 14 AWG
• Solid conductor: 0.08 … 2.5 mm² / 28 … 14 AWG
• Strip length: 9 … 10 mm / 0.35 … 0.39 inches

Environmental Product Compliance

• CAS-No.: 1303-86-2|1317-36-8|7439-92-1
• REACH Candidate List Substance: Diboron trioxide|Lead|Lead monoxide
• RoHS Compliance Status: Compliant,With Exemption
• RoHS Exemption: 7(c)-I|6(c)|7(a)|7(c)-I|7(c)-II
• SCIP notification number (Austria): 553678ca-f579-46ef-b8e9-fa685f69a6c4
• SCIP notification number (Belgium): 5acfaf71-dedd-41d8-942b-6facf30b61cb
• SCIP notification number (Bulgaria): 4f6c8658-2ac3-497f-8dbe-ab5a81d70427
• SCIP notification number (Czech Republic): a61f7fda-53d3-444f-bfe4-1679334398cb
• SCIP notification number (Denmark): 25426d8c-6b61-4c42-8b48-4d6b991033ba
• SCIP notification number (Finland): 1297bd03-eed1-4176-8e06-6bb22671dfb5
• SCIP notification number (France): c04b3484-0784-4bee-8c38-00bbf7767c1f
• SCIP notification number (Germany): d45ec486-341f-47f1-8282-92603967df55
• SCIP notification number (Hungary): 4754dce0-9fd9-484b-969e-700c823d22d2
• SCIP notification number (Italy): bc69e34a-1ab7-44e0-8583-f5353c87ee0c
• SCIP notification number (Netherlands): 4baed17f-39e0-448f-94f8-f05c610a1cb9
• SCIP notification number (Poland): c02b50f9-892a-4a62-b704-72820170971d
• SCIP notification number (Romania): e889a584-d6b6-448b-b693-e79ebe1bc3c3
• SCIP notification number (Sweden): 7f2317b7-bda3-421c-9f73-c08f62dceea0

Environmental requirements

• Ambient temperature (operation): 0 … +55 °C
• Ambient temperature (storage): -40 … +85 °C
• EMC emission of interference: per EN 61000-6-4
• EMC immunity to interference: per EN 61000-6-2
• Exposure to pollutants: Per IEC 60068-2-42 and IEC 60068-2-43
• Mounting position: Horizontal left, horizontal right, horizontal top, horizontal bottom, vertical top and vertical bottom
• Operating altitude: 0 … 2000 m / 0 … 6562 ft
• Permissible H₂S contaminant concentration at a relative humidity 75 %: 10ppm
• Permissible SO₂ contaminant concentration at a relative humidity 75 %: 25ppm
• Pollution degree: 2 per IEC 61131-2
• Protection type: IP20
• Relative humidity (without condensation): 95%
• Shock resistance: 15g per IEC 60068-2-27
• Vibration resistance: per IEC 60068-2-6

Material data

• Color: light gray
• Conformity marking: CE
• Fire load: 0.91MJ
• Housing material: Polycarbonate; polyamide 6.6
• Weight: 41g

Mechanical data

• Mounting type: DIN-35 rail
• Pluggable connector: Pluggable

Notes

• Note:

  Pluggable connectors and coding fingers (753 Series) are not included.

Physical data

• Depth: 69.8 mm / 2.748 inches
• Depth from upper-edge of DIN-rail: 62.6 mm / 2.465 inches
• Height: 100 mm / 3.937 inches
• Width: 12 mm / 0.472 inches

Technical data

• Conversion time (typ.): 2ms
• Current consumption (5 V system supply): 75mA
• Data width: 2 x 16-bit data; 2 x 8-bit control/status (optional)
• Indicators: LED (A, C) green: Function AI 1, AI 2; LED (B, D) red: Error AI 1, AI 2
• Input resistance (max.): 220Ω
• Input voltage (max.): 10 V
• Isolation: 500 V system/field
• Measurement error (reference temperature): 25°C
• Measurement error, deviation (max.) from the upper-range value: 0.2%
• Number of analog inputs: 2
• Number of incoming power jumper contacts: 2
• Number of outgoing power jumper contacts: 2
• Resolution [bit]: 12bits
• Sensor connection: 2 x (2-wire, 3-wire)
• Signal characteristics: Single-ended
• Signal type: Current
• Signal type (current): 4 … 20 mADC
• Supply voltage (field): 24 VDC (-25 … +30 %); via power jumper contacts (power supply via blade contact; transmission (field side supply voltage only) via spring contact)
• Supply voltage (system): 5 VDC; via data contacts
• Temperature error (max.) of the upper-range value: 0.01%/K
• Total number of channels (module): 2
