Wago - 753-452

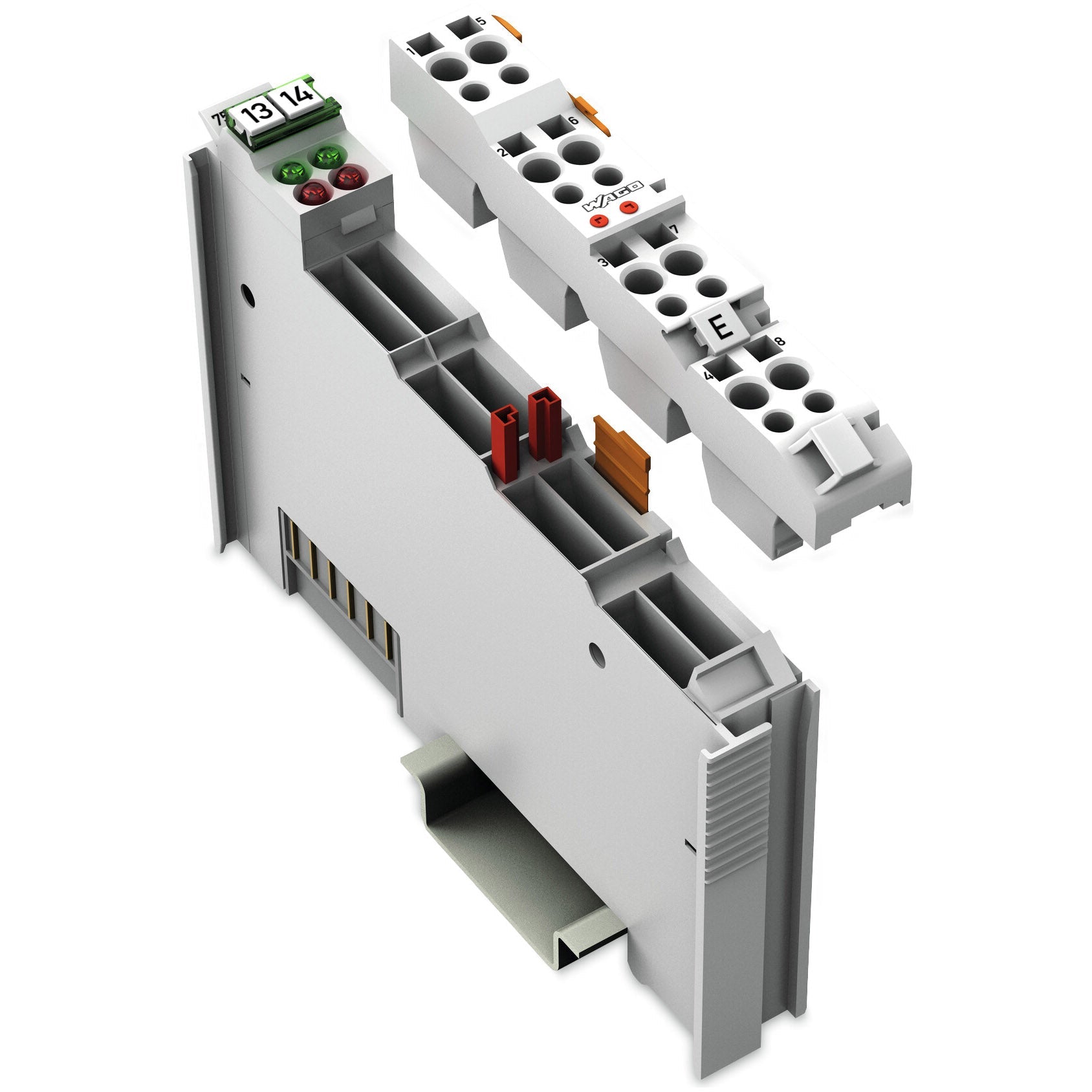

Pluggable analog input slice unit module - WAGO (753 series) - 2AI; 0-20mA; Diff - 2I/O [2AI (2 x analog inputs (0-20mA; Differential; 12-bits / 2ms conversion; 2-wire))] - supply voltage 5Vdc (supplied by system) - with spring CAGE CLAMP connections - DIN-35 rail mounting (12mm width) - IP20 - rated for 0°C...+55°C ambient - equivalent to 753452

Specifications

• Primary brand: WAGO
• Functions: Pluggable analog input slice unit module
• Supply voltage (DC): 5Vdc (supplied by system)
• Display: LED (A/C) green -- Function AI 1 / AI 2|LED (B/D) red -- Error AI 1 / AI 2
• Connection type: spring CAGE CLAMP connections
• Mounting mode: DIN-35 rail
• Analog inputs: 2 x analog inputs (0-20mA; Differential; 12-bits / 2ms conversion; 2-wire)
• Measurement accuracy: +-0.2% (measuring error)|+-0.01% (temperature error)
• Dimensions: H100mm x W12mm x D69.8mm
• Net Width (mm): 12mm
• Material: Polycarbonate (PC) / Polyamide (PA) 6.6 housing
• Ambient air temperature for operation: 0°C...+55°C
• Ambient air temperature for storage: -40°C...+85°C
• Humidity: 95% relative humidity (RH; non-condensing)
• Mechanical resistance: Vibration resistance according to EN 60068-2-6 -- 4g|Shock resistance according to EN 60068-2-27 --15g
• Current consumption: 70mA (5Vdc; system supply)
• ETIM code: EC001596
• Customs Tariff Number: 85389099990
• eClass code: 27-24-26-01
• GTIN code: 4045454484118
• Order code / Manufacturer SKU: 753-452
• Manufacturer product status: Commercialized
• Equivalent to: 753452
• EAN code: 4045454484118
• Compliant with standard(s): CE|EMC immunity to interference|- EN 61000-6-2|- marine applications|EMC emission of interference|- EN 61000-6-4|- marine applications|General approvals|- EAC - GZO Almaty Standart - TP TC 020/2011 - certificate EAC CoC 03083|- KC - National Radio Research Agency - Article 58-2 / Clause 3 - certificate MSIP-REM-W43-AIM750|- UL - Underwriters Laboratories Inc. (ORDINARY LOCATIONS) - UL 508 - certificate E175199|Declarations of conformity and manufacturer's declarations|- EU-Declaration of Conformity - WAGO GmbH & Co. KG|- UK-Declaration of Conformity - WAGO GmbH & Co. KG|Approvals for marine applications|- ABS - American Bureau of Shipping - certificate 22-2219060|- BSH - Bundesamt fuer Seeschifffahrt und Hydrographie - certificate 1104|- BV - Bureau Veritas S.A. - certificate 13453/E0 BV|- DNV - DNV GL SE - DNV-CG-0339 / Aug.2021 - certificate TAA0000194|- KR - Korean Register of Shipping - certificate KR HMB05880-AC001|- LR - Lloyds Register EMEA - certificate LR22180952TA|- PRS - Polski Rejestr Statkow - certificate TE/1101/880590/23|- RINA - RINA Germany GmbH - certificate ELE343521XG001|Approvals for hazardous areas|- ATEX - TUV Nord Cert GmbH - EN 60079-0 - certificate TUV14ATEX148929X (II 3 G Ex ec IIC T4 Gc)|- CCCEx - CQST/CNEx - CNCA-C23-01 - certificate 2020312310000213 (Ex ec IIC T4 Gc)|- IECEx - TUV Nord Cert GmbH - IEC 60079-0 - certificate IECEx TUN 14.0035 X (Ex ec IIC T4 Gc)|- INMETRO - TUV Rheinland do Brasil Ltda. - IEC 60079-0 - certificate TUV 12.1297 X|- UKEx - WAGO GmbH & Co. KG - EN 60079-0 - certificate UKCA_WAGO22UKEX003X_ec|- UL - Underwriters Laboratories Inc. (HAZARDOUS LOCATIONS) - UL 121201 - certificate E198726|RoHS compliant with exemption (6(c) / 7(a) / 7(c)-I / 7(c)-II)
• Location of origin: Germany
• Degree of pollution: 2
• Level 1 category: Automation components
• Level 2 category: Programmable Logic Controllers & components
• Level 3 category: I-O Units
• Product title: Pluggable analog input slice unit module - WAGO

Commercial data

• Country of origin: DE
• Customs tariff number: 85389099990
• ECCN: NO US CLASSIFICATION
• eCl@ss 10.0: 27-24-26-01
• eCl@ss 9.0: 27-24-26-01
• ETIM 8.0: EC001596
• ETIM 9.0: EC001596
• GTIN: 4045454484118
• Packaging type: box
• Product Group: 15 (I/O System)
• PU (SPU): 1 pcs

Connection data

• Connectable conductor materials: Copper
• Connection technology: inputs/outputs: 8 x CAGE CLAMP^®
• Connection type 1: Inputs/Outputs
• Fine-stranded conductor: 0.08 … 2.5 mm² / 28 … 14 AWG
• Solid conductor: 0.08 … 2.5 mm² / 28 … 14 AWG
• Strip length: 9 … 10 mm / 0.35 … 0.39 inches

Environmental Product Compliance

• CAS-No.: 1303-86-2|1317-36-8|25550-51-0|7439-92-1
• REACH Candidate List Substance: 4-Methyl-1,2-cyclohexanedicarboxylic anhydride|Diboron trioxide|Lead|Lead monoxide
• RoHS Compliance Status: Compliant,With Exemption
• RoHS Exemption: 7(c)-I|6(c)|7(a)|7(c)-I|7(c)-II
• SCIP notification number (Austria): c7c6cf13-85c2-4923-bcfe-5858425c69eb
• SCIP notification number (Belgium): 7d166664-0215-427a-87c3-4e0f15750419
• SCIP notification number (Bulgaria): c4185986-81de-4cc4-8c0d-589a4b0c12e1
• SCIP notification number (Czech Republic): 6fef1d82-e1ec-4cf2-968f-4a130ee3291c
• SCIP notification number (Denmark): aa77515d-d1a8-47f7-97b8-cc21a203d447
• SCIP notification number (Finland): a77a5d80-3fcf-40ae-b67f-0287bb95a849
• SCIP notification number (France): 775c44ab-a25b-4029-99c2-7ba8176758a1
• SCIP notification number (Germany): 920460cb-20db-4c81-97ee-48dcf47489ed
• SCIP notification number (Hungary): 6f9f0e0e-d62b-4147-9acb-080da3a8e1fb
• SCIP notification number (Italy): 2490dcb7-7f7b-4758-98bf-efd7c925e4e1
• SCIP notification number (Netherlands): 66cc3745-38be-476a-a982-f21881749466
• SCIP notification number (Poland): d0179e55-2912-45fa-8100-32b994dbecd3
• SCIP notification number (Romania): d6b9bf98-8f20-4a73-ace3-12a7a254d91c
• SCIP notification number (Sweden): 9a5c7929-97c9-42cf-8920-6c0cd594f8ce

Environmental requirements

• Ambient temperature (operation): 0 … +55 °C
• Ambient temperature (storage): -40 … +85 °C
• EMC emission of interference: per EN 61000-6-4, marine applications
• EMC immunity to interference: per EN 61000-6-2, marine applications
• Exposure to pollutants: Per IEC 60068-2-42 and IEC 60068-2-43
• Mounting position: Horizontal left, horizontal right, horizontal top, horizontal bottom, vertical top and vertical bottom
• Operating altitude: 0 … 2000 m / 0 … 6562 ft
• Permissible H₂S contaminant concentration at a relative humidity 75 %: 10ppm
• Permissible SO₂ contaminant concentration at a relative humidity 75 %: 25ppm
• Pollution degree: 2 per IEC 61131-2
• Protection type: IP20
• Relative humidity (without condensation): 95%
• Shock resistance: 15g per IEC 60068-2-27
• Vibration resistance: 4g per IEC 60068-2-6

Material data

• Color: light gray
• Conformity marking: CE
• Fire load: 0.882MJ
• Housing material: Polycarbonate; polyamide 6.6
• Weight: 42g

Mechanical data

• Mounting type: DIN-35 rail
• Pluggable connector: Pluggable

Notes

• Note:

  Pluggable connectors and coding fingers (753 Series) are not included.

Physical data

• Depth: 69.8 mm / 2.748 inches
• Depth from upper-edge of DIN-rail: 62.6 mm / 2.465 inches
• Height: 100 mm / 3.937 inches
• Width: 12 mm / 0.472 inches

Technical data

• Conversion time (typ.): 2ms
• Current consumption (5 V system supply): 70mA
• Data width: 2 x 16-bit data; 2 x 8-bit control/status (optional)
• Indicators: LED (A, C) green: Function AI 1, AI 2; LED (B, D) red: Error AI 1, AI 2
• Input resistance (max.): 220Ω
• Input voltage (max.): 35 V
• Isolation: 500 V system/field
• Measurement error (reference temperature): 25°C
• Measurement error, deviation (max.) from the upper-range value: 0.2%
• Number of analog inputs: 2
• Resolution [bit]: 12bits
• Sensor connection: 2 x (2-wire)
• Signal characteristics: Differential
• Signal type: Current
• Signal type (current): 0 … 20 mADC
• Supply voltage (system): 5 VDC; via data contacts
• Temperature error (max.) of the upper-range value: 0.01%/K
• Total number of channels (module): 2
