Wago - 751-9301

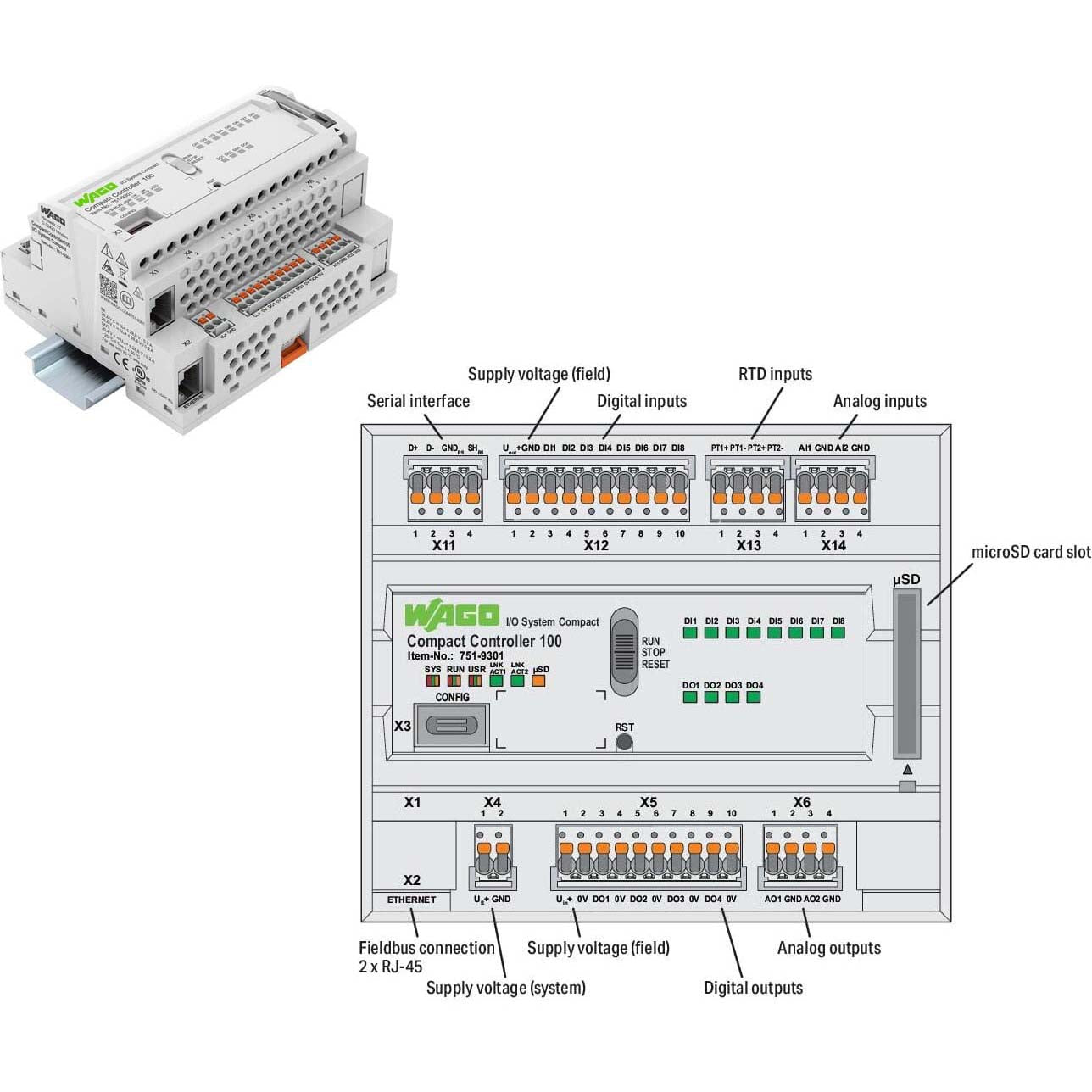

Programmable Logic Controller (PLC) CPU unit - integrated I/Os - WAGO (Compact 100 series) - ARM Cortex-A7 650MHz - with 512MB memory (RAM) + 4GB internal memory (flash) - 16I/O [8DI (8 x digital inputs (0-10Vdc transistor; type 3)) + 4DO (4 x digital outputs (0-10Vdc / 500mA)) + 2AI (2 x analog inputs (0-10Vdc; 16-bits conversion)) + 2AO (2 x analog outputs (0-10Vdc / 5kΩ / 12-bits conversion time))] - with Modbus TCP + EtherCAT + RS-485 communication capability - supply voltage 20.4-28.8Vdc via wiring (24Vdc nom.) - with 2 x RJ45 connectors (fieldbus) - DIN-35 rail mounting (108mm width) - with microSD card slot (up to 32GB) - IP20 - rated for -25°C...+60°C ambient - equivalent to 7519301

Specifications

• Primary brand: WAGO
• Functions: Programmable Logic Controller (PLC) CPU unit|MQTT|DHCP|DNS|NTP|FTP|FTPS|SNMP|HTTP|HTTPS|SSH|Configuration options|- CODESYS V3.5|- Ethernet settings|- Web-Based Management|- WAGOupload|- WAGO Solution Builder
• Design: integrated I/Os
• Supply voltage (DC): 20.4-28.8Vdc via wiring (24Vdc nom.)
• Display: LED (SYS; RUN) red/green -- Status of system|LED (USR) red/green -- User programmable status (can be used via CODESYS library)|LED (SD) orange -- Status of microSD|LED (LNK/ACT) green -- Network connection via ports 1...2|LED (DI1...8) green -- Status of inputs|LED (DO1...4) green -- Status of outputs
• Processor type: ARM Cortex-A7 650MHz
• Programming languages: Instruction List (IL)|Ladder Diagram (LD)|Function Block Diagram (FBD)|Continuous Function Chart (CFC)|Structured Text (ST)|Sequential Function Chart (SFC)|Programming environment|- CODESYS V3.5|- Node RED
• Memory capacity: 512MB memory (RAM)|4GB internal memory (flash)|128kB non-volatile memory (hardware)|128kB non-volatile memory (software)|32MB (program memory)|128MB (data memory)
• Connection type: 2 x RJ45 connectors (fieldbus)
• Mounting mode: DIN-35 rail
• Speed: 10Mbit/s|100Mbit/s
• Digital inputs: 8 x digital inputs (0-10Vdc transistor; type 3)
• Digital outputs: 4 x digital outputs (0-10Vdc / 500mA)
• Analog inputs: 2 x analog inputs (0-10Vdc; 16-bits conversion)
• Analog outputs: 2 x analog outputs (0-10Vdc / 5kΩ / 12-bits conversion time)
• Dimensions: H90mm x W108mm x D55mm
• Net Width (mm): 108mm
• Material: Polycarbonate (PC) / Polyamide (PA) housing
• Ambient air temperature for operation: -25°C...+60°C
• Ambient air temperature for storage: -40°C...+85°C
• Humidity: 95% relative humidity (RH; non-condensing)
• Mechanical resistance: Vibration resistance according to EN 60068-2-6 -- 1g|Shock resistance according to EN 60068-2-27 --15g
• ETIM code: EC000236
• Customs Tariff Number: 85371091990
• Order code / Manufacturer SKU: 751-9301
• Manufacturer product status: Commercialized
• Equivalent to: 7519301
• EAN code: 4066966192865
• Compliant with standard(s): CE|UKCA|EMC immunity to interference|- EN 61000-6-2|EMC emission of interference|- EN 61000-6-3|General approvals|- EAC - GZO Almaty Standart - TP TC 020/2011 - certificate EAC CoC 03083|- UL - Underwriters Laboratories Inc. (ORDINARY LOCATIONS) - UL 61010-2-201 - certificate E175199|Declarations of conformity and manufacturer's declarations|- EU-Declaration of Conformity - WAGO GmbH & Co. KG|- UK-Declaration of Conformity - WAGO GmbH & Co. KG|Approvals for marine applications|- DNV - DNV GL SE - DNV-CG-0339 / Aug.2021 - certificate DNV TAA00003G6|RoHS compliant
• Location of origin: Germany
• Degree of pollution: 2
• Storage type: microSD card slot (up to 32GB)
• Operating System (OS): Real-time Linux (with PREEMPT_RT patch)
• Level 1 category: Automation components
• Level 2 category: Programmable Logic Controllers & components
• Level 3 category: CPU Units
• Product title: Programmable Logic Controller (PLC) CPU unit - WAGO (Compact 100 series)
