Wago - 750-923

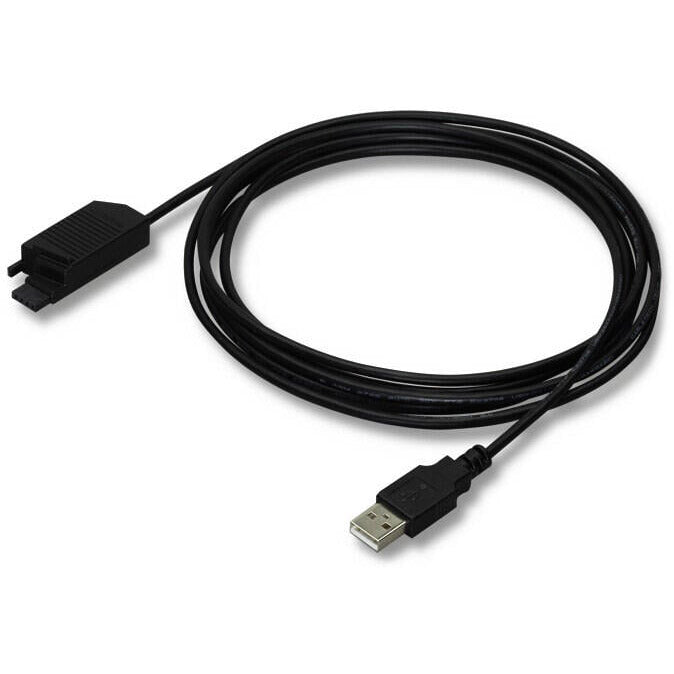

Communication cable - WAGO (750 series) - 2.5m length cable - with 4-pin male connector + USB (type A) - IP20 - equivalent to 750923

Specifications

• Primary brand: WAGO
• Functions: Communication cable
• Connection type: 4-pin male connector|USB (type A)
• Length: 2.5m
• Ambient air temperature for operation: -25°C...+70°C
• Customs Tariff Number: 85444290900
• ETIM code: EC000237
• eClass code: 27-24-22-20
• GTIN code: 4045454571641
• Order code / Manufacturer SKU: 750-923
• Manufacturer product status: Commercialized
• Equivalent to: 750923
• EAN code: 4045454571641
• Compliant with standard(s): EMC immunity to interference|- EN 61000-4-3|- EN 61000-4-6|EMC emission of interference|- EN 55022|General approvals|- EAC - GZO Almaty Standart - TP TC 020/2011 - certificate EAC CoC 03083|Declarations of conformity and manufacturer's declarations|- EU-Declaration of Conformity - WAGO GmbH & Co. KG|RoHS compliant with exemption (7(a) / 7(c)-I)|V-0 flammability rating
• Location of origin: Germany
• Level 1 category: Cabling systems
• Level 2 category: Data cables
• Level 3 category: Automation cables
• Product title: Communication cable - WAGO

Commercial data

• Country of origin: DE
• Customs tariff number: 85444290900
• ECCN: NO US CLASSIFICATION
• eCl@ss 10.0: 27-24-22-20
• eCl@ss 9.0: 27-24-22-20
• ETIM 8.0: EC000237
• ETIM 9.0: EC000237
• GTIN: 4045454571641
• Packaging type: bag
• Product Group: 15 (I/O System)
• PU (SPU): 1 pcs

Environmental Product Compliance

• CAS-No.: 1303-86-2|1317-36-8|7439-92-1
• REACH Candidate List Substance: Diboron trioxide|Lead|Lead monoxide
• RoHS Compliance Status: Compliant,With Exemption
• RoHS Exemption: 7(a)|7(c)-I
• SCIP notification number (Austria): 9e5097e6-1b4d-4c10-ac9f-949e80a1a7af
• SCIP notification number (Belgium): cd622d01-635d-4281-8238-ea02c8311748
• SCIP notification number (Bulgaria): b9155fe7-6513-4ec6-af9f-124ceda38a3a
• SCIP notification number (Czech Republic): 2109edb2-800b-4673-841c-523694dd9c60
• SCIP notification number (Denmark): 4ab2b97e-ec96-4026-9290-801b9a92b41d
• SCIP notification number (Finland): 10abd4ab-93c3-4438-8282-49139e408866
• SCIP notification number (France): a7f69d1d-271b-40e0-9355-c7a36f887a6b
• SCIP notification number (Germany): 56647f37-9c36-463b-ab76-6c9d2c249399
• SCIP notification number (Hungary): 32ada567-ec99-4dc0-9a03-a1d92434c26a
• SCIP notification number (Italy): f6c2ed03-923c-4cbf-9335-fddc27a547ba
• SCIP notification number (Netherlands): 48e4b7e2-f498-4fdf-be96-ce56252a8eeb
• SCIP notification number (Poland): 1c91e835-c1fa-476e-ba7c-33aac4838bc0
• SCIP notification number (Romania): 178d6172-4acc-4c72-895d-5680a510e3f7
• SCIP notification number (Sweden): bc04e42b-10a8-4acd-bf23-6178d63c6078

Environmental requirements

• Ambient temperature (operation): -25 … +70 °C
• EMC emission of interference: per EN 55022
• EMC immunity to interference: per EN 61000-4-3, EN 61000-4-6
• Fire load: 0.229MJ
• Flammability class per UL94: V0
• Protection type: IP20

Mechanical data

• Color: black
• Sheathed cable color: black
• Weight: 64.8g

Physical data

• Depth: 19 mm / 0.748 inches
• Height: 50 mm / 1.97 inches
• Width: 15 mm / 0.591 inches

Technical data

• Cable length: 2.5m
• Connection type: 4-pole male connector - USB A-type plug
• Pole number: 4
• Supported operating systems: Windows XP (SP3 or higher)|Windows 7|Windows 10|Windows 11
