Wago - 750-8101

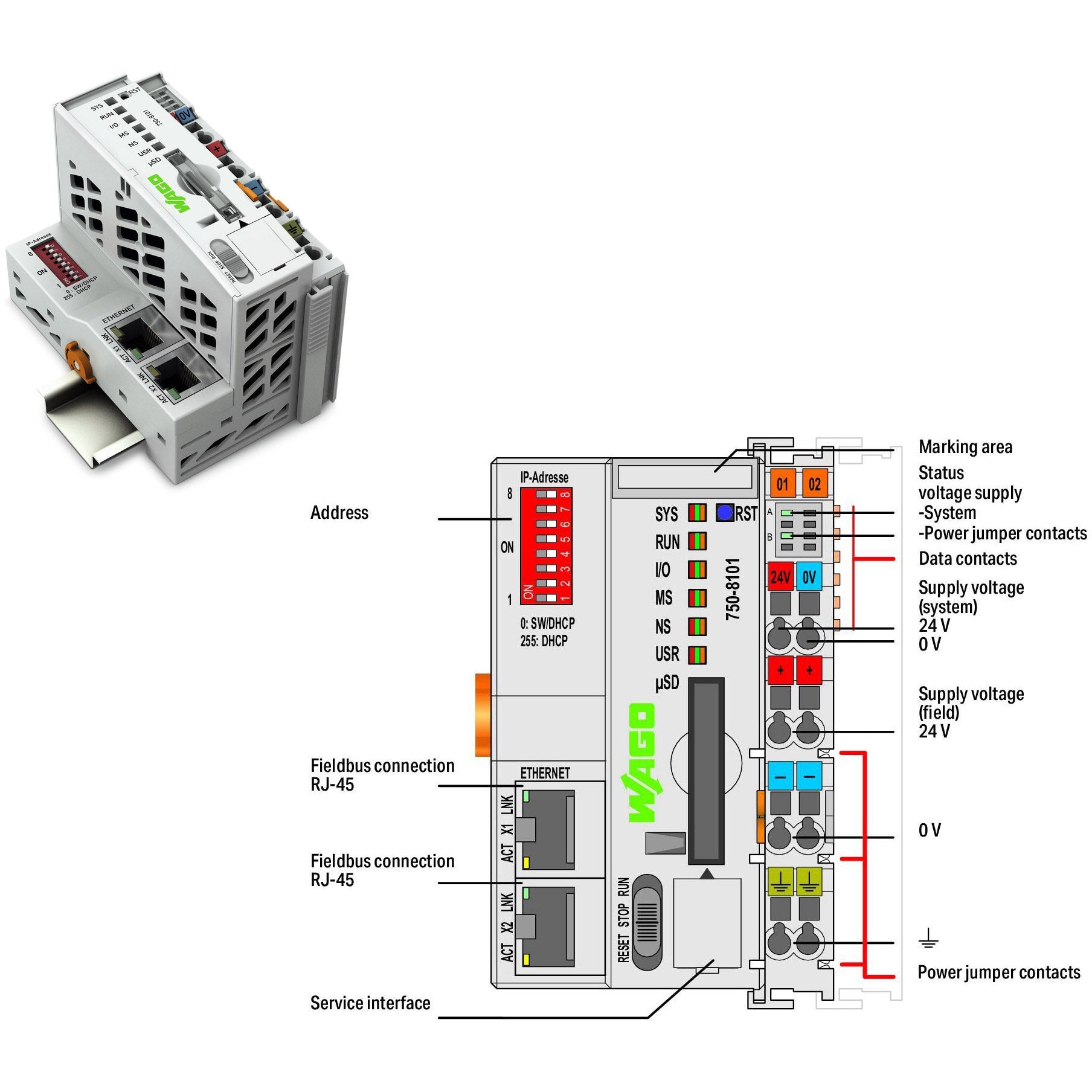

#phasing-out - Programmable Logic Controller (PLC) CPU unit - WAGO (PFC100 series) - PFC100; 2ETH - ARM Cortex-A8 600MHz - with 256MB memory (RAM) + 256MB internal memory (flash) - 250 x connections per node + 64 x field devices connection capability - with Modbus TCP + Ethernet/IP communication capability - supply voltage 18-31.2Vdc via wiring (24Vdc nom.) - with 2 x RJ45 connectors (fieldbus) - DIN-35 rail mounting (61.5mm width) - with microSD card slot (up to 32GB) - IP20 - rated for 0°C...+55°C ambient - replaces obsolete component(s) 750-882 / 750-885 - equivalent to 7508101

Specifications

• Primary brand: WAGO
• Functions: Programmable Logic Controller (PLC) CPU unit|MQTT|DHCP|DNS|NTP|FTP|FTPS|SNMP|HTTP|HTTPS|SSH|Configuration options|- e!COCKPIT|- WAGO-I/O-CHECK|- Web-Based Management
• Supply voltage (DC): 18-31.2Vdc via wiring (24Vdc nom.)|18-31.2Vdc adjustable suppl. to field sensing devices
• Display: LED (SYS; RUN; I/O; USR) red/green/orange -- Status of system / program / local data bus / status programmable by user (can be used via CODESYS library)|LED (A; B) green -- Status of system power supply / field supply
• Processor type: ARM Cortex-A8 600MHz
• Programming languages: Instruction List (IL)|Ladder Diagram (LD)|Function Block Diagram (FBD)|Continuous Function Chart (CFC)|Structured Text (ST)|Sequential Function Chart (SFC)|Programming environment|- e!COCKPIT (based on CODESYS V3)
• Memory capacity: 256MB memory (RAM)|256MB internal memory (flash)|64kB non-volatile memory (hardware)|64kB non-volatile memory (software)|12MB (distributed dynamically between program memory and data memory)
• Connection capacity: 250 x connections per node|64 x field devices
• Connection type: 2 x RJ45 connectors (fieldbus)|CAGE CLAMP 2-pin (system supply)|CAGE CLAMP 6-pin (field supply)
• Mounting mode: DIN-35 rail
• Speed: 10Mbit/s|100Mbit/s
• Dimensions: H100mm x W61.5mm x D71.9mm
• Net Width (mm): 61.5mm
• Material: Polycarbonate (PC) / Polyamide (PA) 6.6 housing
• Ambient air temperature for operation: 0°C...+55°C
• Ambient air temperature for storage: -25°C...+85°C
• Humidity: 95% relative humidity (RH; non-condensing)
• Mechanical resistance: Vibration resistance according to EN 60068-2-6 -- 4g|Shock resistance according to EN 60068-2-27 --15g
• Current consumption: 550mA (24Vdc; at nominal load)|1700mA (system supply)
• ETIM code: EC000236
• eClass code: 27-24-26-07
• GTIN code: 4055143351843
• Customs Tariff Number: 85371091990
• Order code / Manufacturer SKU: 750-8101
• Manufacturer product status: Phasing out
• Equivalent to: 7508101
• Replaces: 750-882|750-885
• Product replaced by: 750-8111
• EAN code: 4055143351843
• Compliant with standard(s): CE|EMC immunity to interference|- EN 61000-6-2|- marine applications|EMC emission of interference|- EN 61000-6-3|- marine applications|General approvals|- EAC - GZO Almaty Standart - TP TC 020/2011 - certificate EAC CoC 03083|- KC - National Radio Research Agency - Article 58-2 / Clause 3 - certificate MSIP-REM-W43-PFC750|- UL - Underwriters Laboratories Inc. (ORDINARY LOCATIONS) - UL 508 - certificate E175199|Approvals for marine applications|- ABS - American Bureau of Shipping - certificate 22-2219060|- BSH - Bundesamt fuer Seeschifffahrt und Hydrographie - certificate 1104|- BV - Bureau Veritas S.A. - Rules for class. of Steel Ships - certificate 66711/A0|- DNV - DNV GL SE - DNV-CG-0339 / Aug.2021 - certificate TAA0000194|- KR - Korean Register of Shipping - certificate KR HMB05880-AC001|- LR - Lloyds Register EMEA - certificate LR22180952TA|- PRS - Polski Rejestr Statkow - certificate TE/1101/880590/23|- RINA - RINA Germany GmbH - certificate ELE343521XG001|Approvals for hazardous areas|- ATEX - TUV Nord Cert GmbH - EN 60079-0 - certificate TUV14ATEX148929X (II 3 G Ex ec IIC T4 Gc)|- CCCEx - CQST/CNEx - CNCA-C23-01 - certificate 2020312310000213 (Ex ec IIC T4 Gc)|- IECEx - TUV Nord Cert GmbH - IEC 60079-0 - certificate IECEx TUN 14.0035 X (Ex ec IIC T4 Gc)|- INMETRO - TUV Rheinland do Brasil Ltda. - IEC 60079-0 - certificate TUV 12.1297 X|- KTL - Korea Testing Laboratory - KOSHA Article 34 / IEC60079-0 - certificate 21-KA4BO-0556X|- UKEx - WAGO GmbH & Co. KG - EN 60079-0 - certificate UKCA_WAGO22UKEX003X_ec|- UL - Underwriters Laboratories Inc. (HAZARDOUS LOCATIONS) - UL 121201 - certificate E198726|RoHS compliant with exemption (6(c) / 7(a) / 7(c)-I / 7(c)-II)
• Location of origin: Germany
• Degree of pollution: 2
• Storage type: microSD card slot (up to 32GB)
• Operating System (OS): Real-time Linux 3.18 (with PREEMPT_RT patch)
• Level 1 category: Automation components
• Level 2 category: Programmable Logic Controllers & components
• Level 3 category: CPU Units
• Product title: Programmable Logic Controller (PLC) CPU unit - WAGO (PFC100 series)

Commercial data

• Country of origin: DE
• Customs tariff number: 85371091990
• ECCN: NO US CLASSIFICATION
• eCl@ss 10.0: 27-24-26-07
• eCl@ss 9.0: 27-24-26-07
• ETIM 8.0: EC000236
• ETIM 9.0: EC000236
• GTIN: 4055143351843
• Packaging type: box
• PU (SPU): 1 pcs

Connection data

• Connectable conductor materials: Copper
• Connection technology: communication/fieldbus: Modbus (TCP, UDP): 2 x RJ-45
• Connection technology: device configuration: 1 x Male connector; 4-pole
• Connection technology: field supply: 6 x CAGE CLAMP^®
• Connection technology: system supply: 2 x CAGE CLAMP^®
• Connection type 1: System/field supply
• Fine-stranded conductor: 0.08 … 2.5 mm² / 28 … 14 AWG
• Solid conductor: 0.08 … 2.5 mm² / 28 … 14 AWG
• Strip length: 8 … 9 mm / 0.31 … 0.35 inches

Environmental Product Compliance

• CAS-No.: 1303-86-2|1317-36-8|7439-92-1|79-94-7
• REACH Candidate List Substance: 2,2',6,6'-tetrabromo-4,4'-isopropylidenediphenol|Diboron trioxide|Lead|Lead monoxide
• RoHS Compliance Status: Compliant,With Exemption
• RoHS Exemption: 6(c)|7(a)|7(c)-I|7(c)-II
• SCIP notification number (Austria): 73ddbd03-dd6c-4aa9-98b1-91659a2a4123
• SCIP notification number (Belgium): 9f93eb99-86c0-45e6-9d8c-107c896ea67b
• SCIP notification number (Bulgaria): ed5644b3-168f-4d21-a666-33394f1e4825
• SCIP notification number (Czech Republic): 2b96046f-d3fe-42bc-96b1-9781cfbdfa09
• SCIP notification number (Denmark): a3cb854a-f126-4c53-9568-71f074ec67cc
• SCIP notification number (Finland): 5b17ec1e-81a9-4e0c-991f-b083b9517a1b
• SCIP notification number (France): 6effe0e5-ea59-4e89-9a08-6d2fdb16b3bd
• SCIP notification number (Germany): 5e3b6efc-ca82-4d2e-ad28-ecba7927bbc0
• SCIP notification number (Hungary): 86697abf-f310-457b-b943-e3ed23aa9f07
• SCIP notification number (Italy): ac4a6f65-0c96-4fd6-9622-fbba98084816
• SCIP notification number (Netherlands): 5c9538f2-0f40-4381-a4b0-469e26240e6c
• SCIP notification number (Poland): c7d53536-dc13-48d6-84f7-7915c375948e
• SCIP notification number (Romania): 6e518269-afc5-4d67-af49-436fa7fe4948
• SCIP notification number (Sweden): 983fac47-dd4e-4e17-bdf7-5beb36652c8c

Environmental requirements

• Ambient temperature (operation): 0 … +55 °C
• Ambient temperature (storage): -25 … +85 °C
• EMC emission of interference: per EN 61000-6-3, marine applications
• EMC immunity to interference: per EN 61000-6-2, marine applications
• Exposure to pollutants: Per IEC 60068-2-42 and IEC 60068-2-43
• Fire load: 2.466MJ
• Mounting position: Horizontal left, horizontal right, horizontal top, horizontal bottom, vertical top and vertical bottom
• Mounting type: DIN-35 rail
• Operating altitude: without temperature derating: 0 … 2000 m; with temperature derating: 2000 … 5000 m (0.5 K/100 m); 5000 m (max.)
• Permissible H₂S contaminant concentration at a relative humidity 75 %: 10ppm
• Permissible SO₂ contaminant concentration at a relative humidity 75 %: 25ppm
• Pollution degree: 2 per IEC 61131-2
• Protection type: IP20
• Relative humidity (without condensation): 95%
• Shock resistance: 15g per IEC 60068-2-27
• Vibration resistance: 4g per IEC 60068-2-6

Mechanical data

• Color: light gray
• Conformity marking: CE
• Housing material: Polycarbonate; polyamide 6.6
• Weight: 127.9g

Physical data

• Depth: 71.9 mm / 2.831 inches
• Depth from upper-edge of DIN-rail: 64.7 mm / 2.547 inches
• Height: 100 mm / 3.937 inches
• Width: 61.5 mm / 2.421 inches

Technical data

• Communications: Modbus (TCP, UDP)|ETHERNET|EtherNet/IP^TM Adapter (slave), library for e!RUNTIME|MQTT
• Configuration options: e!COCKPIT|WAGO-I/O-CHECK|Web-Based Management
• CPU: Cortex A8; 600 MHz
• Current carrying capacity (power jumper contacts): 10A
• Data memory: 12 MB Program and data memory (dynamically distributed)
• ETHERNET protocols: DHCP|DNS|NTP|FTP|FTPS|SNMP|HTTP|HTTPS|SSH
• Indicators: LED (SYS, RUN, I/O, USR) red/green/orange: Status of system, program, local data bus, status programmable by user (can be used via CODESYS library); LED (A, B) green: Status of system power supply, field supply
• Input and output process image (internal) max.: 1000 words/1000 words
• Input and output process image (Modbus®) max.: CODESYS V3: 32000 words/32000 words
• Input current (typ.) at nominal load (24 V): 550mA
• Internal memory (flash): 256MB
• Isolation: 500 V system/field
• Main memory (RAM): 256MB
• Memory card slot: Push-push mechanism; Cover lid (sealable)
• Non-volatile hardware memory: 64Kbytes
• Non-volatile software memory: 64.Kbytes
• Number of modules per node (max.): 250
• Number of modules without a bus extension (max.): 64
• Number of outgoing power jumper contacts: 3
• Operating system: Real-time Linux 3.18 (with PREEMPT_RT patch)
• Program memory: 12 MB (Program and data memory (dynamically distributed))
• Programming environment: e!COCKPIT (based on CODESYS V3)
• Programming languages per IEC 61131-3: Instruction List (IL)|Ladder Diagram (LD)|Function Block Diagram (FBD)|Continuous Function Chart (CFC)|Structured Text (ST)|Sequential Function Chart (SFC)
• Supply voltage (field): 24 VDC (-25 … +30 %); via power jumper contacts
• Supply voltage (system): 24 VDC (-25 … +30 %); via pluggable connector (CAGE CLAMP^® connection)
• Total current (system supply): 1,700mA
• Transmission medium (communication/fieldbus): ETHERNET: Twisted Pair S-UTP; 100 Ω; Cat. 5; 100 m maximum cable length
• Transmission rate: ETHERNET: 10/100 Mbit/s
• Type of memory card: microSD up to 32 GB (all guaranteed properties only valid with WAGO's memory card)
• Visualization: Web-Visu
