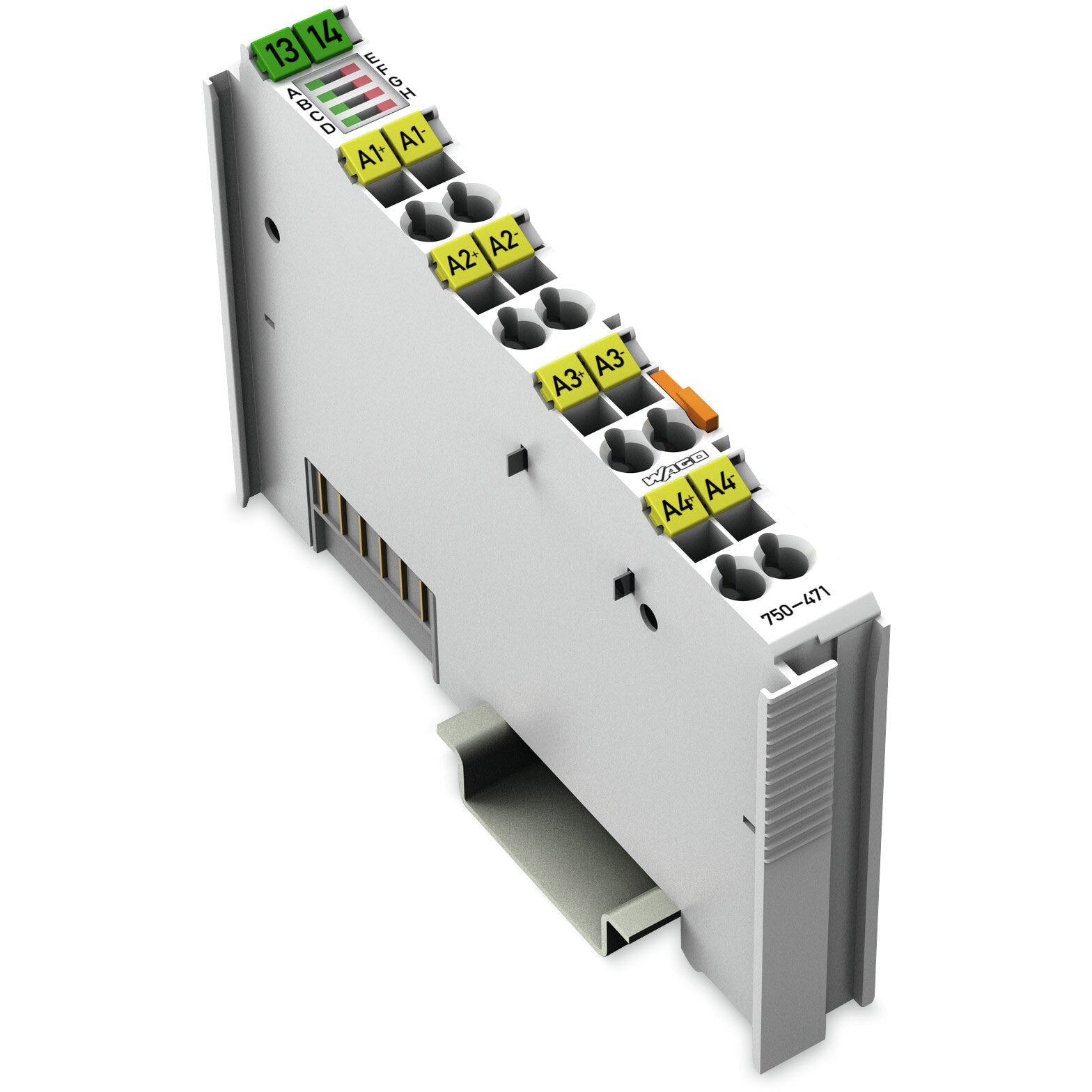

Wago - 750-471

Standard analog input slice unit module - WAGO (750 series) - 4AI; U/I; Diff; Galv - 4I/O [4AI (4 x analog inputs (0-20mA / 4-20mA / 3.6-21mA / -20...+20mA / 0-10Vdc / -10...+10Vdc / -200...+200mVdc; Differential; Isolated; 16-bits / 5ms conversion))] - supply voltage 5Vdc (supplied by system) - with spring CAGE CLAMP connections - DIN-35 rail mounting (12mm width) - IP20 - rated for 0°C...+55°C ambient - equivalent to 750471

Specifications

• Primary brand: WAGO
• Functions: Standard analog input slice unit module|Configuration options|- WAGO-I/O-CHECK|- CODESYS Library|- e!COCKPIT
• Supply voltage (DC): 5Vdc (supplied by system)|24Vdc fixed suppl. to field sensing devices
• Display: LED (A-D) green -- Function AI 1...AI 4|LED (E-H) red -- Error AI 1...AI 4
• Connection type: spring CAGE CLAMP connections
• Protection functions: wire-break protection
• Mounting mode: DIN-35 rail
• Analog inputs: 4 x analog inputs (0-20mA / 4-20mA / 3.6-21mA / -20...+20mA / 0-10Vdc / -10...+10Vdc / -200...+200mVdc; Differential; Isolated; 16-bits / 5ms conversion)
• Measurement accuracy: +-0.1% (measuring error)|+-0.01% (temperature error)
• Dimensions: H100mm x W12mm x D69.8mm
• Net Width (mm): 12mm
• Material: Polycarbonate (PC) / Polyamide (PA) 6.6 housing
• Ambient air temperature for operation: 0°C...+55°C
• Ambient air temperature for storage: -40°C...+85°C
• Humidity: 95% relative humidity (RH; non-condensing)
• Mechanical resistance: Vibration resistance according to EN 60068-2-6 -- 4g|Shock resistance according to EN 60068-2-27 --15g
• Current consumption: 100mA (5Vdc; system supply)
• GTIN code: 4055143764520
• eClass code: 27-24-26-01
• Customs Tariff Number: 85389099990
• ETIM code: EC001596
• Order code / Manufacturer SKU: 750-471
• Manufacturer product status: Commercialized
• Equivalent to: 750471
• EAN code: 4055143764520
• Compliant with standard(s): CE|EMC immunity to interference|- EN 61000-6-2|- marine applications|EMC emission of interference|- EN 61000-6-4|- marine applications|General approvals|- EAC - GZO Almaty Standart - TP TC 020/2011 - certificate EAC CoC 03083|- KC - National Radio Research Agency - Article 58-2 / Clause 3 - certificate MSIP-REM-W43-AIM750|- UL - Underwriters Laboratories Inc. (ORDINARY LOCATIONS) - certificate E175199|Declarations of conformity and manufacturer's declarations|- EU-Declaration of Conformity - WAGO GmbH & Co. KG|- UK-Declaration of Conformity - WAGO GmbH & Co. KG|Approvals for marine applications|- ABS - American Bureau of Shipping - certificate 22-2219060|- BSH - Bundesamt fuer Seeschifffahrt und Hydrographie - certificate 1104|- BV - Bureau Veritas S.A. - Rules for class. of Steel Ships - certificate 66711/A0|- DNV - DNV GL SE - DNV-CG-0339 / Aug.2021 - certificate TAA0000194|- KR - Korean Register of Shipping - certificate KR HMB05880-AC001|- LR - Lloyds Register EMEA - certificate LR22180952TA|- PRS - Polski Rejestr Statkow - certificate TE/1101/880590/23|- RINA - RINA Germany GmbH - certificate ELE343521XG001|Approvals for hazardous areas|- ATEX - TUV Nord Cert GmbH - EN 60079-0 - certificate TUV14ATEX148929X (II 3 G Ex ec IIC T4 Gc)|- CCCEx - CQST/CNEx - CNCA-C23-01 - certificate 2020312310000213 (Ex ec IIC T4 Gc)|- IECEx - TUV Nord Cert GmbH - IEC 60079-0 - certificate IECEx TUN 14.0035 X (Ex ec IIC T4 Gc)|- INMETRO - TUV Rheinland do Brasil Ltda. - IEC 60079-0 - certificate TUV 12.1297 X|- UKEx - WAGO GmbH & Co. KG - EN 60079-0 - certificate UKCA_WAGO22UKEX003X_ec|- UL - Underwriters Laboratories Inc. (HAZARDOUS LOCATIONS) - UL 121201 - certificate E198726|RoHS compliant with exemption (6(c) / 7(a) / 7(c)-I / 7(c)-II)
• Location of origin: Germany
• Degree of pollution: 2
• Level 1 category: Automation components
• Level 2 category: Programmable Logic Controllers & components
• Level 3 category: I-O Units
• Product title: Standard analog input slice unit module - WAGO

Commercial data

• Country of origin: DE
• Customs tariff number: 85389099990
• ECCN: NO US CLASSIFICATION
• eCl@ss 10.0: 27-24-26-01
• eCl@ss 9.0: 27-24-26-01
• ETIM 8.0: EC001596
• ETIM 9.0: EC001596
• GTIN: 4055143764520
• Packaging type: box
• PU (SPU): 1 pcs

Connection data

• Connectable conductor materials: Copper
• Connection technology: inputs/outputs: 8 x CAGE CLAMP^®
• Connection type 1: Inputs/Outputs
• Fine-stranded conductor: 0.08 … 2.5 mm² / 28 … 14 AWG
• Solid conductor: 0.08 … 2.5 mm² / 28 … 14 AWG
• Strip length: 8 … 9 mm / 0.31 … 0.35 inches

Environmental Product Compliance

• CAS-No.: 1303-86-2|1317-36-8|7439-92-1|80-43-3
• REACH Candidate List Substance: Diboron trioxide|Lead|Lead monoxide|Peroxide, bis(1-methyl-1-phenylethyl)
• RoHS Compliance Status: Compliant,With Exemption
• RoHS Exemption: 6(c)|7(a)|7(c)-I|7(c)-II
• SCIP notification number (Austria): 2259e314-2ba4-4c8f-a6fb-5f9cf4d694d9
• SCIP notification number (Belgium): 85d1aa7d-11d3-4325-a5a1-b9a6698d2053
• SCIP notification number (Bulgaria): af6b4188-d4ed-42c6-a21b-97eb53f7c56b
• SCIP notification number (Czech Republic): 483e134c-72a0-4a87-a850-3b59e3c5d03c
• SCIP notification number (Denmark): 119fa273-16c7-4739-8c13-31d8e88e7bc9
• SCIP notification number (Finland): 0edecb36-0917-43f1-9d0d-0a7886e5eb55
• SCIP notification number (France): c2de7786-06da-42d1-8d5a-862f0bc75550
• SCIP notification number (Germany): ef708d8c-2019-47c5-a857-5aa0a272aa7a
• SCIP notification number (Hungary): b1272e4b-085d-4a90-b5fe-ebb0dac3dcd9
• SCIP notification number (Italy): 593d824e-d8f3-4809-b314-4ad4b4d0b79a
• SCIP notification number (Netherlands): 54ec2df3-0b32-4230-8860-811f2b8ce8a5
• SCIP notification number (Poland): 917e9b69-e67b-4b60-b6db-e1a8946a3b04
• SCIP notification number (Romania): 83d8a49b-0480-46fb-8ba6-a15059c005a4
• SCIP notification number (Sweden): e376c637-82f8-41d1-853e-d725f00d2bb3

Environmental requirements

• Ambient temperature (operation): 0 … +55 °C
• Ambient temperature (storage): -40 … +85 °C
• EMC emission of interference: per EN 61000-6-4, marine applications
• EMC immunity to interference: per EN 61000-6-2, marine applications
• Exposure to pollutants: Per IEC 60068-2-42 and IEC 60068-2-43
• Mounting position: Horizontal left, horizontal right, horizontal top, horizontal bottom, vertical top and vertical bottom
• Operating altitude: 0 … 2000 m / 0 … 6562 ft
• Permissible H₂S contaminant concentration at a relative humidity 75 %: 10ppm
• Permissible SO₂ contaminant concentration at a relative humidity 75 %: 25ppm
• Pollution degree: 2 per IEC 61131-2
• Protection type: IP20
• Relative humidity (without condensation): 95%
• Shock resistance: 15g per IEC 60068-2-27
• Vibration resistance: 4g per IEC 60068-2-6

Material data

• Conformity marking: CE
• Fire load: 0.967MJ
• Housing material: Polycarbonate; polyamide 6.6
• Weight: 50.5g

Mechanical data

• Mounting type: DIN-35 rail

Physical data

• Depth: 69.8 mm / 2.748 inches
• Depth from upper-edge of DIN-rail: 62.6 mm / 2.465 inches
• Height: 100 mm / 3.937 inches
• Width: 12 mm / 0.472 inches

Technical data

• Configuration options: WAGO-I/O-CHECK|CODESYS Library|e!COCKPIT
• Conversion time: Exception: The ±200 mV measurement range has a conversion time of 10 s and is therefore only suitable for slow systems.
• Conversion time (typ.): 10ms
• Current carrying capacity (power jumper contacts): 10A
• Current consumption (5 V system supply): 100mA
• Data width: 4 x 16-bit data; 4 x 8-bit control/status (optional)
• Diagnostics: Measurement range overflow/underflow; wire break in operating mode 4 … 20 mA and 3.6 … 21 mA NE43; overload in operating mode 0 … 20 mA, 4 … 20 mA, ±20 mA, 3.6 … 21 mA NE43
• Indicators: LED (A-D) green: Function AI 1 … AI 4; LED (E-H) red: Error AI 1 … AI 4
• Input filter: 50 Hz; 60 Hz; filter off
• Input resistance (max.): 120Ω
• Input voltage (max.): 31.2 VDC
• Internal resistance: 100kΩ
• Isolation: Functional insulation: 2000 VDC system/channel; 2000 VDC channel/channel
• Measurement error (reference temperature): 25°C
• Measurement error, deviation (max.) from the upper-range value: 0.1%
• Measurement error, deviation (max.) of the upper-range value (2): 0.3%
• Measurement error, reference temperature (2): 25°C
• Number of analog inputs: 4
• Number of incoming power jumper contacts: 2
• Number of outgoing power jumper contacts: 2
• Reference for measurement error: Input ranges
• Reference for measurement error (2): ±200 mV
• Resolution [bit]: 16bits
• Sensor connection: 4 x (2-wire)
• Signal characteristics: Differential
• Signal type: Voltage|Current
• Signal type (configurable): yes
• Signal type (current): 0 … 20 mADC; 4 … 20 mADC; 3.6 … 21 mADC; -20 … +20 mADC
• Signal type (voltage): 0 … 10 VDC; -10 … +10 VDC; -0.2 … +0.2 VDC
• Supply voltage (field): 24 VDC; via power jumper contacts (power supply via blade contact; transmission (field side supply voltage only) via spring contact)
• Supply voltage (system): 5 VDC; via data contacts
• Temperature error (max.) of the upper-range value: 0.01%/K
• Total number of channels (module): 4
