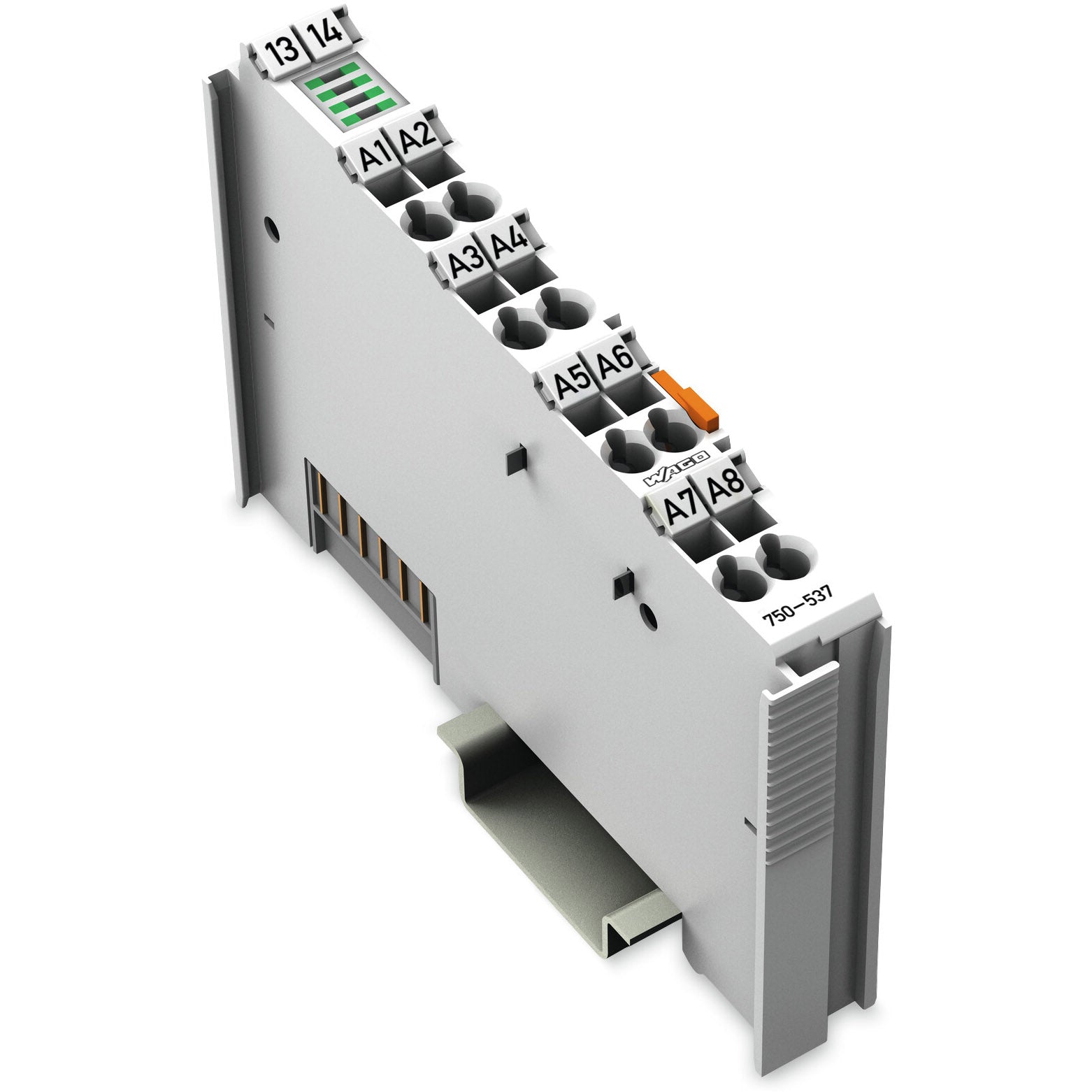

Standard DC digital output slice unit module with diagnostics - WAGO (750 series) - 8DO; 24Vdc; 0.5A; Diagn - 8I/O [8DO (8 x digital outputs (24Vdc / 500mA; high-side switching; 1-wire))] - supply voltage 5Vdc (supplied by system) - with spring CAGE CLAMP connections - DIN-35 rail mounting (12mm width) - IP20 - rated for 0°C...+55°C ambient - equivalent to 750537

Specifications

• Primary brand: WAGO
• Functions: Standard DC digital output slice unit module
• Design: diagnostics
• Supply voltage (DC): 5Vdc (supplied by system)|18-31.2Vdc adjustable suppl. to field sensing devices
• Frequency: 1kHz switching frequency
• Display: LED (A-H) green/red -- Status/diagnostics DO 1...DO 8
• Connection type: spring CAGE CLAMP connections
• Protection functions: short-circuit protection|wire-break protection
• Mounting mode: DIN-35 rail
• Digital outputs: 8 x digital outputs (24Vdc / 500mA; high-side switching; 1-wire)
• Dimensions: H100mm x W12mm x D67.8mm
• Net Width (mm): 12mm
• Material: Polycarbonate (PC) / Polyamide (PA) 6.6 housing
• Ambient air temperature for operation: 0°C...+55°C
• Ambient air temperature for storage: -40°C...+85°C
• Humidity: 95% relative humidity (RH; non-condensing)
• Mechanical resistance: Vibration resistance according to EN 60068-2-6 -- 4g|Shock resistance according to EN 60068-2-27 --15g
• Current consumption: 50mA (5Vdc; system supply)|16mA (field supply; no external load)
• Customs Tariff Number: 85371098990
• eClass code: 27-24-26-04
• ETIM code: EC001599
• Order code / Manufacturer SKU: 750-537
• Manufacturer product status: Commercialized
• Equivalent to: 750537
• EAN code: 4045454431853
• Compliant with standard(s): CE|EMC immunity to interference|- EN 61000-6-2|- marine applications|EMC emission of interference|- EN 61000-6-3|- marine applications|General approvals|- EAC - GZO Almaty Standart - TP TC 020/2011 - certificate EAC CoC 03083|- KC - National Radio Research Agency - Article 58-2 / Clause 3 - certificate MSIP-REM-W43-DOM750|- UL - Underwriters Laboratories Inc. (ORDINARY LOCATIONS) - UL 508 - certificate E175199|Declarations of conformity and manufacturer's declarations|- EU-Declaration of Conformity - WAGO GmbH & Co. KG|- UK-Declaration of Conformity - WAGO GmbH & Co. KG|Approvals for marine applications|- ABS - American Bureau of Shipping - certificate 22-2219060|- BSH - Bundesamt fuer Seeschifffahrt und Hydrographie - certificate 1104|- BV - Bureau Veritas S.A. - certificate 13453/E0 BV|- DNV - DNV GL SE - DNV-CG-0339 / Aug.2021 - certificate TAA0000194|- KR - Korean Register of Shipping - certificate KR HMB05880-AC001|- LR - Lloyds Register EMEA - certificate LR22180952TA|- PRS - Polski Rejestr Statkow - certificate TE/1101/880590/23|- RINA - RINA Germany GmbH - certificate ELE343521XG001|Approvals for hazardous areas|- ATEX - TUV Nord Cert GmbH - EN 60079-0 - certificate TUV14ATEX148929X (II 3 G Ex ec IIC T4 Gc)|- CCCEx - CQST/CNEx - CNCA-C23-01 - certificate 2020312310000213 (Ex ec IIC T4 Gc)|- IECEx - TUV Nord Cert GmbH - IEC 60079-0 - certificate IECEx TUN 14.0035 X (Ex ec IIC T4 Gc)|- INMETRO - TUV Rheinland do Brasil Ltda. - IEC 60079-0 - certificate TUV 12.1297 X|- UKEx - WAGO GmbH & Co. KG - EN 60079-0 - certificate UKCA_WAGO22UKEX003X_ec|- UL - Underwriters Laboratories Inc. (HAZARDOUS LOCATIONS) - UL 121201 - certificate E198726|RoHS compliant with exemption (7(a) / 7(c)-I / 7(c)-II)
• Location of origin: Germany
• Degree of pollution: 2
• Level 1 category: Automation components
• Level 2 category: Programmable Logic Controllers & components
• Level 3 category: I-O Units
• Product title: Standard DC digital output slice unit module - diagnostics - WAGO

Commercial data

• Country of origin: DE
• Customs tariff number: 85371098990
• ECCN: NO US CLASSIFICATION
• eCl@ss 10.0: 27-24-26-04
• eCl@ss 9.0: 27-24-26-04
• ETIM 8.0: EC001599
• ETIM 9.0: EC001599
• Packaging type: Box
• Product Group: 15 (I/O System)
• PU (SPU): 1 pcs

Connection data

• Connectable conductor materials: Copper
• Connection technology: inputs/outputs: 8 x CAGE CLAMP^® (outputs)
• Connection type 1: Output
• Fine-stranded conductor: 0.08 … 2.5 mm² / 28 … 14 AWG
• Solid conductor: 0.08 … 2.5 mm² / 28 … 14 AWG
• Strip length: 8 … 9 mm / 0.31 … 0.35 inches

Environmental Product Compliance

• CAS-No.: 1303-86-2|1317-36-8|7439-92-1|79-94-7
• REACH Candidate List Substance: 2,2',6,6'-tetrabromo-4,4'-isopropylidenediphenol|Diboron trioxide|Lead|Lead monoxide
• RoHS Compliance Status: Compliant,With Exemption
• RoHS Exemption: 7(a)|7(c)-I|7(c)-II
• SCIP notification number (Austria): d834afb7-4c12-4ada-b133-53c1375d875a
• SCIP notification number (Belgium): 566e7cb8-0926-4fa4-b498-597df1a16485
• SCIP notification number (Bulgaria): 31f4d776-9d2b-42e8-9b4b-03b63e461e9b
• SCIP notification number (Czech Republic): 726e07fb-9427-4c3a-a398-2dd4251055fa
• SCIP notification number (Denmark): f96bde6f-4f34-40e4-96a5-af4712e07b40
• SCIP notification number (Finland): a1cd427a-9ea5-4ba2-9907-a86e42c3bd84
• SCIP notification number (France): 04c696c1-318d-4dd0-b16f-648387817d61
• SCIP notification number (Germany): 1673c9e4-4bd4-46c2-a6bf-ac3177188f73
• SCIP notification number (Hungary): 351f923e-222e-4085-bc95-7b2a8cf88de1
• SCIP notification number (Italy): 4b06289a-2b37-41bc-ac44-a5f66fb244fc
• SCIP notification number (Netherlands): e0a50652-6058-414c-97d6-cf8870ffb40d
• SCIP notification number (Poland): d1e013b5-635c-4b55-803d-8751702a6bcf
• SCIP notification number (Romania): a4fe1afd-b260-4143-bff5-87cdb3b60b8b
• SCIP notification number (Sweden): 7b0a81b6-9e95-4fb0-ba70-dd884a81d4f4

Environmental requirements

• Ambient temperature (operation): 0 … +55 °C
• Ambient temperature (storage): -40 … +85 °C
• EMC emission of interference: per EN 61000-6-3, marine applications
• EMC immunity to interference: per EN 61000-6-2, marine applications
• Exposure to pollutants: per IEC 60068-2-42 and IEC 60068-2-43
• Mounting position: Horizontal left, horizontal right, horizontal top, horizontal bottom, vertical top and vertical bottom
• Operating altitude: 0 … 2000 m / 0 … 6562 ft
• Permissible H₂S contaminant concentration at a relative humidity 75 %: 10ppm
• Permissible SO₂ contaminant concentration at a relative humidity 75 %: 25ppm
• Pollution degree: 2 per IEC 61131-2
• Protection type: IP20
• Relative humidity (without condensation): 95%
• Shock resistance: 15g per IEC 60068-2-27
• Vibration resistance: 4g per IEC 60068-2-6

Material data

• Color: light gray
• Conformity marking: CE
• Fire load: 0.967MJ
• Housing material: Polycarbonate; polyamide 6.6
• Weight: 51g

Mechanical data

• Mounting type: DIN-35 rail
• Pluggable connector: fixed

Physical data

• Depth: 67.8 mm / 2.669 inches
• Depth from upper-edge of DIN-rail: 60.6 mm / 2.386 inches
• Height: 100 mm / 3.937 inches
• Width: 12 mm / 0.472 inches

Technical data

• Actuator connection: 8 x (1-wire)
• Current carrying capacity (power jumper contacts): 10A
• Current consumption (5 V system supply): 50mA
• Current consumption, field supply (module with no external load): 16mA
• Diagnostics: Open circuit, short circuit, overload
• Indicators: LED (A-H) green/red: Status/diagnostics DO 1 … DO 8
• Inductive load switch-off energy dissipation (max.): 0.1J
• Input data width (internal) max.: 8bits
• Isolation: 500 V system/field
• Load type: Resistive, inductive, lamp load
• Number of digital outputs: 8
• Number of incoming power jumper contacts: 2
• Number of outgoing power jumper contacts: 2
• Open-circuit detection: 0.1mA
• Output characteristic: high-side switching
• Output current: short-circuit-protected
• Output current per channel: 0.5A
• Output data width (internal) max.: 8bits
• Reverse voltage protection: Yes
• Short-circuit limitation (typ.) PWM: 12A
• Signal type: Digital
• Signal type (voltage): 24 VDC
• Supply voltage (field): 24 VDC (-25 … +30 %); via power jumper contacts (power supply via blade contact; transmission (field side supply voltage only) via spring contact)
• Supply voltage (system): 5 VDC; via data contacts
• Switching frequency (max.): 1 kHz
• Total number of channels (module): 8
