Wago - 750-653

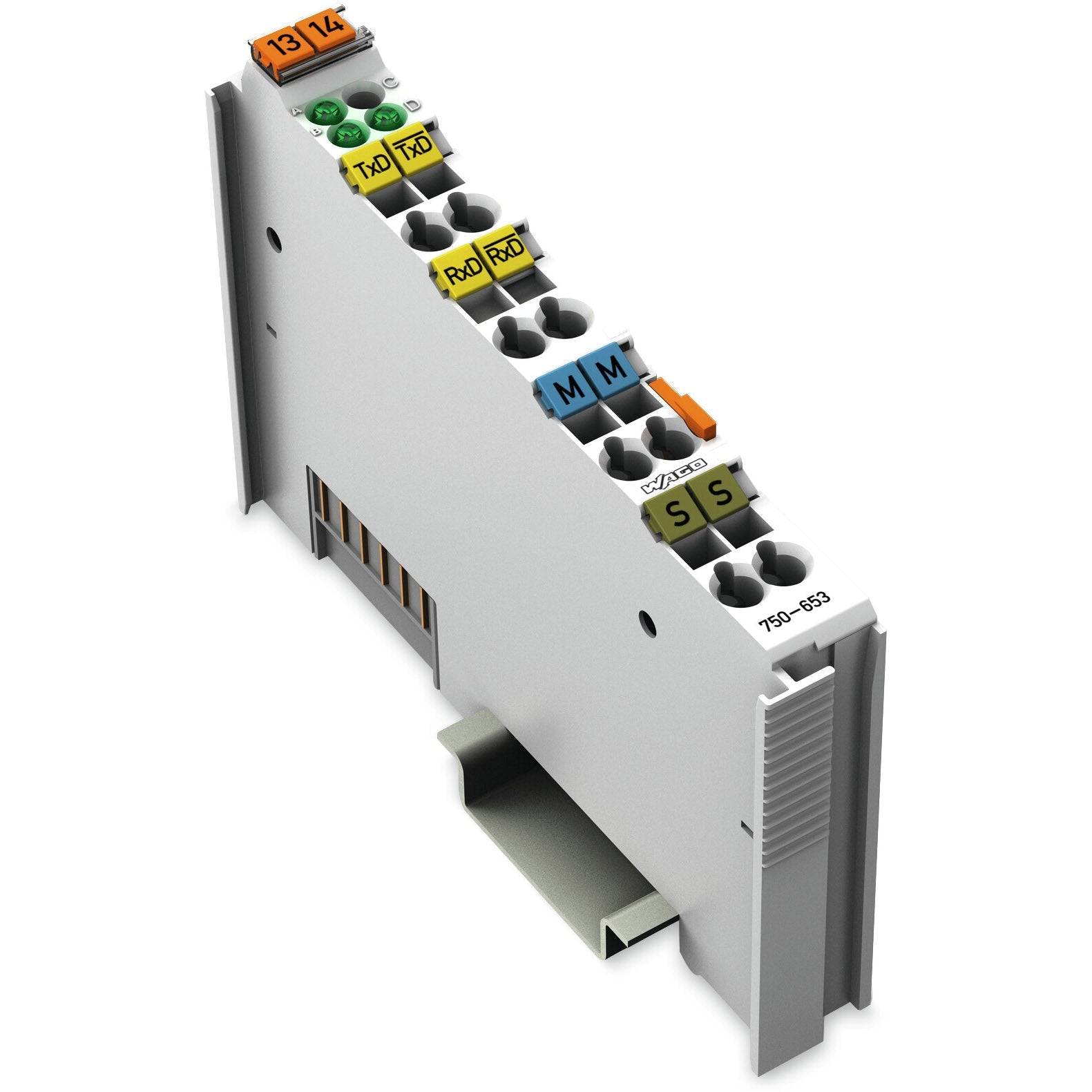

Communications slice module with parity none + 8-bits (data) / 1-bit (stop) - WAGO (750 series) - RS-485 Interface - 9.6kbit/s - with RS-485 + RS-422 communication capability - supply voltage 5Vdc (supplied by system) - with 8 x CAGE CLAMP spring connections - DIN-35 rail mounting (12mm width) - IP20 - rated for 0°C...+55°C ambient - equivalent to 750653

Specifications

• Primary brand: WAGO
• Functions: Communications slice module
• Design: parity none|8-bits (data) / 1-bit (stop)
• Supply voltage (DC): 5Vdc (supplied by system)
• Display: LED (A/B/D) green -- Function / TxD / RxD
• Connection type: 8 x CAGE CLAMP spring connections
• Mounting mode: DIN-35 rail
• Speed: 9.6kbit/s
• Dimensions: H100mm x W12mm x D69.8mm
• Net Width (mm): 12mm
• Material: Polycarbonate (PC) / Polyamide (PA) 6.6 housing
• Ambient air temperature for operation: 0°C...+55°C
• Ambient air temperature for storage: -40°C...+85°C
• Humidity: 95% relative humidity (RH; non-condensing)
• Mechanical resistance: Vibration resistance according to EN 60068-2-6 -- 4g|Shock resistance according to EN 60068-2-27 --15g
• Current consumption: 65mA (5Vdc; system supply)
• GTIN code: 4045454519582
• Customs Tariff Number: 85389099990
• eClass code: 27-24-26-08
• ETIM code: EC001604
• Order code / Manufacturer SKU: 750-653
• Manufacturer product status: Commercialized
• Equivalent to: 750653
• EAN code: 4045454519582
• Compliant with standard(s): CE|EMC immunity to interference|- EN 61000-6-2|- marine applications|EMC emission of interference|- EN 61000-6-4|- marine applications|General approvals|- EAC - GZO Almaty Standart - TP TC 020/2011 - certificate EAC CoC 03083|- KC - National Radio Research Agency - certificate MSIP-REM-W43-SIM750|- UL - Underwriters Laboratories Inc. (ORDINARY LOCATIONS) - UL 508 - certificate E175199|Declarations of conformity and manufacturer's declarations|- EU-Declaration of Conformity - WAGO GmbH & Co. KG|- UK-Declaration of Conformity - WAGO GmbH & Co. KG|Approvals for marine applications|- ABS - American Bureau of Shipping - certificate 22-2219060|- BSH - Bundesamt fuer Seeschifffahrt und Hydrographie - certificate 1104|- BV - Bureau Veritas S.A. - certificate 13453/E0 BV|- DNV - DNV GL SE - DNV-CG-0339 / Aug.2021 - certificate TAA0000194|- KR - Korean Register of Shipping - certificate KR HMB05880-AC001|- LR - Lloyds Register EMEA - certificate LR22180952TA|- PRS - Polski Rejestr Statkow - certificate TE/1101/880590/23|- RINA - RINA Germany GmbH - certificate ELE343521XG001|Approvals for hazardous areas|- ATEX - TUV Nord Cert GmbH - EN 60079-0 - certificate TUV14ATEX148929X (II 3 G Ex ec IIC T4 Gc)|- CCCEx - CQST/CNEx - CNCA-C23-01 - certificate 2020312310000213 (Ex ec IIC T4 Gc)|- IECEx - TUV Nord Cert GmbH - IEC 60079-0 - certificate IECEx TUN 14.0035 X (Ex ec IIC T4 Gc)|- INMETRO - TUV Rheinland do Brasil Ltda. - IEC 60079-0 - certificate TUV 12.1297 X|- UKEx - WAGO GmbH & Co. KG - EN 60079-0 - certificate UKCA_WAGO22UKEX003X_ec|- UL - Underwriters Laboratories Inc. (HAZARDOUS LOCATIONS) - UL 121201 - certificate E198726|RoHS compliant with exemption (6(c) / 7(a) / 7(c)-I / 7(c)-II)
• Location of origin: Germany
• Degree of pollution: 2
• Level 1 category: Automation components
• Level 2 category: Programmable Logic Controllers & components
• Level 3 category: Communication units
• Product title: Communications slice module - WAGO

Commercial data

• Country of origin: DE
• Customs tariff number: 85389099990
• ECCN: NO US CLASSIFICATION
• eCl@ss 10.0: 27-24-26-08
• eCl@ss 9.0: 27-24-26-08
• ETIM 8.0: EC001604
• ETIM 9.0: EC001604
• GTIN: 4045454519582
• Packaging type: box
• Product Group: 15 (I/O System)
• PU (SPU): 1 pcs

Connection data

• Connectable conductor materials: Copper
• Connection technology: inputs/outputs: 8 x CAGE CLAMP^®
• Connection type 1: Inputs/Outputs
• Fine-stranded conductor: 0.08 … 2.5 mm² / 28 … 14 AWG
• Solid conductor: 0.08 … 2.5 mm² / 28 … 14 AWG
• Strip length: 8 … 9 mm / 0.31 … 0.35 inches

Environmental Product Compliance

• CAS-No.: 1303-86-2|1317-36-8|7439-92-1
• REACH Candidate List Substance: Diboron trioxide|Lead|Lead monoxide
• RoHS Compliance Status: Compliant,With Exemption
• RoHS Exemption: 6(c)|7(a)|7(c)-I|7(c)-II
• SCIP notification number (Austria): d2c5fa95-e5e2-4d96-9449-39cb956d44ec
• SCIP notification number (Belgium): 22aa927c-b4cd-499f-b1b9-393d93b5697c
• SCIP notification number (Bulgaria): a7790a1d-bd20-49ec-8673-b492659132b1
• SCIP notification number (Czech Republic): de7a1fd9-c65c-4d00-8a30-cde94f2906a1
• SCIP notification number (Denmark): 43108617-902a-490f-89d0-fea68089f98b
• SCIP notification number (Finland): def3da4e-b077-4ede-b57a-a05330d1e807
• SCIP notification number (France): 5b06fee7-31ad-4d14-bf89-b46a768b1faa
• SCIP notification number (Germany): 66a201f5-e6f5-4ba3-9b30-59d1597d683f
• SCIP notification number (Hungary): 813297e1-0a4f-46b5-853a-54c7979c8e2b
• SCIP notification number (Italy): a1730475-9761-44a8-a28f-a97b2b004404
• SCIP notification number (Netherlands): 3b614812-2c1b-462a-adf1-fd3c0b054f30
• SCIP notification number (Poland): c5060cdd-7493-4ba8-8999-d6b2df848a7a
• SCIP notification number (Romania): fce0e314-b82a-406e-a5dd-1d1b107c5119
• SCIP notification number (Sweden): 4bfdeb13-b70f-432f-b650-a61e1716165e

Environmental requirements

• Ambient temperature (operation): 0 … +55 °C
• Ambient temperature (storage): -40 … +85 °C
• EMC emission of interference: per EN 61000-6-4, marine applications
• EMC immunity to interference: per EN 61000-6-2, marine applications
• Exposure to pollutants: Per IEC 60068-2-42 and IEC 60068-2-43
• Mounting position: Horizontal left, horizontal right, horizontal top, horizontal bottom, vertical top and vertical bottom
• Operating altitude: 0 … 2000 m / 0 … 6562 ft
• Permissible H₂S contaminant concentration at a relative humidity 75 %: 10ppm
• Permissible SO₂ contaminant concentration at a relative humidity 75 %: 25ppm
• Pollution degree: 2 per IEC 61131-2
• Protection type: IP20
• Relative humidity (without condensation): 95%
• Shock resistance: 15g per IEC 60068-2-27
• Vibration resistance: 4g per IEC 60068-2-6

Material data

• Color: light gray
• Conformity marking: CE
• Fire load: 1.058MJ
• Housing material: Polycarbonate; polyamide 6.6
• Weight: 48.8g

Mechanical data

• Mounting type: DIN-35 rail

Physical data

• Depth: 69.8 mm / 2.748 inches
• Depth from upper-edge of DIN-rail: 62.6 mm / 2.465 inches
• Height: 100 mm / 3.937 inches
• Width: 12 mm / 0.472 inches

Technical data

• Bit transfer: ISO 8482 / DIN 66259 - 4
• Buffer: 120-byte input / 16-byte output
• Current consumption (5 V system supply): 65mA
• Data width: 1 x 24-bit input/output (3-byte user data); 1 x 8-bit control/status
• Indicators: LED (A, B, D) green: Function, TxD, RxD
• Isolation: 500 V system/field
• Line length: approx. 1000 m twisted pair
• Number of data bits: 8
• Number of stop bits: 1
• Parity: None
• Signal type: RS-422 / RS-485
• Supply voltage (system): 5 VDC; via data contacts
• Transmission channels: 1 TxD / 1 RxD, full-duplex
• Transmission rate: 9.6 kBd
