Wago - 750-530

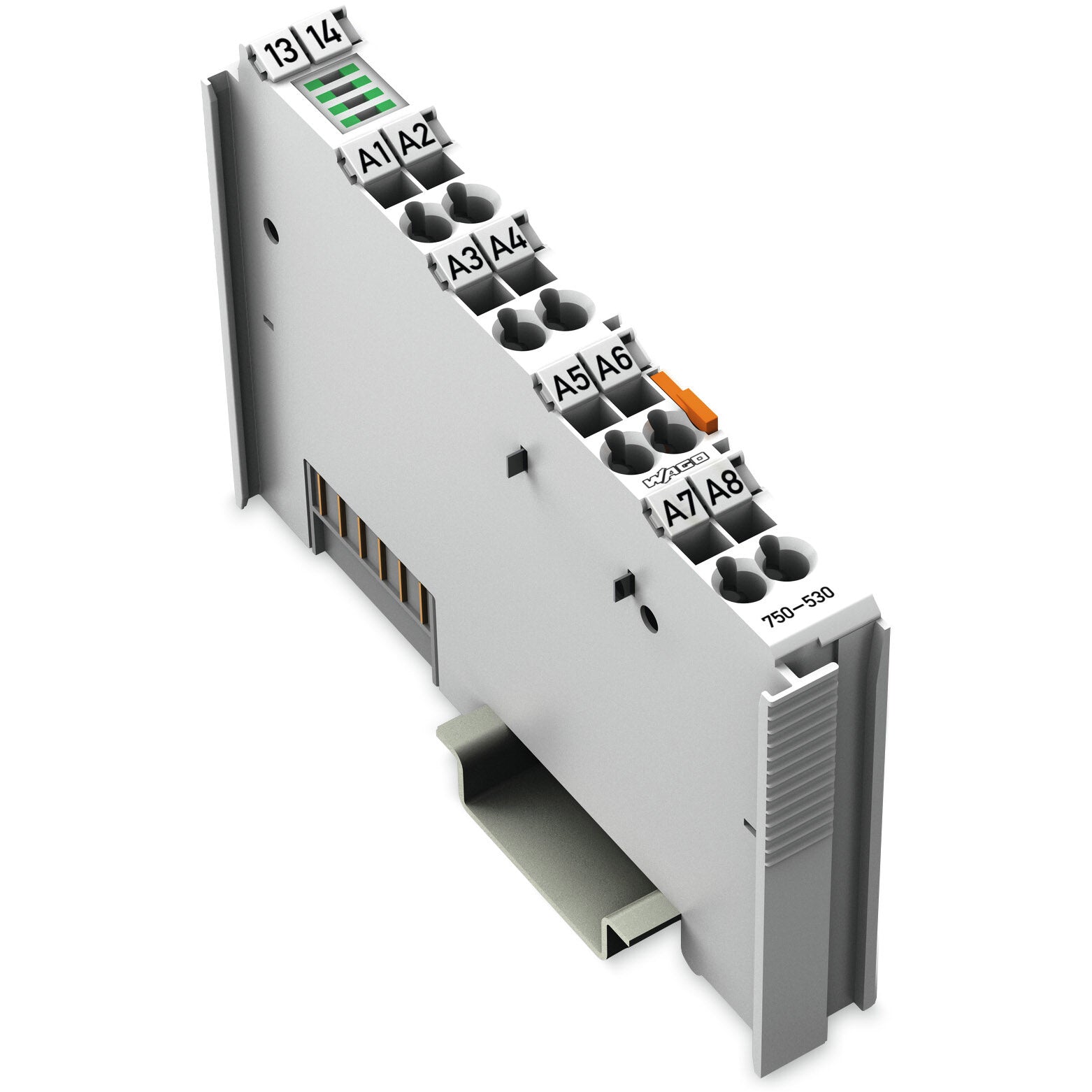

Standard DC digital output slice unit module - WAGO (750 series) - 8DO; 24Vdc; 0.5A - 8I/O [8DO (8 x digital outputs (24Vdc / 500mA; high-side switching; 1-wire))] - supply voltage 5Vdc (supplied by system) - with spring CAGE CLAMP connections - DIN-35 rail mounting (12mm width) - IP20 - rated for 0°C...+55°C ambient - equivalent to 750530

Specifications

• Primary brand: WAGO
• Functions: Standard DC digital output slice unit module
• Supply voltage (DC): 5Vdc (supplied by system)|18-31.2Vdc adjustable suppl. to field sensing devices
• Frequency: 2kHz switching frequency
• Display: LED (A-H) green -- Status DO 1...DO 8
• Connection type: spring CAGE CLAMP connections
• Protection functions: short-circuit protection
• Mounting mode: DIN-35 rail
• Digital outputs: 8 x digital outputs (24Vdc / 500mA; high-side switching; 1-wire)
• Dimensions: H100mm x W12mm x D67.8mm
• Net Width (mm): 12mm
• Material: Polycarbonate (PC) / Polyamide (PA) 6.6 housing
• Ambient air temperature for operation: 0°C...+55°C
• Ambient air temperature for storage: -40°C...+85°C
• Humidity: 95% relative humidity (RH; non-condensing)
• Mechanical resistance: Vibration resistance according to EN 60068-2-6 -- 4g|Shock resistance according to EN 60068-2-27 --15g
• Current consumption: 25mA (5Vdc; system supply)|15mA (field supply; no external load)
• Customs Tariff Number: 85371098990
• ETIM code: EC001599
• eClass code: 27-24-26-04
• Order code / Manufacturer SKU: 750-530
• Manufacturer product status: Commercialized
• Equivalent to: 750530
• EAN code: 4045454686901
• Compliant with standard(s): CE|EMC immunity to interference|- EN 61000-6-2|- marine applications|EMC emission of interference|- EN 61000-6-4|- marine applications|General approvals|- EAC - GZO Almaty Standart - TP TC 020/2011 - certificate EAC CoC 03083|- KC - National Radio Research Agency - Article 58-2 / Clause 3 - certificate MSIP-REM-W43-DOM750|- UL - Underwriters Laboratories Inc. (ORDINARY LOCATIONS) - UL 508 - certificate E175199|Declarations of conformity and manufacturer's declarations|- EU-Declaration of Conformity - WAGO GmbH & Co. KG|- UK-Declaration of Conformity - WAGO GmbH & Co. KG|Approvals for marine applications|- ABS - American Bureau of Shipping - certificate 22-2219060|- BSH - Bundesamt fuer Seeschifffahrt und Hydrographie - certificate 1104|- BV - Bureau Veritas S.A. - certificate 13453/E0 BV|- DNV - DNV GL SE - DNV-CG-0339 / Aug.2021 - certificate TAA0000194|- KR - Korean Register of Shipping - certificate KR HMB05880-AC001|- LR - Lloyds Register EMEA - certificate LR22180952TA|- PRS - Polski Rejestr Statkow - certificate TE/1101/880590/23|- RINA - RINA Germany GmbH - certificate ELE343521XG001|Approvals for hazardous areas|- ATEX - TUV Nord Cert GmbH - EN 60079-0 - certificate TUV14ATEX148929X (II 3 G Ex ec IIC T4 Gc)|- CCCEx - CQST/CNEx - CNCA-C23-01 - certificate 2020312310000213 (Ex ec IIC T4 Gc)|- IECEx - TUV Nord Cert GmbH - IEC 60079-0 - certificate IECEx TUN 14.0035 X (Ex ec IIC T4 Gc)|- INMETRO - TUV Rheinland do Brasil Ltda. - IEC 60079-0 - certificate TUV 12.1297 X|- UKEx - WAGO GmbH & Co. KG - EN 60079-0 - certificate UKCA_WAGO22UKEX003X_ec|- UL - Underwriters Laboratories Inc. (HAZARDOUS LOCATIONS) - UL 121201 - certificate E198726|RoHS compliant with exemption (6(c) / 7(a) / 7(c)-I / 7(c)-II)
• Location of origin: Germany
• Degree of pollution: 2
• Level 1 category: Automation components
• Level 2 category: Programmable Logic Controllers & components
• Level 3 category: I-O Units
• Product title: Standard DC digital output slice unit module - WAGO

Commercial data

• Country of origin: DE
• Customs tariff number: 85371098990
• ECCN: NO US CLASSIFICATION
• eCl@ss 10.0: 27-24-26-04
• eCl@ss 9.0: 27-24-26-04
• ETIM 8.0: EC001599
• ETIM 9.0: EC001599
• Packaging type: Box
• Product Group: 15 (I/O System)
• PU (SPU): 1 pcs

Connection data

• Connectable conductor materials: Copper
• Connection technology: inputs/outputs: 8 x CAGE CLAMP^® (outputs)
• Connection type 1: Output
• Fine-stranded conductor: 0.08 … 2.5 mm² / 28 … 14 AWG
• Solid conductor: 0.08 … 2.5 mm² / 28 … 14 AWG
• Strip length: 8 … 9 mm / 0.31 … 0.35 inches

Environmental Product Compliance

• CAS-No.: 1303-86-2|1317-36-8|7439-92-1|75980-60-8
• REACH Candidate List Substance: Diboron trioxide|Lead|Lead monoxide|Phosphine oxide, diphenyl(2,4,6-trimethylbenzoyl)-
• RoHS Compliance Status: Compliant,With Exemption
• RoHS Exemption: 6(c)|7(a)|7(c)-I|7(c)-II
• SCIP notification number (Austria): 0a3535f5-b5f6-4f31-9d1c-cc0a2dc165d7
• SCIP notification number (Belgium): dad83b9d-7c0b-4b2c-b728-c70dd1eb7942
• SCIP notification number (Bulgaria): 605af9ab-35fe-4bef-a5a8-cc57a058b31b
• SCIP notification number (Czech Republic): 3ab56b02-2055-4a9d-9fd8-b015cae2db11
• SCIP notification number (Denmark): 0e22c2fb-ad83-4b45-a458-643c39790e2e
• SCIP notification number (Finland): 31326323-4999-4142-80f0-541535f2c47d
• SCIP notification number (France): 9bb13b54-64a6-4958-8e42-c864845dbbcb
• SCIP notification number (Germany): 09643daa-e373-4761-8751-89c71da03c4c
• SCIP notification number (Hungary): a72ad92f-2d4c-40c7-98c3-c691ed1d2bf1
• SCIP notification number (Italy): 89a7a76f-54b2-4622-a674-172ddd51421a
• SCIP notification number (Netherlands): 357cf1eb-6f46-48b6-a6f0-5bfb277cdc25
• SCIP notification number (Poland): 4da52ed3-5a8b-4d4a-b4ca-aafc887c87bd
• SCIP notification number (Romania): 3c63f123-ad8f-4f74-a958-2951b1ac6e8e
• SCIP notification number (Sweden): 7f3ad3b4-dd17-4912-ab28-203e3864a801

Environmental requirements

• Ambient temperature (operation): 0 … +55 °C
• Ambient temperature (storage): -40 … +85 °C
• EMC emission of interference: per EN 61000-6-4, marine applications
• EMC immunity to interference: per EN 61000-6-2, marine applications
• Exposure to pollutants: per IEC 60068-2-42 and IEC 60068-2-43
• Mounting position: Horizontal left, horizontal right, horizontal top, horizontal bottom, vertical top and vertical bottom
• Operating altitude: 0 … 2000 m / 0 … 6562 ft
• Permissible H₂S contaminant concentration at a relative humidity 75 %: 10ppm
• Permissible SO₂ contaminant concentration at a relative humidity 75 %: 25ppm
• Pollution degree: 2 per IEC 61131-2
• Protection type: IP20
• Relative humidity (without condensation): 95%
• Shock resistance: 15g per IEC 60068-2-27
• Vibration resistance: 4g per IEC 60068-2-6

Material data

• Color: light gray
• Conformity marking: CE
• Fire load: 0.967MJ
• Housing material: Polycarbonate; polyamide 6.6
• Weight: 49g

Mechanical data

• Mounting type: DIN-35 rail
• Pluggable connector: fixed

Physical data

• Depth: 67.8 mm / 2.669 inches
• Depth from upper-edge of DIN-rail: 60.6 mm / 2.386 inches
• Height: 100 mm / 3.937 inches
• Width: 12 mm / 0.472 inches

Technical data

• Actuator connection: 8 x (1-wire)
• Current carrying capacity (power jumper contacts): 10A
• Current consumption (5 V system supply): 25mA
• Current consumption, field supply (module with no external load): 15mA
• Indicators: LED (A-H) green: Status DO 1 … DO 8
• Inductive load switch-off energy dissipation (max.): 0.9J
• Isolation: 500 V system/field
• Load type: Resistive, inductive, lamp load
• Number of digital outputs: 8
• Number of incoming power jumper contacts: 2
• Number of outgoing power jumper contacts: 2
• Output characteristic: high-side switching
• Output current: short-circuit-protected
• Output current per channel: 0.5A
• Output data width (internal) max.: 8bits
• Signal type: Digital
• Signal type (voltage): 24 VDC
• Supply voltage (field): 24 VDC (-25 … +30 %); via power jumper contacts (power supply via blade contact; transmission (field side supply voltage only) via spring contact)
• Supply voltage (system): 5 VDC; via data contacts
• Switching frequency (max.): 2 kHz
• Total number of channels (module): 8
