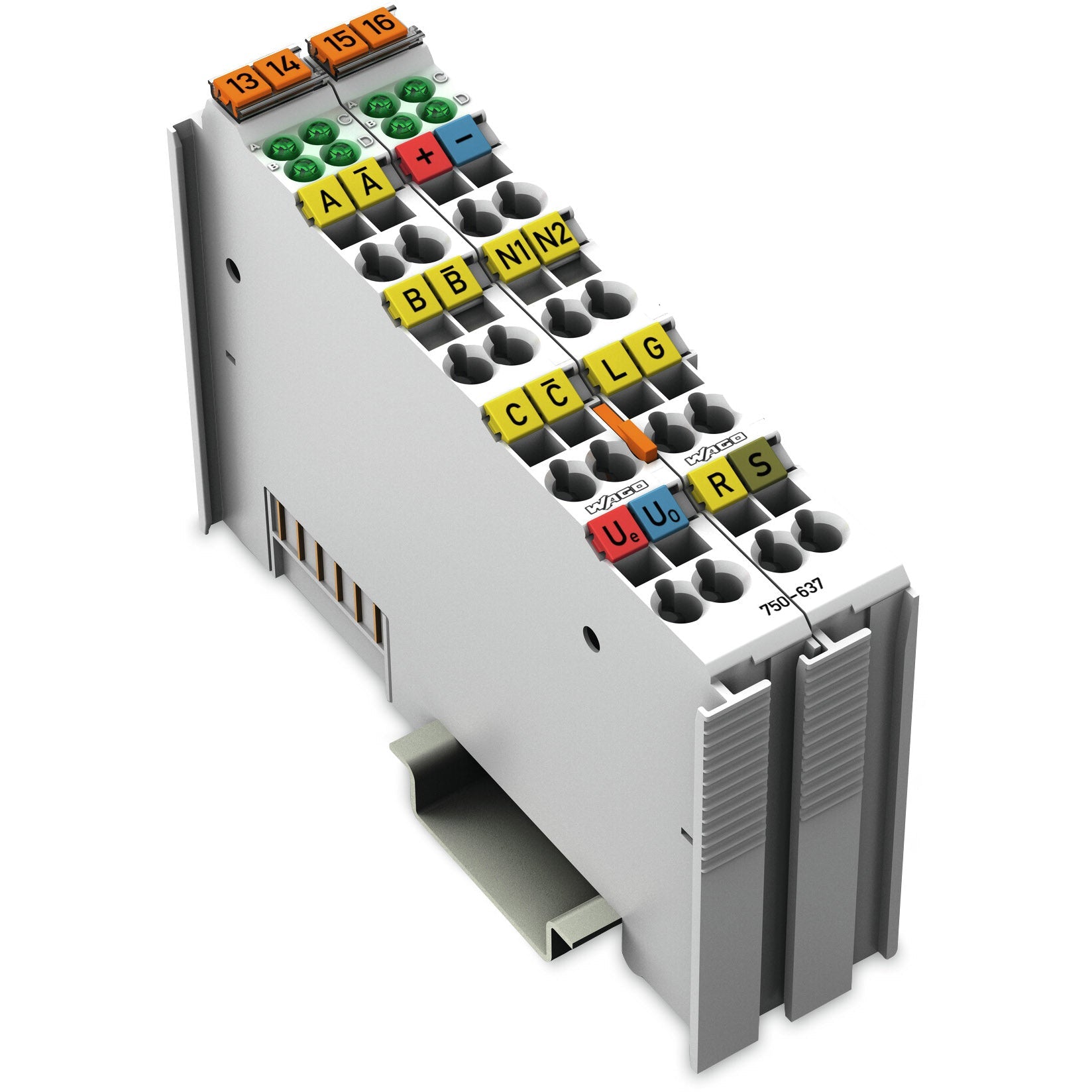

Incremental encod. interface unit with binary code + 4 x evaluations - WAGO (750 series) - Incremental encod.; RS-422; 32-bits - 1I/O [1DI (1 x digital input (A / not-A / B / not-B / C / not-C RS-422 encod. input; 32-bits counter; 250kHz max.))] - supply voltage 5Vdc (supplied by system) - with spring CAGE CLAMP connections - DIN-35 rail mounting (24mm width) - IP20 - rated for 0°C...+55°C ambient - equivalent to 750637

Specifications

• Primary brand: WAGO
• Functions: Incremental encod. interface unit
• Design: binary code|4 x evaluations
• Supply voltage (DC): 5Vdc (supplied by system)|5Vdc / 300mA encod. suppl. output
• Display: LED (A-D/A-D) green -- A/C/B/Latch/Gate/N1/Ref/N2
• Connection type: spring CAGE CLAMP connections
• Protection functions: short-circuit protection
• Mounting mode: DIN-35 rail
• Digital inputs: 1 x digital input (A / not-A / B / not-B / C / not-C RS-422 encod. input; 32-bits counter; 250kHz max.)
• Dimensions: H100mm x W24mm x D69.8mm
• Net Width (mm): 24mm
• Material: Polycarbonate (PC) / Polyamide (PA) 6.6 housing
• Ambient air temperature for operation: 0°C...+55°C
• Ambient air temperature for storage: -40°C...+85°C
• Humidity: 95% relative humidity (RH; non-condensing)
• Mechanical resistance: Vibration resistance according to EN 60068-2-6 -- 4g|Shock resistance according to EN 60068-2-27 --15g
• Current consumption: 110mA (5Vdc; system supply)|35mA (field supply; no external load)
• Customs Tariff Number: 85389099990
• ETIM code: EC001601
• eClass code: 27-24-26-05
• GTIN code: 4045454801021
• Order code / Manufacturer SKU: 750-637
• Manufacturer product status: Commercialized
• Equivalent to: 750637
• EAN code: 4045454801021
• Compliant with standard(s): CE|EMC immunity to interference|- EN 61000-6-2|- marine applications|EMC emission of interference|- EN 61000-6-4|- marine applications|General approvals|- EAC - GZO Almaty Standart - TP TC 020/2011 - certificate EAC CoC 03083|- KC - National Radio Research Agency - Article 58-2 / Clause 3 - certificate MSIP-REM-W43-DAM750|- UL - Underwriters Laboratories Inc. (ORDINARY LOCATIONS) - UL 508 - certificate E175199|Declarations of conformity and manufacturer's declarations|- EU-Declaration of Conformity - WAGO GmbH & Co. KG|- UK-Declaration of Conformity - WAGO GmbH & Co. KG|Approvals for marine applications|- ABS - American Bureau of Shipping - certificate 22-2219060|- BSH - Bundesamt fuer Seeschifffahrt und Hydrographie - certificate 1104|- BV - Bureau Veritas S.A. - certificate 30389/C0 BV|- DNV - DNV GL SE - DNV-CG-0339 / Aug.2021 - certificate TAA0000194|- KR - Korean Register of Shipping - certificate KR HMB05880-AC001|- LR - Lloyds Register EMEA - certificate LR22180952TA|- PRS - Polski Rejestr Statkow - certificate TE/1101/880590/23|- RINA - RINA Germany GmbH - certificate ELE343521XG001|Approvals for hazardous areas|- ATEX - TUV Nord Cert GmbH - EN 60079-0 - certificate TUV14ATEX148929X (II 3 G Ex ec IIC T4 Gc)|- CCCEx - CQST/CNEx - CNCA-C23-01 - certificate 2020312310000213 (Ex ec IIC T4 Gc)|- IECEx - TUV Nord Cert GmbH - IEC 60079-0 - certificate IECEx TUN 14.0035 X (Ex ec IIC T4 Gc)|- INMETRO - TUV Rheinland do Brasil Ltda. - IEC 60079-0 - certificate TUV 12.1297 X|- UKEx - WAGO GmbH & Co. KG - EN 60079-0 - certificate UKCA_WAGO22UKEX003X_ec|- UL - Underwriters Laboratories Inc. (HAZARDOUS LOCATIONS) - UL 121201 - certificate E198726|RoHS compliant with exemption (6(c) / 7(a) / 7(c)-I / 7(c)-II)
• Location of origin: Germany
• Degree of pollution: 2
• Level 1 category: Automation components
• Level 2 category: Programmable Logic Controllers & components
• Level 3 category: I-O Units
• Product title: Incremental encod. interface unit - WAGO

Commercial data

• Country of origin: DE
• Customs tariff number: 85389099990
• ECCN: NO US CLASSIFICATION
• eCl@ss 10.0: 27-24-26-05
• eCl@ss 9.0: 27-24-26-05
• ETIM 8.0: EC001601
• ETIM 9.0: EC001601
• GTIN: 4045454801021
• Packaging type: box
• Product Group: 15 (I/O System)
• PU (SPU): 1 pcs

Connection data

• Connectable conductor materials: Copper
• Connection technology: inputs/outputs: 16 x CAGE CLAMP^®
• Connection type 1: Inputs/Outputs
• Fine-stranded conductor: 0.08 … 2.5 mm² / 28 … 14 AWG
• Solid conductor: 0.08 … 2.5 mm² / 28 … 14 AWG
• Strip length: 8 … 9 mm / 0.31 … 0.35 inches

Environmental Product Compliance

• CAS-No.: 79-94-7|1317-36-8|25550-51-0|7439-92-1
• REACH Candidate List Substance: 2,2',6,6'-tetrabromo-4,4'-isopropylidenediphenol|4-Methyl-1,2-cyclohexanedicarboxylic anhydride|Diboron trioxide|Lead|Lead monoxide|Diboron trioxide|Lead|Lead monoxide
• RoHS Compliance Status: Compliant,With Exemption
• RoHS Exemption: 6(c)|7(a)|7(c)-I|7(c)-II
• SCIP notification number (Austria): 21abc064-4481-4f3a-b319-37091b2db5e0
• SCIP notification number (Belgium): 2a0f46b2-16c0-4e75-b053-30768c6d9e4c
• SCIP notification number (Bulgaria): 84adf12d-41a6-4481-af68-a4529d9ab027
• SCIP notification number (Czech Republic): 014c64a8-1c70-4a4d-be8c-a7ee71ad0ddf
• SCIP notification number (Denmark): f048682f-be69-470d-ad61-aa50490d02dd
• SCIP notification number (Finland): 2bd732f0-fe94-4f32-9677-0044c8d38149
• SCIP notification number (France): ee9540ee-3ebd-4d00-a9cd-b34e526b00cb
• SCIP notification number (Germany): 853a9472-274c-4c1d-a275-ef4972a830dc
• SCIP notification number (Hungary): 6effe214-5bd5-48a1-b799-91b0d9c6a930
• SCIP notification number (Italy): 0ed1d04a-cdb1-4bc9-9816-eec5b64123a2
• SCIP notification number (Netherlands): de7e8d99-55c4-442b-add9-7774e8b8879a
• SCIP notification number (Poland): 0c7a0fc6-787b-4396-858d-b621871abbdf
• SCIP notification number (Romania): 7410e3da-9206-4918-95df-db13442489ce
• SCIP notification number (Sweden): 06aa91b5-963d-4796-a091-9d78c4315d29

Environmental requirements

• Ambient temperature (operation): 0 … +55 °C
• Ambient temperature (storage): -40 … +85 °C
• EMC emission of interference: per EN 61000-6-4, marine applications
• EMC immunity to interference: per EN 61000-6-2, marine applications
• Exposure to pollutants: Per IEC 60068-2-42 and IEC 60068-2-43
• Mounting position: Horizontal left, horizontal right, horizontal top, horizontal bottom, vertical top and vertical bottom
• Operating altitude: 0 … 2000 m / 0 … 6562 ft
• Permissible H₂S contaminant concentration at a relative humidity 75 %: 10ppm
• Permissible SO₂ contaminant concentration at a relative humidity 75 %: 25ppm
• Pollution degree: 2 per IEC 61131-2
• Protection type: IP20
• Relative humidity (without condensation): 95%
• Shock resistance: 15g per IEC 60068-2-27
• Vibration resistance: 4g per IEC 60068-2-6

Material data

• Color: light gray
• Conformity marking: CE
• Fire load: 2.242MJ
• Housing material: Polycarbonate; polyamide 6.6
• Weight: 101.4g

Mechanical data

• Mounting type: DIN-35 rail

Physical data

• Depth: 69.8 mm / 2.748 inches
• Depth from upper-edge of DIN-rail: 62.6 mm / 2.465 inches
• Height: 100 mm / 3.937 inches
• Width: 24 mm / 0.945 inches

Technical data

• Commands: Reading, setting, activating
• Counter depth: 32bits
• Current consumption (5 V system supply): 110mA
• Current consumption, field supply (module with no external load): 35mA
• Data width: 1 x 32-bit data 2 x 8-bit control/status
• Encoder connection: A; /A; B; /B; C; /C (RS-422 inputs)
• Indicators: LED (A-D/A-D) green: A, C, B, Latch, Gate, N1, Ref, N2
• Input current (typ.): Latch 5 mA, Gate 7 mA, Ref. 7 mA
• Isolation: 500 V system/field
• Limit frequency: 250kHz
• Output current: short-circuit-protected
• Output current per channel: 0.5A
• Output voltage: 24 VDC
• Quadrature decoder: 4x evaluation
• Supply current (encoder) max.: 300mA
• Supply voltage (system): 5 VDC; via data contacts
• Voltage range for signal (0): U_ABC = RS-422; Latch, gate, ref.: -3 … +5 VDC
• Voltage range for signal (1): U_ABC = RS-422; Latch, gate, ref.: 15 … 30 VDC
• Zero impulse (latch): 32bits
