Wago - 750-404

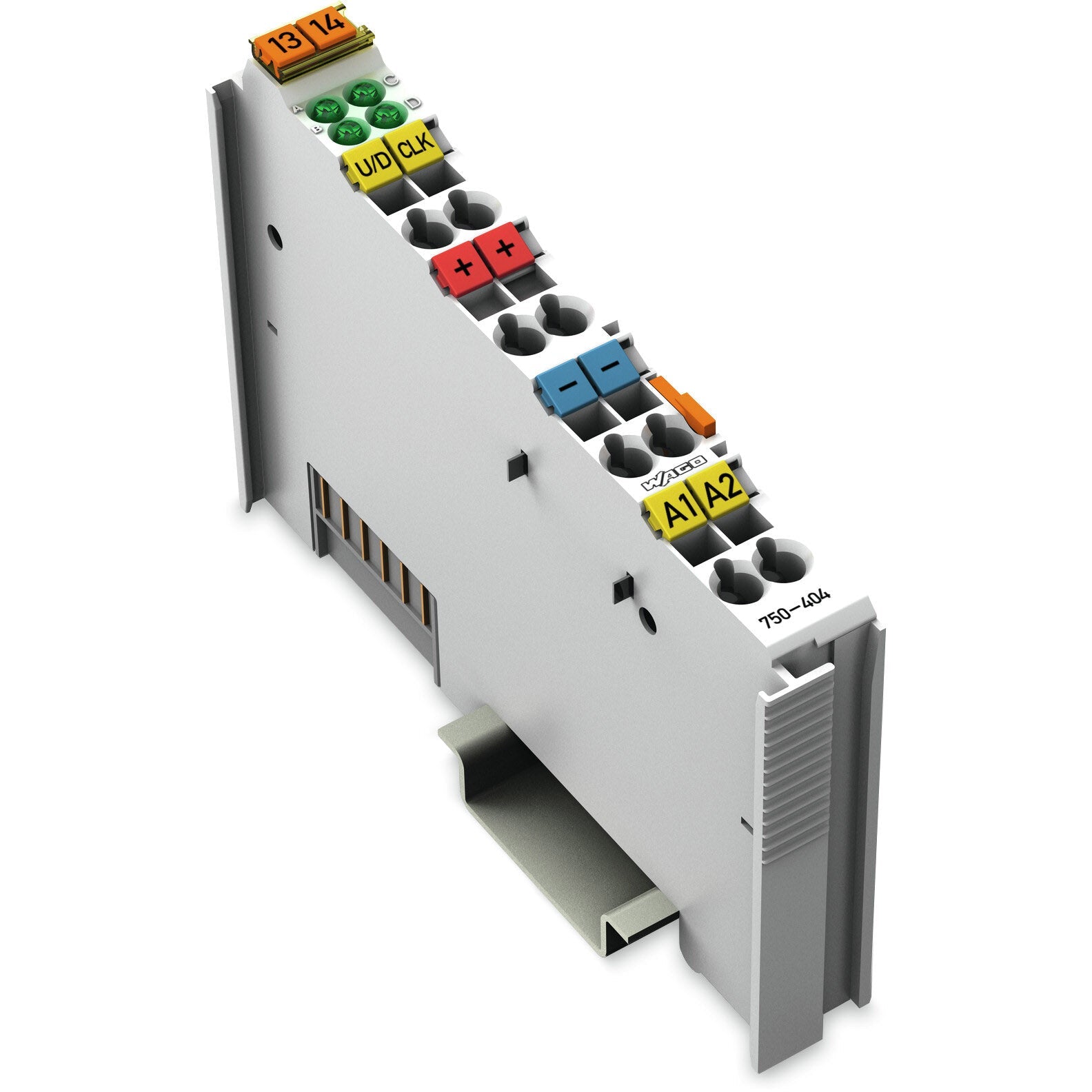

Standard Up/Down counter slice unit module - WAGO (750 series) - Up/Down Counter - 3I/O [1DI (1 x digital input (counter; 24Vdc; 32-bits)) + 2DO (2 x digital outputs (24Vdc / 500mA))] - supply voltage 5Vdc (supplied by system) - with spring CAGE CLAMP connections - DIN-35 rail mounting (12mm width) - IP20 - rated for 0°C...+55°C ambient - equivalent to 750404

Specifications

• Primary brand: WAGO
• Functions: Standard Up/Down counter slice unit module
• Supply voltage (DC): 5Vdc (supplied by system)|20.4-28.8Vdc adjustable suppl. to field sensing devices
• Frequency: 100kHz switching frequency
• Display: LED (A-D) green -- Status U/D / DO 1 / CLOCK / DO 2
• Connection type: spring CAGE CLAMP connections
• Protection functions: short-circuit protection
• Mounting mode: DIN-35 rail
• Digital inputs: 1 x digital input (counter; 24Vdc; 32-bits)
• Digital outputs: 2 x digital outputs (24Vdc / 500mA)|Digital output voltage ranges -3...+5Vdc (OFF) / 15-30Vdc (ON)
• Dimensions: H100mm x W12mm x D69.8mm
• Net Width (mm): 12mm
• Material: Polycarbonate (PC) / Polyamide (PA) 6.6 housing
• Ambient air temperature for operation: 0°C...+55°C
• Ambient air temperature for storage: -40°C...+85°C
• Humidity: 95% relative humidity (RH; non-condensing)
• Mechanical resistance: Vibration resistance according to EN 60068-2-6 -- 4g|Shock resistance according to EN 60068-2-27 --15g
• Current consumption: 70mA (5Vdc; system supply)
• ETIM code: EC001601
• GTIN code: 4045454429737
• Customs Tariff Number: 85389099990
• eClass code: 27-24-26-05
• Order code / Manufacturer SKU: 750-404
• Manufacturer product status: Commercialized
• Equivalent to: 750404
• EAN code: 4045454429737
• Compliant with standard(s): CE|EMC immunity to interference|- EN 61000-6-2|- marine applications|EMC emission of interference|- EN 61000-6-4|- marine applications|General approvals|- EAC - GZO Almaty Standart - TP TC 020/2011 - certificate EAC CoC 03083|- KC - National Radio Research Agency - Article 58-2 / Clause 3 - certificate MSIP-REM-W43-CTM750|- UL - Underwriters Laboratories Inc. (ORDINARY LOCATIONS) - UL 508 - certificate E175199|Declarations of conformity and manufacturer's declarations|- EU-Declaration of Conformity - WAGO GmbH & Co. KG|- UK-Declaration of Conformity - WAGO GmbH & Co. KG|Approvals for marine applications|- ABS - American Bureau of Shipping - certificate 22-2219060|- BSH - Bundesamt fuer Seeschifffahrt und Hydrographie - certificate 1104|- BV - Bureau Veritas S.A. - certificate 13453/E0 BV|- DNV - DNV GL SE - DNV-CG-0339 / Aug.2021 - certificate TAA0000194|- KR - Korean Register of Shipping - certificate KR HMB05880-AC001|- LR - Lloyds Register EMEA - certificate LR22180952TA|- PRS - Polski Rejestr Statkow - certificate TE/1101/880590/23|- RINA - RINA Germany GmbH - certificate ELE343521XG001|Approvals for hazardous areas|- ATEX - TUV Nord Cert GmbH - EN 60079-0 - certificate TUV14ATEX148929X (II 3 G Ex ec IIC T4 Gc)|- CCCEx - CQST/CNEx - CNCA-C23-01 - certificate 2020312310000213 (Ex ec IIC T4 Gc)|- IECEx - TUV Nord Cert GmbH - IEC 60079-0 - certificate IECEx TUN 14.0035 X (Ex ec IIC T4 Gc)|- INMETRO - TUV Rheinland do Brasil Ltda. - IEC 60079-0 - certificate TUV 12.1297 X|- UKEx - WAGO GmbH & Co. KG - EN 60079-0 - certificate UKCA_WAGO22UKEX003X_ec|- UL - Underwriters Laboratories Inc. (HAZARDOUS LOCATIONS) - UL 121201 - certificate E198726|RoHS compliant with exemption (6(c) / 7(a) / 7(c)-I / 7(c)-II)
• Location of origin: Germany
• Degree of pollution: 2
• Level 1 category: Automation components
• Level 2 category: Programmable Logic Controllers & components
• Level 3 category: I-O Units
• Product title: Standard Up/Down counter slice unit module - WAGO

Commercial data

• Country of origin: DE
• Customs tariff number: 85389099990
• ECCN: NO US CLASSIFICATION
• eCl@ss 10.0: 27-24-26-05
• eCl@ss 9.0: 27-24-26-05
• ETIM 8.0: EC001601
• ETIM 9.0: EC001601
• GTIN: 4045454429737
• Packaging type: box
• Product Group: 15 (I/O System)
• PU (SPU): 1 pcs

Connection data

• Connectable conductor materials: Copper
• Connection technology: inputs/outputs: 8 x CAGE CLAMP^®
• Connection type 1: Inputs/Outputs
• Fine-stranded conductor: 0.08 … 2.5 mm² / 28 … 14 AWG
• Solid conductor: 0.08 … 2.5 mm² / 28 … 14 AWG
• Strip length: 8 … 9 mm / 0.31 … 0.35 inches

Environmental Product Compliance

• CAS-No.: 1303-86-2|1317-36-8|7439-92-1|79-94-7
• REACH Candidate List Substance: 2,2',6,6'-tetrabromo-4,4'-isopropylidenediphenol|Diboron trioxide|Lead|Lead monoxide
• RoHS Compliance Status: Compliant,With Exemption
• RoHS Exemption: 7(a)|7(c)-I|6(c)|7(a)|7(c)-I|7(c)-II
• SCIP notification number (Austria): d80cfdd3-3848-4c78-930e-9c5721d9eac2
• SCIP notification number (Belgium): 65082982-5ea3-4a24-a1ac-5c224effded6
• SCIP notification number (Bulgaria): f4016f83-ad0d-4ef5-8cd3-4068567d27cd
• SCIP notification number (Czech Republic): 35e457e9-232a-4c05-9449-1e98b04e80f3
• SCIP notification number (Denmark): 68cad967-7ea2-48cf-8d05-806d7a2bc1fc
• SCIP notification number (Finland): ade73a8d-1797-4cb2-b5d8-caabf8e4574b
• SCIP notification number (France): 32cabb1e-2c6c-49b5-97bf-a4575bd6ea5e
• SCIP notification number (Germany): 73710314-29f5-48e4-9874-17a19fc09c5d
• SCIP notification number (Hungary): ad34b298-75f0-4a6e-861d-49f86e98394d
• SCIP notification number (Italy): bdbd71a6-244c-4a38-bbbd-9d18f32217bf
• SCIP notification number (Netherlands): 23bd7a3f-05a6-4df9-8334-67d66afbb34b
• SCIP notification number (Poland): 55ac56b3-cd14-4a07-b68f-0b94a3a1db93
• SCIP notification number (Romania): 2db344a3-cbd7-4ab3-82d7-70327711e545
• SCIP notification number (Sweden): 930ea83d-05ab-46b7-9abe-d4f47c9fe6e0

Environmental requirements

• Ambient temperature (operation): 0 … +55 °C
• Ambient temperature (storage): -40 … +85 °C
• EMC emission of interference: per EN 61000-6-4, marine applications
• EMC immunity to interference: per EN 61000-6-2, marine applications
• Exposure to pollutants: Per IEC 60068-2-42 and IEC 60068-2-43
• Mounting position: Horizontal left, horizontal right, horizontal top, horizontal bottom, vertical top and vertical bottom
• Operating altitude: 0 … 2000 m / 0 … 6562 ft
• Permissible H₂S contaminant concentration at a relative humidity 75 %: 10ppm
• Permissible SO₂ contaminant concentration at a relative humidity 75 %: 25ppm
• Pollution degree: 2 per IEC 61131-2
• Protection type: IP20
• Relative humidity (without condensation): 95%
• Shock resistance: 15g per IEC 60068-2-27
• Vibration resistance: 4g per IEC 60068-2-6

Material data

• Color: light gray
• Conformity marking: CE
• Fire load: 1.603MJ
• Housing material: Polycarbonate; polyamide 6.6
• Weight: 50g

Mechanical data

• Mounting type: DIN-35 rail

Physical data

• Depth: 69.8 mm / 2.748 inches
• Depth from upper-edge of DIN-rail: 62.6 mm / 2.465 inches
• Height: 100 mm / 3.937 inches
• Width: 12 mm / 0.472 inches

Technical data

• Counter depth: 32bits
• Current carrying capacity (power jumper contacts): 10A
• Current consumption (5 V system supply): 70mA
• Data width: 32-bit data; 8-bit control/status
• Indicators: LED (A-D) green: Status U/D, DO 1, CLOCK, DO 2
• Input current (typ.): 6 mA
• Isolation: 500 V system/field
• Number of counters: 1
• Number of digital outputs: 2
• Number of incoming power jumper contacts: 2
• Number of outgoing power jumper contacts: 2
• Output current: short-circuit-protected
• Output current per channel: 0.5A
• Signal type: Voltage
• Signal type (voltage): 24 VDC
• Supply voltage (field): 24 VDC (-15 … +20 %); via power jumper contacts (power supply via blade contact; transmission (field side supply voltage only) via spring contact)
• Supply voltage (system): 5 VDC; via data contacts
• Switching frequency (max.): 100 kHz
• Voltage range for signal (0): −3 … +5 VDC
• Voltage range for signal (1): 15 … 30 VDC
