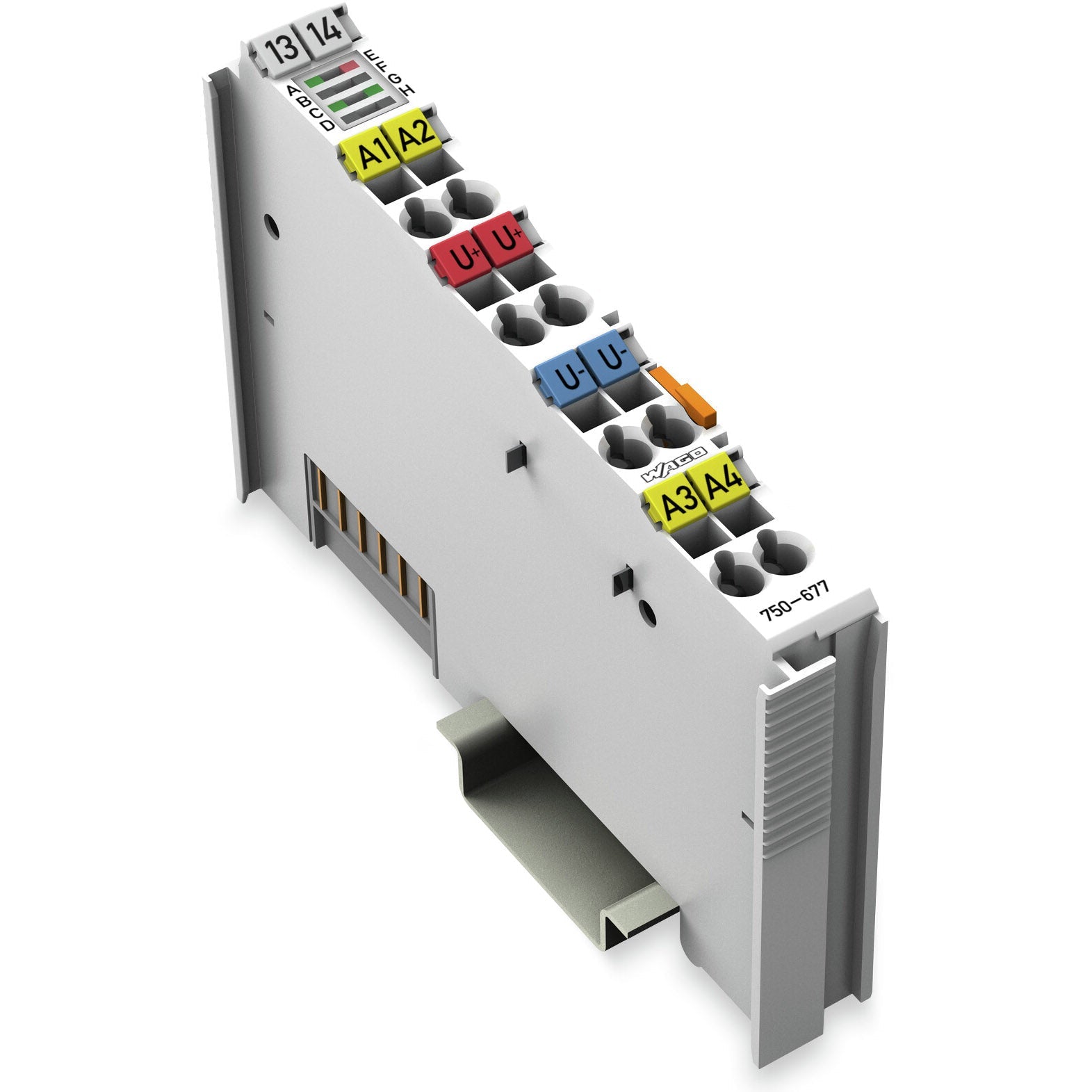

Wago - 750-677

Standard pulse output slice unit module - WAGO (750 series) - 4PWM; 24Vdc; 0.2A; 20kHz - 4I/O [4DO (2 x digital outputs (PWM; 0.2A; 20kHz / 11-bits duty factor control resolution))] - supply voltage 5Vdc (supplied by system) - with spring CAGE CLAMP connections - DIN-35 rail mounting (12mm width) - IP20 - rated for 0°C...+55°C ambient - equivalent to 750677

Specifications

• Primary brand: WAGO
• Functions: Standard pulse output slice unit module
• Supply voltage (DC): 5Vdc (supplied by system)|18-31.2Vdc adjustable suppl. to field sensing devices
• Frequency: 20kHz switching frequency
• Connection type: spring CAGE CLAMP connections
• Protection functions: short-circuit protection
• Mounting mode: DIN-35 rail
• Digital outputs: 2 x digital outputs (PWM; 0.2A; 20kHz / 11-bits duty factor control resolution)
• Dimensions: H100mm x W12mm x D67.8mm
• Net Width (mm): 12mm
• Material: Polycarbonate (PC) / Polyamide (PA) 6.6 housing
• Ambient air temperature for operation: 0°C...+55°C
• Ambient air temperature for storage: -40°C...+85°C
• Humidity: 95% relative humidity (RH; non-condensing)
• Mechanical resistance: Shock resistance according to EN 60068-2-27 --15g
• Current consumption: 85mA (5Vdc; system supply)|20mA (field supply; no external load)
• GTIN code: 4066966237146
• Customs Tariff Number: 85371098990
• ETIM code: EC001601
• Order code / Manufacturer SKU: 750-677
• Manufacturer product status: Commercialized
• Equivalent to: 750677
• EAN code: 4066966237146
• Compliant with standard(s): CE|EMC immunity to interference|- Per EN 61000-6-1|- EN 61000-6-2|EMC emission of interference|- Per EN 61000-6-3|- EN 61000-6-4|General approvals|- EAC - GZO Almaty Standart - TP TC 020/2011 - certificate EAC CoC 03083|- UL - Underwriters Laboratories Inc. (ORDINARY LOCATIONS) - certificate E175199|Declarations of conformity and manufacturer's declarations|- EU-Declaration of Conformity - WAGO GmbH & Co. KG|- UK-Declaration of Conformity - WAGO GmbH & Co. KG|Approvals for marine applications|- DNV - DNV GL SE - DNV-CG-0339 / Aug.2021 - certificate TAA0000194|- PRS - Polski Rejestr Statkow - certificate TE/1101/880590/23|Approvals for hazardous areas|- ATEX - TUV Nord Cert GmbH - certificate TUV14ATEX148929X (II 3 G Ex ec IIC T4 Gc)|- CCCEx - CQST/CNEx - certificate 2020312310000213 (Ex ec IIC T4 Gc)|- IECEx - TUV Nord Cert GmbH - certificate IECEx TUN 14.0035 X (Ex ec IIC T4 Gc)|- INMETRO - TUV Rheinland do Brasil Ltda. - certificate TUV 12.1297 X|- UL - Underwriters Laboratories Inc. (HAZARDOUS LOCATIONS) - UL 121201 - certificate E198726|RoHS compliant with exemption (6(c) / 7(a) / 7(c)-I / 7(c)-II)
• Location of origin: Germany
• Degree of pollution: 2
• Level 1 category: Automation components
• Level 2 category: Programmable Logic Controllers & components
• Level 3 category: I-O Units
• Product title: Standard pulse output slice unit module - WAGO

Commercial data

• Country of origin: DE
• Customs tariff number: 85371098990
• ECCN: NO US CLASSIFICATION
• ETIM 8.0: EC001601
• ETIM 9.0: EC001601
• GTIN: 4066966237146
• Packaging type: Box
• PU (SPU): 1 pcs

Connection data

• Connectable conductor materials: Copper
• Connection technology: inputs/outputs: 8 x CAGE CLAMP^®
• Connection type 1: Inputs/outputs
• Fine-stranded conductor: 0.08 … 2.5 mm² / 28 … 14 AWG
• Solid conductor: 0.08 … 2.5 mm² / 28 … 14 AWG
• Strip length: 8 … 9 mm / 0.31 … 0.35 inches

Environmental Product Compliance

• CAS-No.: 1303-86-2|1317-36-8|7439-92-1
• REACH Candidate List Substance: Diboron trioxide|Lead|Lead monoxide
• RoHS Compliance Status: Compliant,With Exemption
• RoHS Exemption: 6(c)|7(a)|7(c)-I|7(c)-II
• SCIP notification number (Austria): 620ad15a-d74f-4633-8de7-e154306de02d
• SCIP notification number (Belgium): 7840f08b-2f46-4abe-b2f7-85123324b944
• SCIP notification number (Bulgaria): ea82f29f-b03b-4c1d-b869-6df8933ad02c
• SCIP notification number (Czech Republic): e4272a79-4d17-45f7-8289-35e583f59e8d
• SCIP notification number (Denmark): a52e1077-efc9-436d-8383-ae09aabcfcaf
• SCIP notification number (Finland): 49010489-2982-4d5f-ac8c-1bc2d43a9f18
• SCIP notification number (France): 2443fb8e-80a0-47df-84d1-948090ff6c03
• SCIP notification number (Germany): 59342f06-260e-4a24-88b6-88e9e934bc68
• SCIP notification number (Hungary): 88f3b376-0ce9-40c9-9d8d-ed1dc7d91339
• SCIP notification number (Italy): 5c2ec5a8-269b-4117-a9e4-e63b00e35423
• SCIP notification number (Netherlands): 1a08da6d-4af5-42ea-b940-a8865e25fa51
• SCIP notification number (Poland): 35d978a3-729b-4e4d-b836-0f57dbf5a91c
• SCIP notification number (Romania): 9639fb59-9bcf-46e8-94bc-e6fc494a2872
• SCIP notification number (Sweden): d0f6e33c-bc50-433f-87b6-f5f07f4b5e66

Environmental requirements

• Ambient temperature (operation): 0 … +55 °C
• Ambient temperature (storage): -40 … +85 °C
• EMC emission of interference: Per EN 61000-6-3, -4
• EMC immunity to interference: Per EN 61000-6-1, -2
• Exposure to pollutants: Per IEC 60068-2-42 and IEC 60068-2-43
• Mounting position: Horizontal left, horizontal right, horizontal top, horizontal bottom, vertical top and vertical bottom
• Operating altitude: 0 … 2000 m / 0 … 6562 ft
• Pollution degree: 2 per IEC 61131-2
• Protection type: IP20
• Relative humidity (without condensation): 95%
• Shock resistance: 15g per IEC 60068-2-27
• Vibration resistance: Per IEC 60068-2-6

Material data

• Color: light gray
• Conformity marking: CE
• Fire load: 0.965MJ
• Housing material: Polycarbonate; polyamide 6.6
• Weight: 51.3g

Mechanical data

• Mounting type: DIN-35 rail

Physical data

• Depth: 67.8 mm / 2.669 inches
• Depth from upper-edge of DIN-rail: 60.6 mm / 2.386 inches
• Height: 100 mm / 3.937 inches
• Width: 12 mm / 0.472 inches

Technical data

• Current carrying capacity (power jumper contacts): 10A
• Current consumption (5 V system supply): 85mA
• Current consumption, field supply (module with no external load): 20mA
• Data width: 4 x 16-bit data; 4 x 8-bit control/status
• Diagnostics: per modul: undervoltage; per channel pair of a bridge: short circuit after U_Out+ or U_Out–
• Duty cycle: 0 … 100 %; 11-bit resolution
• Indicators: LED (A, C, G) green: Function Module, Channel 1 + 2, Channel 3 + 4; LED (E) red: Error
• Isolation: 500 V system/field
• Number of digital outputs: 4
• Number of incoming power jumper contacts: 2
• Number of outgoing power jumper contacts: 2
• Operating mode: 1: PWM DC (variable duty cycle); 2: PWM Frq (variable frequency); 3: PWM Frq-Cnt; 4: Pulse Frq-Cnt; 5: PWM Pulse-Dir
• Output current: short-circuit-protected; 0.4 A, short-circuit-protected in bridge mode
• Output current per channel: 0.2A
• Pulse frequency: 0 … 20,000 Hz; integer
• Supply voltage (field): 24 VDC (-25 … +30 %); via power jumper contacts (power supply via blade contact; transmission (field side supply voltage only) via spring contact)
• Supply voltage (system): 5 VDC; via data contacts
• Switching frequency (max.): 20 kHz
