Wago - 750-606

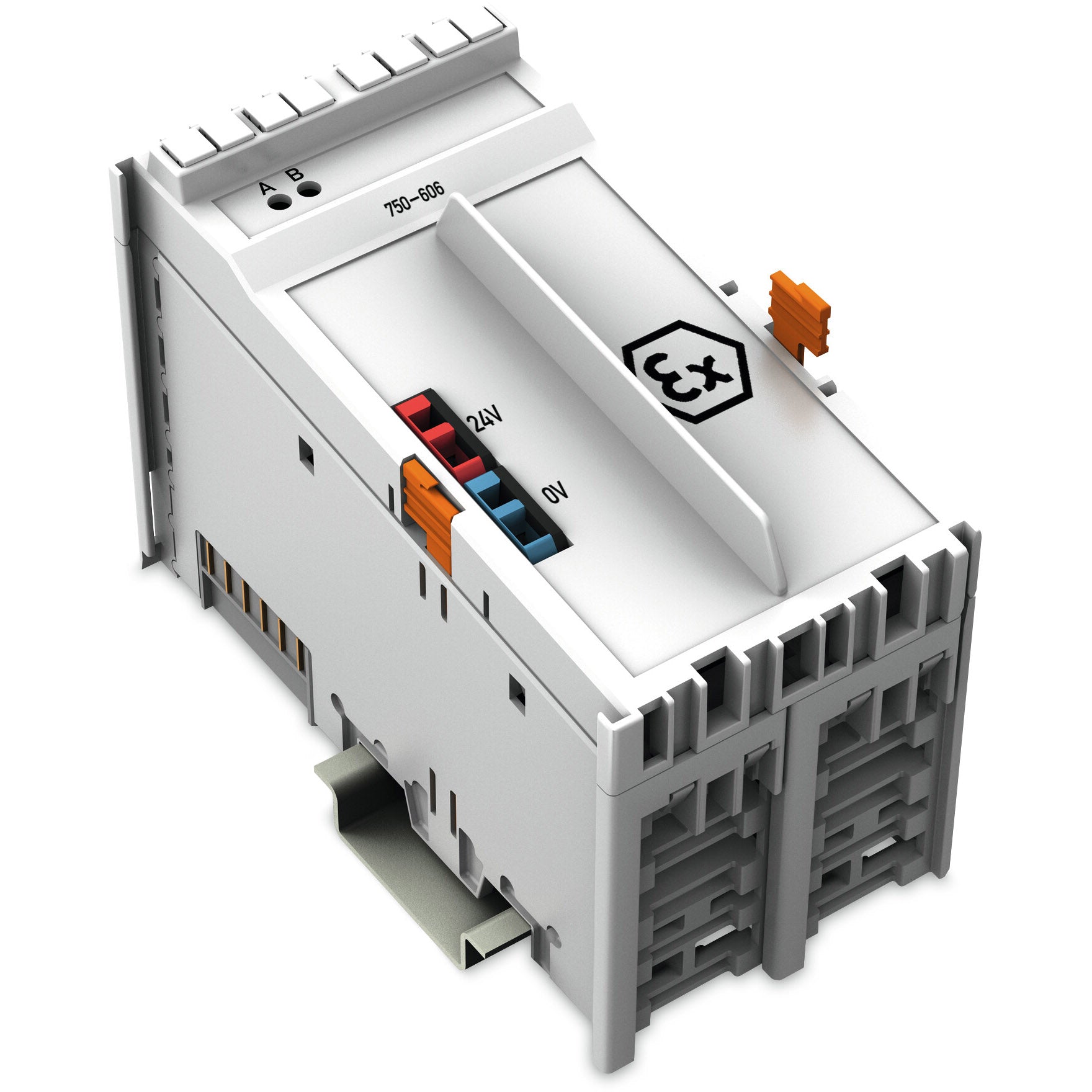

Intrinsically-safe I.O. power supply module with diagnostics + electronic fus. - DNV approved - WAGO (750 series) - 1A output - supply voltage 18-31.2Vdc (24Vdc nom.) - with CAGE CLAMP spring connections - DIN-35 rail mounting (48mm width) - IP20 - rated for 0°C...+55°C ambient - replaces obsolete component(s) 750-625/000-001 - equivalent to 750606

Specifications

• Primary brand: WAGO
• Functions: Intrinsically-safe I.O. power supply module|diagnostics
• Design: electronic fus.|DNV approved
• Supply voltage (DC): 18-31.2Vdc (24Vdc nom.)
• Display: LED (A) green -- Status voltage supply -- Input|LED (B) green/red -- Status voltage supply -- Output|LED (A) green -- operating voltage status -- input|LED (B) green/red -- operating voltage status -- output
• Rated current: 1A
• Connection type: CAGE CLAMP spring connections
• Mounting mode: DIN-35 rail
• Dimensions: H100mm x W48mm x D70.9mm
• Net Width (mm): 48mm
• Material: Polycarbonate (PC) / Polyamide (PA) 6.6 housing
• Ambient air temperature for operation: 0°C...+55°C
• Ambient air temperature for storage: -25°C...+85°C
• Humidity: 95% relative humidity (RH; non-condensing)
• Mechanical resistance: Vibration resistance according to EN 60068-2-6 -- 4g|Shock resistance according to EN 60068-2-27 --15g
• Current consumption: 7.5mA (5Vdc; system supply)
• Power consumption: 29W
• ETIM code: EC001600
• eClass code: 27-24-26-10
• Customs Tariff Number: 85389091890
• Order code / Manufacturer SKU: 750-606
• Manufacturer product status: Commercialized
• Replaces: 750-625/000-001
• Equivalent to: 750606
• EAN code: 4045454961909
• Compliant with standard(s): CE|EMC immunity to interference|- EN 61000-6-2|- marine applications|EMC emission of interference|- EN 61000-6-3|- marine applications|General approvals|- EAC - GZO Almaty Standart - TP TC 020/2011 - certificate EAC CoC 03083|- KC - National Radio Research Agency - Article 58-2 / Clause 3 - certificate MSIP-REM-W43-SPP750|- UL - Underwriters Laboratories Inc. (ORDINARY LOCATIONS) - certificate E175199|Declarations of conformity and manufacturer's declarations|- EU-Ex-Declaration of Conformity - WAGO GmbH & Co. KG|- UK-Ex-Declaration of Conformity - WAGO GmbH & Co. KG|Approvals for marine applications|- ABS - American Bureau of Shipping - certificate 22-2219060|- BV - Bureau Veritas S.A. - certificate 30389/C0 BV|- DNV - DNV GL SE - DNV-CG-0339 / Aug.2021 - certificate TAA0000194|- KR - Korean Register of Shipping - certificate KR HMB05880-AC001|- LR - Lloyds Register EMEA - certificate LR22180952TA|- PRS - Polski Rejestr Statkow - certificate TE/1101/880590/23|- RINA - RINA Germany GmbH - certificate ELE343521XG001|Approvals for hazardous areas|- AEx - UL International Germany GmbH - UL 60079 - certificate E480271|- ATEX - TUV Nord Cert GmbH - EN 60079-0 - certificate TUV12ATEX106032X (Ex ec[iaGa] IIC T4 Gc / [Ex iaDa] IIIC / [Ex iaMa] I)|- CCC - CNEX - CNCA-C23-01 - certificate 2020312310000211 (Ex ec IIC T4 Gc)|- INMETRO - TUV Rheinland do Brasil Ltda. - certificate TUV_14.1911_X|- KTL - Korea Testing Laboratory - KOSHA Article 34 / IEC60079-0 - certificate 20-KA4BO-0093X|- UKEx - Element Materials Technology UK - certificate EMA21UKEX0069X|- UL - Underwriters Laboratories Inc. (HAZARDOUS LOCATIONS) - UL 121201 - certificate E198726|RoHS compliant
• Location of origin: Germany
• Degree of pollution: 2
• Level 1 category: Automation components
• Level 2 category: Programmable Logic Controllers & components
• Level 3 category: Power supply units for PLCs
• Product title: Intrinsically-safe I.O. power supply module - WAGO

Commercial data

• Country of origin: DE
• Customs tariff number: 85389091890
• ECCN: NO US CLASSIFICATION
• eCl@ss 10.0: 27-24-26-10
• eCl@ss 9.0: 27-24-26-10
• ETIM 8.0: EC001600
• ETIM 9.0: EC001600
• Packaging type: Box
• Product Group: 15 (I/O System)
• PU (SPU): 1 pcs

Connection data

• Connectable conductor materials: Copper
• Connection technology: field supply: 2 x CAGE CLAMP^®
• Connection type 1: Field supply
• Fine-stranded conductor: 0.08 … 1.5 mm² / 28 … 14 AWG
• Solid conductor: 0.08 … 1.5 mm² / 28 … 14 AWG
• Strip length: 5 … 6 mm / 0.2 … 0.24 inches

Environmental Product Compliance

• RoHS Compliance Status: Compliant,No Exemption
• SCIP notification number (Austria): c0e961b9-f5ee-4b65-a1a8-472aee7a2b4c
• SCIP notification number (Belgium): 9a9fbad1-2151-4ca2-aec5-25ab8f123037
• SCIP notification number (Bulgaria): ed072b21-fb78-4134-9934-dfa4a6dc0ef4
• SCIP notification number (Czech Republic): 266c66db-8acb-4f00-bf69-094ee6553caa
• SCIP notification number (Denmark): 350710b9-e9a4-4603-aaf5-169b93ff0e77
• SCIP notification number (Finland): 8ff26ff3-9f09-4bb8-aedc-18be5f80fba7
• SCIP notification number (France): 8535d1d5-e475-4e2e-a292-5ec098a62a8b
• SCIP notification number (Germany): 8624e861-a34f-472f-901f-a8b55966be77
• SCIP notification number (Hungary): a933bfdc-ce3e-40d2-95cd-93c13d3796c4
• SCIP notification number (Italy): f9a05418-8ba1-4d38-9d5d-9faba4db04de
• SCIP notification number (Netherlands): 9e17eb72-481a-4d00-bf13-7abd58508e22
• SCIP notification number (Poland): 25b955c9-d2f8-4744-b703-a5b0acbd030b
• SCIP notification number (Romania): 737c4cd0-1a61-4064-827d-49007a2f8b50
• SCIP notification number (Sweden): a8f2598e-8225-4e57-84ed-8ccaa13ba2aa

Environmental requirements

• Ambient temperature (operation): 0 … +55 °C
• Ambient temperature (storage): -25 … +85 °C
• EMC emission of interference: per EN 61000-6-3, marine applications
• EMC immunity to interference: per EN 61000-6-2, marine applications
• Exposure to pollutants: per IEC 60068-2-42 and IEC 60068-2-43
• Mounting position: Horizontal left, horizontal right, horizontal top, horizontal bottom, vertical top and vertical bottom
• Operating altitude: 0 … 2000 m / 0 … 6562 ft
• Permissible H₂S contaminant concentration at a relative humidity 75 %: 10ppm
• Permissible SO₂ contaminant concentration at a relative humidity 75 %: 25ppm
• Pollution degree: 2 per IEC 61131-2
• Protection type: IP20
• Relative humidity (without condensation): 95%
• Shock resistance: 15g per IEC 60068-2-27
• Vibration resistance: 4g per IEC 60068-2-6

Explosion protection

• Ex standard: EN IEC 60079-0, -7, -11
• Identification: IECEx/ INMETRO
  Ex ec IIC T4 Gc
• Power supply (input): U_n = 24 VDC (-25 … +30 %); P_max. = 29 W; U_m = 253 V
• Power supply (output): U_o = 26.8 V (safe voltage per IEC 60079-11, protection level ia); U_n = 24 V ± 0.3 V, I_n = 1 A

Material data

• Conformity marking: CE
• Fire load: 2.599MJ
• Housing material: Polycarbonate; polyamide 6.6
• Weight: 167.5g

Mechanical data

• Mounting type: DIN-35 rail

Notes

• Note:

  General information (e.g., installation regulations) on explosion protection is available in the WAGO I/O System 750 manuals!

Physical data

• Depth: 70.9 mm / 2.791 inches
• Depth from upper-edge of DIN-rail: 63.7 mm / 2.508 inches
• Height: 100 mm / 3.937 inches
• Width: 48 mm / 1.89 inches

Technical data

• Current carrying capacity (power jumper contacts): 1A
• Current consumption (5 V system supply): 7.5mA
• Data width: 2 bits (input voltage failure, fuse triggered)
• Diagnostics: Input voltage failure, fuse triggered
• Fuse: electronic
• Indicators: LED (A) green: operating voltage status: input; LED (B) green/red: operating voltage status: output
• Intrinsically safe Ex i: Yes
• Item description: Power Supply; 24 VDC; Diagnostics
• Number of outgoing power jumper contacts: 2
• Power consumption P_max.: 29 W
• Power loss P_l: < 5 W
• Supply voltage: 24 VDC; (-25 % … +30 %); input voltage
• Supply voltage (field): 24 VDC (-25 … +30 %); (Adjacent Ex i modules are supplied with U_o = max. 27.3 V); via power jumper contacts (power supply via CAGE CLAMP^® connection; transmission via spring contact)
• Supply voltage (system): 5 VDC; via data contacts
