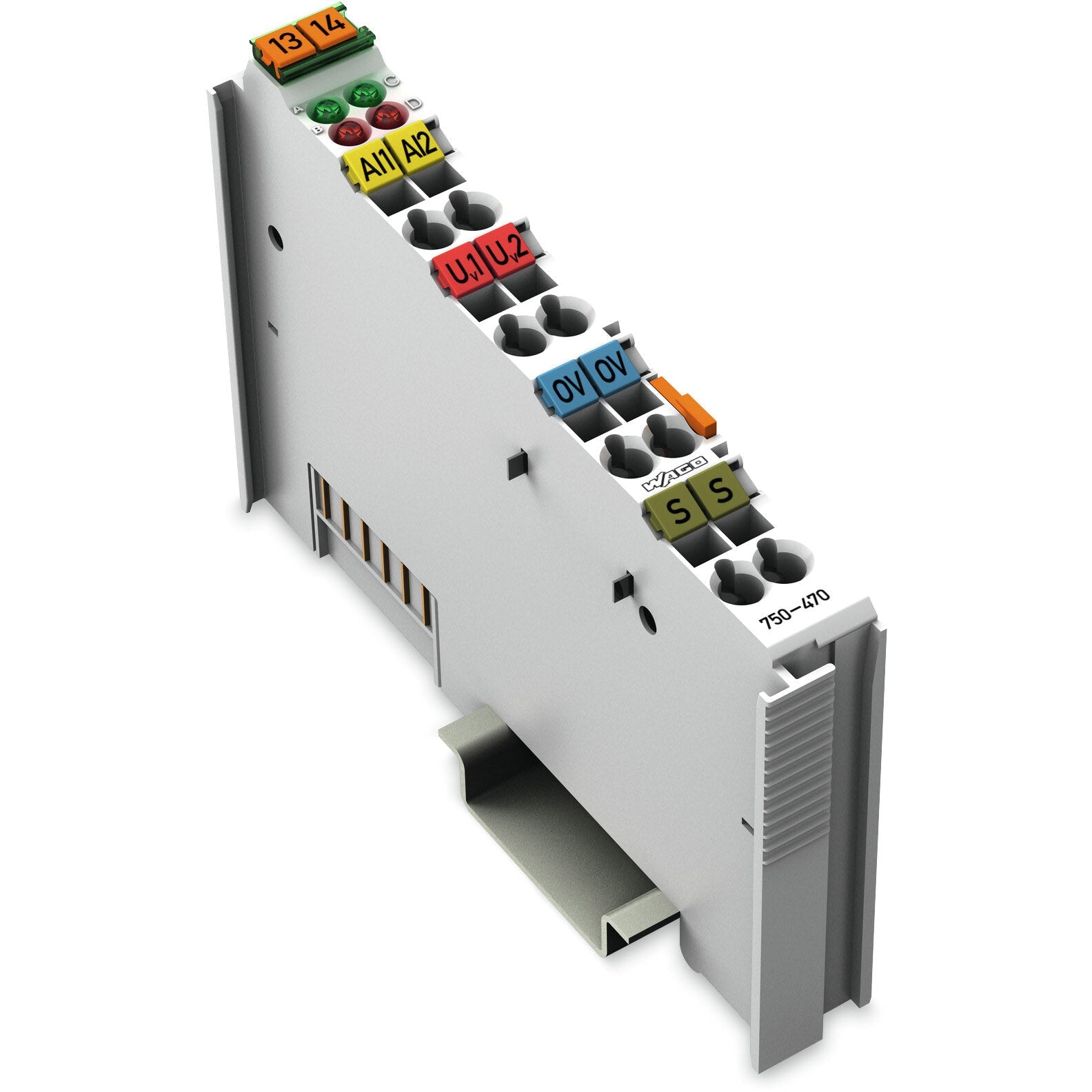

Wago - 750-470

Standard analog input slice unit module - WAGO (750 series) - 2AI; 0-20mA; SE; 50Hz - 2I/O [2AI (2 x analog inputs (0-20mA; Single-ended; 12-bits / 80ms conversion; 2-wire / 3-wire; with 50Hz filter))] - supply voltage 5Vdc (supplied by system) - with spring CAGE CLAMP connections - DIN-35 rail mounting (12mm width) - IP20 - rated for 0°C...+55°C ambient - equivalent to 750470

Specifications

• Primary brand: WAGO
• Functions: Standard analog input slice unit module
• Supply voltage (DC): 5Vdc (supplied by system)|18-31.2Vdc adjustable suppl. to field sensing devices
• Display: LED (A/C) green -- Function AI 1 / AI 2|LED (B/D) red -- Error AI 1 / AI 2
• Connection type: spring CAGE CLAMP connections
• Protection functions: short-circuit protection
• Mounting mode: DIN-35 rail
• Analog inputs: 2 x analog inputs (0-20mA; Single-ended; 12-bits / 80ms conversion; 2-wire / 3-wire; with 50Hz filter)
• Measurement accuracy: +-0.1% (measuring error)|+-0.01% (temperature error)
• Dimensions: H100mm x W12mm x D69.8mm
• Net Width (mm): 12mm
• Material: Polycarbonate (PC) / Polyamide (PA) 6.6 housing
• Ambient air temperature for operation: 0°C...+55°C
• Ambient air temperature for storage: -40°C...+85°C
• Humidity: 95% relative humidity (RH; non-condensing)
• Mechanical resistance: Vibration resistance according to EN 60068-2-6 -- 4g|Shock resistance according to EN 60068-2-27 --15g
• Current consumption: 100mA (5Vdc; system supply)
• eClass code: 27-24-26-01
• Customs Tariff Number: 85389099990
• ETIM code: EC001596
• GTIN code: 4050821866985
• Order code / Manufacturer SKU: 750-470
• Manufacturer product status: Commercialized
• Equivalent to: 750470
• EAN code: 4050821866985
• Compliant with standard(s): CE|EMC immunity to interference|- EN 61000-6-2|- marine applications|EMC emission of interference|- EN 61000-6-3|- marine applications|General approvals|- EAC - GZO Almaty Standart - TP TC 020/2011 - certificate EAC CoC 03083|- KC - National Radio Research Agency - Article 58-2 / Clause 3 - certificate MSIP-REM-W43-AIM750|- UL - Underwriters Laboratories Inc. (ORDINARY LOCATIONS) - UL 508 - certificate E175199|Declarations of conformity and manufacturer's declarations|- EU-Declaration of Conformity - WAGO GmbH & Co. KG|- UK-Declaration of Conformity - WAGO GmbH & Co. KG|Approvals for marine applications|- ABS - American Bureau of Shipping - certificate 22-2219060|- BSH - Bundesamt fuer Seeschifffahrt und Hydrographie - certificate 1104|- BV - Bureau Veritas S.A. - certificate 13453/E0 BV|- DNV - DNV GL SE - DNV-CG-0339 / Aug.2021 - certificate TAA0000194|- KR - Korean Register of Shipping - certificate KR HMB05880-AC001|- LR - Lloyds Register EMEA - certificate LR22180952TA|- PRS - Polski Rejestr Statkow - certificate TE/1101/880590/23|- RINA - RINA Germany GmbH - certificate ELE343521XG001|Approvals for hazardous areas|- ATEX - TUV Nord Cert GmbH - EN 60079-0 - certificate TUV14ATEX148929X (II 3 G Ex ec IIC T4 Gc)|- CCCEx - CQST/CNEx - CNCA-C23-01 - certificate 2020312310000213 (Ex ec IIC T4 Gc)|- IECEx - TUV Nord Cert GmbH - IEC 60079-0 - certificate IECEx TUN 14.0035 X (Ex ec IIC T4 Gc)|- INMETRO - TUV Rheinland do Brasil Ltda. - IEC 60079-0 - certificate TUV 12.1297 X|- UKEx - WAGO GmbH & Co. KG - EN 60079-0 - certificate UKCA_WAGO22UKEX003X_ec|- UL - Underwriters Laboratories Inc. (HAZARDOUS LOCATIONS) - UL 121201 - certificate E198726|RoHS compliant with exemption (6(c) / 7(a) / 7(c)-I / 7(c)-II)
• Location of origin: Germany
• Degree of pollution: 2
• Level 1 category: Automation components
• Level 2 category: Programmable Logic Controllers & components
• Level 3 category: I-O Units
• Product title: Standard analog input slice unit module - WAGO

Commercial data

• Country of origin: DE
• Customs tariff number: 85389099990
• ECCN: NO US CLASSIFICATION
• eCl@ss 10.0: 27-24-26-01
• eCl@ss 9.0: 27-24-26-01
• ETIM 8.0: EC001596
• ETIM 9.0: EC001596
• GTIN: 4050821866985
• Packaging type: box
• Product Group: 15 (I/O System)
• PU (SPU): 1 pcs

Connection data

• Connectable conductor materials: Copper
• Connection technology: inputs/outputs: 8 x CAGE CLAMP^®
• Connection type 1: Inputs/Outputs
• Fine-stranded conductor: 0.08 … 2.5 mm² / 28 … 14 AWG
• Solid conductor: 0.08 … 2.5 mm² / 28 … 14 AWG
• Strip length: 8 … 9 mm / 0.31 … 0.35 inches

Environmental Product Compliance

• CAS-No.: 1303-86-2|1317-36-8|7439-92-1
• REACH Candidate List Substance: Diboron trioxide|Lead|Lead monoxide
• RoHS Compliance Status: Compliant,With Exemption
• RoHS Exemption: 6(c)|7(a)|7(c)-I|7(c)-II
• SCIP notification number (Austria): 9c39a140-bfeb-4171-a638-e8a4c2b6963e
• SCIP notification number (Belgium): c25726b7-9b75-44ea-ad87-04dafbf7baa7
• SCIP notification number (Bulgaria): 184de753-4dae-4366-9d26-b68552a69b28
• SCIP notification number (Czech Republic): 258dae87-1705-4c91-9579-048b797616c5
• SCIP notification number (Denmark): ad718194-0894-452d-8221-b57590f52b1c
• SCIP notification number (Finland): b33326e1-efb4-4227-8253-153a1020df89
• SCIP notification number (France): 08f1fbfa-0844-4a6f-93bf-7deef40f68b7
• SCIP notification number (Germany): 26919951-b6b0-43b3-a909-95da5a5af386
• SCIP notification number (Hungary): 3f3350b9-0c6c-459a-8a68-bc8f262760c6
• SCIP notification number (Italy): 0a995d30-3d73-4f42-8325-f558381b8efe
• SCIP notification number (Netherlands): c81cbab5-7b1a-4fb1-852b-89b9b07728b1
• SCIP notification number (Poland): 9b87f5f6-caec-469a-af7e-9ff36b9147a7
• SCIP notification number (Romania): 1ecc4fd6-f723-4e64-8757-3f22fc517d92
• SCIP notification number (Sweden): a0860704-c32e-4fb0-9db9-f4fd24310c1e

Environmental requirements

• Ambient temperature (operation): 0 … +55 °C
• Ambient temperature (storage): -40 … +85 °C
• EMC emission of interference: per EN 61000-6-3, marine applications
• EMC immunity to interference: per EN 61000-6-2, marine applications
• Exposure to pollutants: Per IEC 60068-2-42 and IEC 60068-2-43
• Mounting position: Horizontal left, horizontal right, horizontal top, horizontal bottom, vertical top and vertical bottom
• Operating altitude: 0 … 2000 m / 0 … 6562 ft
• Permissible H₂S contaminant concentration at a relative humidity 75 %: 10ppm
• Permissible SO₂ contaminant concentration at a relative humidity 75 %: 25ppm
• Pollution degree: 2 per IEC 61131-2
• Protection type: IP20
• Relative humidity (without condensation): 95%
• Shock resistance: 15g per IEC 60068-2-27
• Vibration resistance: 4g per IEC 60068-2-6

Material data

• Color: light gray
• Conformity marking: CE
• Fire load: 0.967MJ
• Housing material: Polycarbonate; polyamide 6.6
• Weight: 52g

Mechanical data

• Mounting type: DIN-35 rail

Physical data

• Depth: 69.8 mm / 2.748 inches
• Depth from upper-edge of DIN-rail: 62.6 mm / 2.465 inches
• Height: 100 mm / 3.937 inches
• Width: 12 mm / 0.472 inches

Technical data

• Conversion time (typ.): 80ms
• Current consumption (5 V system supply): 100mA
• Data width: 2 x 16-bit data; 2 x 8-bit control/status (optional)
• Indicators: LED (A, C) green: Function AI 1, AI 2; LED (B, D) red: Error AI 1, AI 2
• Input filter frequency (analog): 50Hz
• Input resistance (max.): 160Ω
• Input voltage (note): Non-linear, overload protected U = 1.2 V + 100 Ω x I meas
• Isolation: 500 V system/field
• Measurement error (reference temperature): 25°C
• Measurement error, deviation (max.) from the upper-range value: 0.1%
• Noise rejection above sampling frequency: -40dB
• Noise rejection at sampling frequency: -100dB
• Number of analog inputs: 2
• Number of incoming power jumper contacts: 2
• Number of outgoing power jumper contacts: 2
• Resolution [bit]: 12bits
• Sensor connection: 2 x (2-wire, 3-wire)
• Signal characteristics: Single-ended
• Signal type: Current
• Signal type (current): 0 … 20 mADC
• Supply voltage (field): 24 VDC (-25 … +30 %); via power jumper contacts (power supply via blade contact; transmission (field side supply voltage only) via spring contact)
• Supply voltage (system): 5 VDC; via data contacts
• Temperature error (max.) of the upper-range value: 0.01%/K
• Total number of channels (module): 2
